Universal 12V Car Alarm System Auto Burglar Protection Security Keyless with 2 Remote And Alarm Horn

Specification:

Operating voltage: DC12V ±

Quiescent Current: 9ma

Operating Frequency: 433.92MHZ

Remote controller quantity: 2

Remote distance: 100 meters

Size:as the below picture show

Feature:

1.100% Brand new and high quality.

2.Multi-level security arming and high reliability and quality.

3.Can be used in different types of cars.

4.Equipped with 2 Remote Controls, a Siren and wiring harness, etc.

Programmable Functions:

1 Auto Armed

2 Close of the Auto Armed Security

3 Close Ignition Security

4 Open Ignition Security

5 Automatic re-arm

6 Acoustic Arm and Disarm

7 Exclusion of false alarms

8 Anti-asalto by transmitter

9 Delay line buttons by Courtesy Light

10 Anti-asalto by ignition

11 Pulse Type of Channel 3

12 Intermittent horn (Connect)

13 Acoustic Warning Activation of Anti-asalto

14 Engine failure during the second phase of Anti-asalto

15 Security lock with automatic re-arm

16 Anti-asalto Presence (Additional Transmitter)

17 Output to activate window roll-up module

Identification of Cable Installation:

Orange-250mA of negative output for Short Current

Blue-Negative line od button for the Trunk and Copo

Black/White-250mA of negative output for relay the horn

Brown/White-250mA of negative output for relay Channel 3

Gray-250mA of negative output for relay Channel 2

Brown-Positive Output for Siren Electronics

Green-Button of Negative Line Door

Violet-Button of Positive Line Door

Blue/White- Button of Negative Anti-asalto Line Door

White-Positive output for Blinker Light:

Red-Positive 12V Power (direct to Battery)

Yellow-Positive 12V Power to pass the Switch Ignition On

Black-Negative Power(connect directly to Body Chassis)

Green -Close Electrical Safety

Orange-Open Electrical Safety

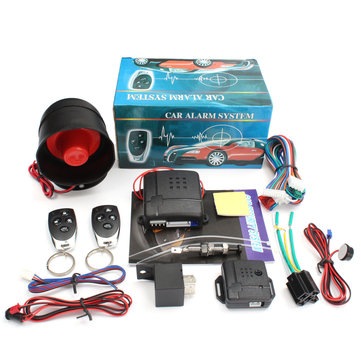

??Package included:

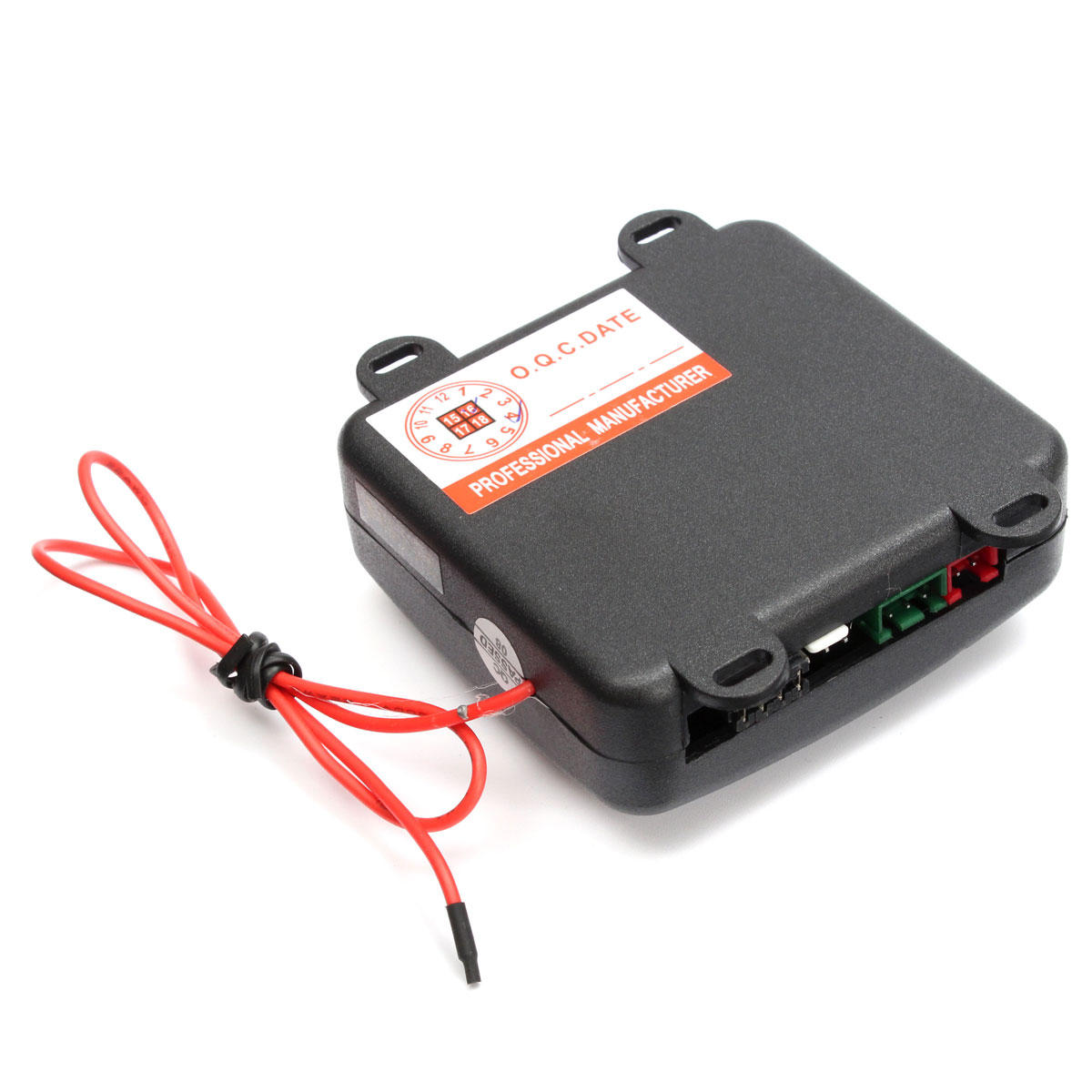

1 * Main control unit

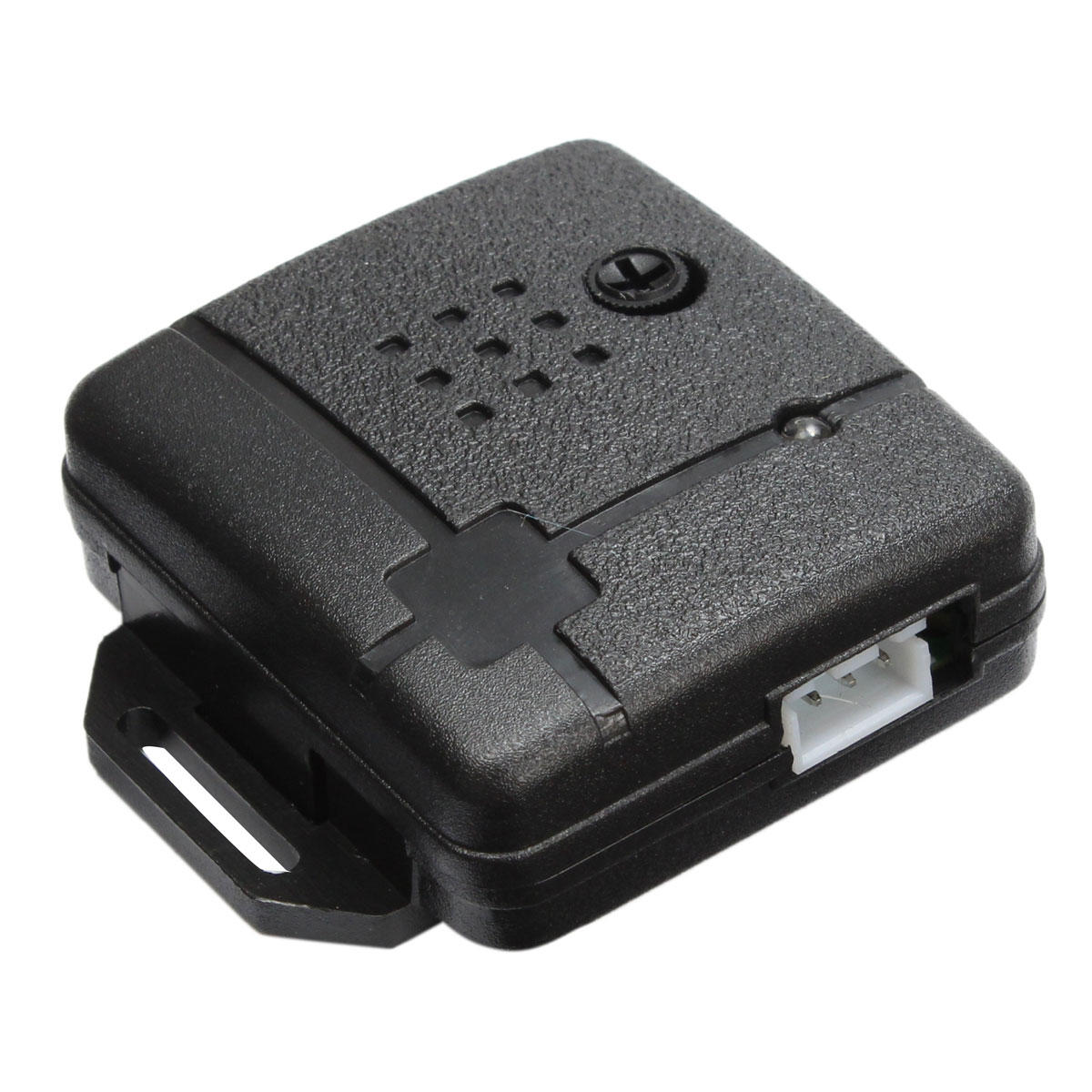

1 * Shock sensor

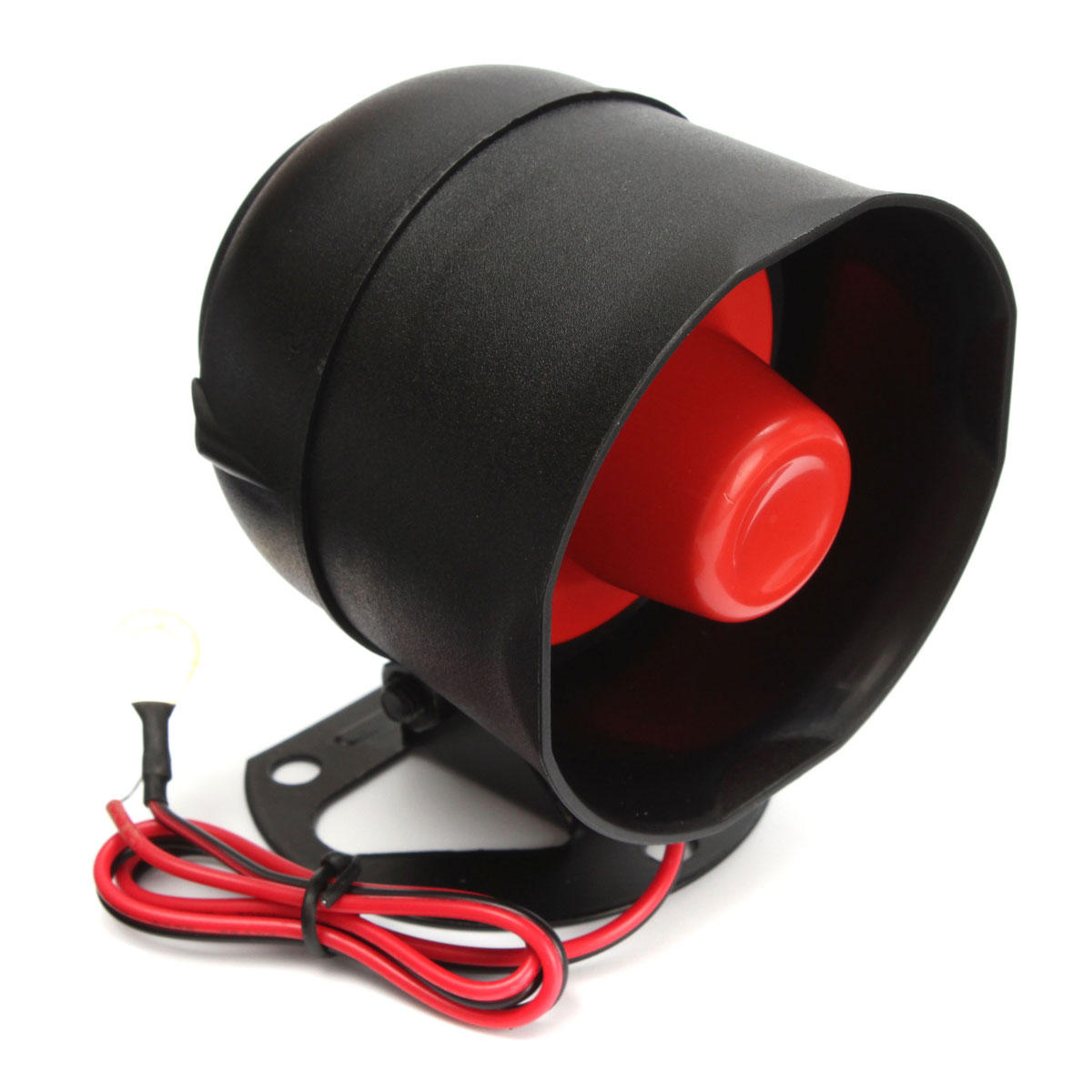

1 * Siren

1 * LED light

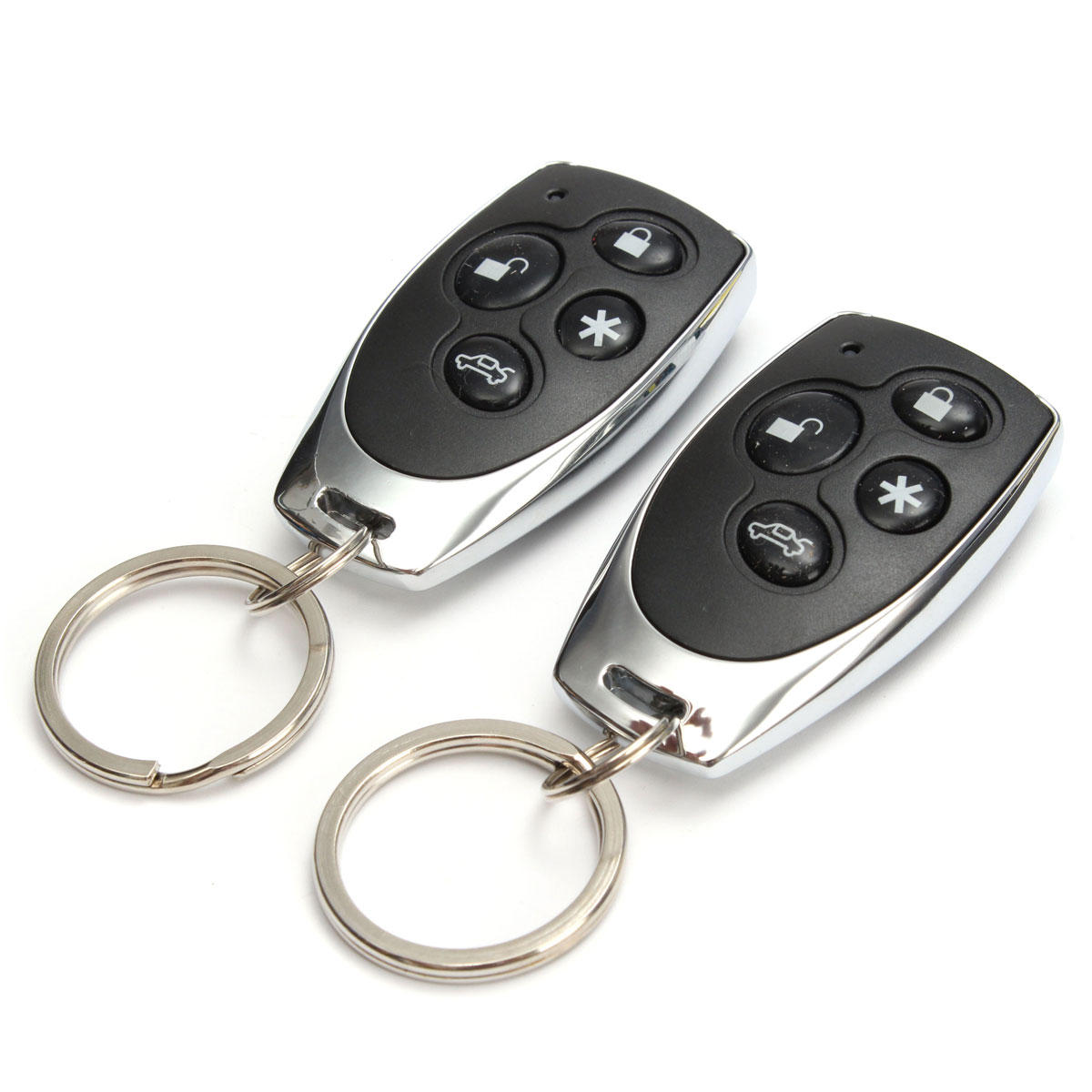

2 * Remote control

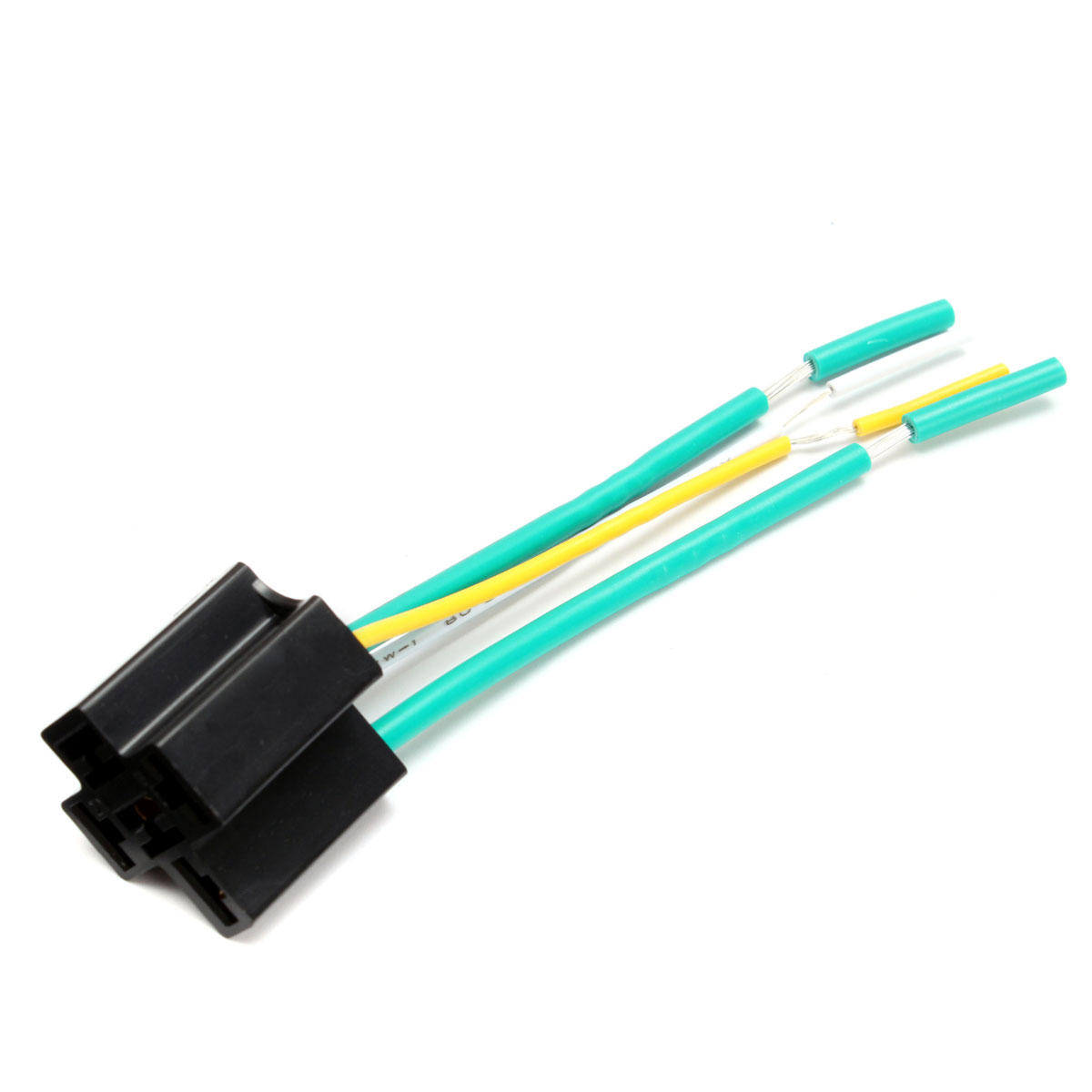

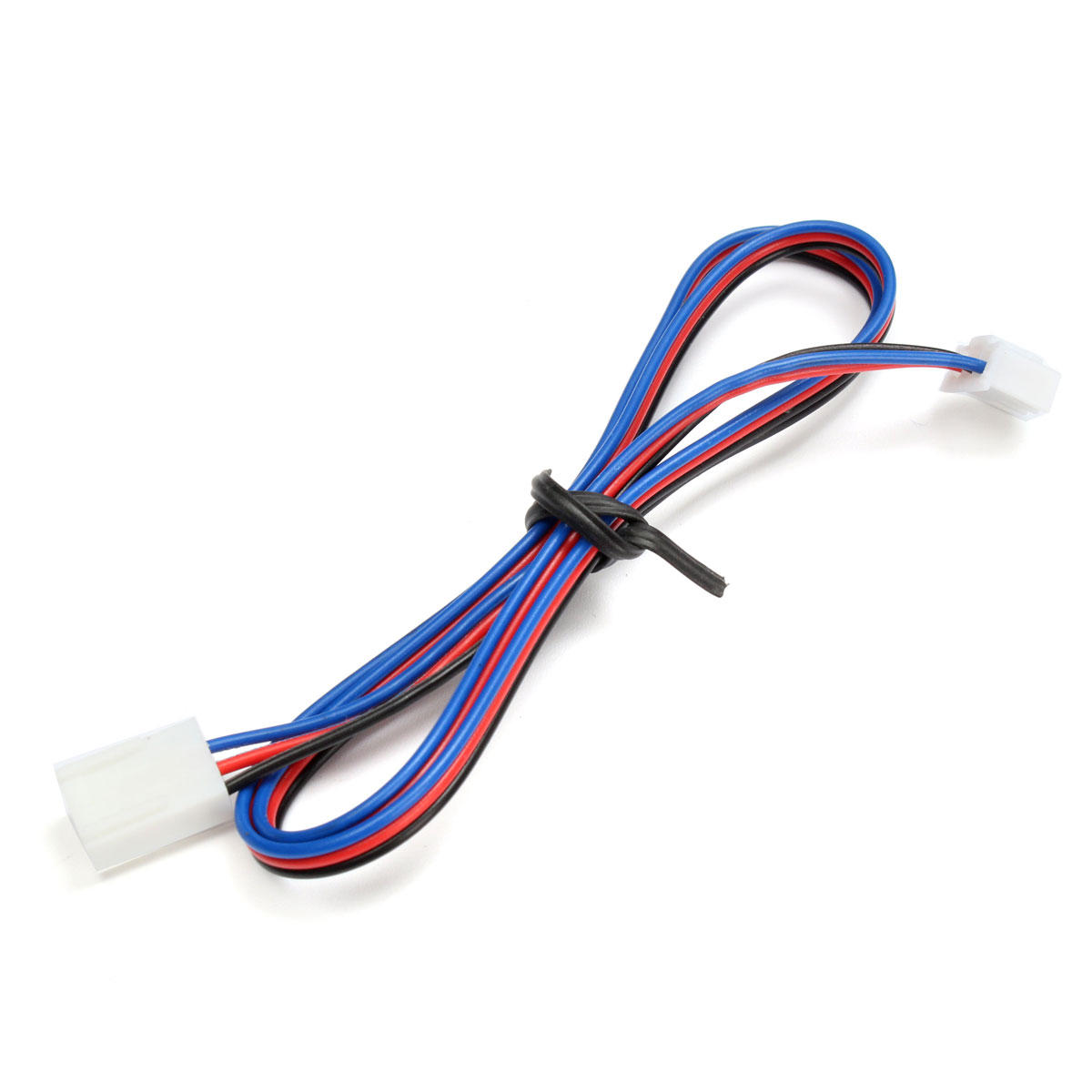

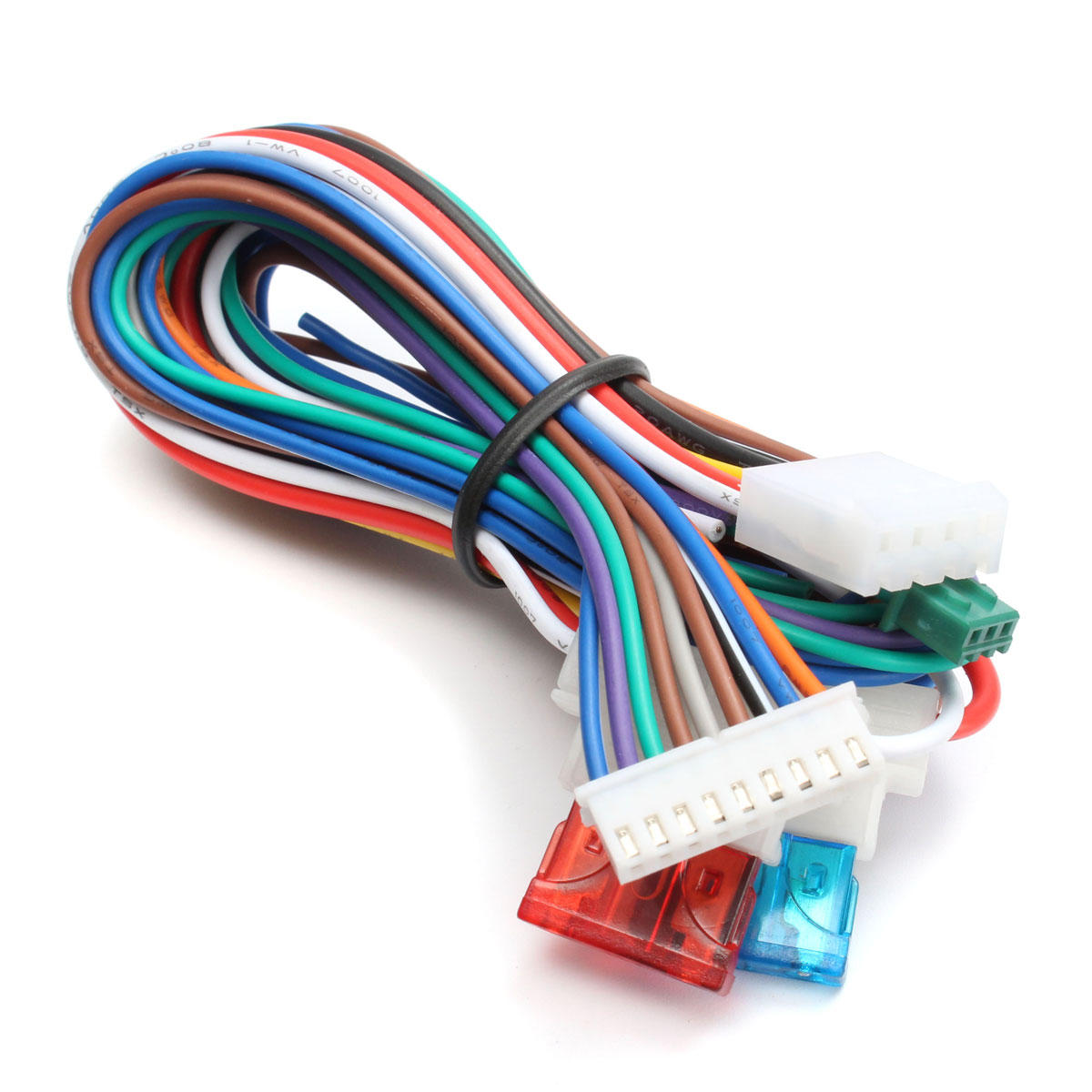

1 * Set of Wiring Harness
