Elinz 7"LCD Monitor HD 4PIN CCD Reversing Camera Digital Wireless Receiver Transmitter

The Image can be Rotated Up, Down, Left and Right

New Upgraded Model

CCD Reversing Camera

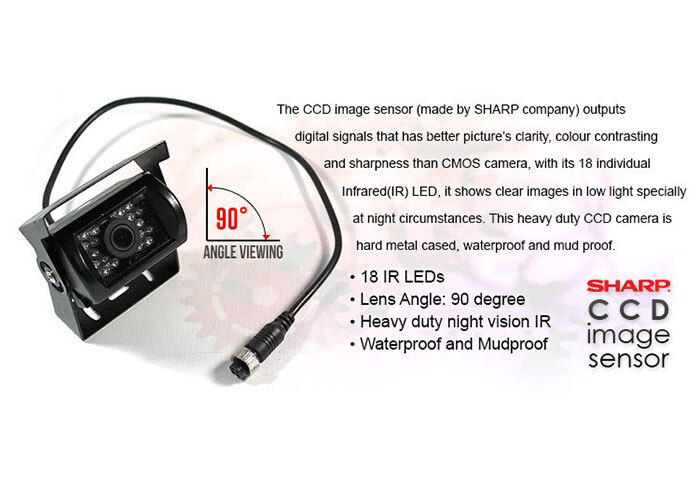

• The reversing cameras feature a CCD image sensor from the Sharp company for better picture clarity, colour contrast, and sharpness.
• 18 IR LEDs
• Lens Angle: 90 Degree
• Waterproof- and Mudproof

Two Video Inputs, Reversing First

• Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

No Interference Digital Signal

• Digital wireless connection can be use to transmit video signal wirelessly but no audio signal.

Analogue VS Wireless Digital Transmission

• Analogue systems use the same technology /frequency as bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

No Cables Required

• Easy to install without wiring required.

Made to be Used with Heavy Duty Vehicle?

• More Robust Wireless System as compared to cheaper versions.
• It is made to be used with heavy duty vehicle like trucks and caravans.
• This system can also be used with cars.

Functionality and Advantages

Remote Controller Labels

• * No Batteries Included.

Receiver and Transmitter Dimensions

Camera Dimensions

• High Definition LCD Monitor
  • 7" 16:9 TFT Colour LCD
  • Resolution: 800x480
• Video Inputs
  • 2 Video Inputs
  • One way audio input
• Built-in Speaker
• Remote Control, OSD Menu
• Contrast, Colour, Brightness adjustable
• Can connect to DVD/MP4/Camera etc
• CCD image Sensor (Made by Sharp Company)
  • Better picture clarity, color contrasting and sharpness
  • Infrared LED Heavy duty hard metal cased
  • Waterproof and Mudproof
  • 90 degree wide angle viewing
• Digital Wireless Connection
  • New Technology using digital wireless transmission
  • No interference digital signal
• Wireless 2.4GHz Transmitter/Receiver Set
  • It can transmit images using high frequency connection
• Power Supply: DC12~24V
  • Low power consumption
• Makes your Monitor Wireless
  • Makes your monitor wireless in less than a minute
  • Connect the transmitter to the camera part, and the receiver to the monitor part, the image can be transmitted wirelessly, so no wire needed between the monitor and camera
• Compatibility
  • This Wireless Transmitter and Receiver is compatible with 4PIN monitor Kits
  • It is made to be used for heavy duty vehicles i.e. Trucks, Caravans, Cars, Boats etc.
• Use of Digital Wireless Receiver & Transmitter
  • Connecting one camera to monitor
    • Choose any from HDWRL-A or HDWRL-B
  • Connecting 2 cameras in one monitor
    • To connect 2 cameras on your monitor, use HDWRL-A and HDWRL-B so channel A camera will not interfere with the signal of channel B camera.
    • Don't use the same channels in connecting to 2 cameras.
    • Different signals are used to connect 2 cameras to avoid signal interference

• This monitor and reverse camera can be used with Trucks/ Caravans/Cars
• Two video inputs, reversing first Connect 2 cameras to the monitor (2nd camera - optional). You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
• 16:9/4:3 switch freely
• Get CCD not CMOS cameras if you want to view the camera while driving. CMOS cameras are not designed to work for long period of time, otherwise they could get damaged easily.
• Easy to install. You can D.I.Y. as long as you can locate your vehicle's 12V/24V power source.
• IR LED
• Lens Angle: 90 degree
• Heavy duty night vision IR CCD Reversing Camera
• Waterproof and Mudproof
• Power Supply: DC12~24V
• Consumption Current: 150mA
• Tx Channel: 1 channels
• T/R Frequency: 2.2G~2.3G~2.4G
• Output Power: 200mW
• Operating temperature: -10°c ~ +50°c
• Transmitter Dimension: L8cm*W4cm*H2cm
• Receiver Dimension: L8cm*W4cm*H2cm

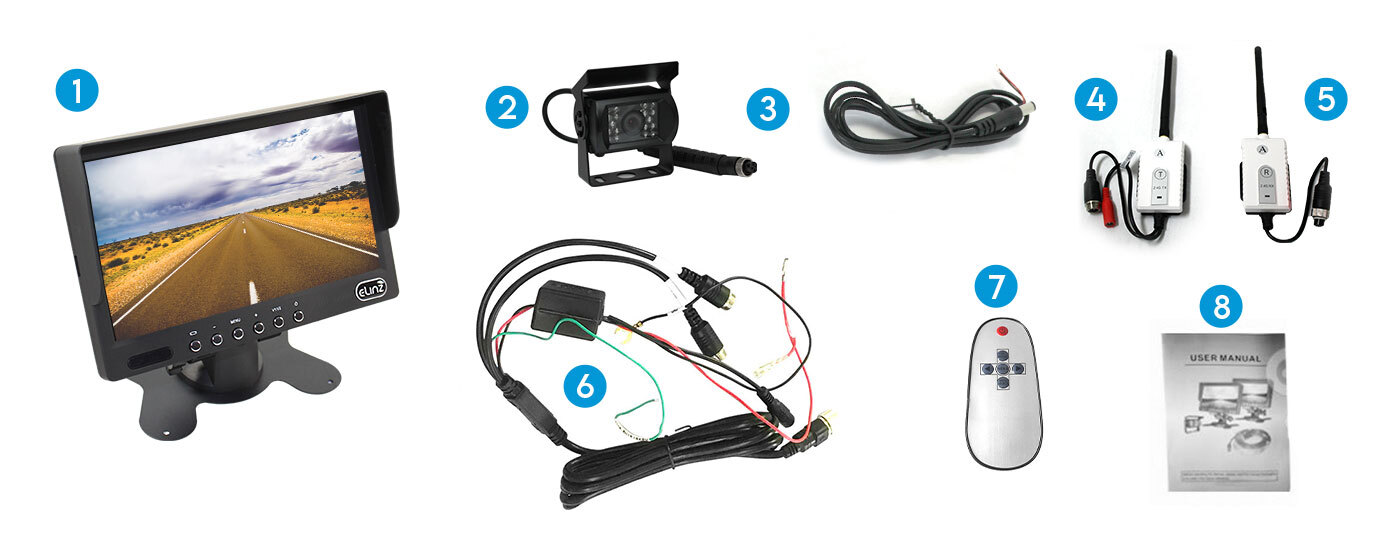

1. 1x 7" TFT LCD Monitor

2. 1x Heavy Duty IR CCD Camera

3. Monitor Power Cord

4. 1x Transmitter

5. 1x Receiver

6. Power Cord

7. Remote Controller (* Batteries Not Included)

8. User Manual
