Elinz 4.3" Colour Digital TFT LCD Screen Car Rearview Mirror Monitor Reversing Camera

Elinz 4.3" Colour Digital TFT LCD Screen Car Rearview Mirror Monitor Reversing Camera

1 Review

Limited Stock!

Price	$69.95
	Collect 69 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

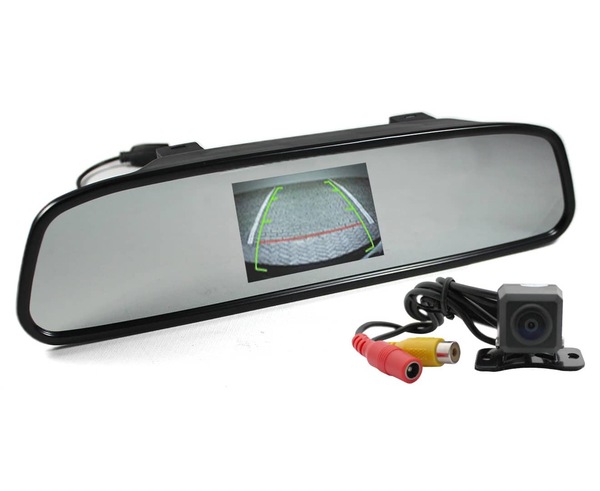

Elinz 4.3" Colour Digital TFT LCD Screen Car Rearview Mirror Monitor Reversing Camera

SKU: R43MI-RVSMALL

4.3 inches Monitor

Resolution degree: 640(W) x RGB x 480(H)
System: PAL/NTSC

Parking Line

Helps and guides you in parking or reversing your vehicle. A more convenient way to park safely.

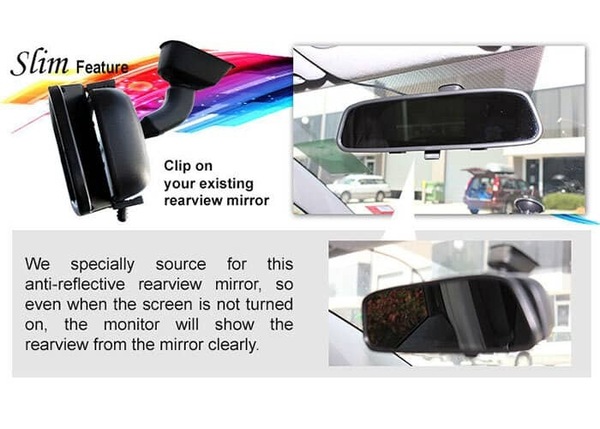

Slim Feature

We specially source for this anti-reflective rearview mirror, so even when the screen is not turned on, the monitor will show the rearview from the mirror clearly.

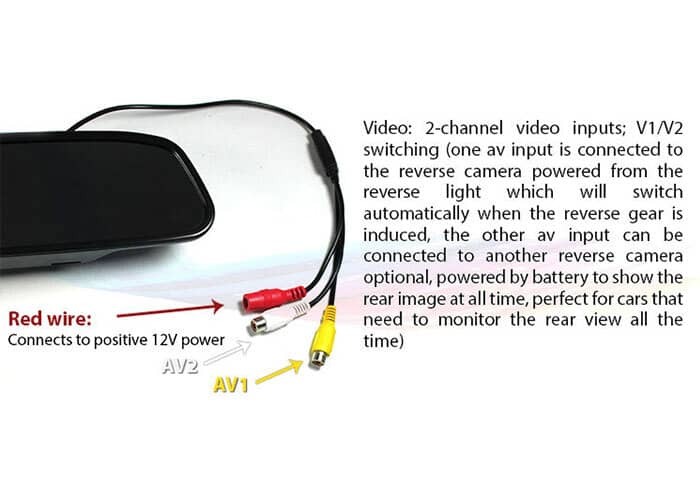

Product Wirings

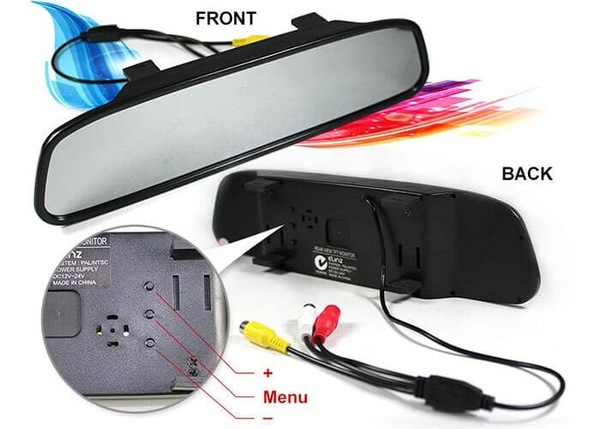

Product Views

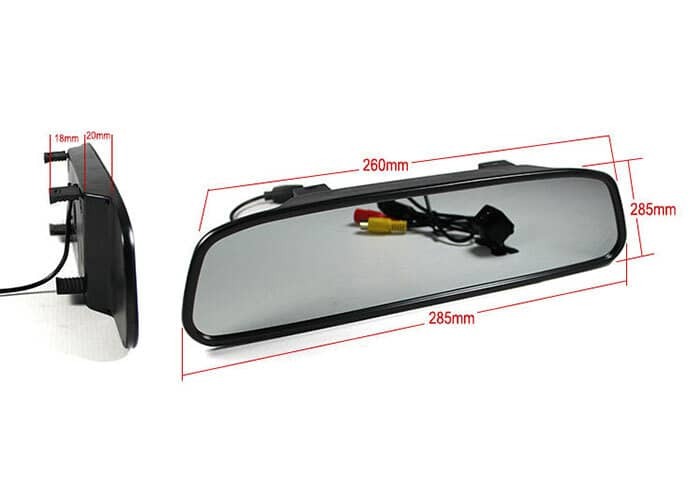

Product Dimensions

MORE INFORMATION

4.3" Colour Digital TFT LCD Screen Car Rearview Mirror Monitor Reversing Camera Kit

Features 2 AV inputs which allows you to attach up to two reverse cameras at rear. This package comes with 1/4 colour CMOS camera with 170 degree view angle. This camera is IP67 waterproof and durable.

Monitor has parking line that helps and guide you in parking and reversing your vehicle. Reverse image will show on the screen automatically when the reverse gear is induced. Easily Clip-on to your existing rearview mirror. We specially source for this anti reflective rearview mirror so even when the screen is not turned on, the monitor will show the rearview from mirror clearly.

PRODUCT HIGHLIGHTS

Display picture and distance behind vehicle
Reverse image will show on the screen automatically when the reverse gear is induced
Night vision and waterproof camera
Wide vision area from camera
Shock resistant designed specifically for mobile use
Input power: DC12V+/-20%
With gridline
Clip on your existing rearview mirror
2 AV inputs (allows you to attach up to two reverse cameras at rear)

ITEM DESCRIPTION

Monitor

Screen size : 4.3 inch
Display mode : 4:3
Format:PAL or NTSC
Pixels : 640(W)*RGB*480(H)=307200 points
Power supply : DC12V(+/-10%)
Power consumption : 5W
Two video inputs
Adjustable bracket design
Operating temperature : -10-+50
Storage temperature : -20-+60

Reversing Camera

1/4 color CMOS camera
System : 656X492
Minimum illumination : 0.5 LUX
Electron shutter : 1/60s-1/20US
Resolution : More than 380 TV line
S/n ratio : More than 48dB
Voltage : DC12V(+/-10%)
Waterproof : IP67
View of angle : 170 degree
License installation

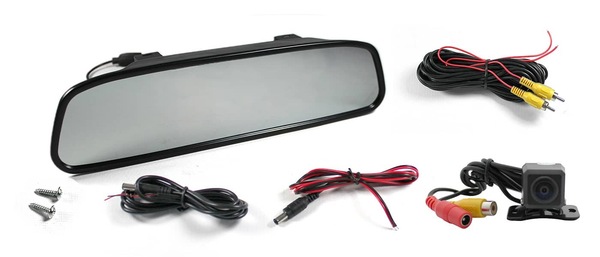

WHAT'S INCLUDED

1. 1x 4.3" TFT LCD Mirror Monitor

2. 1x Reversing Camera

3. 1x 5M Video Cable

4. Screws

5. 2x Power Cables

Specifications:

Specification of Mirror:

Screen size: 4.3 inches
Resolution degree: 480(W) x RGB x 272(H)
System: PAL/NTSC
Power supply: DC12V+/-20%
Power: About 5W
Working temperature: +0°C-+60°C
Storage temperature: -20°C-+70°C
Video: Two-way video input
We specially source for this anti-reflective rearview mirror so even when the screen is not turned on the monitor will show the rearview from the mirror clearly
Shock resistant designed specifically for mobile use
Special glass could see clearly even in sunlight
Video: 2-channel video input; V1/V2 switching (one av input is connected to the reverse camera powered from the reverse light which will switch automatically when the reverse gear is induced the other av input can be connected to another reverse camera *optional* powered by battery to show the rear image at all time perfect for car or caravan that need to monitor the rear view all the time)

Specification of camera:

1/4 color cmos camera
System: 656X492
Minimum illumination:0.5 LUX
Electron shutter:1/60s-1/20US
Resolution:More than 380 TV line
S/n ratio:More than 48dB
Voltage:DC12V(+/-10%)
Waterproof:IP67
View of angle:170 degree
License installation

GTIN: 0686494501331
