Elinz 7" Rearview Monitor Caravan 2 Reversing Camera 4PIN System Kit CCD Trailer cable

Elinz 7" Rearview Monitor Caravan 2 Reversing Camera 4PIN System Kit CCD Trailer cable

Limited Stock!

Price	$287.96
	Collect 861 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Elinz 7" Rearview Monitor Caravan 2 Reversing Camera 4PIN System Kit CCD Trailer cable

SKU: R7MI-CARAVANPKG

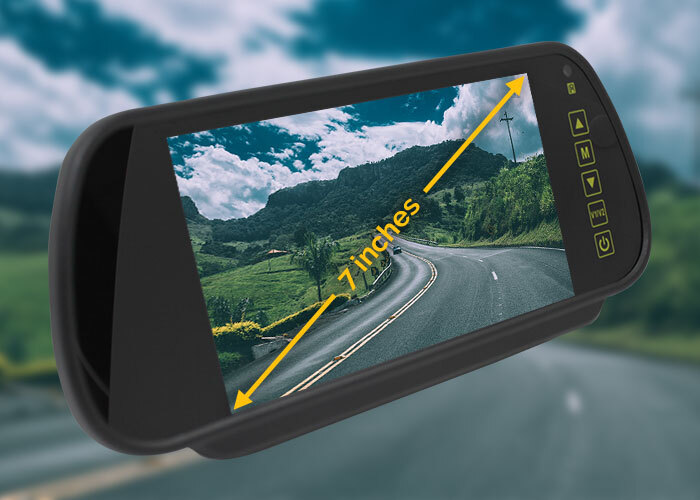

7" LCD Monitor

Anti-reflective clear vision rear view mirror
Automatically shows rear view when reversing
Rearview image can also be shown on screen at all times
Resolution degree 800 x 3 (RGB) x 480
Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before

3 Video Inputs

Can be connected up to 3 reversing cameras

Advanced 4 PIN Cable

Allows the monitor to power up cameras. No need to connect another power cable.
It comes with 2x 5 meters and 1x 10 meters 4PIN connecting cable.

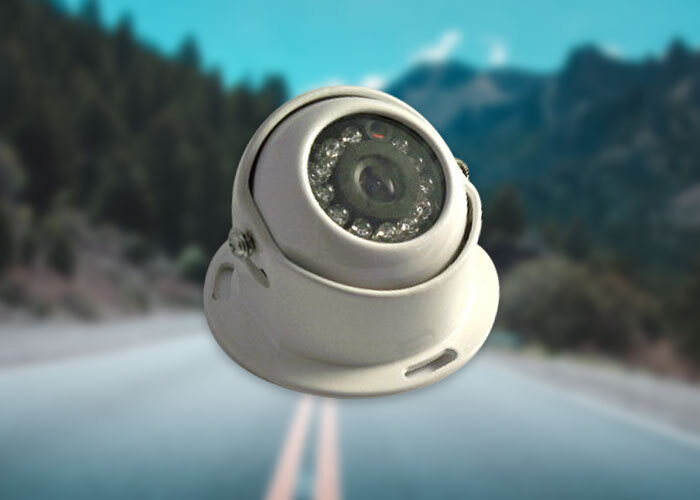

Heavy Duty 600TVL 4PIN Eyeball Reversing Camera

Powerful 12 LEDs for night vision.
Colour: White
120 degree wide vide angle
Clear view day or night
Colour infrared night vision waterproof CCD reverse camera

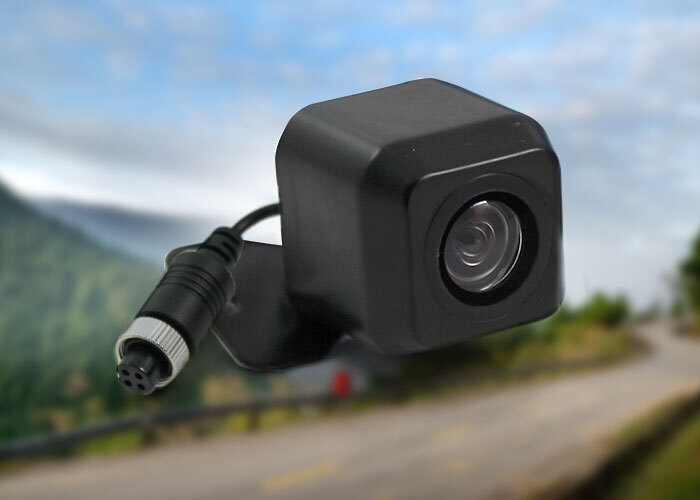

Mini CMOS 4PIN Camera

150 degreee wide angle view
Small colour mini camera which can be mounted easily on vehicle's bumper

Suitable for use with Trucks, Caravans, Cars and More

Adjustable Mounting Bracket

The mounting bracket at the back, you can adjust the height
It comes with T-slot that allows your rearview to fit on on your windscreen nicely

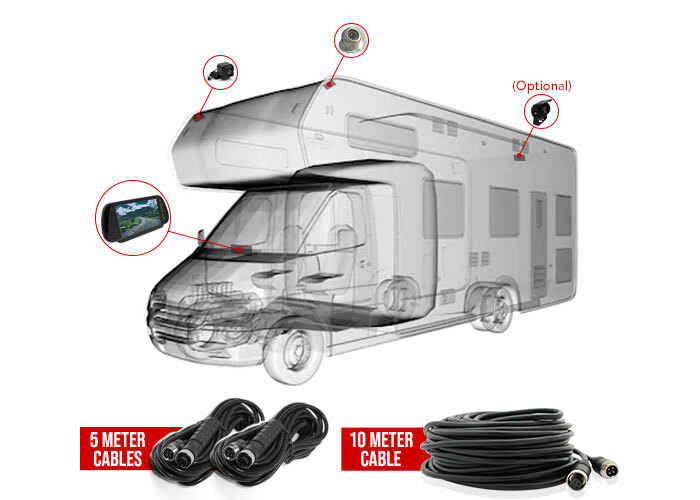

Caravan Car Reversing Camera Connection

Heavy Duty Trailer Cable & Connectors

5PIN AP-TP20 metal connector with male and female connector
Waterproof function
4PIN metal connector for CCD camera
With elasticity length from 2000mm to 4000mm
Very tight connection, durable and reliable

Wiring Labels

Monitor Labels

Product Dimensions

Product Views

Remote

*No Batteries included

MORE INFORMATION

7" Rearview Mirror Monitor Caravan 2 Reversing Camera 4PIN System Kit CCD

This 7" Rearview Mirror Monitor Reversing Camera kit, you can reduce blind spots , maneuver easily and park like a piece of cake. Reverse camera monitor has 3 Video inputs that allow you to connect up to 3 cameras. This package comes with 1x Eyeball CCD image sensor reversing camera with 120 degree wide angle view helps avoid accidents & injuries, providing safe driving day and night. The CCD image sensor outputs digital signals that has better picture clarity, Colour contrasting and sharpness.

Aniother camera included is a Mini CMOS 4PIN Camera with 150 degreee wide angle view. Small colour mini camera which can be mounted easily on vehicle's bumper.

The rearview mirror monitor has an anti-reflective clear vision. This camera is suitable for use with Trucks, Caravans, Cars and more. Package comes with Advanced 4 PIN cable which allows the monitor to power up cameras. No need to connect another power cable.

Start installing a reverse camera now and get it from Elinz, your trusted and reliable partner in the road.

ITEM DESCRIPTION

Rearview Mirror Monitor
- Screen size: 7" LCD monitor (LED digital panel)
- Resolution degree: 800 X 3 (RGB) X480
- Contrast: 500:1
- System: PAL/NTSC
- Power supply: 10VDC to 32VDC
- Power: About 5W
- Working temperature: +0°C-+60°C
- Storage temperature: -20°C-+70°C
- Dot pitch:0.192 ( H) X 0.1805 (V )
- Viewing angle U:50/D:60 L/R:70
- Video: Three-way video inputs
- Anti-reflective rearview mirror
- Shock resistant
- 20G force for vibration an 100G for shock
- Respond time: 30ms
- Picture display format: 4:3/16:9
- Five languages OSD menu: Chinese, English, Russian, German and French
- The display with two video frequency input Automatic/manual switcher
- Front panel controls with on-screen menu
- Operation temperature:- 30 ℃ ~+70 ℃
Eyeball Reversing Camera
- Colour CCD reversing camera
- Resolution: 600 TV lines
- LEDs: 18 IR LEDs night vision
- View of angle: 120 degree
- Colour: White
Mini CMOS 4PIN Camera
- 150 degreee wied angle view
- Small colour mini camera which can be mounted easily on vehicle's bumper
Trailer Cable & Connectors
- Elasticity length: From 2000mm to 4000mm
- Very tight connection, durable and reliable
Remote
*No Batteries included

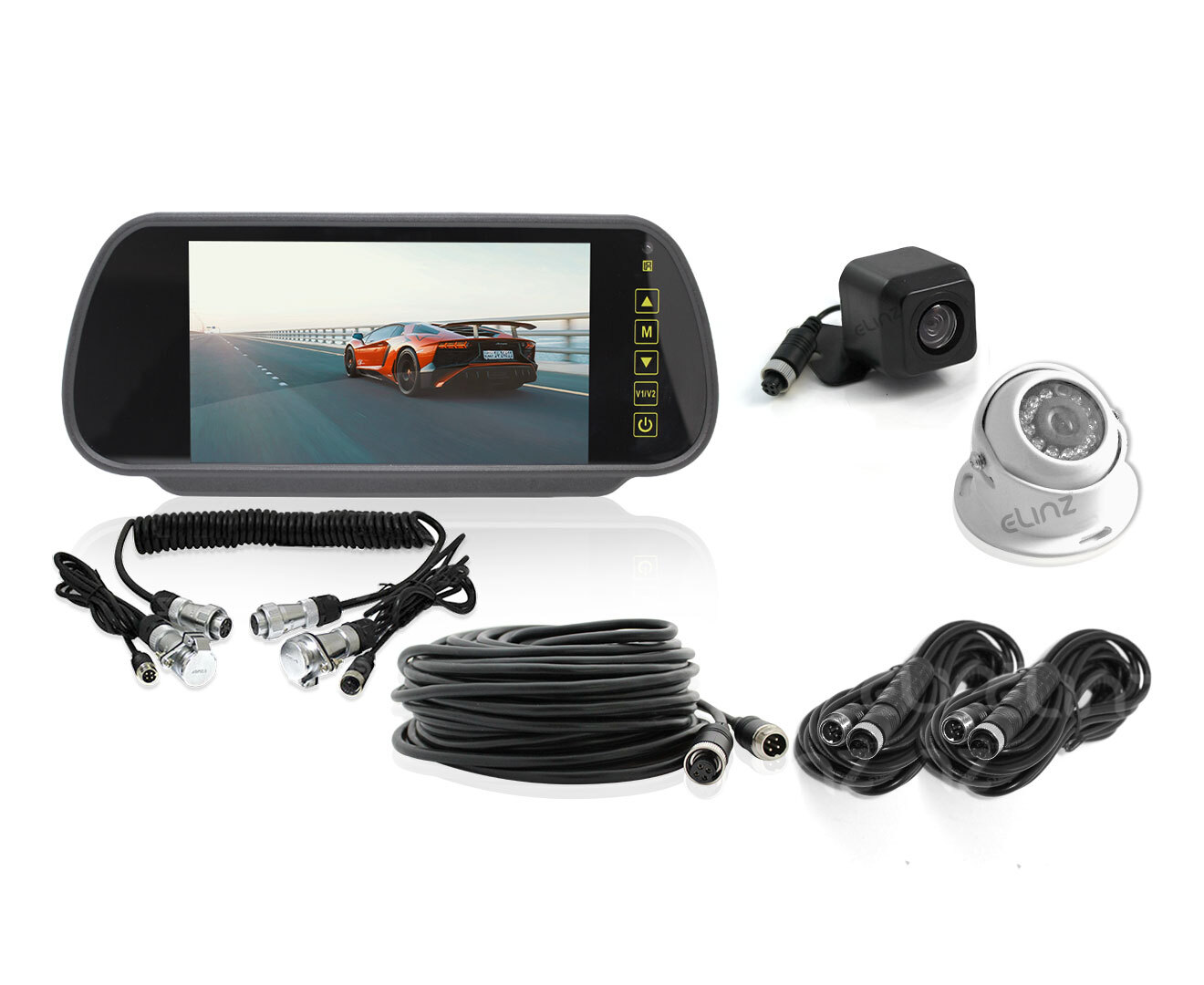

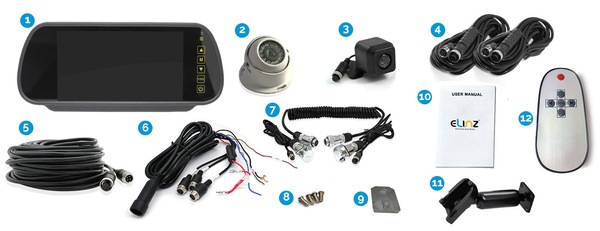

WHAT'S INCLUDED

1x 7" LCD Rearview Mirror Monitor
1x CCD Eyeball Camera
1x Mini CMOS Camera
2x 5m 4PIN Cables
1x 10m 4PIN Cable
1x Power Cord
Trailer Cable Suzy Coil
Screws
1x T-Slot
User Manual
Bracket
Remote
*No Batteries included

GTIN: 0686494501362
