Elinz 4.3" Monitor+24v/12v CCD LED Reversing Camera Car Caravan Truck Night Vision

Elinz 4.3" Monitor+24v/12v CCD LED Reversing Camera Car Caravan Truck Night Vision

1 Review

Price	$99.95
	Collect 297 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Elinz 4.3" Monitor+24v/12v CCD LED Reversing Camera Car Caravan Truck Night Vision

SKU: M48RVS1

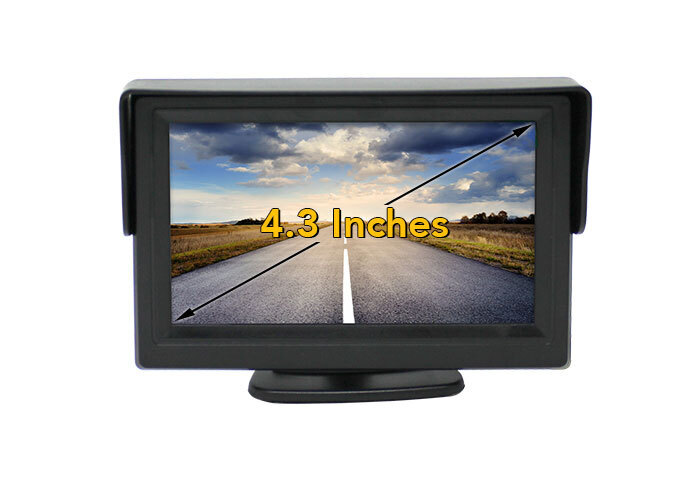

4.3" LCD Monitor

High Definition Digital Panel
Monitor has Brightness Adjustment
It shows the rearview automatically when the reverse signal is induced

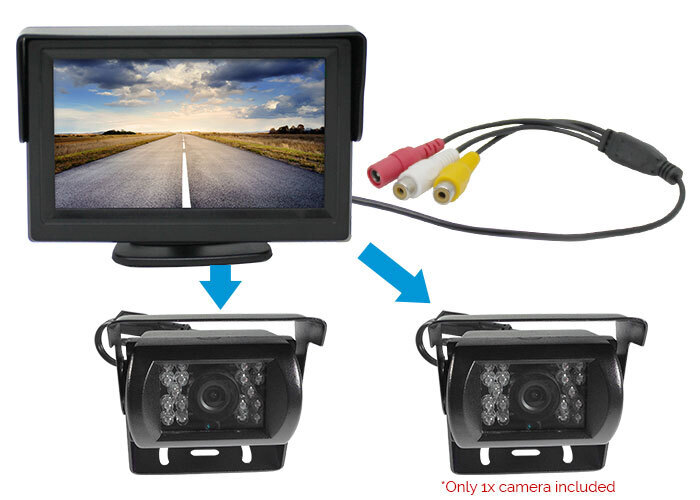

2 AV Inputs

Monitor can be connected up to 2 reversing cameras

Compatible to 12V & 24V

Suitable for use with Trucks, Caravans, Cars and more

Easy to Install

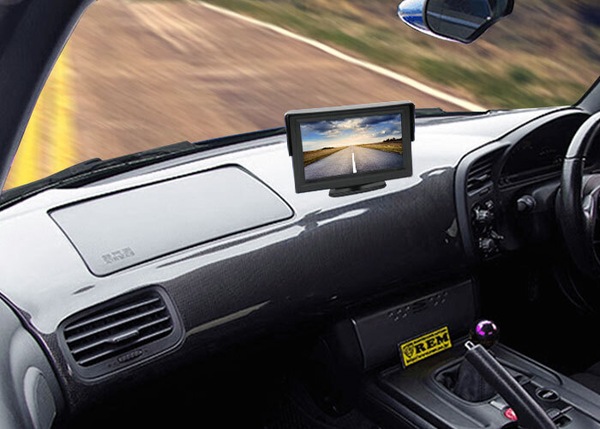

Monitor mounts on dash visor or anywhere that you can find suitable

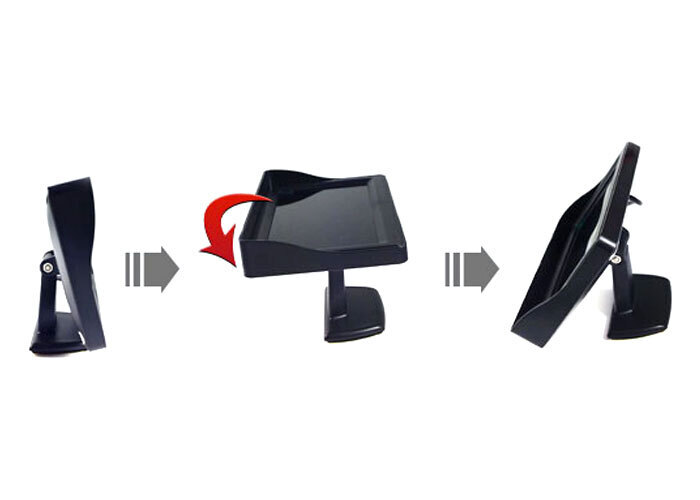

180 Degree Rotational Swivel Stand

Adjustable Brightness

This colour system can give you a clear rear view picture and help prevent an expensive accident while backing or driving. The small cost of adding a rearview system can save you money if an accident is prevented

Installation and Connection

When input signal automatically boot
Menu adjust function: Brightness/ Contrast/ Hue/ Saturation/ Sharpness/ Mode(16:9/4:3)

Parking Line

Helps and guides you in parking or reversing your vehicle. A more convenient way to park safely

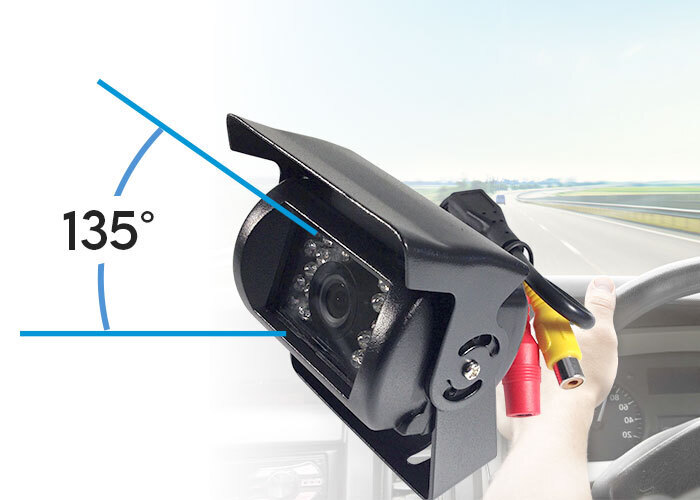

135 Degree Wide Angle Viewing Camera

Helps avoids accidents & injuries

Sharp CCD Image Sensor

The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for longer without heating up, so you can show the rearview at all time.

IP67 / IP68 Waterproof

Waterproof CCD reverse camera

Product Views

Dimensions

Monitor Label

MORE INFORMATION

A 4.3" digital LCD monitor that is suitable for 12V and 24V vehicles. This monitor has 2 AV input wherein you can connect up to 2 reversing cameras. The monitor has brightness adjustment and sunshade design to avoid sun's glare and be able to see images clearly.

You can simply mount it to dash visor or depending on your preference. This monitor is compatible to RCA cameras.

Get this monitor and reversing camera kit today.

* You may click here to check RCA cameras available.

PRODUCT HIGHLIGHTS

4.3" LCD Monitor
- High Definition Digital Panel
- Monitor has Brightness Adjustment
- It shows the rearview automatically when the reverse signal is induced
180 degree rotational swivel stand
2 AV Inputs
- Monitor can be connected up to 2 reversing cameras
Parking Line
- Helps and guides you in parking or reversing your vehicle. A more convenient way to park safely
Installation and Connection
- When input signal automatically boot
- Menu adjust function: Brightness/ Contrast/ Hue/ Saturation/ Sharpness/ Mode(16:9/4:3)
Compatible to 12V & 24V
- Suitable for use with Trucks, Caravans, Cars and more
Easy to Install
- Monitor mounts on dash visor or anywhere that you can find suitable
Monitor can be connected to RCA Cameras
135 Degree Wide Angle Viewing Camera
- Helps avoids accidents & injuries
Sharp CCD Image Sensor
- The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for longer without heating up, so you can show the rearview at all time.
IP67 / IP68 Waterproof
- Waterproof CCD reverse camera

ITEM DESCRIPTION

Monitor

High Definition
Screen Size: 4.3"
2 AV Inputs
Adjustable Brightness
180 Degree Rotation Swivel Stand

Camera

Image Sensor: Colour CCD
TV system: PAL
Effective pixels: PAL: 628*586 pixels
Horizontal resolution: 480TVL
Sensing Area: 1/4: 3.6mm x 2.7mm
Shutter Speed: 1/50(PAL) 1/10,000 seconds
Minimum illumination: 0.1 Lux/ F-1.2(0 Lux with IR on)
Video Output: RCA connector. 1.0v P-P, 75ohm
Power Consumption: 110mA max 300mA with IR on
Power Supply: 12v/ 24v
Operating Temperature: -20 degree celcius to 90 degree celcius RH 95% Max
Lens Angle: 90 degree/ 135 degree
Waterproof: IP67/ IP68
Video cable 6 meter (extra length video cable is available for purchase)
Dimension: 75(W)X45(D)X75(H)mm
Weight: 300g

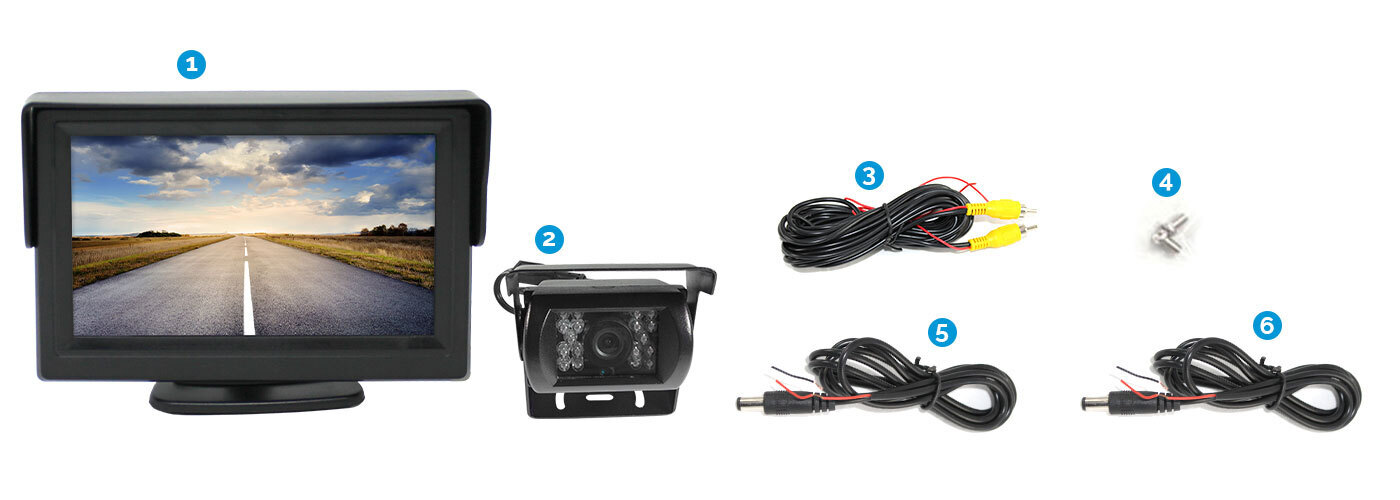

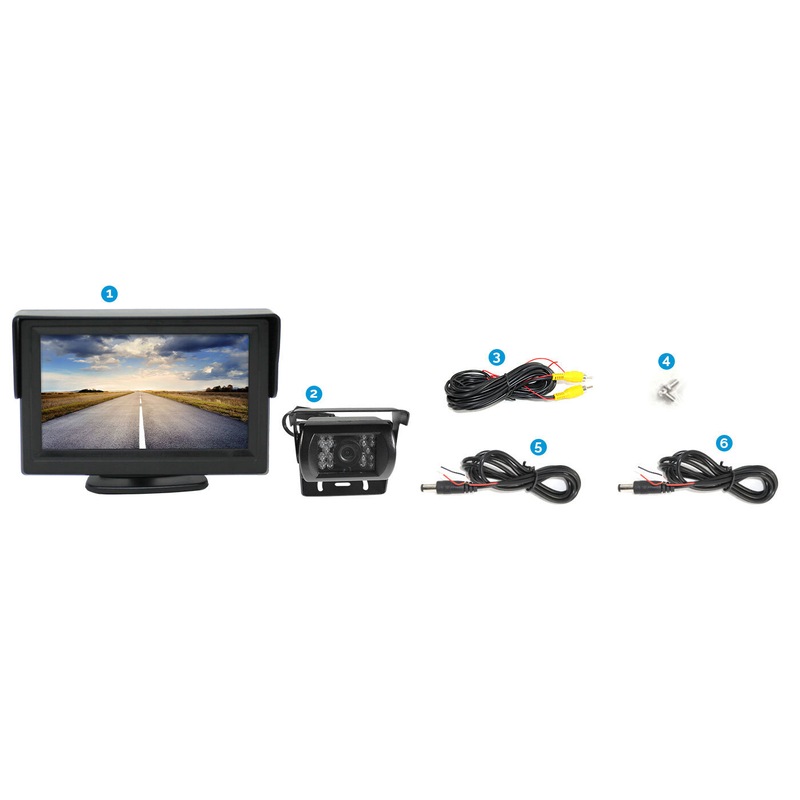

WHAT'S INCLUDED

1. 1x 4.3" Monitor with mount

2. 1x Heavy Duty CCD Reversing Camera

3. 1x 5M Video Cable

4. 1x Screws

5. 1x Monitor Power Cable

6. 1x Camera Power Cable

GTIN: 0686494501072
