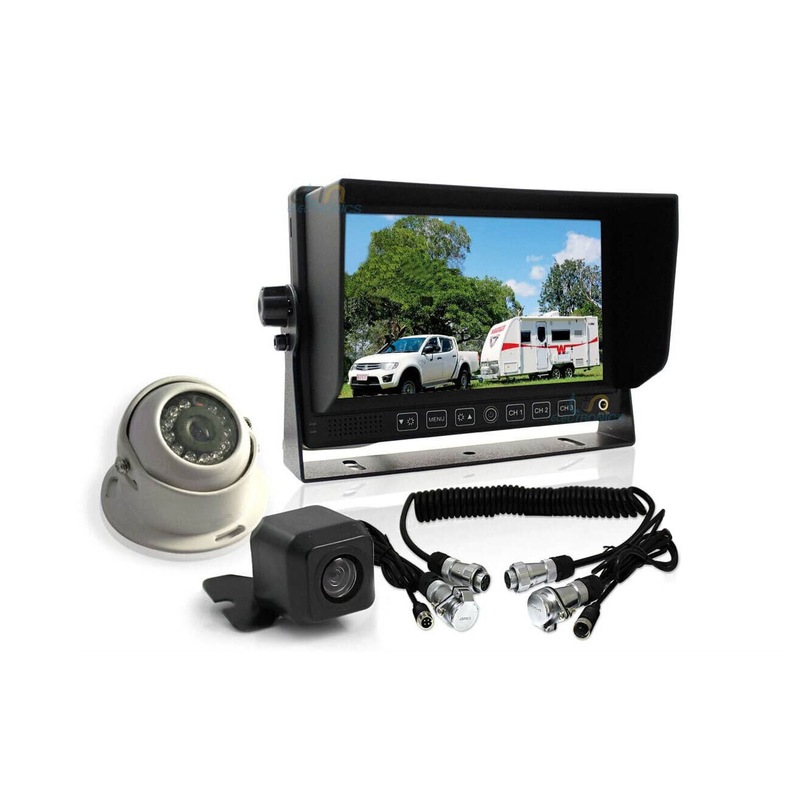

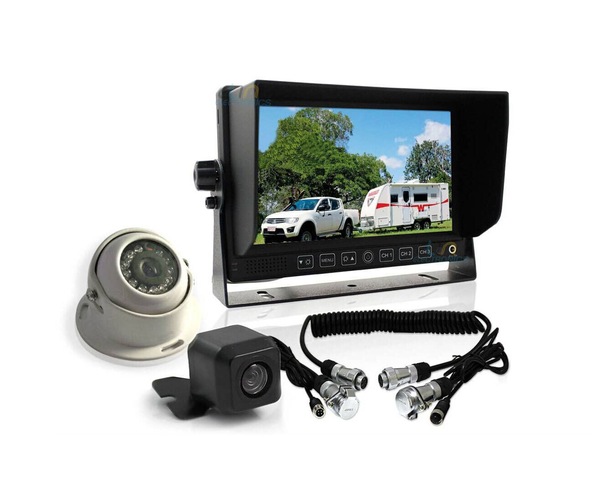

Elinz 7" Monitor HD 12V/24V Reversing CCD 2 Camera 4PIN System Trailer Cable Caravan

Elinz 7" Monitor HD 12V/24V Reversing CCD 2 Camera 4PIN System Trailer Cable Caravan

Be the first to review this product

Hurry! 1 items left!

Price	$279.95
	Collect 837 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Elinz 7" Monitor HD 12V/24V Reversing CCD 2 Camera 4PIN System Trailer Cable Caravan

SKU: GEAR7DOM-RVSMA4PIN-CBLTRA

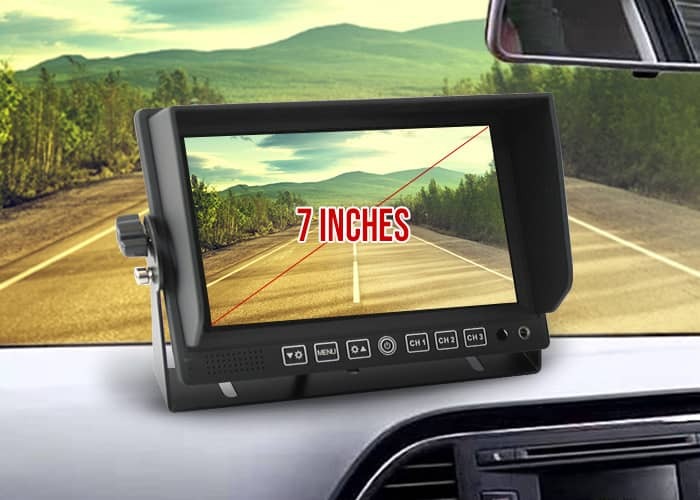

7 Inch HD Monitor

800x480 Digital Screen, Crystal Clear Image
This monitor can be used with Trucks / Caravans / Cars
Rearview image can also be shown on screen at all times
16:9/4:3 switch freely
Can connect to DVD / MP4 / Camera, etc.

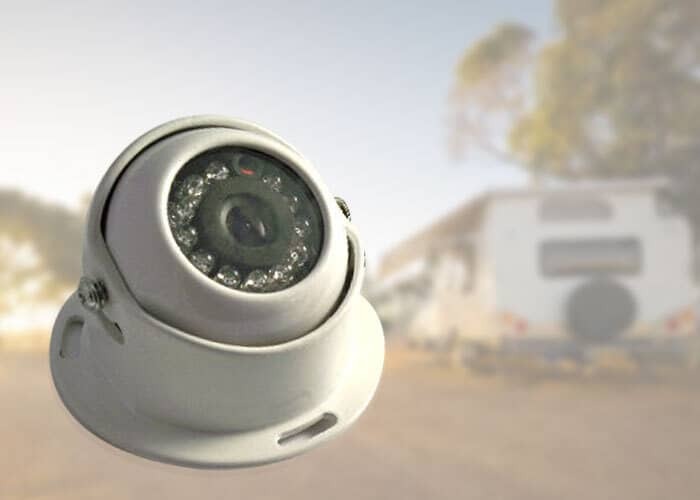

Heavy Duty 480TVL 4PIN Eyeball Reversing Camera

Powerful 12 LEDs for night vision
120 degree wide view angle
IP67 Waterproof
CCD image sensor made by Sharp company

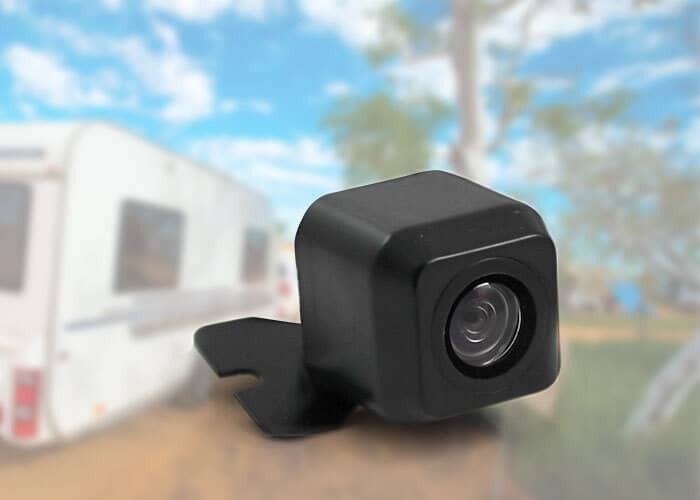

Mini CMOS 4PIN Camera

150 degree wide angle view
Small colour mini camera which can be mounted easily on vehicle's bumper

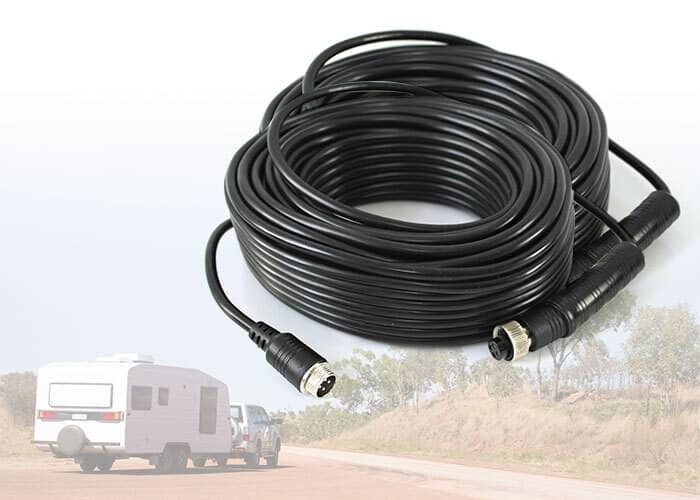

4PIN Cables Included

It comes with 1x 5 meters and 2x 10 meters 4PIN connecting cables

Wiring Diagram

4 PIN advanced cables allow the monitor to power up the cameras

Heavy Duty Trailer Cable & Connectors

5PIN AP-TP20 metal connector with male and female connector
Waterproof function
4PIN metal connector for CCD camera
With elasticity length from 2000mm to 4000mm
Very tight connection, durable and reliable.

Compatible to 12V & 24V Vehicles

This can be used with Trucks / Caravans / Cars
Premium reversing camera package that would suit car caravan setup
The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.

Image can be Rotated

The image can be rotated up and down, left and right

Monitor Label

Application

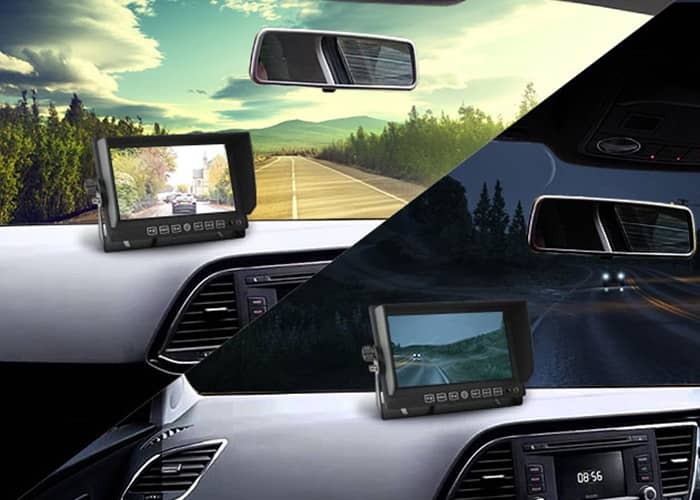

Built-in Light Sensor

Removable Sun Visor

Wiring Label

How to Connect Wirings

Dimensions

Remote

* No Batteries included

MORE INFORMATION

7" Monitor HD 12V/24V Reversing CCD 2 Camera 4PIN System Trailer Cable Caravan

7" monitor with 2x reversing cameras, 2x10m 4PIN cables and1x5m 4PIN cable is a premium reversing camera package that would suit car caravan setup. It has two video inputs, reversing first. This can be used on 12v/24v vehicles like Trucks / Caravans / Cars. With 800x480 Digital Screen crystal clear image and wide angle viewing reverse camera. The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.

The 4PIN cables allows the monitor to power up cameras and no need to connect another power cable to cameras. This reverse camera system is easy to install. You can DIY as long as you can locate your vehicle's 12V / 24V power source.

It comes with trailer cable for connecting and disconnecting when hitching your caravan. This cast alloy connector can be mounted adjacent on same bracket and suitable for truck trailer, semitrailer or caravan applications.

PRODUCT HIGHLIGHTS

7 Inch HD Monitor
- 800x480 Digital Screen, Crystal Clear Image
- This monitor can be used with Trucks / Caravans / Cars
- Rearview image can also be shown on screen at all times
- 16:9/4:3 switch freely
- Can connect to DVD / MP4 / Camera, etc.
Heavy Duty 480TVL 4PIN Eyeball Reversing Camera
- Powerful 12 LEDs for vision
- 120 degree wide view angle
- IP67 Waterproof
- CCD image sensor made by Sharp company.
Mini CMOS 4PIN Camera
- 150 degree wide angle view
- Small colour mini camera which can be mounted easily on vehicle's bumper.
4PIN Cables Included
- It comes with 1x 5 meters and 2x 10 meters 4PIN connecting cables.
Wiring Diagram
- 4 PIN advanced cables allow the monitor to power up the cameras.
Compatible to 12V & 24V Vehicles
- This can be used with Trucks / Caravans / Cars
- Premium reversing camera package that would suit car caravan setup
- The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.
Heavy Duty Trailer Cable & Connectors
- 5PIN AP-TP20 metal connector with male and female connector
- Waterproof function
- 4PIN metal connector for CCD camera
- With elasticity length from 2000mm to 4000mm
- Very tight connection, durable and reliable.
Image can be Rotated
- The image can be rotated up and down, left and right

ITEM DESCRIPTION

Monitor

Monitor Size: 7" Digital Panel with Sunvisor
Resolution: 800x R.G.B x480
Aspect Ratio: 16:9 image
Video Input: 3 Way video input, 2 way audio input with AV-IN
Power Supply: DC9V-32V
System: PAL/NSTC Auto-Switching
OSD Menu
Speaker: Built-in Loudspeaker
Bracket: With stand & U shape bracket
Light Sensor: Automatic adjustment

Dome Camera

Sensor: Sharp ¼" CCD image sensor
TV System: PAL/NTSC
Effective pixel: 512*582px, 512*492px
Sensing Area: 9.6um*6.34um
Scanning System: 2:1 interface
Sync System: Internal
Resolution: 480TVL
Lens: 2.8mm/120deg
Electronic Shutter: 1/60-1/15,000sec
Video Output: 1.0Vp-p,75Ohm
S/N Ratio: More than 48db
Waterproof: IP67-IP68
Minimum Illumination: 0.2Lux/F1.8(0 Lux with LED)
Power Supply: 12V

Mini CMOS Camera

Connection: 4PIN plug
CMOS PAL
View Angle: 150 degree
Waterproof
Automatic while balance AGC and BLC

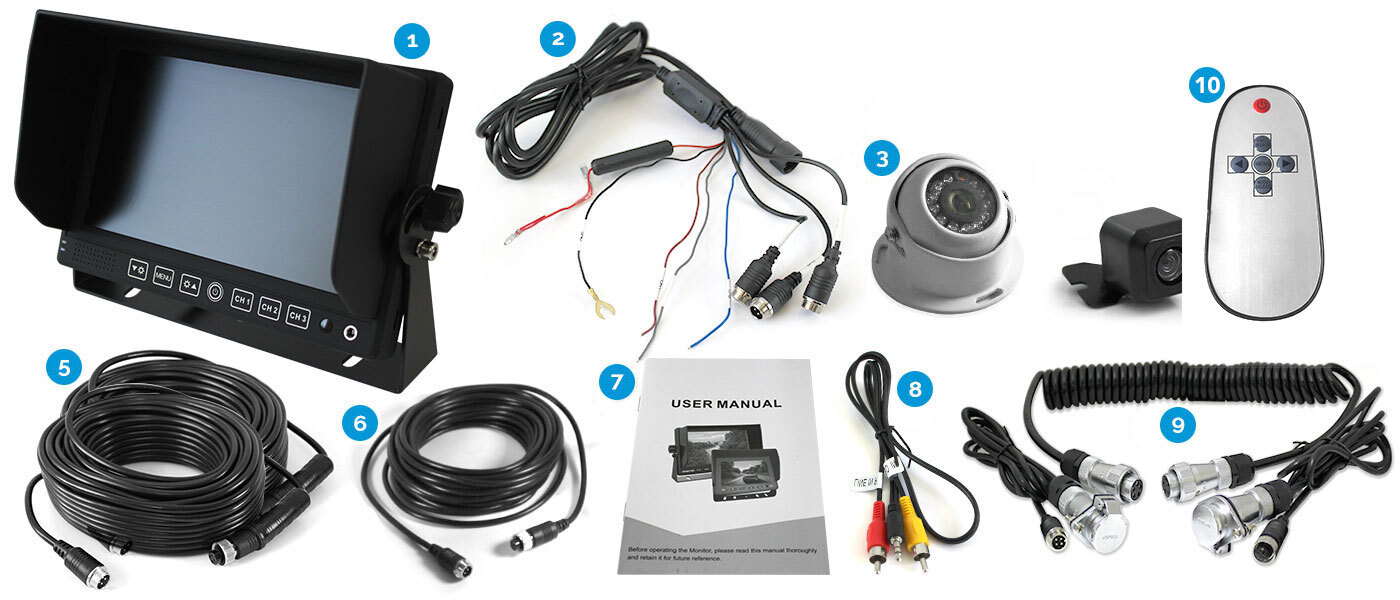

WHAT'S INCLUDED

1. 1x 7 Inch TFT LCD Monitor

2. 1x Power Cord

3. 1x Dome Reversing Camera

4. 1x CMOS Mini Camera

5. 2x 10m 4PIN Cable

6. 1x 5m 4PIN Cable

7. User Manual

8. 1x AV in Cable

9. 1x Suzy Trailer Cable Coil

10. 1x Remote ( * No Batteries included )
