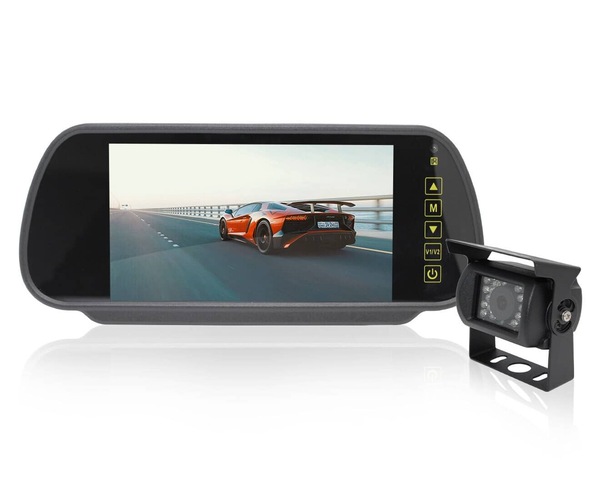

Elinz 7" Rearview Mirror Monitor 12V 24V Reversing CCD Camera Truck Caravan

Elinz 7" Rearview Mirror Monitor 12V 24V Reversing CCD Camera Truck Caravan

1 Review

Best Price in the Last 14 Days

Limited Stock!

Price	WAS $219.95 'WAS' price is the previous lowest price in the last 14 days. $197.96 Save $21.99
	Collect 197 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Elinz 7" Rearview Mirror Monitor 12V 24V Reversing CCD Camera Truck Caravan

SKU: R7MI-RV4PIN10M

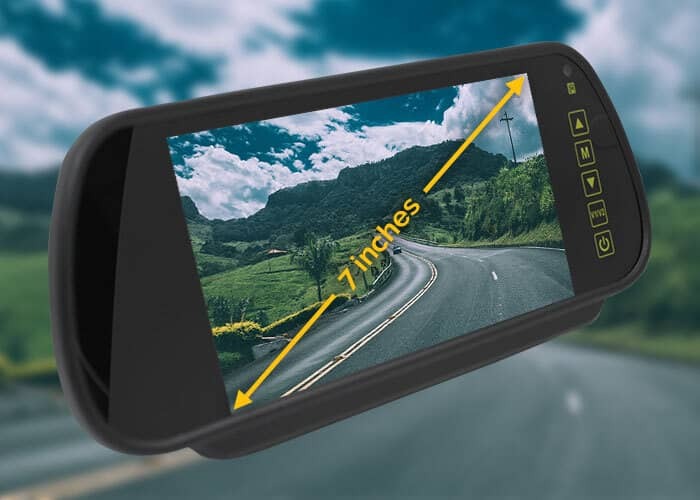

7" LCD Monitor

Anti-reflective clear vision rear view mirror
Automatically shows rear view when reversing
Rearview image can also be shown on screen at all times
Resolution degree 800 x 3 (RGB) x 480
Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before

Night Vision

The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Color contrasting and sharpness better than CMOS Camera.
With 18 IR LED it shows clear images in low light especially at night circumstances.

120 Degree Wide Angle View

Helps avoid accidents & injuries, providing safe driving day and night

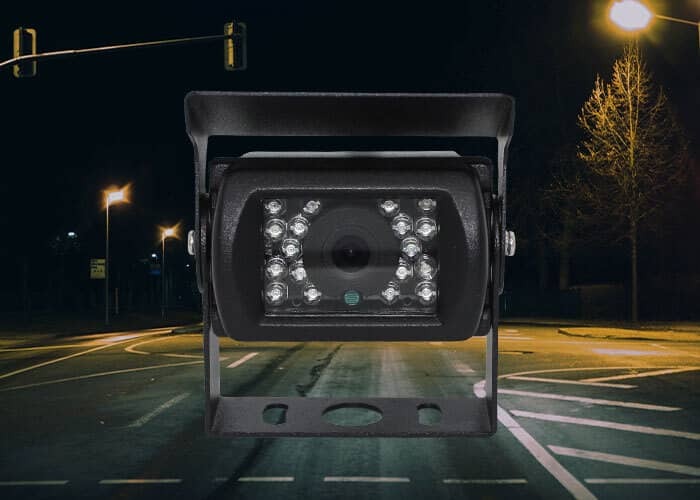

Heavy Duty CCD Rear Camera
Shock resistant, designed specifically for heavy duty vehicle use

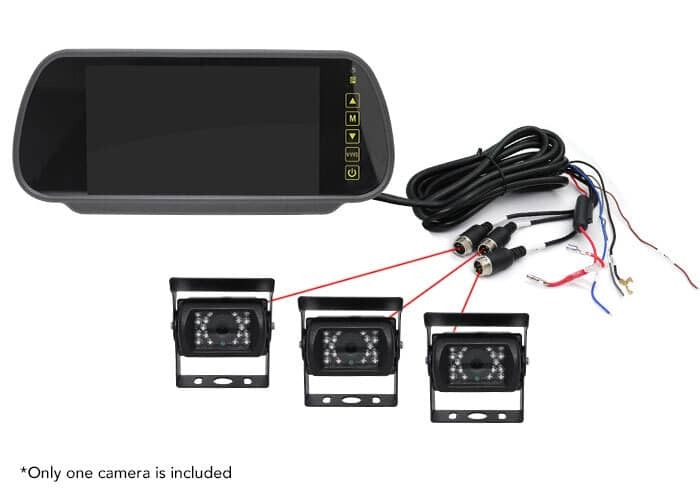

3 Video Inputs

Can be connected up to 3 reversing cameras

Advanced 4 PIN Cable

Allows the monitor to power up cameras. No need to connect another power cable.

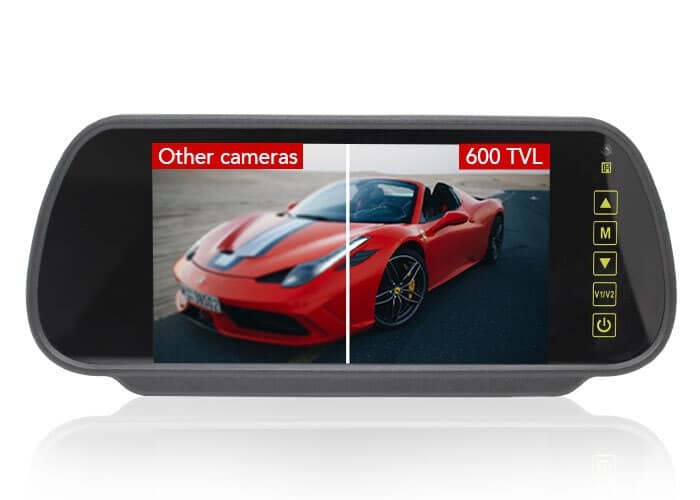

600 TV Lines

High resolution image and video
Clear view day or night

Suitable for use with Trucks, Caravans, Cars and more

Adjustable Mounting Bracket

Original bracket replaces your existing rearview mirror
The mounting bracket at the back, you can adjust the height

Wiring Labels

Monitor Labels

Product Dimensions

Product Views

Remote

*No Batteries included

MORE INFORMATION

7" Rearview Mirror Monitor 12V 24V Reversing CCD Camera Truck Caravan

Installing a reversing camera on your vehicle is important. It can help to keep you safer and more secure on the road. With this 7" Rearview Mirror Monitor Reversing Camera kit, you can reduce blind spots , maneuver easily and park like a piece of cake.

Reverse camera monitor has 3 Video inputs that allow you to connect up to 3 cameras. This package comes with 1 4PIN CCD image sensor reversing camera with 120 degree wide angle view helps avoid accidents & injuries, providing safe driving day and night. The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Colour contrasting and sharpness better than CMOS Camera.

The rearview mirror monitor has an anti-reflective clear vision. This camera is suitable for use with Trucks, Caravans, Cars and more. The camera provides you clear image day and night with 600TV lines.

Start installing a reverse camera now and get it from Elinz, your trusted and reliable partner in the road.

** The remote control is powered by two AAA batteries.(Batteries not included.)

PRODUCT HIGHLIGHTS

7" LCD monitor
- Anti-reflective clear vision rear view mirror
- Automatically shows rear view when reversing
- Rearview image can also be shown on screen at all times
- Resolution degree 800 x 3 (RGB) x 480
- Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before
Night Vision
- The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Color contrasting and sharpness better than CMOS Camera.
- With 18 IR LED it shows clear images in low light especially at night circumstances.
120 Degree Wide Angle View
- Helps avoid accidents & injuries, providing safe driving day and night
- Heavy Duty CCD Rear Camera
- Shock resistant, designed specifically for heavy duty vehicle use
3 Video Inputs
- Can be connected up to 3 reversing cameras
Advanced 4 PIN cable
- Allows the monitor to power up cameras. No need to connect another power cable.
600 TV lines
- High resolution image and video
- Clear view day or night
Suitable for use with Trucks, Caravans, Cars and more
Original bracket replaces your existing rearview mirror
- The mounting bracket at the back, you can adjust the height
T- Slot
- Allows your rearview to fit on on your windscreen nicely
Remote
*No Batteries included

ITEM DESCRIPTION

Rearview Mirror Monitor
- Screen size: 7" LCD monitor (LED digital panel)
- Resolution degree: 800 X 3 (RGB) X480
- Contrast: 500:1
- System: PAL/NTSC
- Power supply: 10VDC to 32VDC
- Power: About 5W
- Working temperature: +0°C-+60°C
- Storage temperature: -20°C-+70°C
- Dot pitch:0.192 ( H) X 0.1805 (V )
- Viewing angle U:50/D:60 L/R:70
- Video: Three-way video inputs
- Anti-reflective rearview mirror
- Shock resistant
- 20G force for vibration an 100G for shock
- Respond time: 30ms
- Picture display format: 4:3/16:9
- Five languages OSD menu: Chinese, English, Russian, German and French
- The display with two video frequency input Automatic/manual switcher
- Front panel controls with on-screen menu
- Operation temperature:- 30 ℃ ~+70 ℃

Reversing Camera
- 1/4 Colour CCD reversing camera
- System: 656X492
- Minimum illumination:0.5 LUX
- Electron shutter:1/60s-1/20US
- Resolution: 600 TV lines
- S/n ratio: More than 48dB
- Voltage: DC12V (+/-10%)
- Waterproof: IP67
- View of angle: 120 degree
- License installation

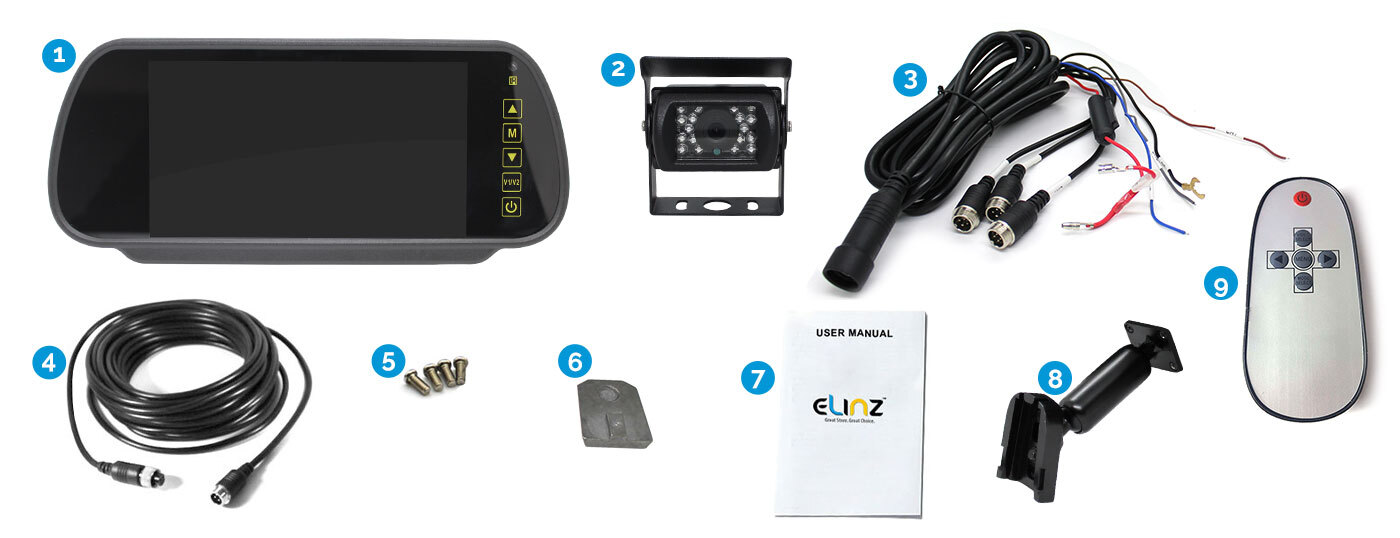

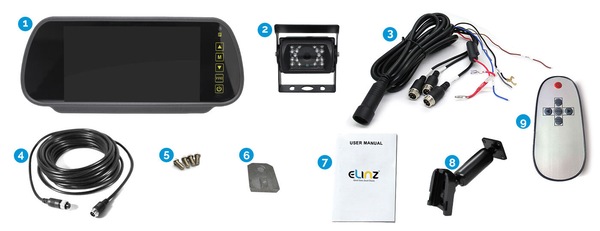

WHAT'S INCLUDED

1. 1x 7" LCD Rearview Mirror Monitor

2. 1x Reversing Camera

3. 1x Power Cord

4. 1x 10M 4PIN Cable

5. Screws

6. 1x T-Slot

7. 1x User Manual

8. Bracket

9. 1x Remote(*No Batteries included)

Specifications:

Specification of Mirror:

Screen size: 7" LCD monitor (LED digital panel)
Resolution degree: 800 X 3 (RGB) X480
Contrast: 500:1
System: PAL/NTSC
Power supply: 10VDC to 32VDC
Power: About 5W
Dot pitch:0.192 ( H) X 0.1805 (V )
Viewing angle U:50/D:60 L/R:70
Video: Three-way video inputs
We specially source for this anti-reflective rearview mirror,so even when the screen is not turned on, the monitor will show the rearview from the mirror clearly
Special glass ,could see clearly even in sunlight
Shock resistant- Built to withstand shock and vibration associated with industrial applications
20G force for vibration an 100G for shock
Respond time: 30ms
Picture display format: 4:3/16:9
Five languages OSD menu: Chinese, English, Russian, German and French
The display with two video frequency input Automatic/manual switcher
Front panel controls with on-screen menu
Operation temperature:- 30 ? ~+70 ?

GTIN: 0686494501379
