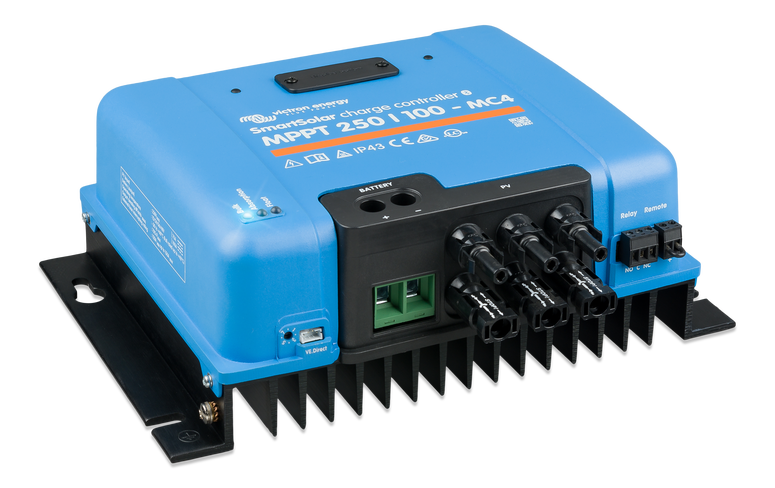

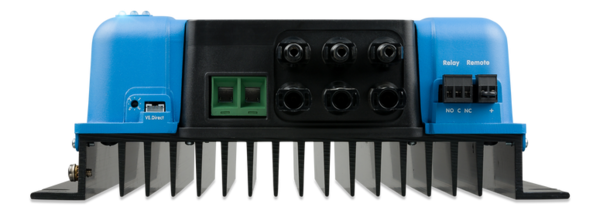

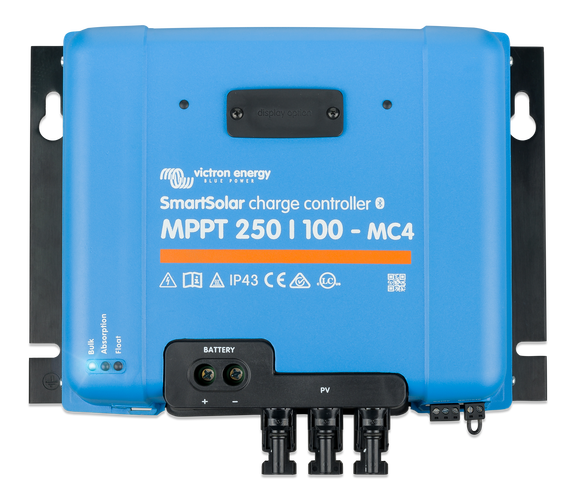

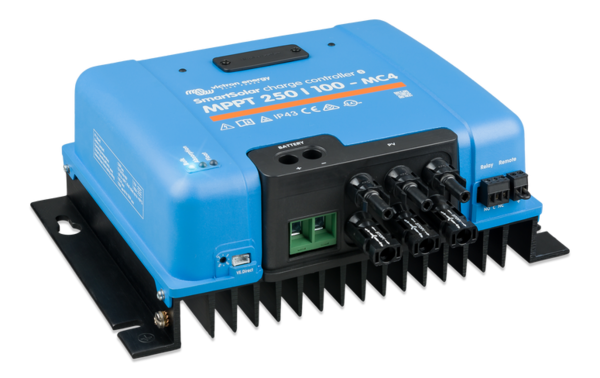

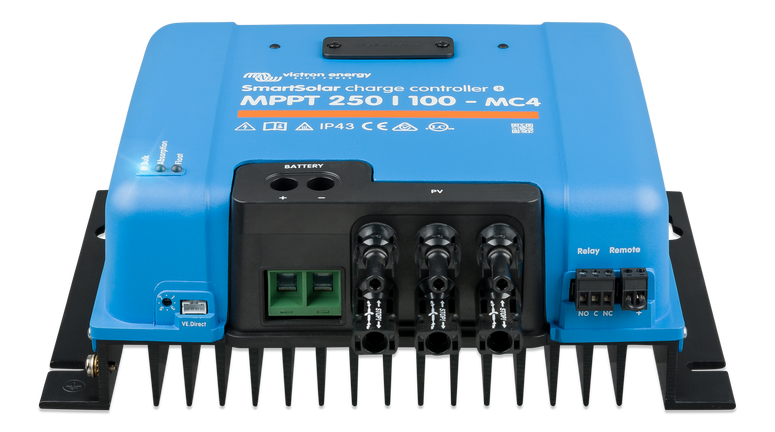

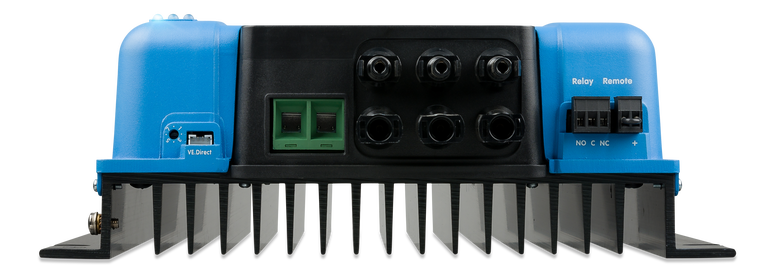

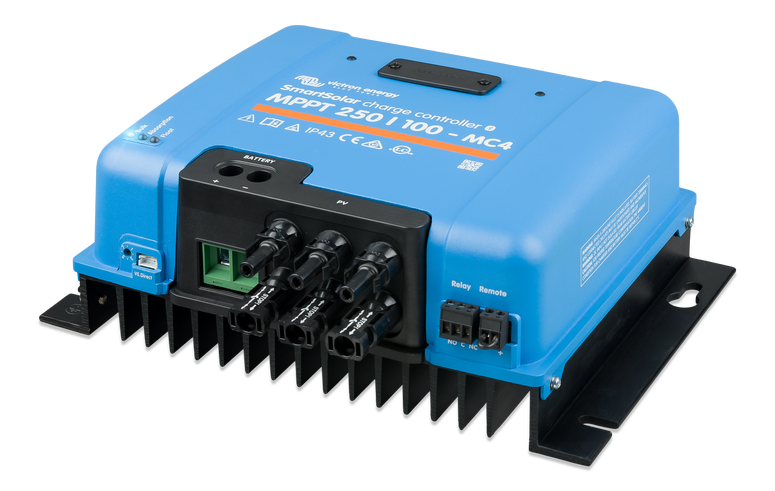

Victron Energy MPPT 250/100 SmartSolar MPPT 250/100 Solar Charge Controller MC4

Victron Energy MPPT 250/100 SmartSolar MPPT 250/100 Solar Charge Controller MC4

Hurry! 8 items left!
Price
$1515
Collect 1515 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

24-48 hour dispatch
Quantity
Maximum item limit (8) has been reached.

  • Charge current up to 100A, and PV voltage up to 250V
  • Automatically adjust to a 12, 24 or 48V nominal battery voltage
  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading conditions.
  • Bluetooth Smart built-in
  • MC4 connectors

    Model:  MPPT 250/100 Ask about ground fault detection

    Charge current: 100 A
    Maximum PV Open Circuit Voltage: 250V
    Maximum PV Power: 1.45kW (12V), 2.9kW (24V), 5.8kW (48V)
    Battery voltage (nominal): 12 / 24 / 48 V auto select

    PV voltage up to 250 V

    The SmartSolar MPPT 250/85 and 250/100 charge controllers will charge a lower nominal-voltage battery from a higher nominal voltage PV array. The controller will automatically adjust to a 12, 24 or 48V nominal battery voltage.

    Ultra-fast Maximum Power Point Tracking (MPPT)

    Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

    Advanced Maximum Power Point Detection in case of partial shading conditions

    If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

    Outstanding conversion efficiency

    Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

    Flexible charge algorithm

    Fully programmable charge algorithm (see the software page on the Victron website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

    Bluetooth Smart built-in

    Dongle not needed The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

    Optional: pluggable LCD display

    Simply remove the rubberseal that protects the plug on the front of the controller, and plug-in the display.

    NOTE: Image includes optional pluggable dislplay.

    Additional Information
      Part Number SCC125110310
      Manufacturer

      Victron Energy





      Downloads
         BlueSolar and SmartSolar Charge Controller MPPT - Overview
      SmartSolar charge controller MPPT 250/70 up to 250/100 VE.Can
      SKU: SmartSolar MPPT 250/100-MC4
