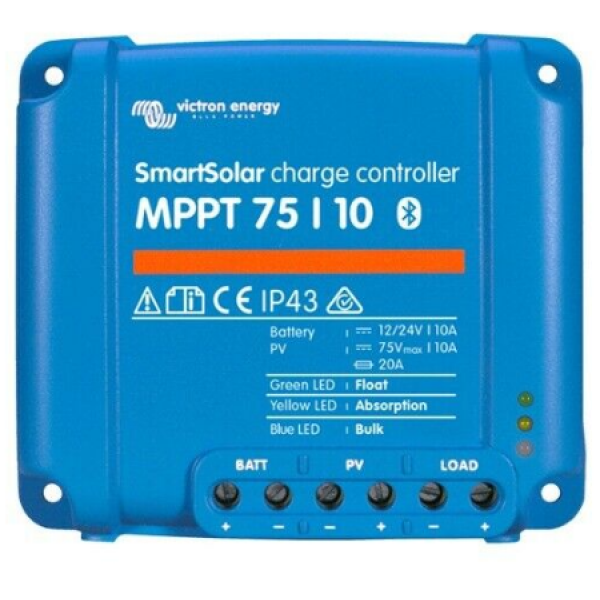

Victron Energy MPPT 75/10 SmartSolar Solar Charge Controller

Victron Energy MPPT 75/10 SmartSolar Solar Charge Controller

Hurry! 9 items left!
Price
$197
Collect 197 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

24-48 hour dispatch
Quantity
Maximum item limit (9) has been reached.


SmartSolar Charge controller featuring:

  • Bluetooth enabled inbuilt
  • Day/night timing and light dimming option
  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Intelligent battery management
  • 12/24 V auto select

Model: SmartSolar MPPT 75/10

Charge current: 10 A
Maximum PV Open Circuit Voltage: 75V
Maximum PV Power: 135 W (12V), 270W (24V)
Battery voltage (nominal): 12/24 V auto select
Charge algorithm: Multi-stage adaptive

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.

Battery Life: intelligent battery management

When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.

The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm

Day/night timing and light dimming option

Programming, real-time data and history display options

- Modern Apple and Android smartphones, tablets, macbooks and other devices

Additional Information
    Part Number SCC075010060R
    Manufacturer Victron Energy



    Downloads
        BlueSolar and SmartSolar Charge Controller MPPT - Overview
    SmartSolar MPPT 75/10, 75/15, 100/15, 100/20 & 100/20-48V


    SKU: SCC075010060R
