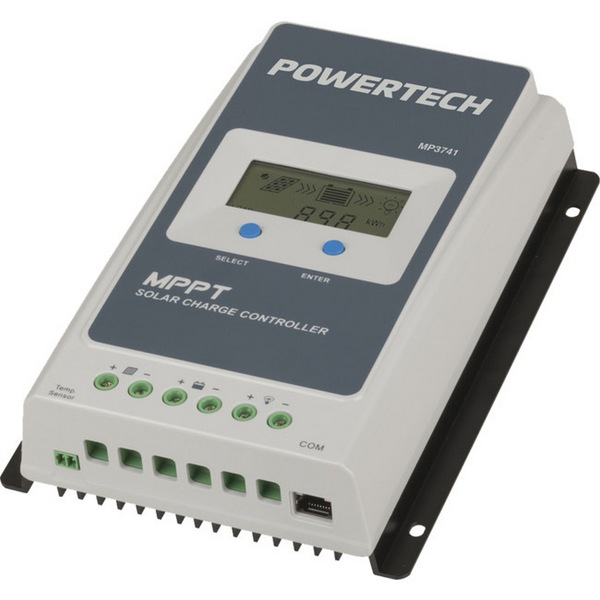

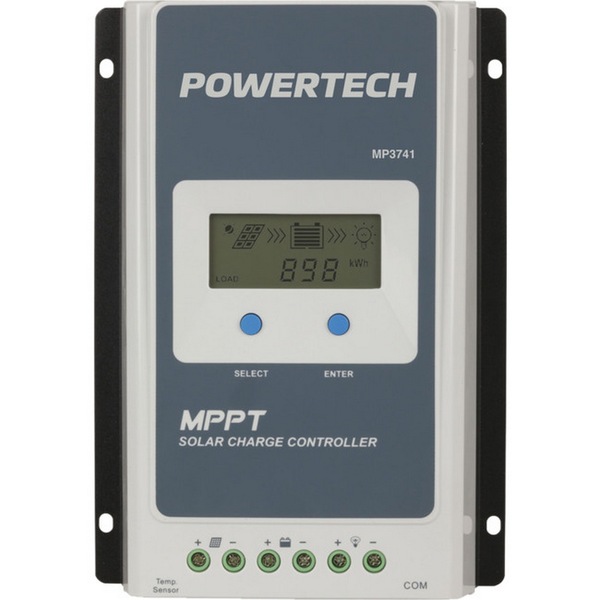

Uses Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate. Able to charge lead acid (sealed, gel or flooded) or lithium battery banks between 8Vto 32V, and supports 12V solar arrays up to 260W or 24VDC arrays up to 520W. It features bulk, constant and float charge stages for rapid, efficient and safe battery charging, with feedback on charge status, current, voltages,etc. shown on the LCD screen. Built into a durable case for permanent installation with heavy duty screw terminals for cabling up to 10AWG.
Features:
Battery support:
DC Voltage : 12.0V, 24.0V |
Width : 155.0mm |
Height : 221.0mm |
Depth : 52.0mm |
Weight : 940.0g |
Charge Controller Technology : Maximum Power Point Tracking (MPPT) |
Max PV Open Circuit Voltage : 100.0V |
Max Charging Current : 22.5A |
Max Load Current : 20.0A |
Max Solar Panel Array : 520.0W |
12 Months
Warranty Policy
Please refer to the individual product listing for specific warranty terms and period. Customers need to return the products back to us for a repair or replacement.
Returns Policy
30-Day Free Returns / Change of mind. Returns postage are payable by the customers.
Estimated Delivery Time Frame: 5-7 business days
