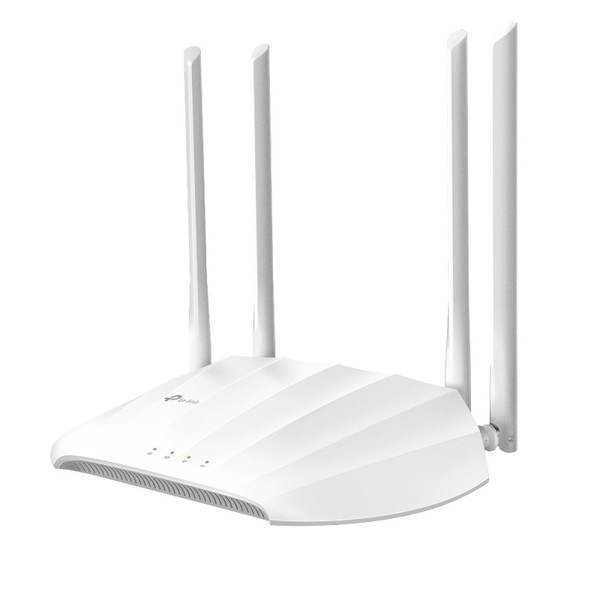

TP-Link TL-WA1201 AC1200 Wireless Access Point

Features:
  • AC1200 Dual-Band Wi-Fi - 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
  • Flexible Deployment - Supports Passive PoE to carry electrical power and data simultaneously.
  • Multiple Modes - Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
  • MU-MIMO Technology - Simultaneously transfers data to multiple devices for 2x faster performance.
  • Boosted Coverage - Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
  • Captive Portal - Offers a designed portal page for heightened security and marketing.
Specifications:

HARDWARE FEATURES

  • Interface :1x 10/100/1000 Mbps Ethernet Port
    (Supports Passive PoE)

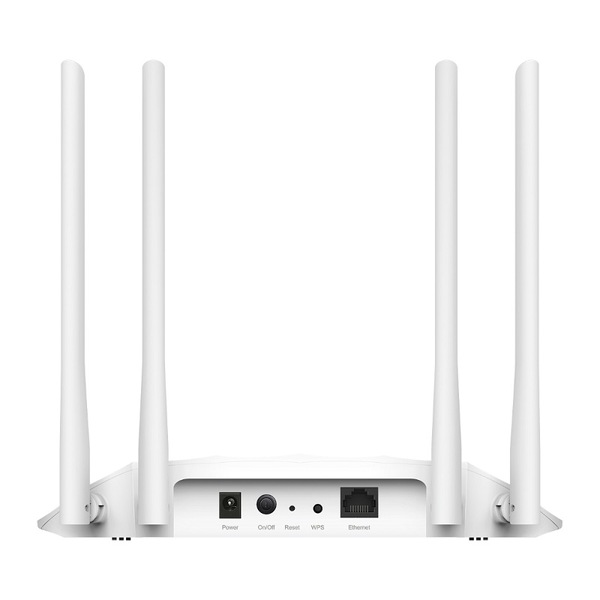

  • Button :Power On/Off Button, WPS Button, Reset Button
  • External Power Supply :12V/1.5A
  • Wireless Standards :IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
  • Dimensions ( W x D x H ) :8.9 x 5.7 x 1.5 in
    (225x145.5x37 mm)
  • Antenna Type :4 Fixed High Performance Antennas

WIRELESS FEATURES

  • Frequency :2.4 GHz and 5 GHz
  • Signal Rate :867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
  • Reception Sensitivity :5 GHz:
    11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
    11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
    11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
    11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

    2.4 GHz:
    11g 54Mbps: -78 dBm
    11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
    11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
  • Transmit Power :CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
    FCC: <30dBm(2.4GHz&5GHz)
  • Wireless Modes :Access Point, Range Extender, Client, Multi-SSID
  • Wireless Functions :Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
  • Wireless Security :64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
  • DHCP :Server, DHCP Client List
  • Quality of Service :WMM
  • Advanced Functions :Captive Portal

OTHERS

  • Certification :CE, FCC, RoHS
  • Package Contents :Wireless Access Point TL-WA1201
    Power Adapter
    RJ45 Ethernet Cable
    Quick Installation Guide
    PoE Power Injector
  • System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
    10, MAC OS, NetWare, UNIX or Linux
    Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
    Java-enabled browser
  • Environment :Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
    Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Protocol Support :IPv4, IPv6
SKU: NET-TPL-WA1201
