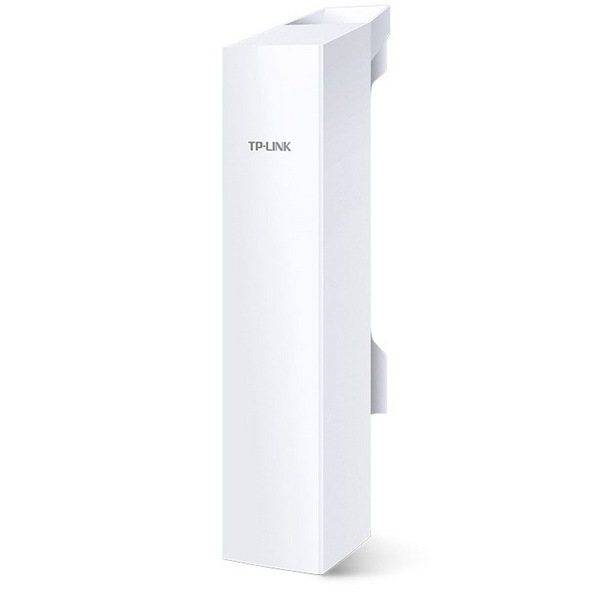

TP-Link CPE220 2.4GHz 300Mbps 12dBi High Power Outdoor CPE Access Point Upto13km

TP-Link CPE220 2.4GHz 300Mbps 12dBi High Power Outdoor CPE Access Point Upto13km

Limited Stock!

Price	$90.35
	Collect 90 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Features:

Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 30dBm/1000mw
System-level optimizations for more than 13km long-range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralised Management System - Pharos Control
AP / Client / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Learn more about Pharos Control >

Specifications:

HARDWARE FEATURES

Processor :Qualcomm Atheros 560MHz CPU, MIPS 24Kc
Memory :64MB DDR2 RAM, 8MB Flash
Interface :1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
Power Supply :Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption :10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) :11x3.1x2.1 inch (276x79x60 mm)
Antenna Type :Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection :15KV ESD Protection
6KV Lightning Protection
Enclosure :Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards :IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol :TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds :Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency :2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.
Transmission Power :30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations :Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management :Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools :Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations :Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTER FEATURES

Dimensions(W x D x H) :85.8x43.9x31.9 mm
Interfaces :1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)
Button :Remote Reset Button
Power Status LEDs :Green
Input :100-240VAC, 50/60Hz
Output :24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency :>80%
Certifications :CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS

Certification :CE, FCC, RoHS, IPX5
Package Contents :Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user
experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment :Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

SKU: NET-TPL-CPE220
