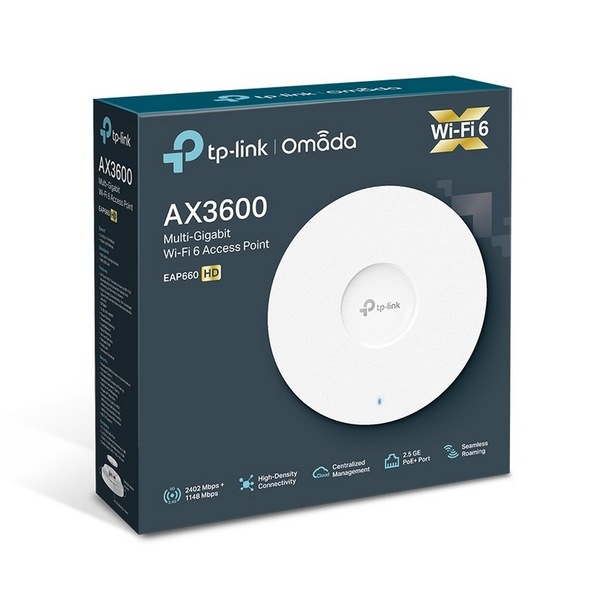

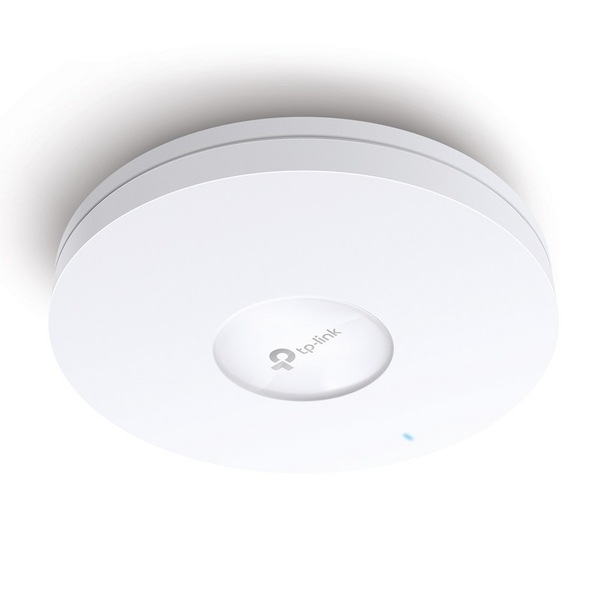

TP-Link EAP660 HD AX3600 Wireless Dual Band Gigabit Ceiling Mount Access Point

TP-Link EAP660 HD AX3600 Wireless Dual Band Gigabit Ceiling Mount Access Point

Be the first to review this product

Limited Stock!

Price	$334.78
	Collect 334 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

Features:

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
High-Density Connectivity: 4x increased capacity to connect more devices simultaneously.†
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.?
PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Learn more about Omada Wi-Fi 6>?

Specifications:

HARDWARE FEATURES

Interface :1x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button :Reset
Power Supply :• 802.3at PoE
• 12 V DC
Power Consumption :• EU: 18.5 W
• US: 21.5 W
Dimensions ( W x D x H ) :9.6 x 9.6 x 2.5 in (243 x 243 x 64 mm)
Antenna Type :Internal Omni
• 2.4 GHz: 4x 4 dBi
• 5 GHz: 4x 5 dBi
Mounting :Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
Frequency :2.4 GHz and 5 GHz
Signal Rate :• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps
Wireless Functions :• 1024-QAM
• 4x Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming?
• Omada Mesh?
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security :• Captive Portal Authentication?
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power :• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)

MANAGEMENT

Omada App :Yes
Centralized Management :• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts :Yes
LED ON/OFF Control :Yes
Management MAC Access Control :Yes
SNMP :v1, v2c, v3
System LoggingLocal/Remote Syslog :Local/Remote Syslog
SSH :Yes
Web-based Management :HTTP/HTTPS
L3 Management :Yes
Multi-site Management :Yes
Management VLAN :Yes
Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification :CE, FCC, RoHS
Package Contents :• EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment :• Operating Temperature: 0-40 ? (32-104 ?)
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

SKU: NET-TPL-EAP660H
