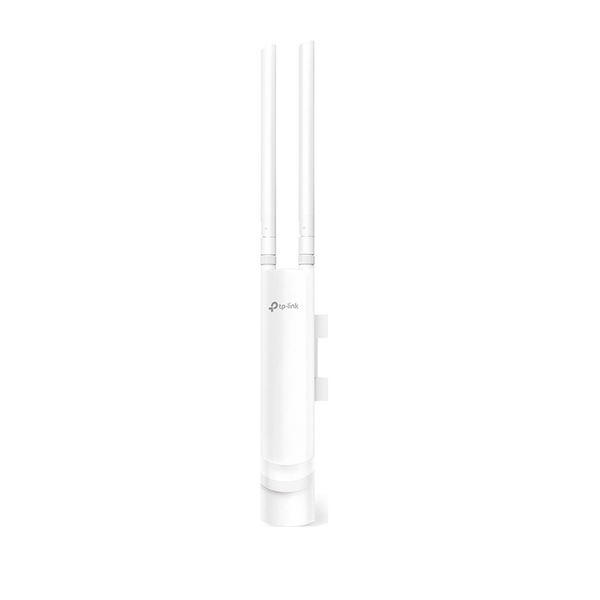

TP-Link EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Features:

Durable, weatherproof enclosure for outdoor Wi-Fi applications
Up to 1200Mbps with 2x2 MIMO technology
Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
High transmission power and high gain antennas provide a long-range coverage area
Cloud centralised management and Omada app for ultra convenience and easy management
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installationLearn more about Controller Software >?

Learn more about Controller Software >?

Specifications:

HARDWARE FEATURES

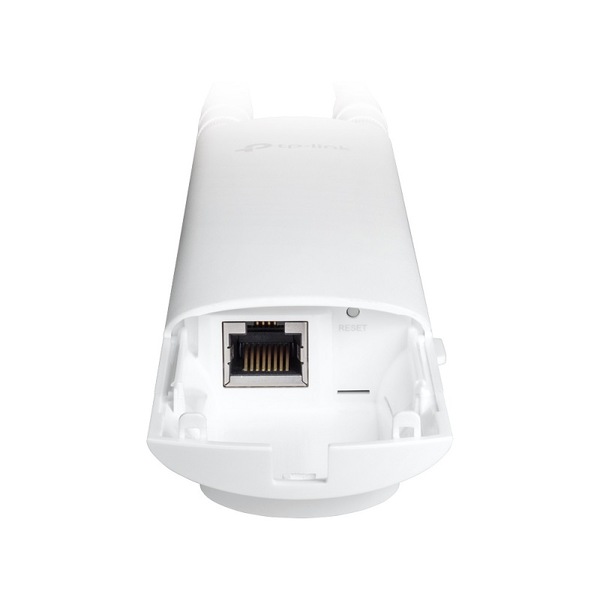

Interface :1x Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
Button :Reset
Power Supply :• 802.3af/at PoE (Alternative A)
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption :10.5 W
Dimensions ( W x D x H ) :• 215.7x45x37.7 mm (without antenna & mounting kit)
• 403.8x90.7x55.2 mm (with antenna & mounting kit)
Antenna :• 2.4 GHz: 2x 3 dBi
• 5 GHz: 2x 4 dBi
Weatherproof Enclosure :IP65
Mounting :Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards :IEEE 802.11a/b/g/n/ac
Frequency :2.4GHz, 5GHz
Signal Rate :• 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions :• Multiple SSIDs?Up to 16 SSIDs, 8 for each band?
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control ?Adjust Transmit Power on dBm?
• QoS(WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security :• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Transmission Power :• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

MANAGEMENT

Omada App :Yes
Centralized Management :• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts :Yes
Management MAC Access Control :Yes
SNMP :v1, v2c
System LoggingLocal/Remote Syslog :Yes
SSH :Yes
Web-based Management :Yes
L3 Management :Yes
Multi-site Management :Yes
Management VLAN :Yes
Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification :CE, FCC, RoHS
Package Contents :• Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Ruber Insert
• Waterproof Antenna
System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment :• Operating Temperature: -30-70 ? (-22-158 ?)
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

SKU: NET-TPL-EAP225O
