Toyota Hilux 2020-2024 Elinz Reverse Camera T611 Only Requires T-Harness and Power Cable

Enhance your Toyota Hilux (2020-2024) with the Elinz Reverse Camera T611, designed for seamless integration and high-performance reversing assistance. This camera is perfect for models like WorkMate, Rogue, SR, SR5, and Rugged X, whether Single, Double Cab, or Cab-Chassis, provided the vehicle lacks a factory-fitted camera.



Toyota Hilux 2020-2024 Compatible

Fits all Toyota Hilux 2020-2024 models like WorkMate, Rogue, SR, SR5, Rugged X whether you have a Single, Double Cab or Cab-Chassis that did not come with a camera from factory with this type of factory screen.

• Plug and Play Installation
  • Seamlessly integrate the reverse camera with your Toyota Hilux factory screen without cutting the factory wiring or removing the factory head unit from your dashboard.
  • T-Harness is NOT INCLUDED.
• Auto-Activation
  • The reverse camera will automatically turn on and images will be displayed instantly when you put the gear in reverse.
• 800TVL Resolution
  • With high quality 800TVL resolution it ensures that you can see every detail clearly when reversing.
• CMOS Sensor
  • This reliable and high-quality reverse camera is equipped with a 1/3" CMOS sensor to provide you with quality and detailed images and greater clarity than other aftermarket reversing cameras.
• IP68 Waterproof Connectors
  • The threaded and O-ring sealed connectors between the camera and power cable makes it more durable and secure connection. It fully protects your reverse camera in all kinds of weather conditions.
  • Power Cable is NOT INCLUDED
• Parking Guidelines ON/OFF
  • You can cut the GREEN wire loop to enable/disable parking lines on a reverse camera.
• Viewing Options
  • The camera comes with blue and white wire loops allowing you to flip the image horizontally or vertically without changing the bracket. So whether you are installing the camera above or below the number plate you can easily manage the viewing options by cutting the wire loops.
  • Blue Wire Loop: Vertical Image Flip
  • White Wire Loop: Horizontal Image Flip.
• Angle of View
  • The camera has a horizontal viewing angle of 120°, vertical viewing angle of 90° and diagonal viewing angle of 170°. Perfect angle so you can better understand the situation behind your vehicle.
• IP68 Waterproof Camera
  • Leave your worries about heavy rains and other weather conditions, camera can withstand different weather situations.

• Image Sensor: 1/3" CMOS
• Resolution: 800 TVL
• Angle of View: 170° Diagonal, 120° Horizontal, 90° Vertical
• Power Supply: DC 12V
• Vehicle Connection: 26 Pin (T-Harness NOT INCLUDED)
• Connector IP Rating: IP68
• Operating Temperature: -30°C to +80°C
• Camera IP Rating: IP68
• Camera Wire Loops:
  • BLUE Wire Loop = Vertical Image Flip
  • WHITE Wire Loop = Horizontal Image Flip
  • GREEN Wire Loop = Parking Guidelines On/OFF

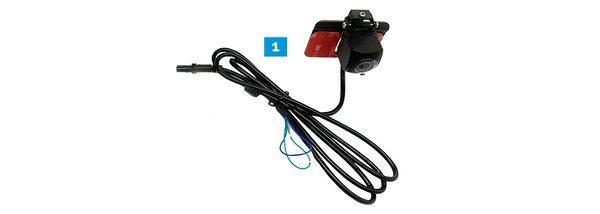

1. 1x Reverse Camera
