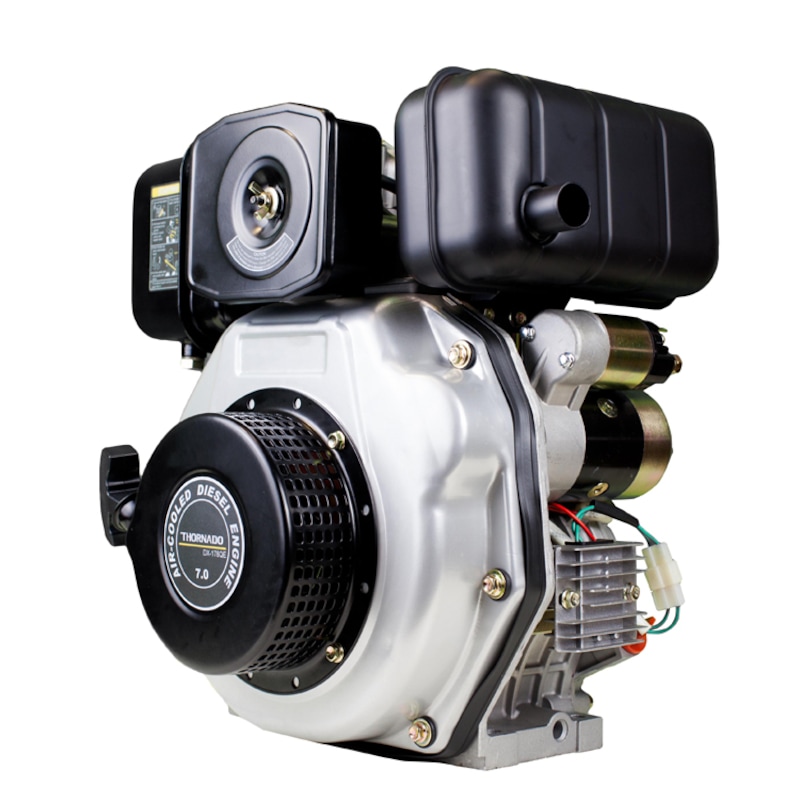

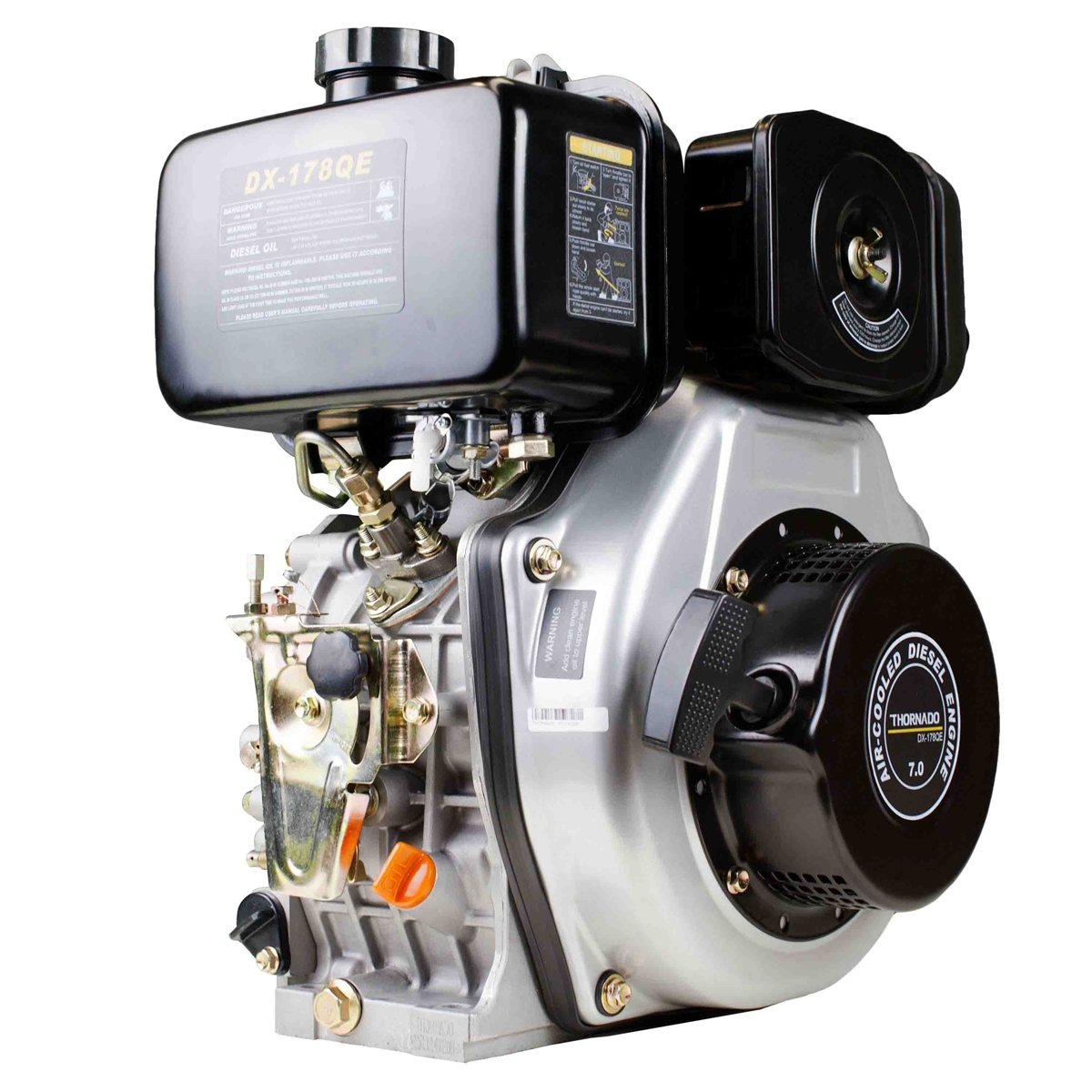

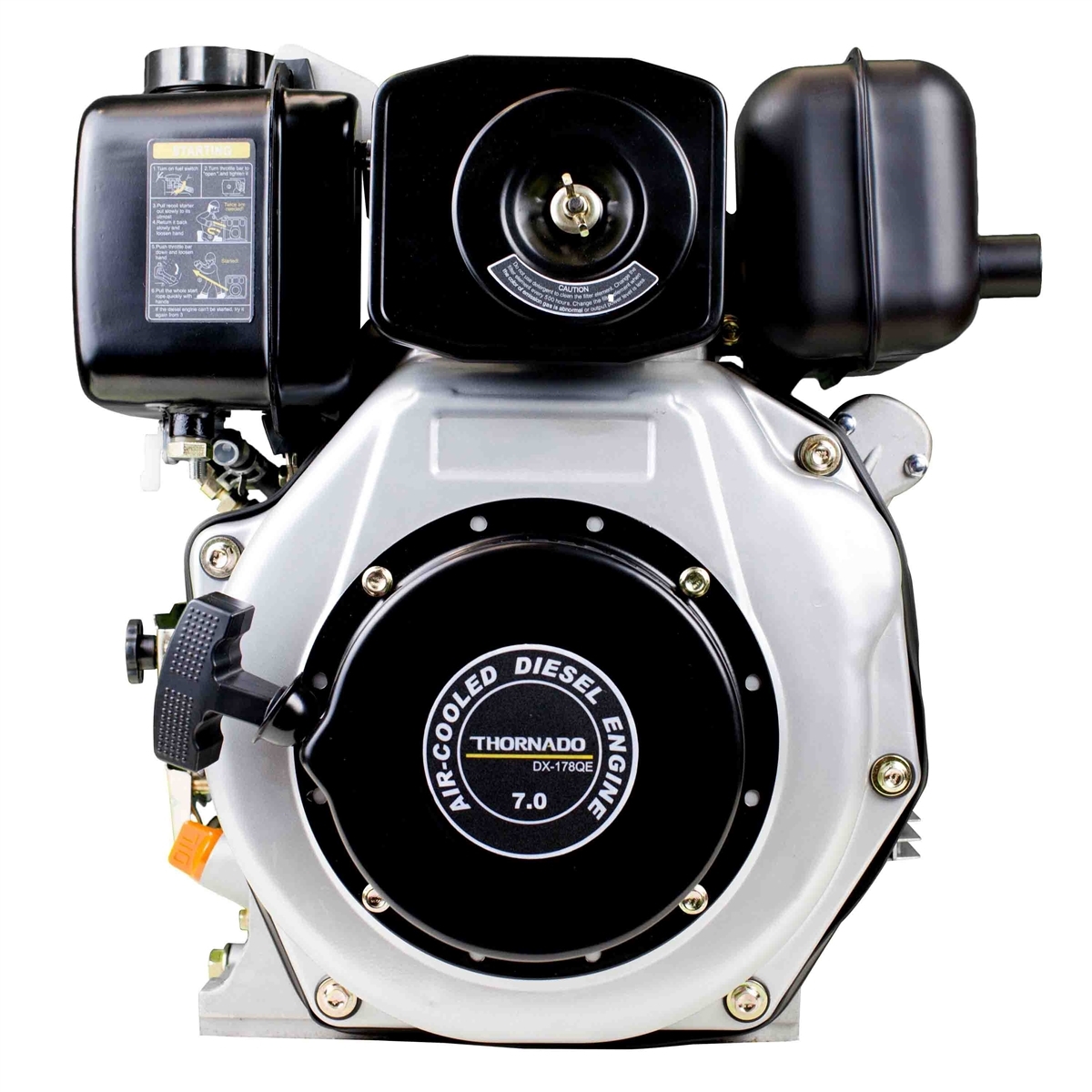

Thornado 7HP Stationary Diesel Engine Electric Start (19.05mm Key Shaft)
The Thornado 7HP diesel engine is a 4-stroke, single cylinder forced air-cooled engine with a electric starter that makes it easy to get the equipment running and on task. The engine is coupled with a horizontal key shaft of 19.05mm diameter.
The thornado 7HP diesel engine is designed and built with all high quality parts that make the engine very durable and better than most of the available brands on the market nowadays. Highly efficient, the Thornado 7HP engine has multiple uses because of its small size, its light weight, and its portability. The Thornado 7HP engine seems to be the perfect solution using in variety of applications including water pumps, Go-karts, generator, Chippers, Pressure Washers, Bench saws & other Agricultural uses.
Key Features
Suitable Applications
*T&C's Apply, see Warranty Policy for full details.
SPECIFICATIONS | |
Model No | DX-178QE |
Type | Single cylinder 4 stroke, forced air cooled |
Displacement | 296cc |
Bore x Stroke | 78 x 62 |
Max Power HP / Rpm | 7 HP / 3600 Rpm |
Max Torque | N/A |
Combustion System | Direct Injection |

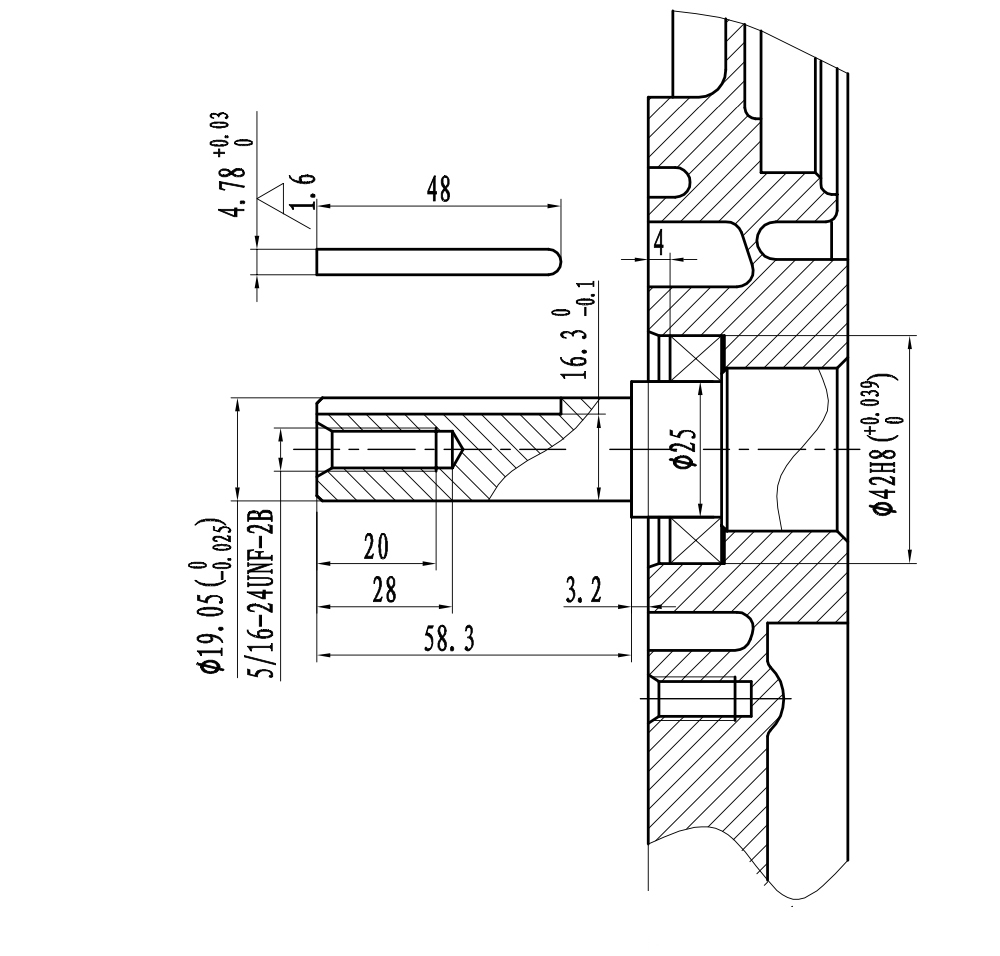

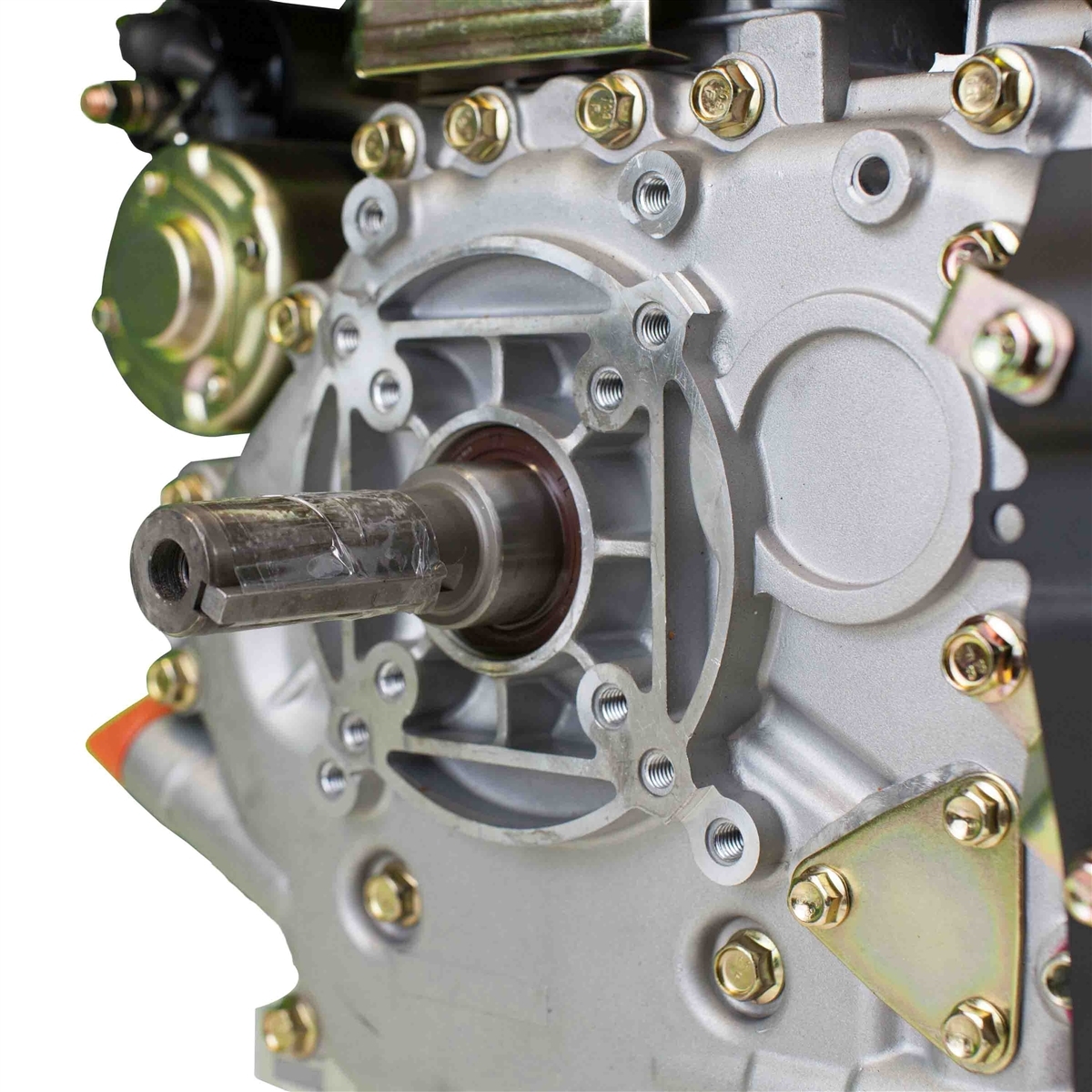

Shaft Type | Horizontal Key Shaft (Q Type) |

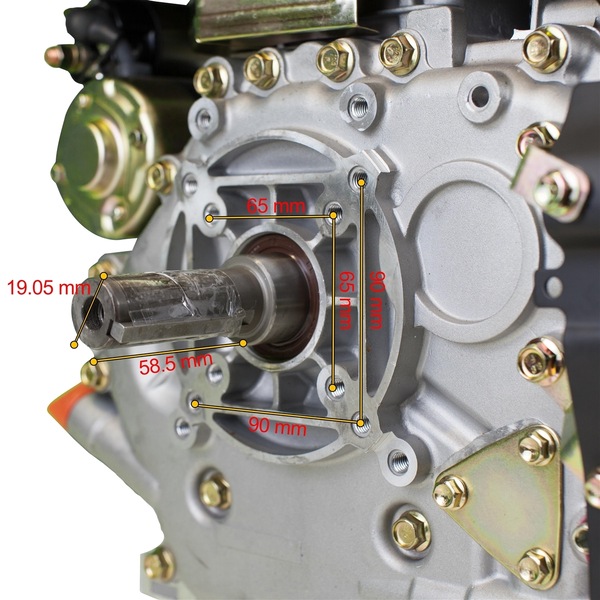

Shaft Diameter | 19.05mm |
Shaft Length | 58mm |
Shaft Rotation | Anti clockwise from output |
Compression Ratio | 19:1 |
Fuel Type | Diesel |
Oil Type | SAE10w-30 / SAE15w-40 |
Fuel Tank Capacity | 3.5L |
Oil Capacity | 1.1L |

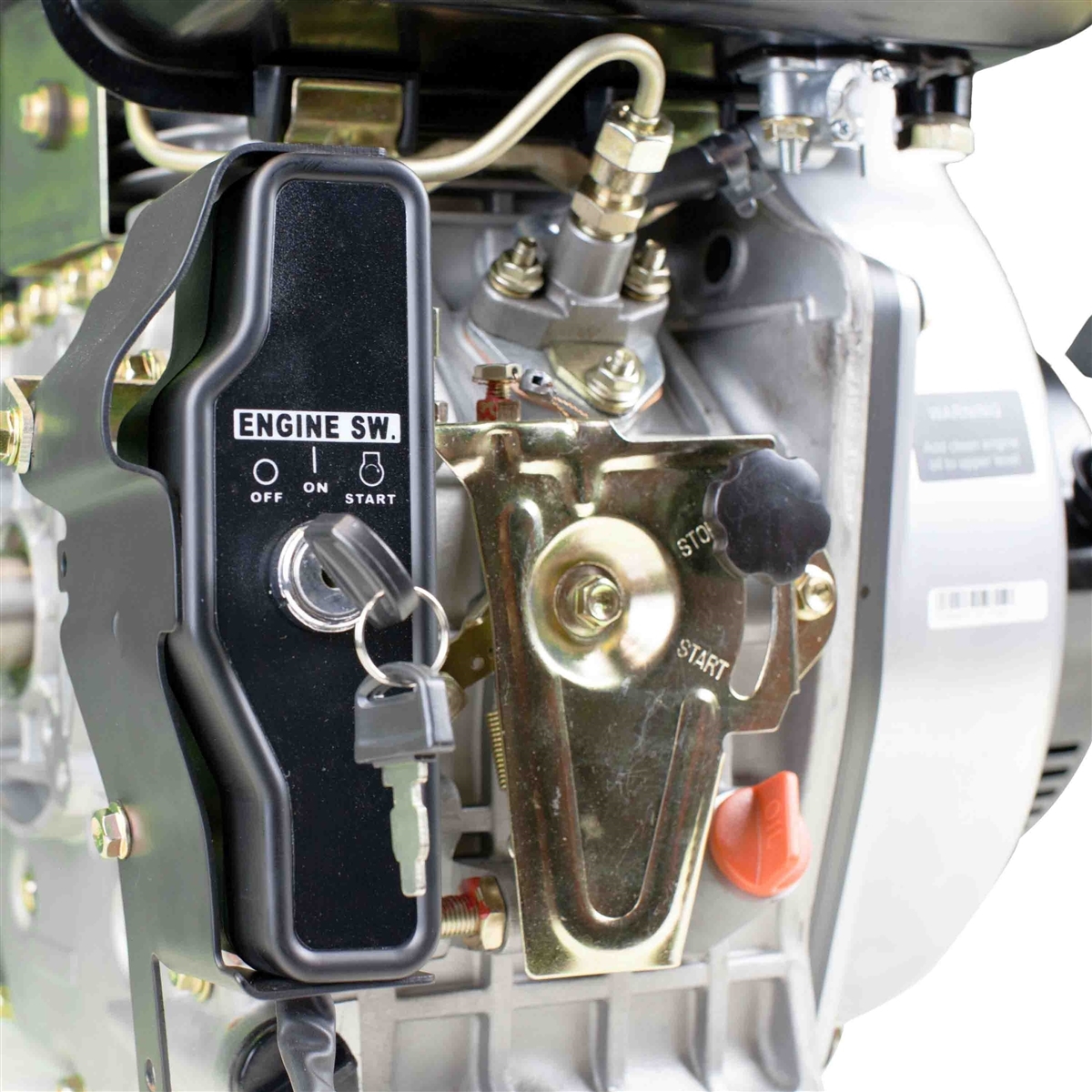

Starting System | Electric start / Recoil manual start |
Product Length | 420 mm |
Product Width | 385 mm |
Product Height | 450 mm |
Dry Weight | 35kg |
