Our 7 hp horizontal shaft engine offers exceptional speed and acceleration that makes it a go-to solution for go-karting. The highly resilient construction of our 7 hp key shaft engine ensures long-lasting performance with minimum upkeep hassle.
Key Features and Specifications
Exceptional Benefits of Our 7 hp Key Shaft Engine
The camshaft and crankshaft of our 7-hp motor recoil start engine are made from highly resilient steel. This allows our 7 hp recoil engine to withstand harsh conditions with ease and last longer.
Our 7 hp small petrol engine incorporates a high-quality carburettor that allows you to start the engine effortlessly without applying any manual effort.
With a low oil sensor and fuel shutoff valve, our 7 hp engine keeps your device safe from hazardous accidents and damage.
Applications of Our 7 hp Horizontal Shaft Engine
When you need an engine with minimum maintenance and high performance, our 7 hp recoil-start engine becomes a suitable solution.
*T&C's Apply, see Warranty Policy for full details.
SPECIFICATIONS | |
Model No | TH-070QR |
?Type | Single cylinder 4 stroke, air cooled |
Displacement | 212cc |
Bore x Stroke | 70 x 55 mm |
Max Power | 7 HP / 3600 rpm |
Max Power | 4.4 kW / 3600 rpm |
Max Torque | 24N.m/2500rpm |

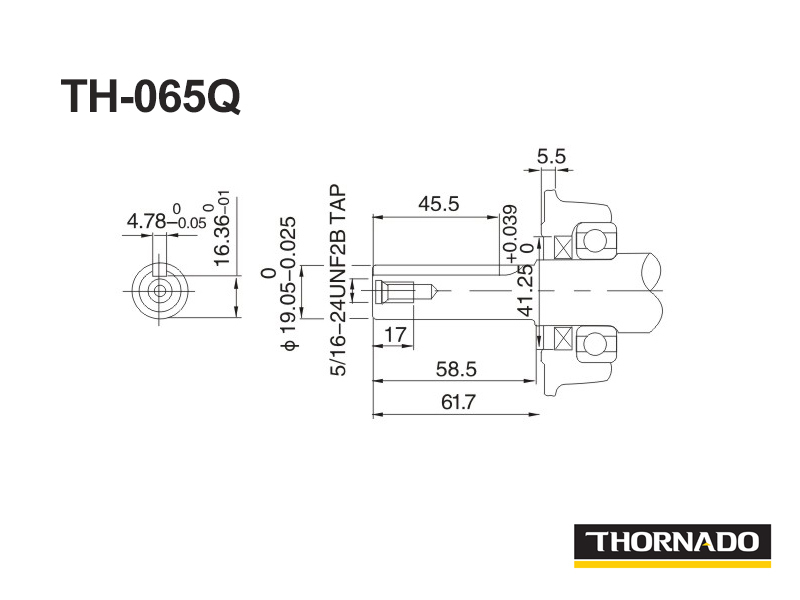

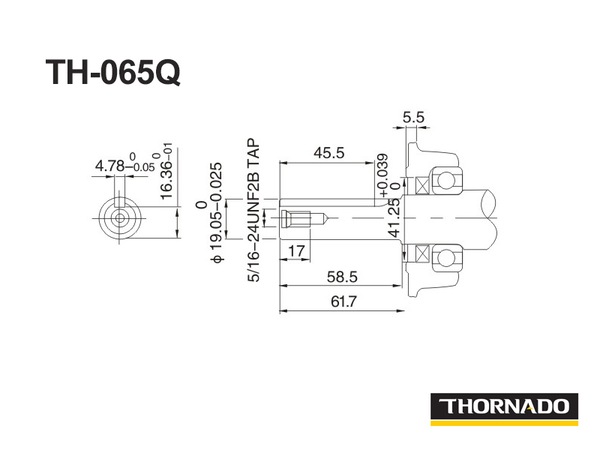

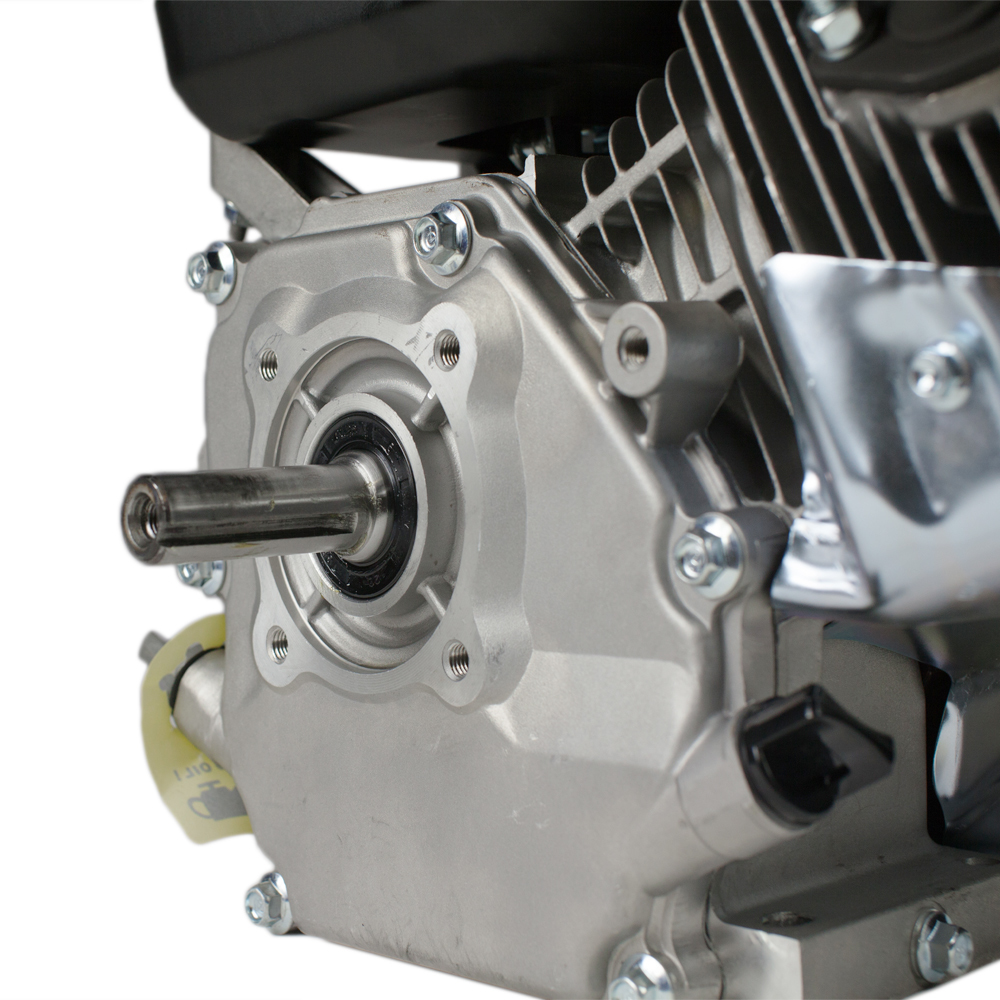

Shaft Type | Horizontal Key Shaft (Q Type) |
Shaft Diameter | 19.05 mm |
Shaft Length | 58.5 mm |
Shaft Rotation | Anti clockwise from output |
Compression Ratio | 9.0:1 |
Fuel Type | Petrol |
Oil Type | SAE10w-30 / SAE30 |
Fuel Tank Capacity | 3.6L |
Oil Capacity | 0.55L |
Ignition System | Transistorised magneto ignition |
Starting System | Recoil start |
Carburettor | Flat suction valve carburettor |
brication system | Forced splash |
Governor system | Centrifugal mechanical |
Spark Plug Compatible | NGK - BP-6ES; Torch - F6TC |
Valve Clearance - Intake | 0.15mm |
Valve Clearance - Exhaust | 0.20mm |
Fuel consumption | <= 395 g/kW.h |

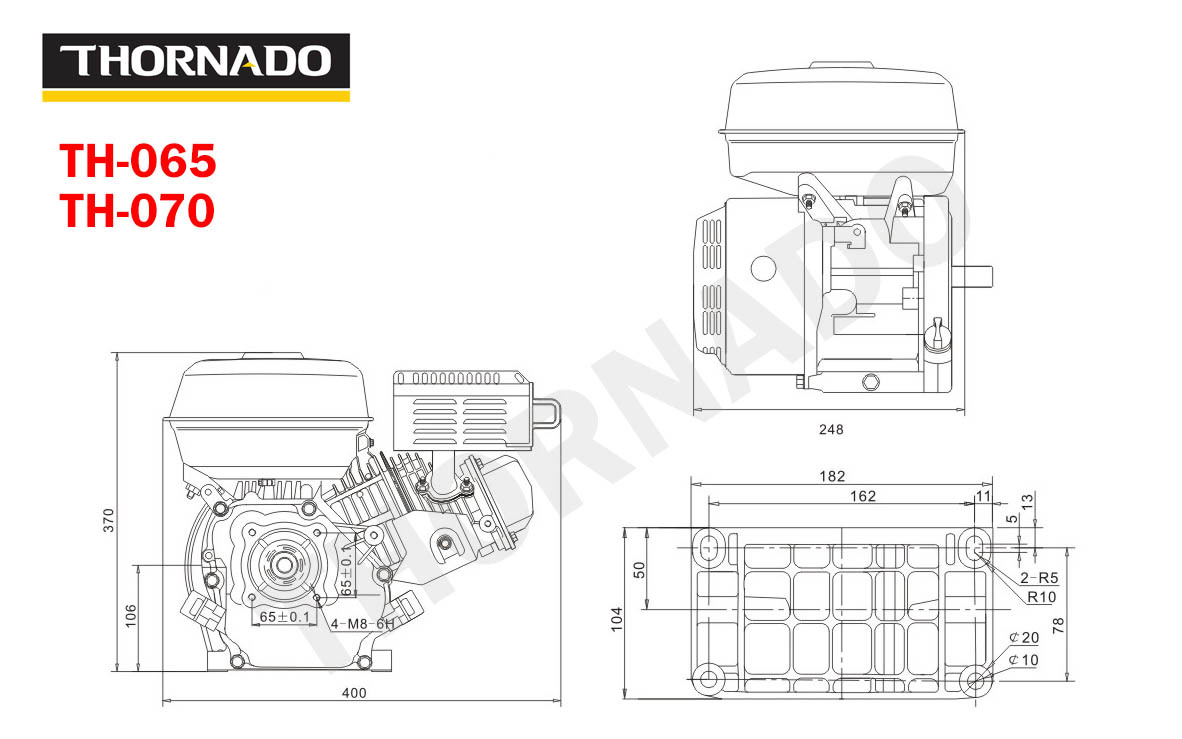

Mounting Pattern | 62mm L x 78mm W (center to center) |
Product Length | 390 mm |
Product Width | 320 mm |
Product Height | 345 mm |
Product Weight | 16 Kg |
Certification | EPA III |
