Thornado 13HP (389cc) OHV Stationary Motor Petrol Engine (25.4mm Key Shaft)
The Thornado 13HP stationary motor is a 4-stroke, single-cylinder OHV forced air-cooled petrol engine with a recoil starter that makes starting and operating the equipment simple. Because the horizontal shaft is ball-bearing mounted, this engine is an excellent replacement for most standard engine configurations. This engine has a ductile iron crank shaft and a cast iron cylinder, making it ideal for a wide range of applications such as water pumps, go-karts, generators, wood chippers, pressure washers, bench saws, and other agricultural uses.
Thornado 13hp Stationary Motor Key Features
Suitable Applications
*T&C's Apply, see Warranty Policy for full details.
SPECIFICATIONS | |
Model No | TH-130QR |
?Type | Single cylinder 4 stroke, air cooled |
Displacement | 389cc |
Bore x Stroke | 88 x 64 mm |
Max Power | 13 HP / 3600 rpm |
Max Power | 7.8 kW / 3600 rpm |
Max Torque | 25N.m/2500rpm |

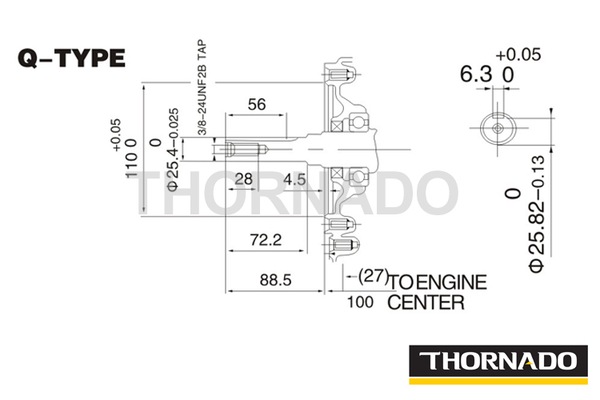

Shaft Type | Horizontal Key Shaft (Q Type) |
Shaft Diameter | 25.4 mm |
Shaft Length | 72.2 mm |
Shaft Rotation | Anti clockwise from output |
Compression Ratio | 8.5:1 |
Fuel Type | Petrol |
Oil Type | SAE10w-30 / SAE30 |
Fuel Tank Capacity | 6.5L |
Oil Capacity | 1.1L |
Ignition System | Transistorised magneto ignition |
Starting System | Recoil start |
Carburettor | Flat suction valve carburettor |
Lubrication system | Forced splash |
Governor system | Centrifugal mechanical |
Spark Plug Compatible | NGK - BP-6ES; Torch - F6TC |
Valve Clearance - Intake | 0.15mm |
Valve Clearance - Exhaust | 0.20mm |
Fuel consumption | <= 374 g/kW.h |

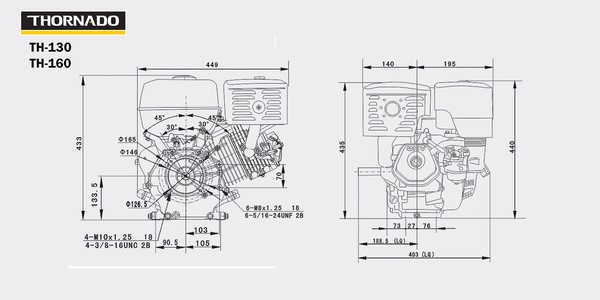

Mounting Pattern | 195.5mm x (86-103 mm) (center to center) |
Product Length | 465 mm |
Product Width | 415 mm |
Product Height | 410 mm |
Product Weight | 31 Kg |
Certification | EPA III |
