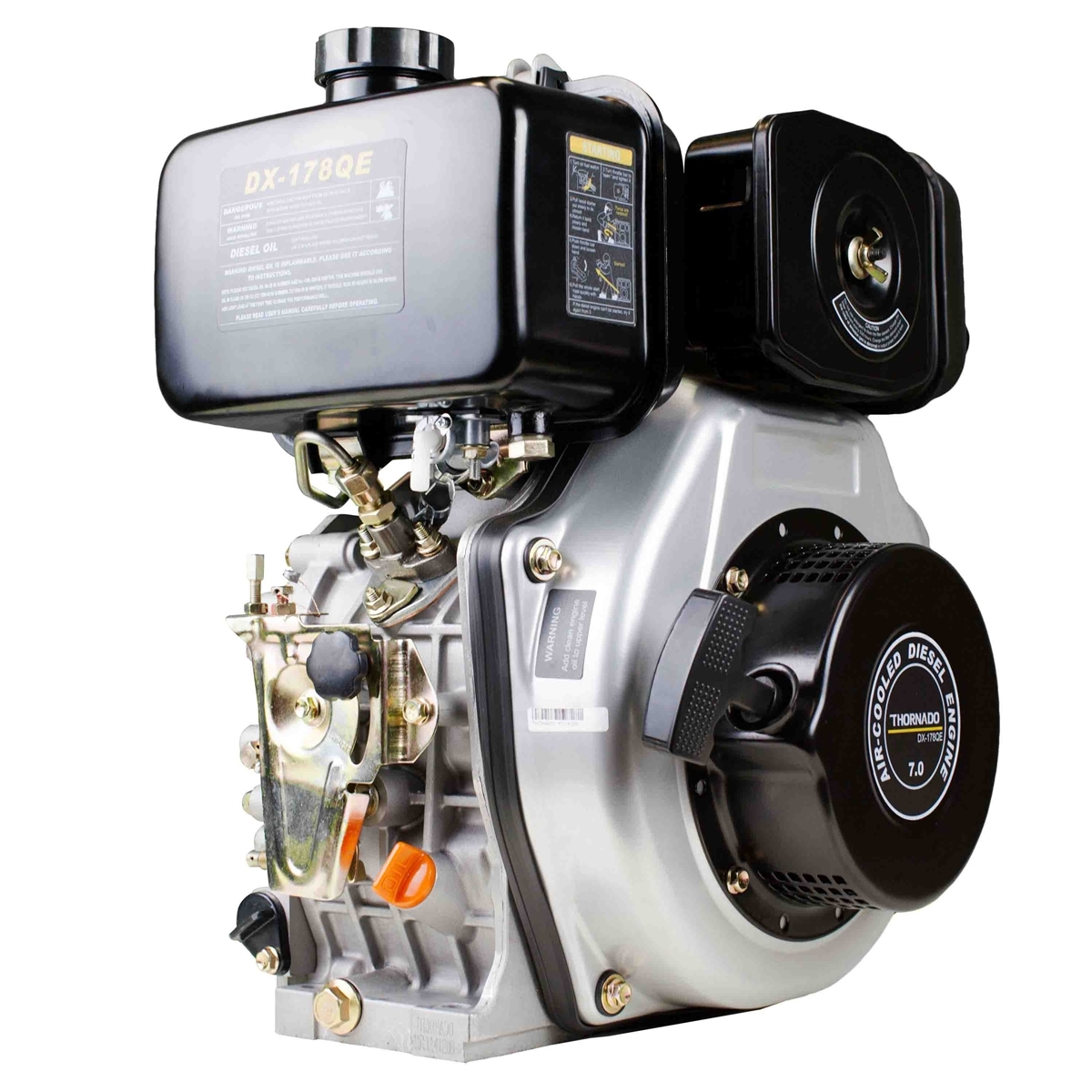

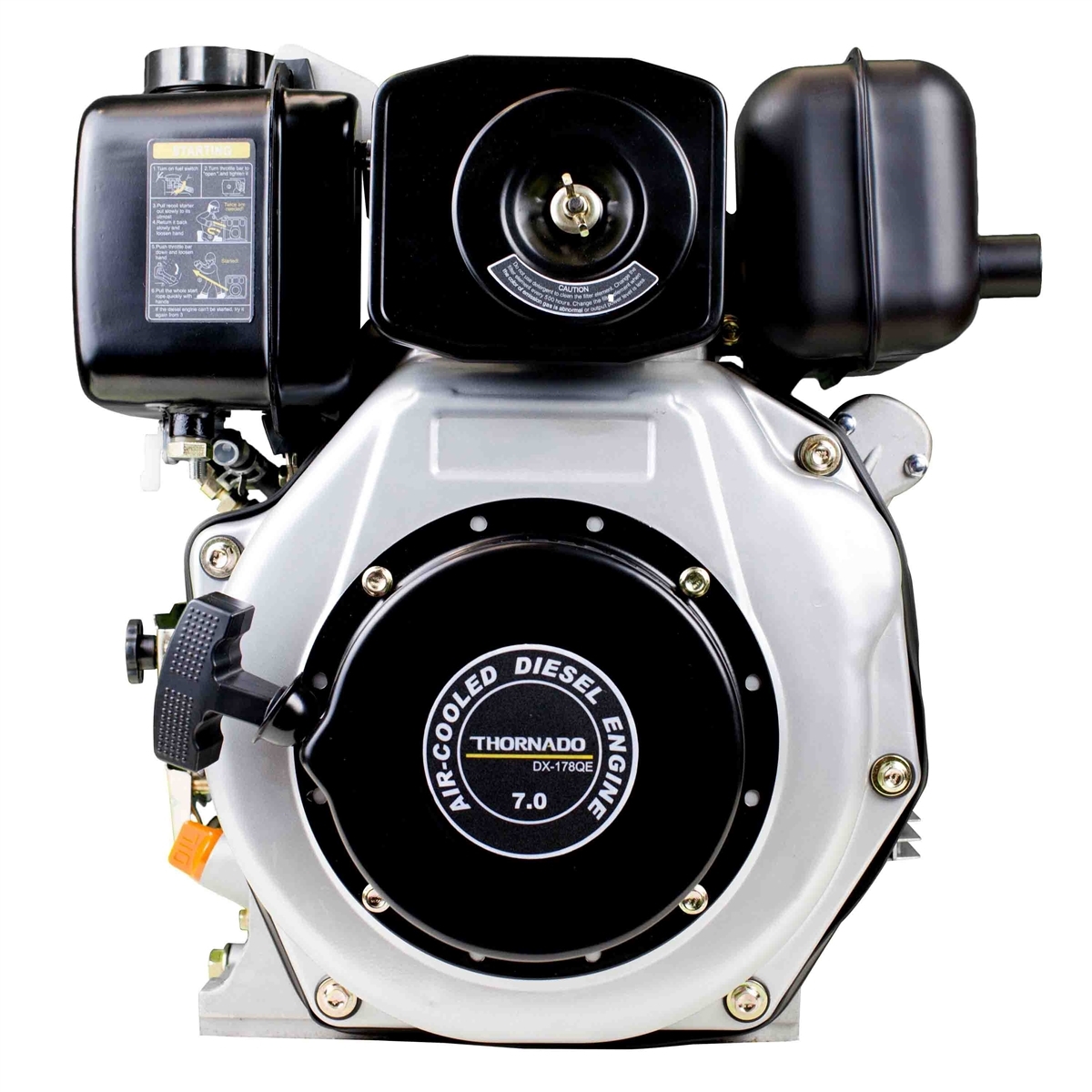

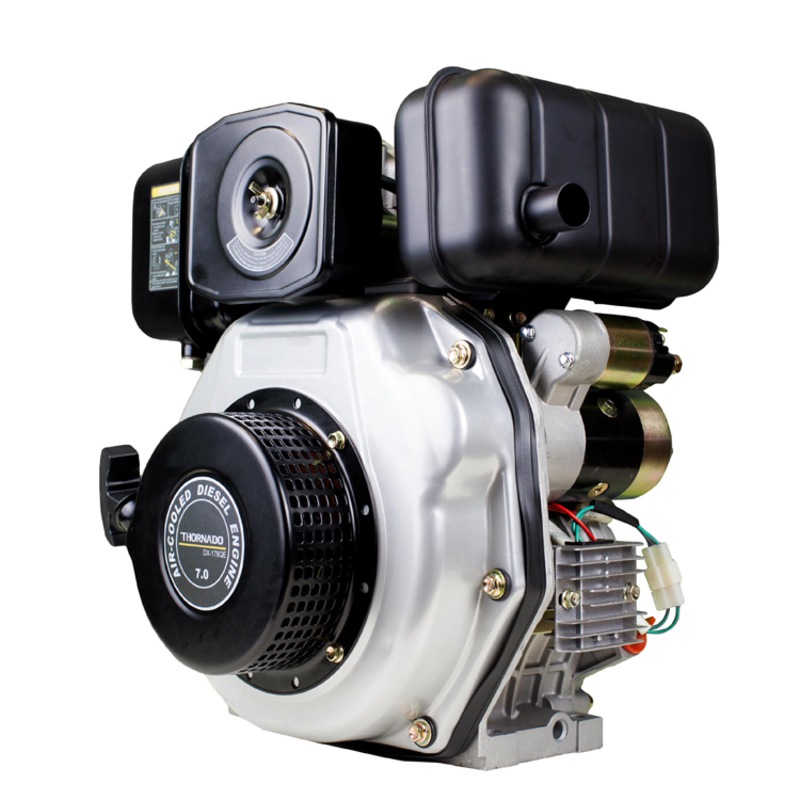

With a 4-stroke single-cylinder engine, our 7 hp stationary diesel engine with electric starter ensures efficient and reliable performance all the time. Our 7 hp small diesel engine incorporates a highly resilient construction that makes it suitable for varied medium to heavy-duty applications.
Key Features and Specifications
Renowned Benefits of Our 7 hp Electric Start Engine
Easily Portable
Our 7 hp diesel engine has a lightweight and compact size that makes it easier to transport and store even in the tightest spaces.
With an easy-to-operate electric starter, our 7 hp engine ensures a hassle-free start without needing any technical expertise.
By incorporating mature technology, the horizontal key shaft of 19 mm, and a highly durable steel liner bore, our 7 hp engine delivers impactful performance even in the most challenging conditions.
Applications of Our 7 hp Diesel Stationary Engine with Electric Start
With ultimate resilience and reliable performance, our 7 hp diesel engine proves to be an ideal solution for varied industrial needs.
*T&C's Apply, see Warranty Policy for full details.
SPECIFICATIONS | |
Model No | DX-178QE |
Type | Single cylinder 4 stroke, forced air cooled |
Displacement | 296cc |
Bore x Stroke | 78 x 62 |
Max Power HP / Rpm | 7 HP / 3600 Rpm |
Max Torque | N/A |
Combustion System | Direct Injection |

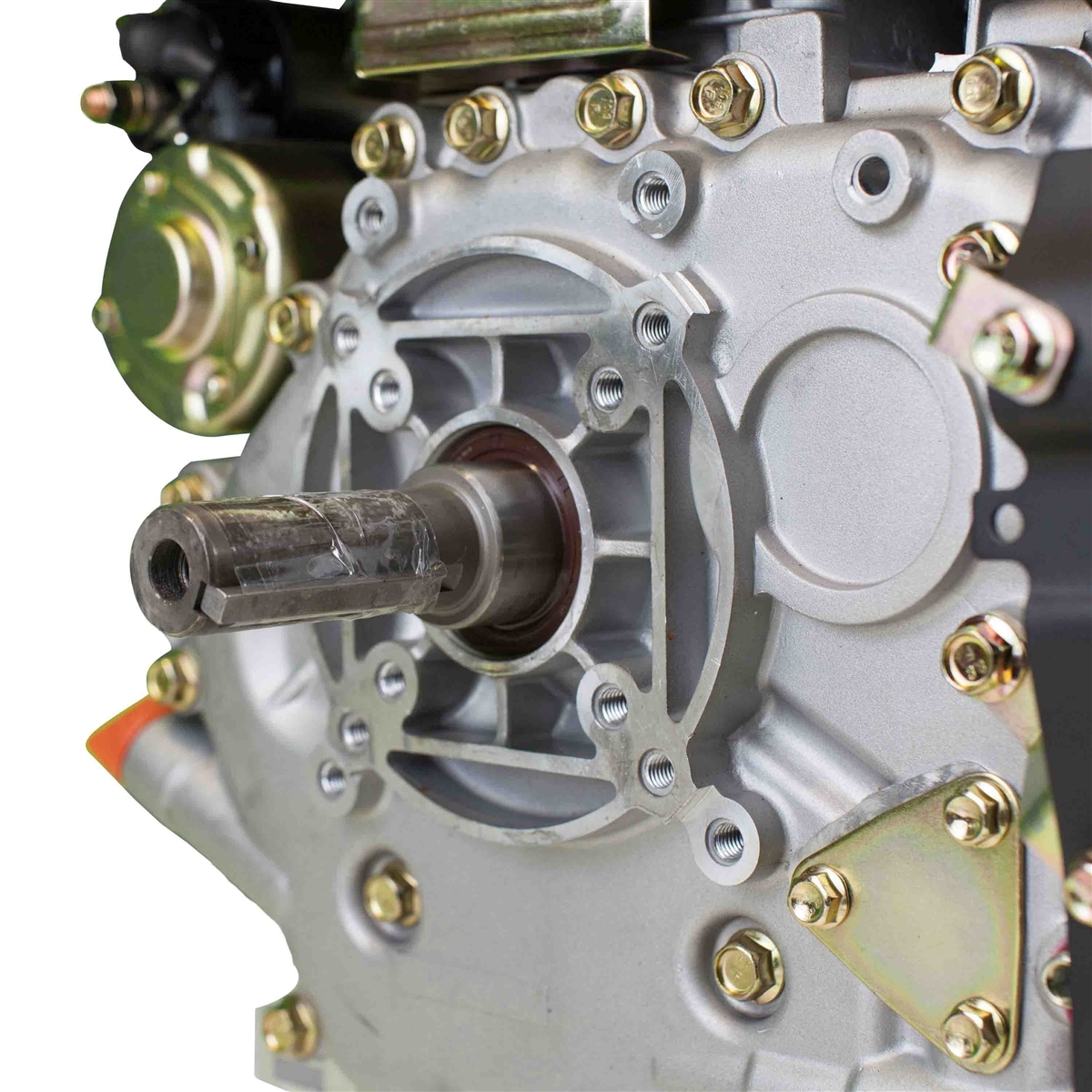

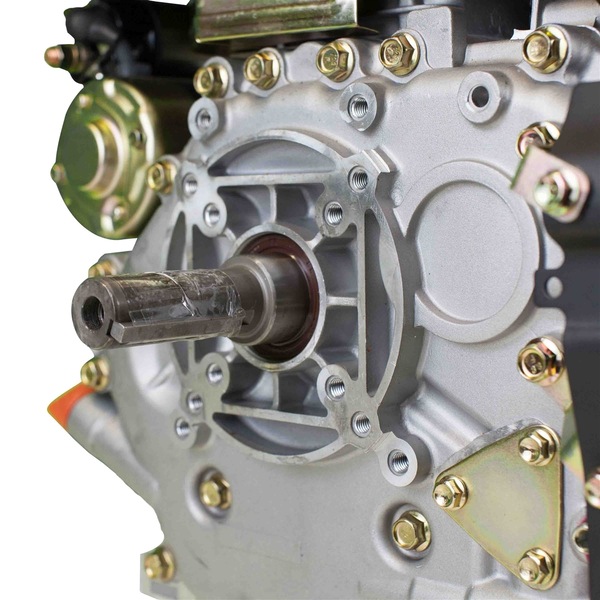

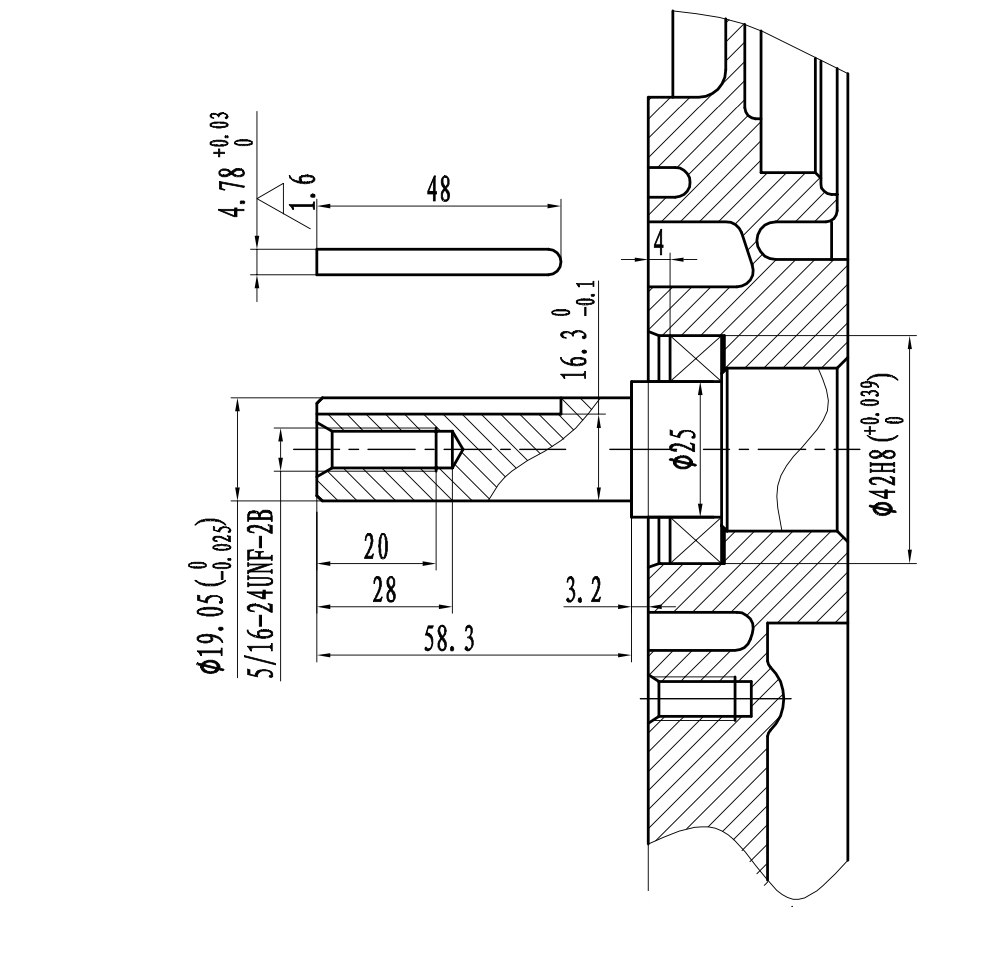

Shaft Type | Horizontal Key Shaft (Q Type) |

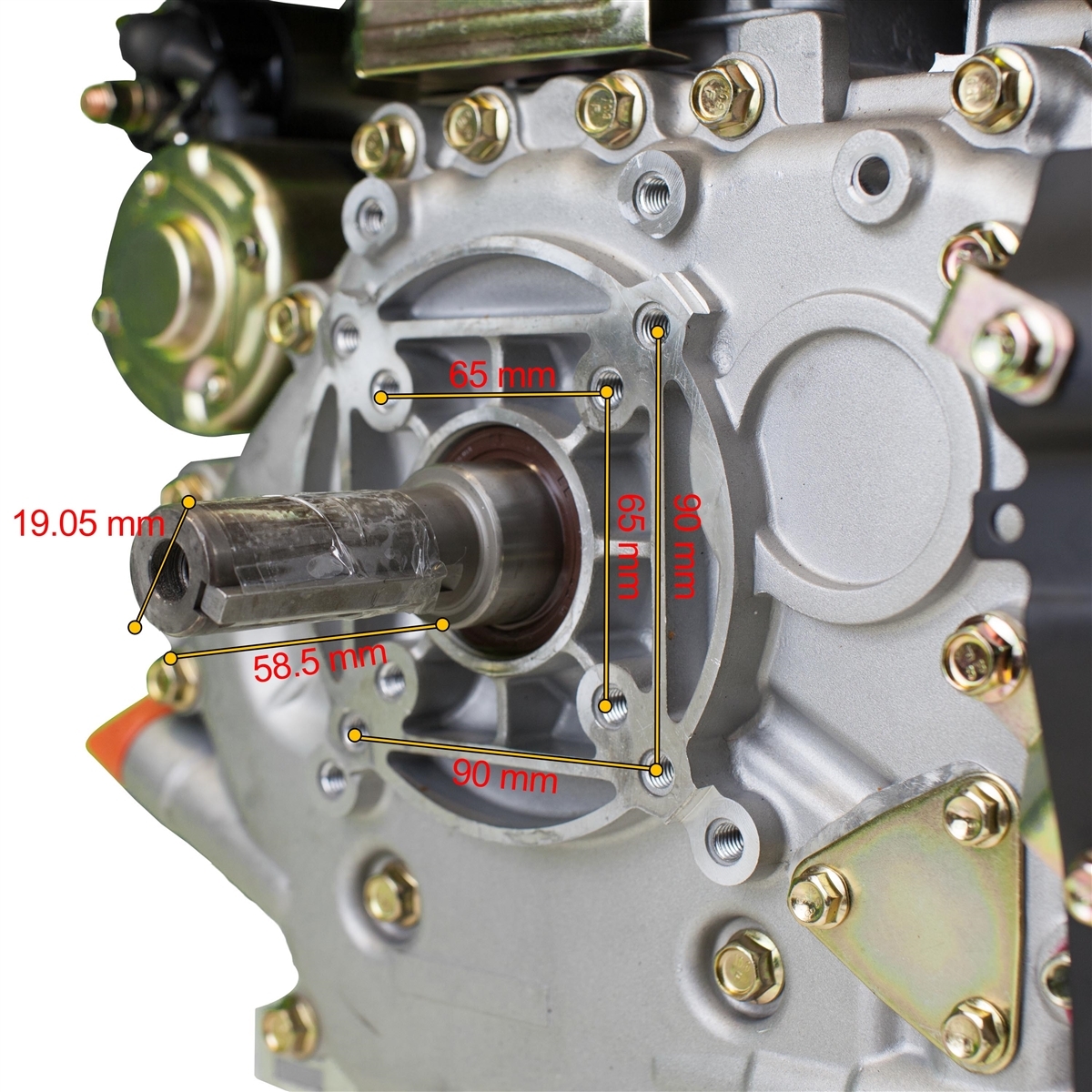

Shaft Diameter | 19.05mm |
Shaft Length | 58mm |
Shaft Rotation | Anti clockwise from output |
Compression Ratio | 19:1 |
Fuel Type | Diesel |
Oil Type | SAE10w-30 / SAE15w-40 |
Fuel Tank Capacity | 3.5L |
Oil Capacity | 1.1L |

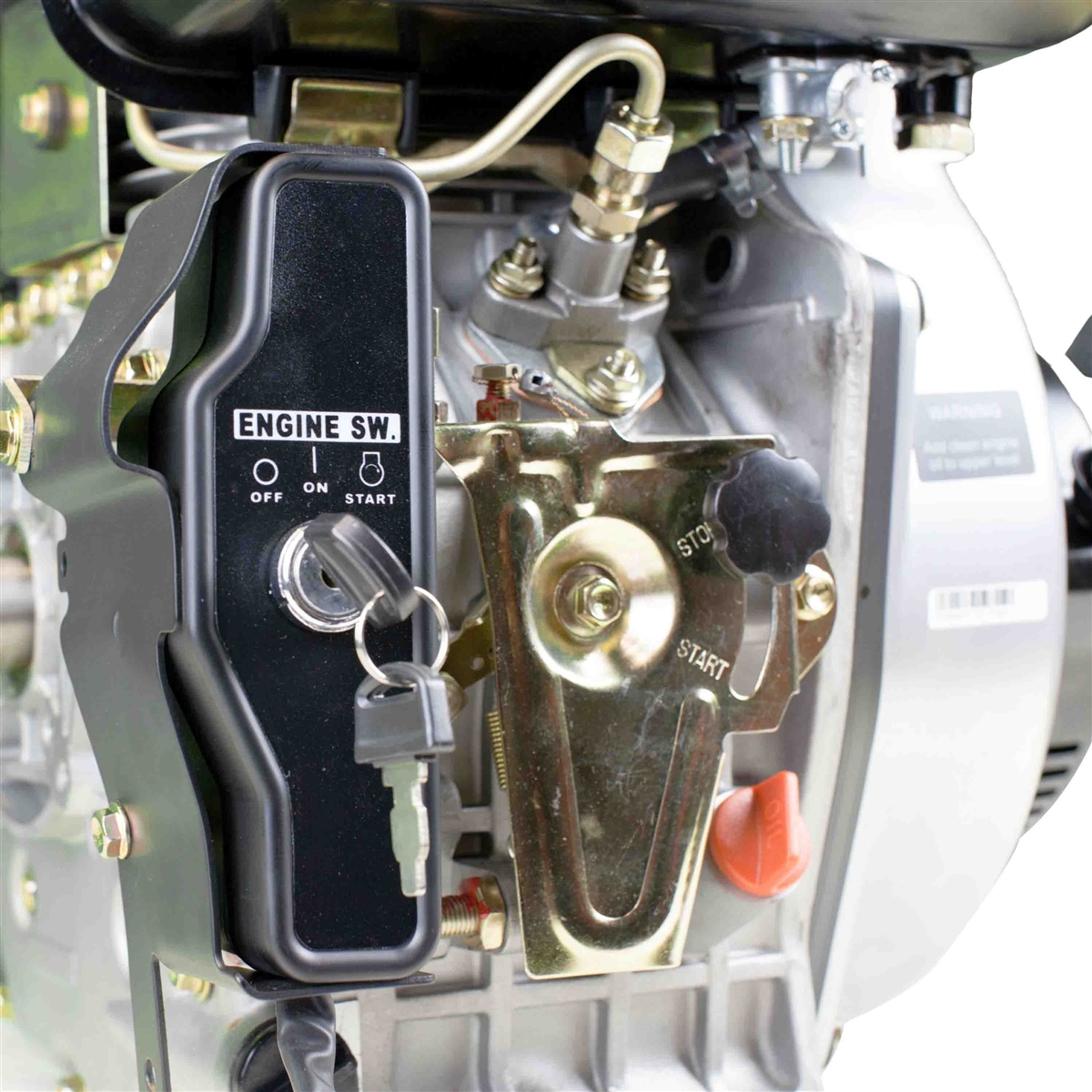

Starting System | Electric start / Recoil manual start |
Product Length | 420 mm |
Product Width | 385 mm |
Product Height | 450 mm |
Dry Weight | 35kg |
