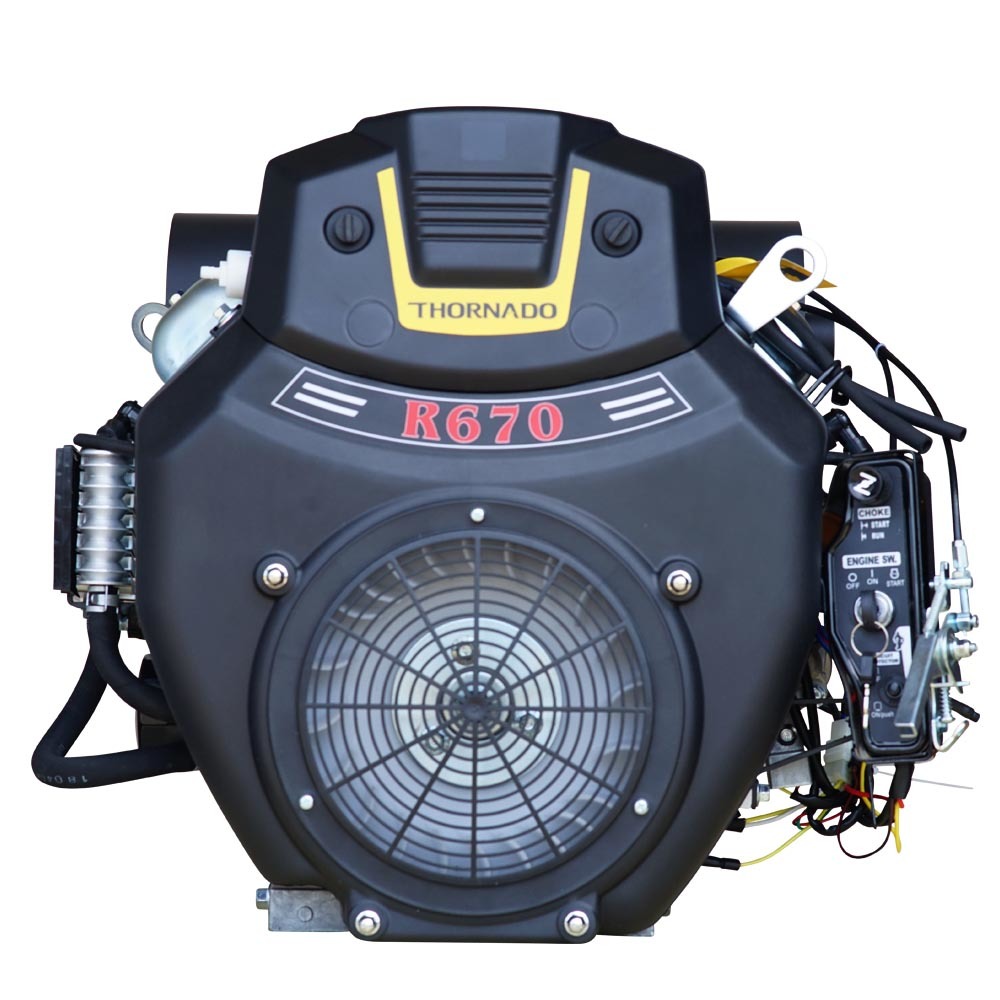

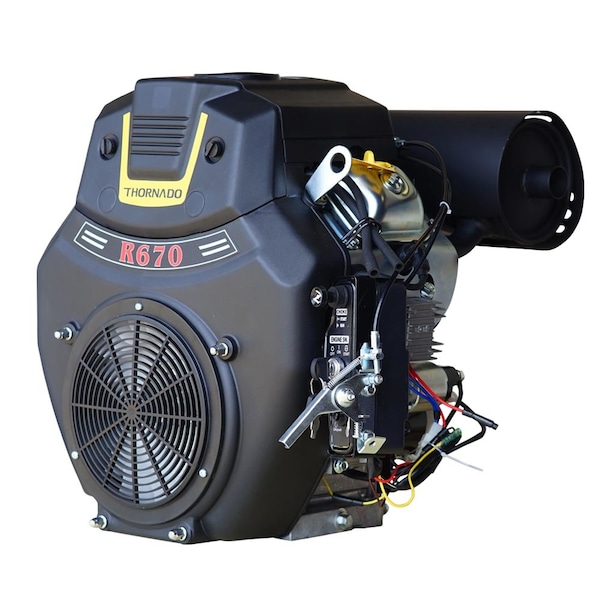

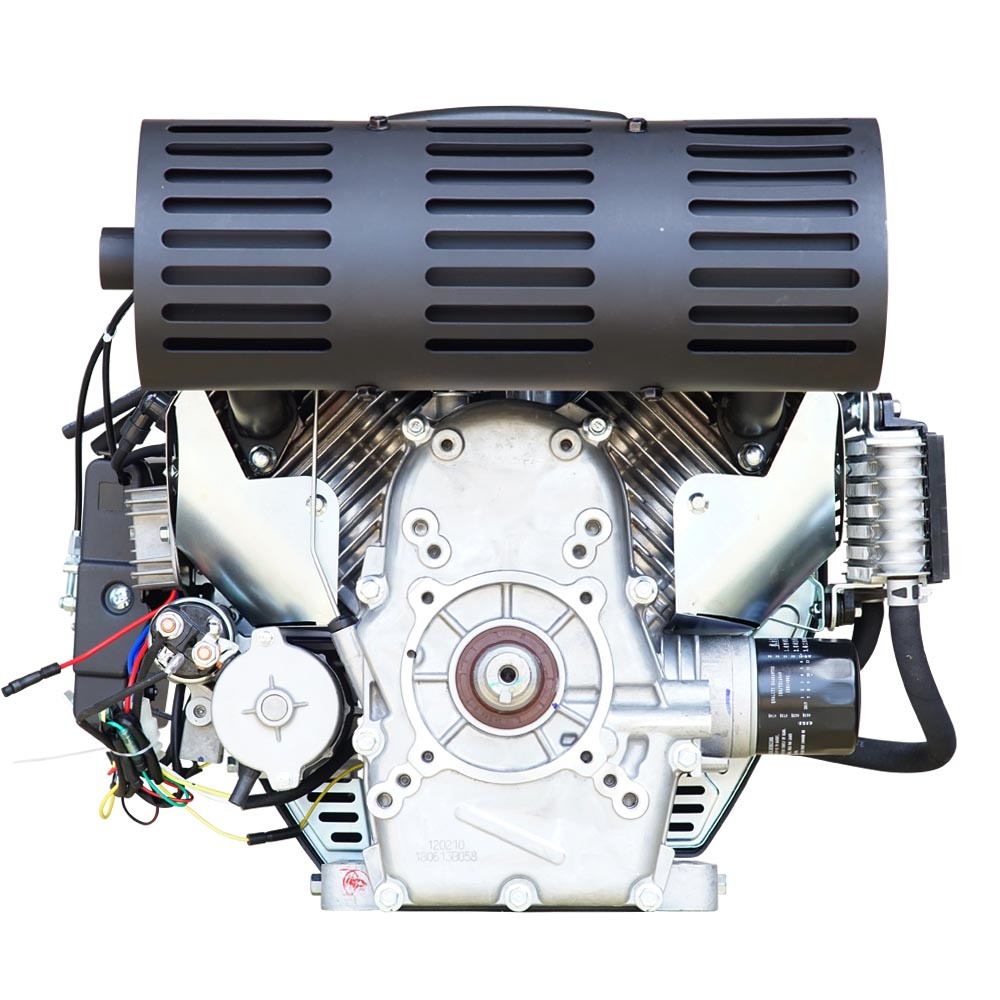

Thornado 23HP (670cc) Stationary Motor Petrol Engine E-Start (25.4mm Horizontal Key Shaft / Q-Type)
The Thornado 670cc V-Twin stationary engine offers higher power, greater fuel efficiency and stable performance than similar displacement standard twins engine. The horizontal shaft is ball-bearing mounted which make this engine an ideal replacement for most standard engine configurations. This engine features a durable cast iron cylinder liner, forged hardened steel crankshaft making it the perfect engine for variety of applications including water pumps, Go-karts, generator, wood chippers, Pressure Washers, Bench saws & other Agricultural uses.
Features
Suitable Applications
SPECIFICATIONS | |
Model No | TH-670QE |
Type | V-Twin cylinder 4 stroke OHV, air cooled |
Displacement | 670cc |
Bore x Stroke | 78 x 70 mm |
Max Power | 23 HP / 4000 rpm |
Max Power | 15.5 kW / 3600 rpm |
Max Torque | 45N.m/2500rpm |

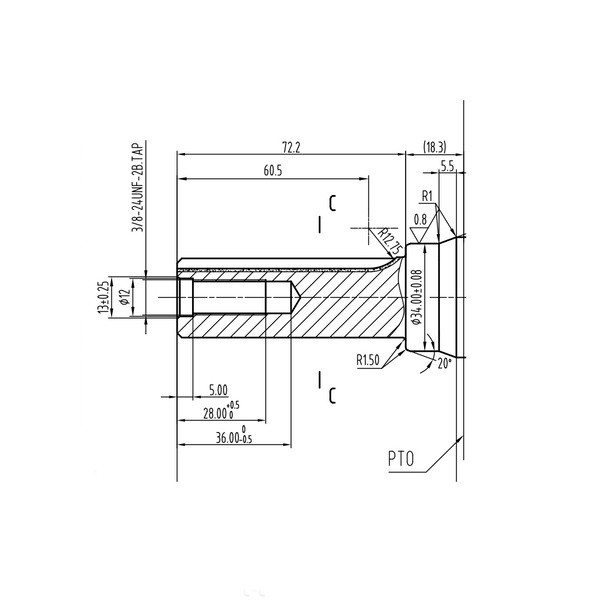

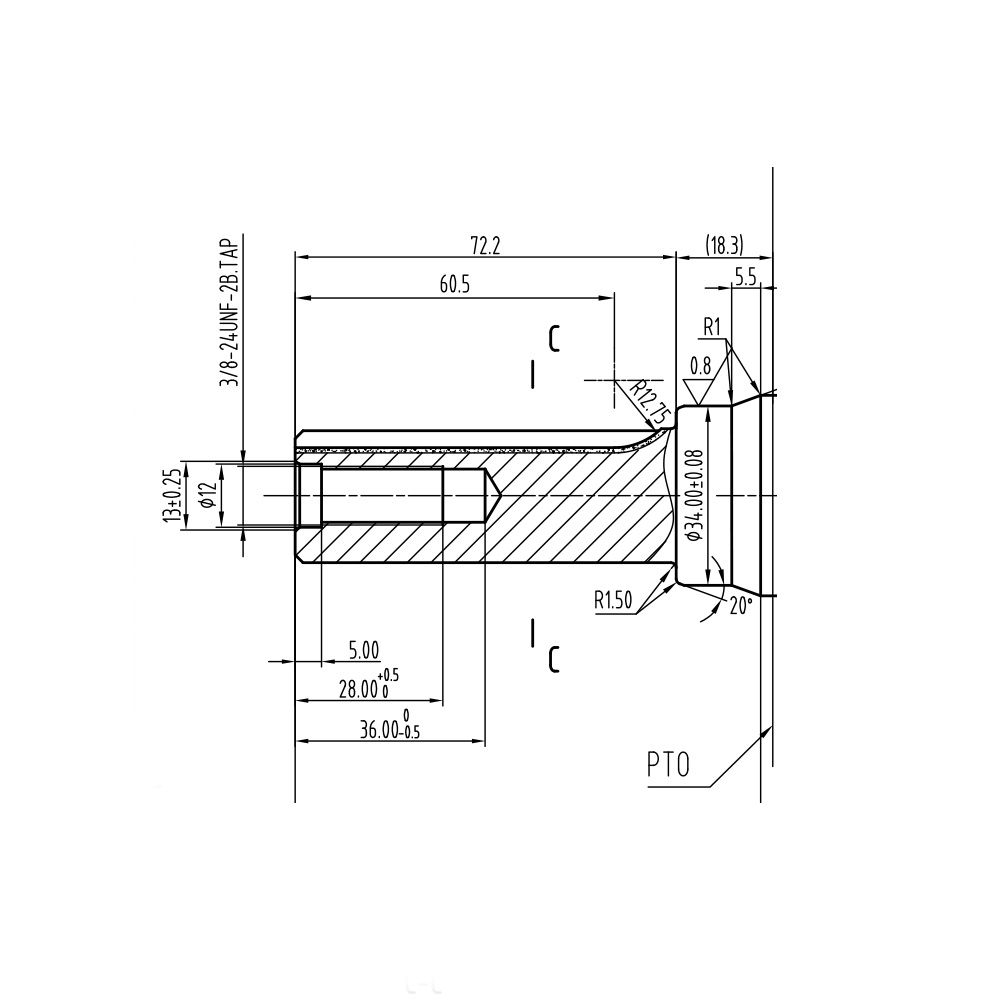

Shaft Type | Horizontal Key Shaft (Q Type) |

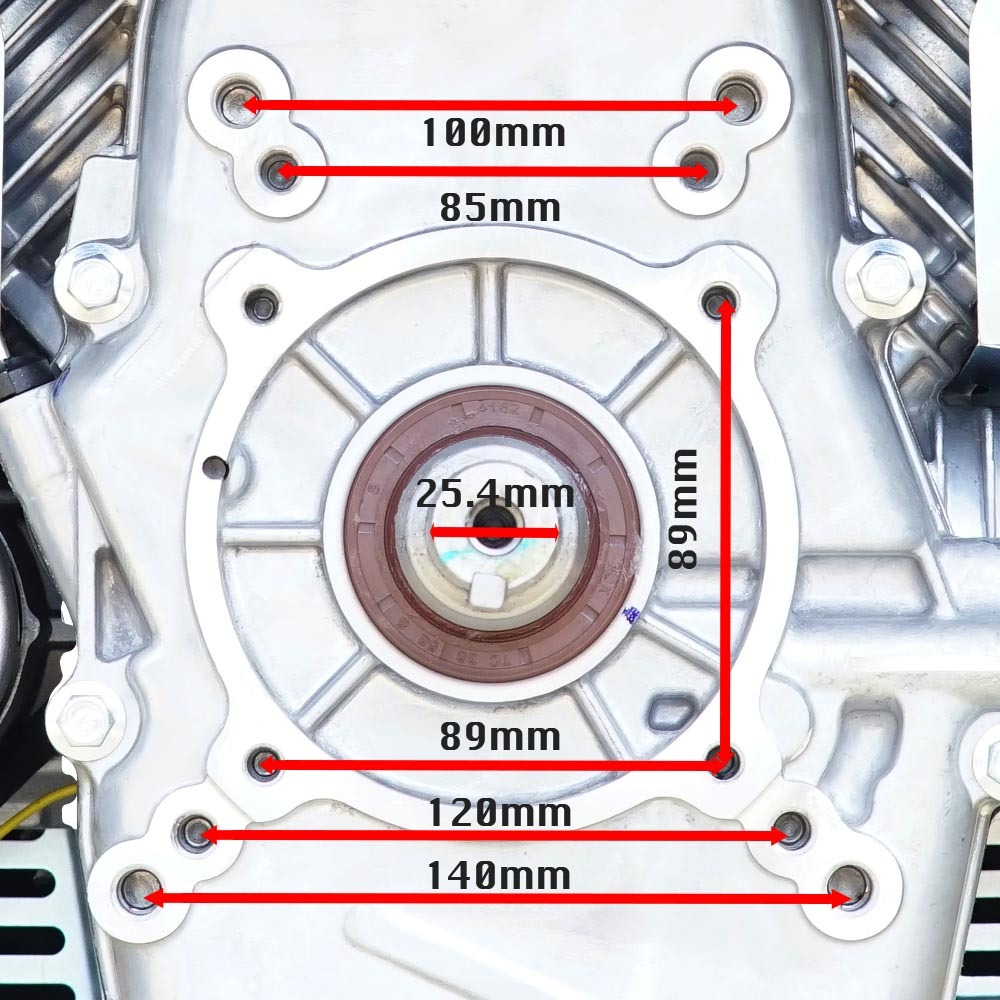

Shaft Diameter | 25.4 mm |
Shaft Length | 72.2 mm |
Shaft Rotation | Anti clockwise from output |
Compression Ratio | 8.1:1 |
Fuel Type | Petrol |
Oil Type | SAE10w-30 / SAE30 |
Fuel Tank Capacity | N/A |
Oil Capacity | 1.5L |
Ignition System | Transistorised magneto ignition |
Starting System | Electric start |
Carburettor | Flat suction valve carburettor |
Lubrication system | Pressure / Forced splash |
Governor system | Centrifugal mechanical |
Spark Plug Compatible | NGK - BP-5ES; Torch - F6TC |
Valve Clearance - Intake | 0.15mm |
Valve Clearance - Exhaust | 0.20mm |
Fuel consumption | <= 374 g/kW.h |

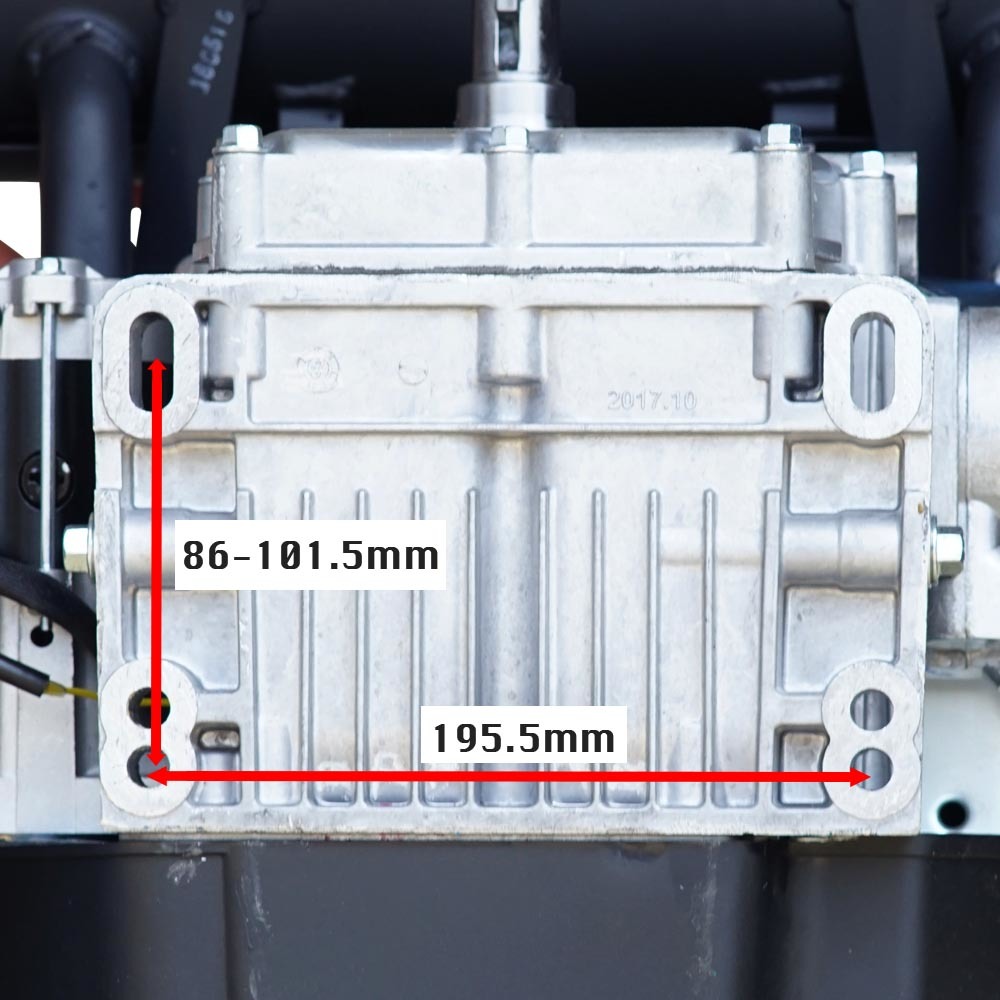

Mounting Pattern | 195.5mm x (86-103 mm) (center to center) |
Product Length | 500 mm |
Product Width | 430 mm |
Product Height | 500 mm |
Product Weight | 54 Kg |
Certification | EPA III |
