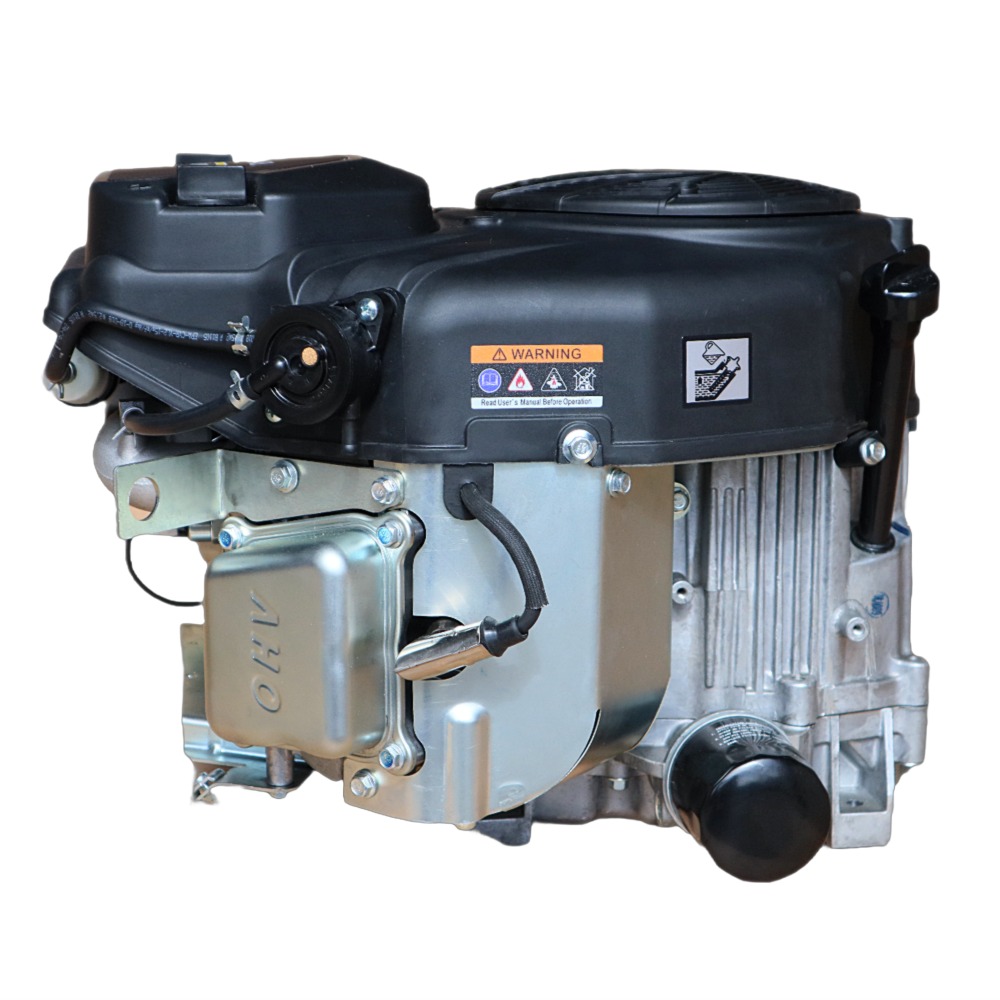

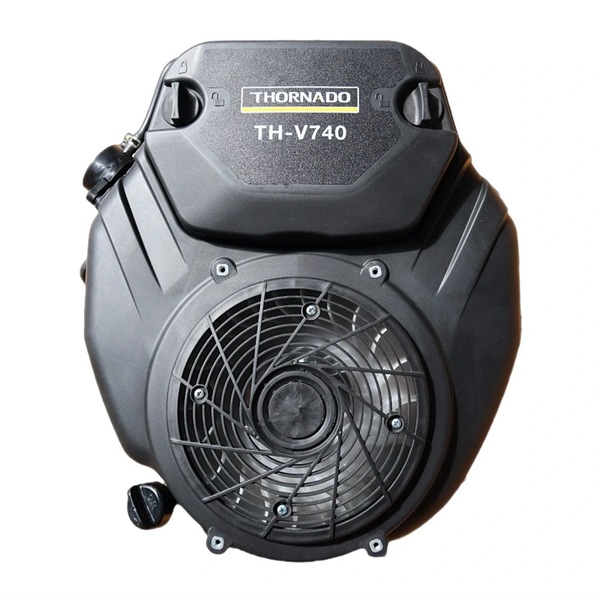

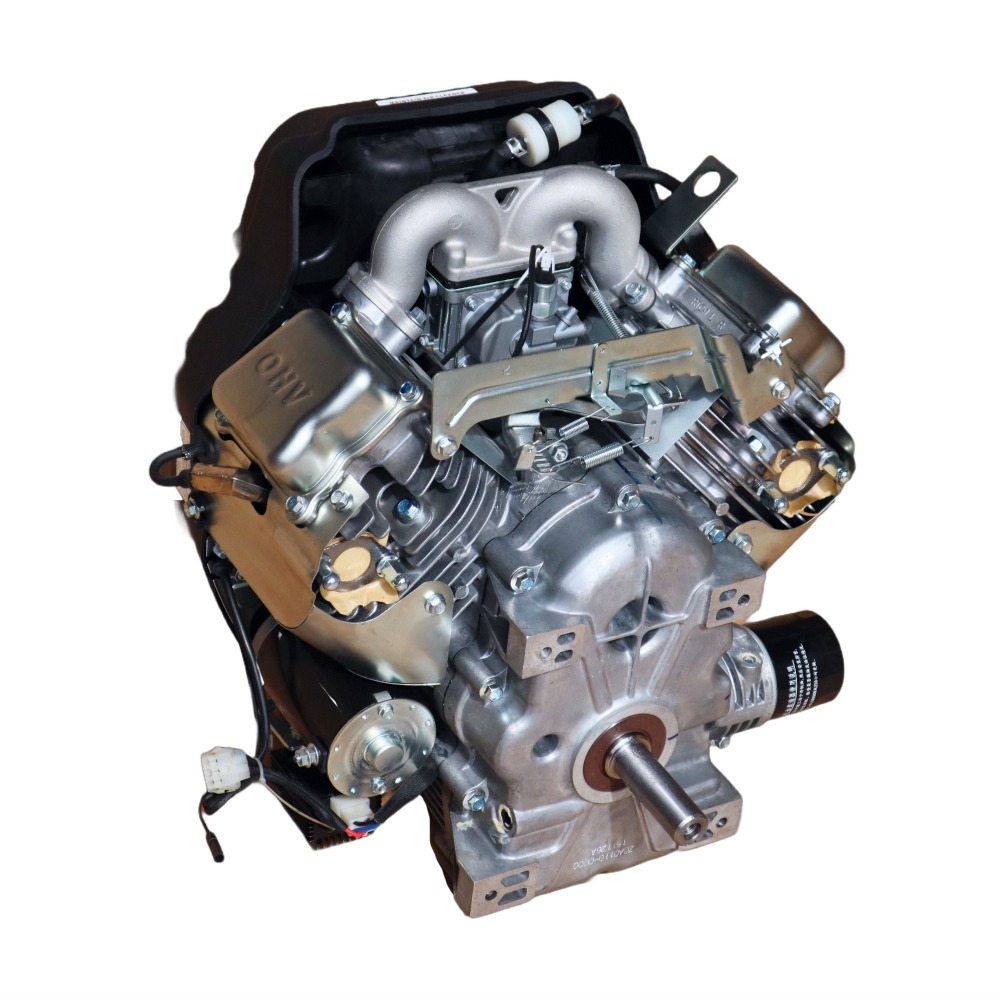

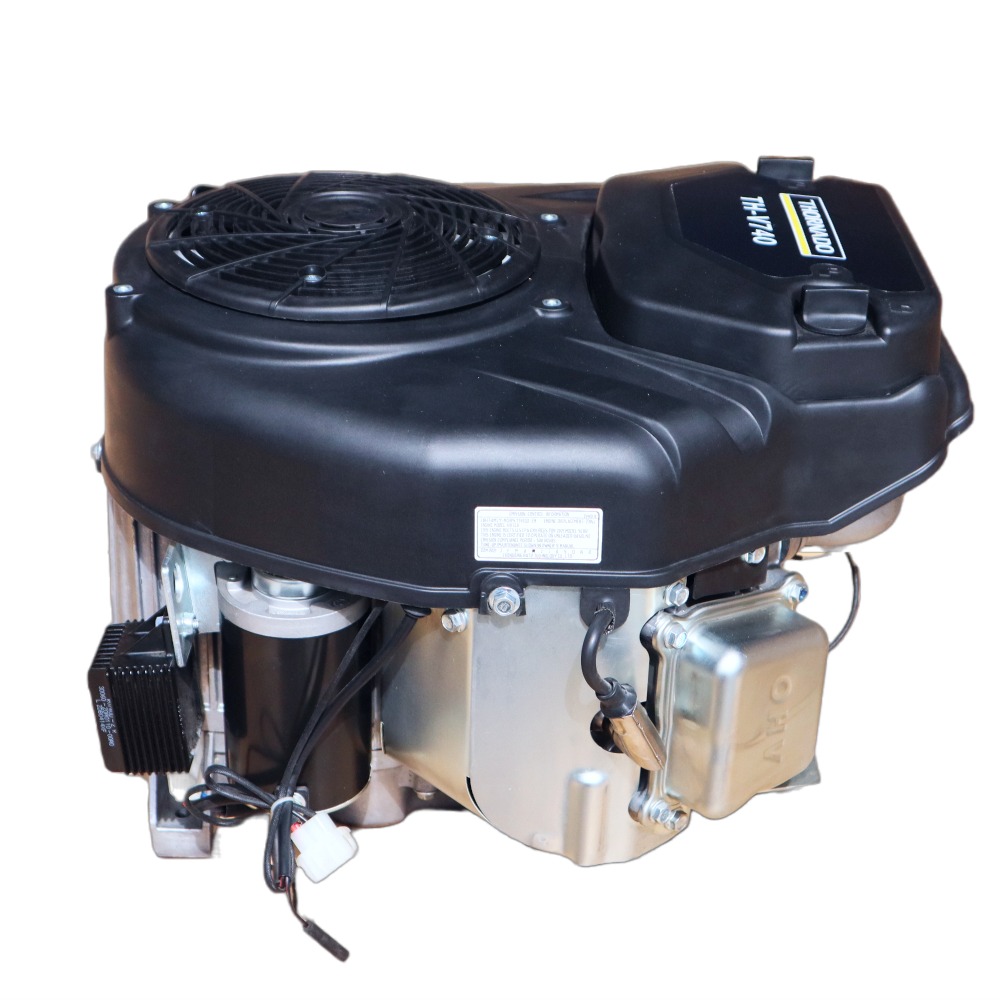

Thornado 25HP (740cc) V-Twin Vertical Shaft Engine E-Start
Introducing our powerful V-Twin vertical shaft engine, designed specifically for ride-on lawn mowers. This engine is built to deliver exceptional performance and reliability, ensuring smooth operation and efficient cutting. With its vertical shaft design, it provides optimal power transfer to the cutting blades, resulting in a clean and precise cut every time. The V-Twin configuration offers enhanced torque and power, allowing you to tackle even the toughest terrains effortlessly. Whether you have a large lawn or professional landscaping needs, our ride-on lawn mower engine is the perfect choice for a superior mowing experience.
Features
Please note: Because this is a universal fitment engine, certain adjustments to the mower may be required. The engine does not come with an exhaust muffler or a fuel tank. A new exhaust must be fabricated by an automotive exhaust specialist. We do not sell exhaust system for it. You will also need to thread tap the mounting bolt holes at M10 x 1.5.
This engine also requires a separate choke/throttle cable. A combined choke/throttle cable will not suit. Please take the appropriate action.
Suitable Applications
SPECIFICATIONS | |
Model No | TH-V740 |
Type | V-Twin cylinder 4 stroke OHV, air cooled |
Displacement | 740cc |
Bore x Stroke | 82 x 70 mm |
Horse Power | 25HP /4000 rpm |
Max Power | 19.2 kW / 3600 rpm |
Max Torque | 49N.m/2500rpm |

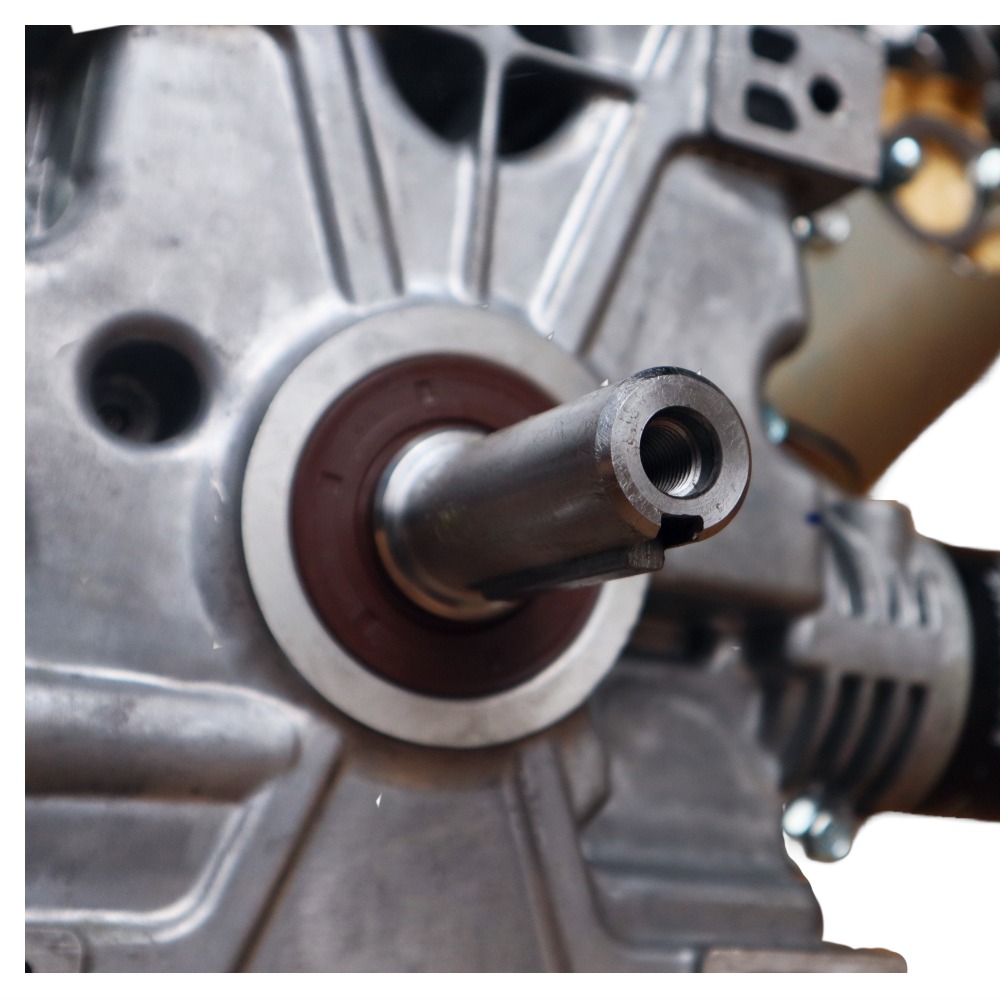

Shaft Type | Vertical Key Shaft |
Shaft Diameter | 25.4 mm |
Shaft Length | 80 mm |
Shaft Rotation | Anti clockwise (vertical output) |
Compression Ratio | 8.2:1 |
Fuel Type | Petrol |
Oil Type | SAE10w-30 / SAE30 |
Fuel Tank Capacity | N/A |
Oil Capacity | 2.0L |
Ignition System | Transistorised magneto ignition |
Starting System | Electric start |
Carburettor | Float carburettor / ECU |
Lubrication system | Pressure / Forced splash |
Governor system | Centrifugal mechanical |
Spark Plug Compatible | NGK - BP-5ES; Torch - F6TC |
Valve Clearance - Intake | 0.15mm |
Valve Clearance - Exhaust | 0.20mm |
Fuel consumption | <= 370 g/kW.h |
Muffler | N/A |

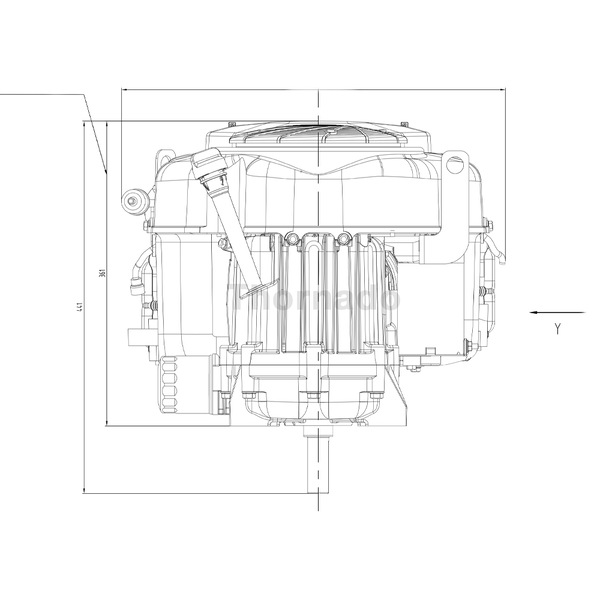

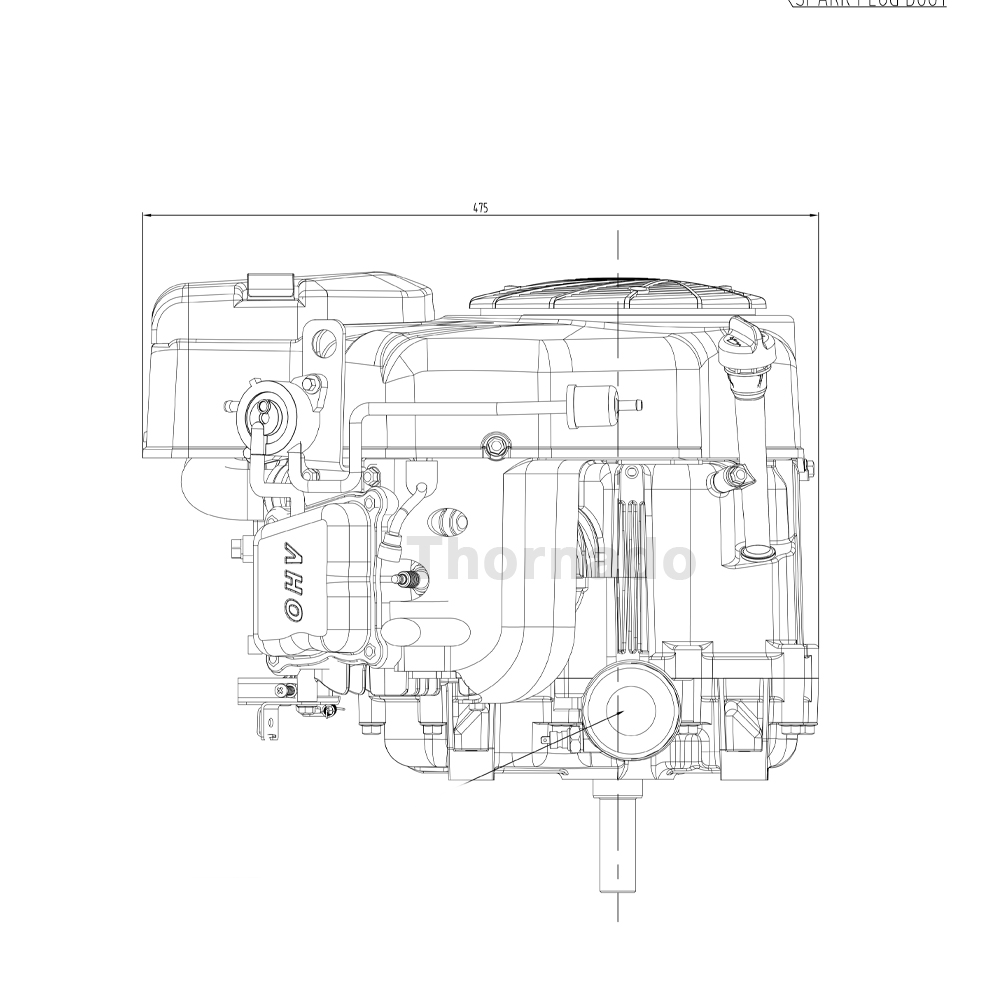

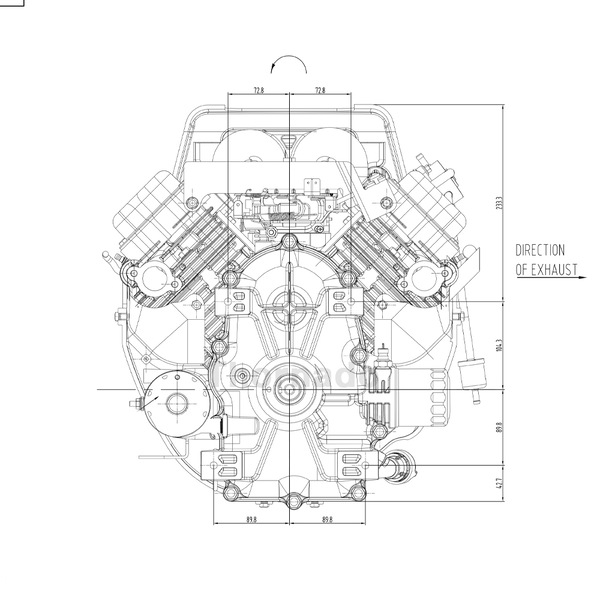

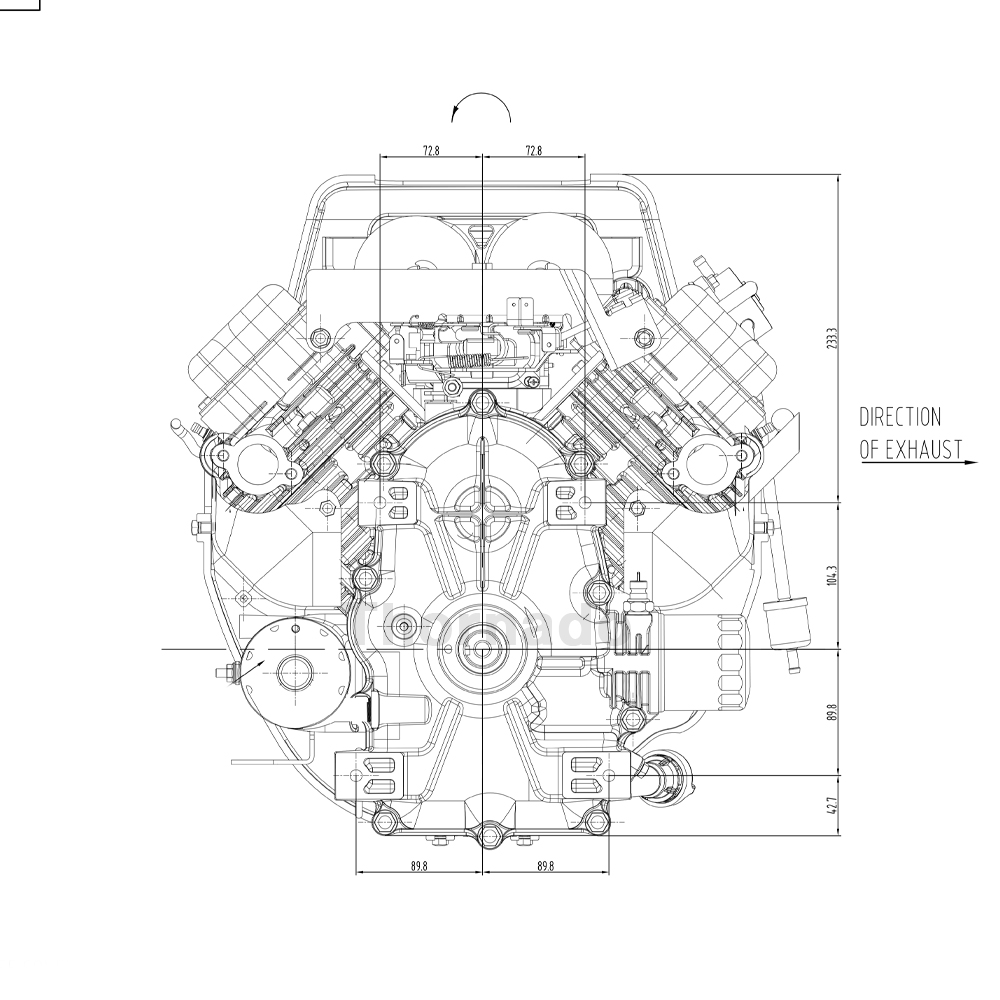

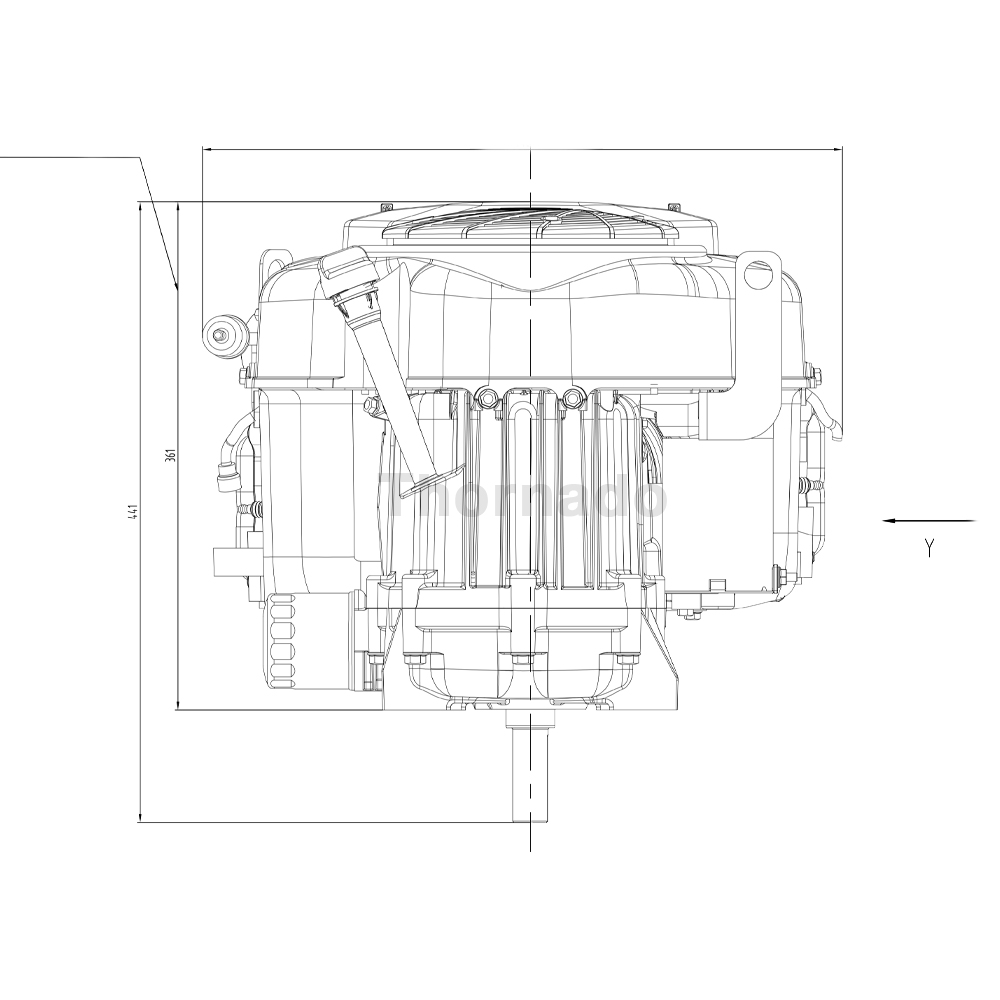

Product Length | 460 mm |
Product Width | 445 mm |
Product Height | 364 mm |
Product Weight | 38Kg |
Certification | EPA III |
