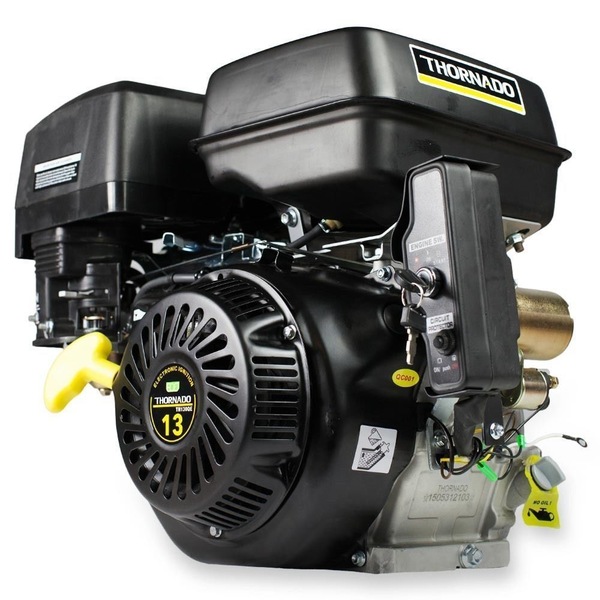

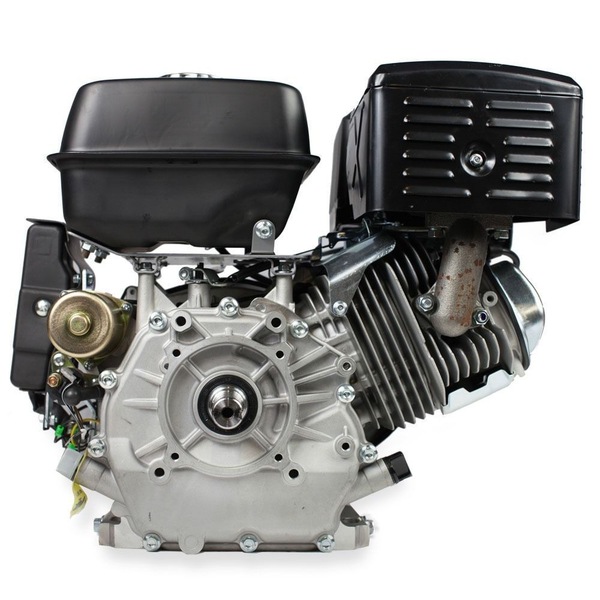

The Thornado 13HP stationary engine is a 4-stroke, single cylinder OHV forced air-cooled petrol engine with a both electric key and recoil starter that makes it easy to get the equipment running and on task. The horizontal shaft is ball-bearing mounted which make this engine an ideal replacement for most standard engine configurations. This engine features a durable ductile iron crank shaft and cast iron cylinder making it the perfect engine for variety of applications including water pumps, Go-karts, generator, wood chippers, Pressure Washers, Bench saws & other Agricultural uses.
*T&C's Apply, see Warranty Policy for full details.
SPECIFICATIONS | |
Model No | TH-130QE |
Type | Single cylinder 4 stroke, air cooled |
Displacement | 389cc |
Bore x Stroke | 88 x 64 mm |
Max Power | 13 HP / 3600 rpm |
Max Power | 7.8 kw / 3600 rpm |
Max Torque | 25N.m/2500rpm |

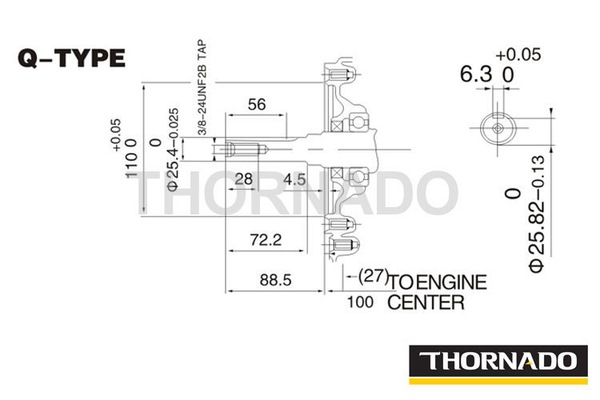

Shaft Type | Horizontal Key Shaft (Q Type) |
Shaft Diameter | 25.4 mm |
Shaft Length | 72.2 mm |
Shaft Rotation | Anti clockwise from output |
Compression Ratio | 8.5:1 |
Fuel Type | Petrol |
Oil Type | SAE10w-30 / SAE30 |

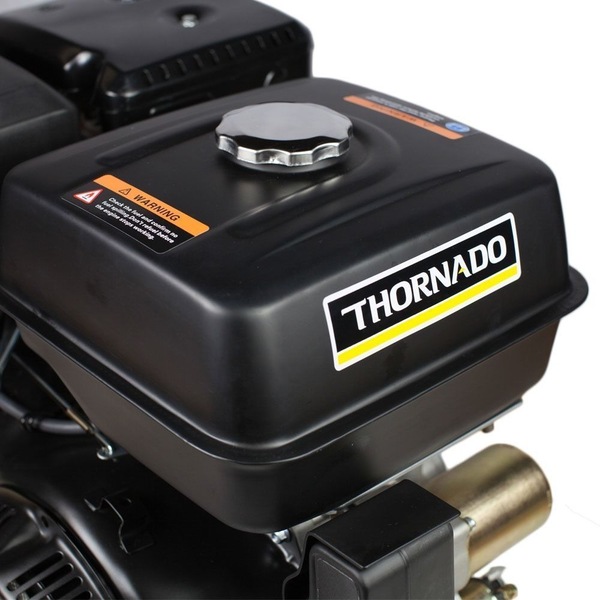

Fuel Tank Capacity | 6.5L |
Oil Capacity | 1.1L |
Ignition System | Transistor magneto |

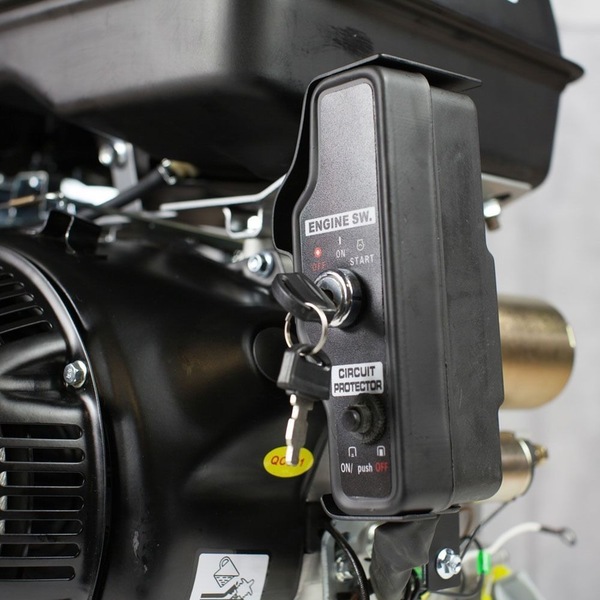

Starting System | Electric / Recoil start |
Spark Plug Compatible | NGK® BP-6ES; Torch® F6TC |
Valve Clearance - Intake | 0.15mm |
Valve Clearance - Exhaust | 0.20mm |
Fuel consumption | <=374 g/kw.h |
Mounting Pattern | 195.5mm x (86-103 mm) (center to center) |
Product Length | 465 mm |
Product Width | 415 mm |
Product Height | 410 mm |
Product Weight | 32Kg |
Certification | EPA III |
ENGINE | |
Displacement | 389cc |
Engine Type | 4 Stroke OHV Air Cooled Engine |
Engine Model | TH-130QE (13HP) |
Brand | THORNADO |
Certification | EPA Phase III Compliant |
Starting System | Electric / Recoil Start |
Max Power HP / Rpm | 13HP / 3600 Rpm |
Fuel Type | Unleaded Petrol |
Fuel Tank Capacity | 6.5L |
Oil Type | SAE10w-30 / SAE30 |
Oil Capacity | 1.1L |
Run time @50% Load | ~3 hr |
PTO Shaft Rotation | Counter Clockwise |
Bore x Stroke | 88 mm x 64 mm |
Compression Ratio | 8.5 : 1 |
Shaft Size | 25.4 mm |
Shaft Length | 72.2 mm |
Shaft Type | Horizontal Key Shaft |
Keyway | 6.35 mm |
Spark Plug Compatible | NGK® BP-6ES; Torch® F6TC |
Spark Plug Gap | 0.69 - 0.7 9mm |
Valve Clearance - Intake | 0.15 mm |
Valve Clearance - Exhaust | 0.20 mm |
Mounting Pattern (L x W) | 195.5mm x (86-103 mm) |
Product Dimension (L X W x H) | 530 x 430 x 490 mm |
Product Weight | 35 kg |
