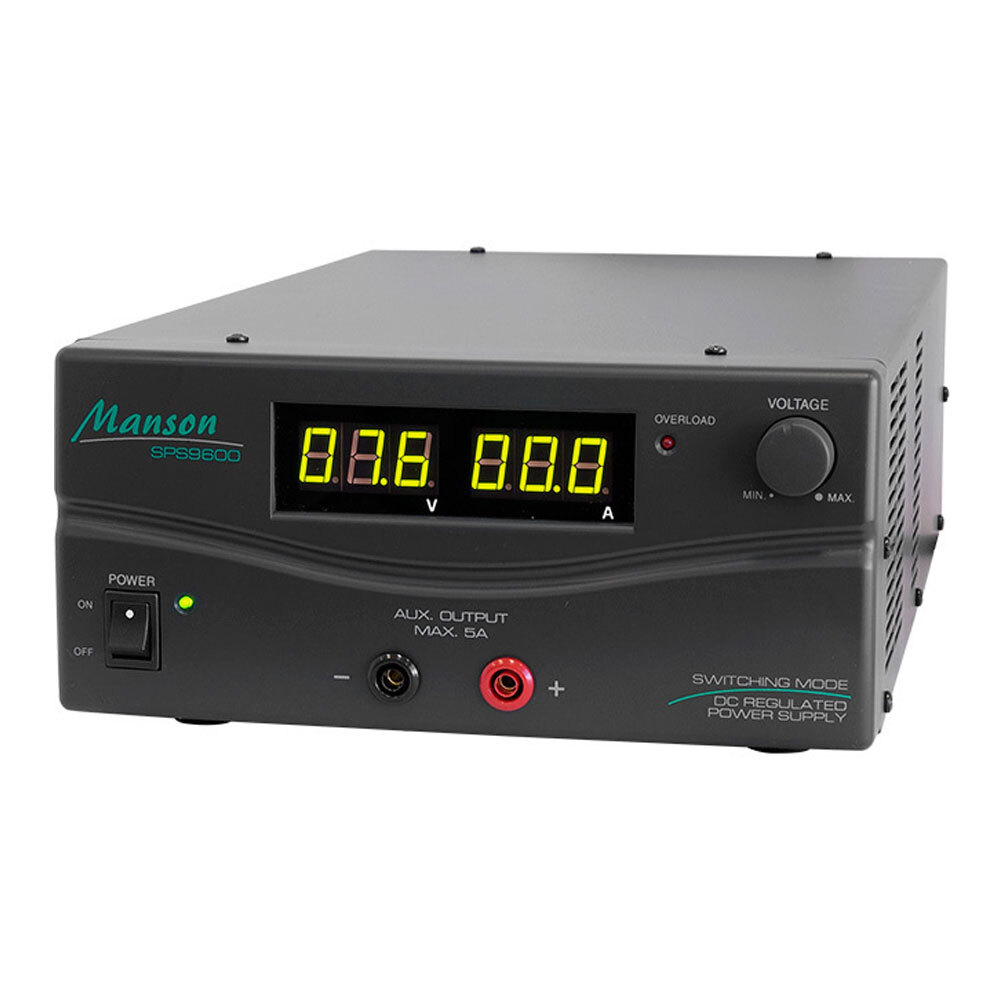

Manson 60AMP 1-15V DC Power Supply Bench Top Dark Grey is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply.
The remote sensing terminals are used to compensate for output line losses so that a precise regulation can be achieved for critical voltage application away from the power supply.
The output voltage level can be externally controlled via the remote terminal. It is ideal for applications that need good quality high DC current network with a precise point of voltage regulation.
The SPS-9600 has a small footprint for its 900W continuous maximum power and is suitable for a wide range of applications such as street blaster super high power car audios demonstration console, radio equipment and etc.
Features:
Total max. continuous output current 60A (SPS-9600)

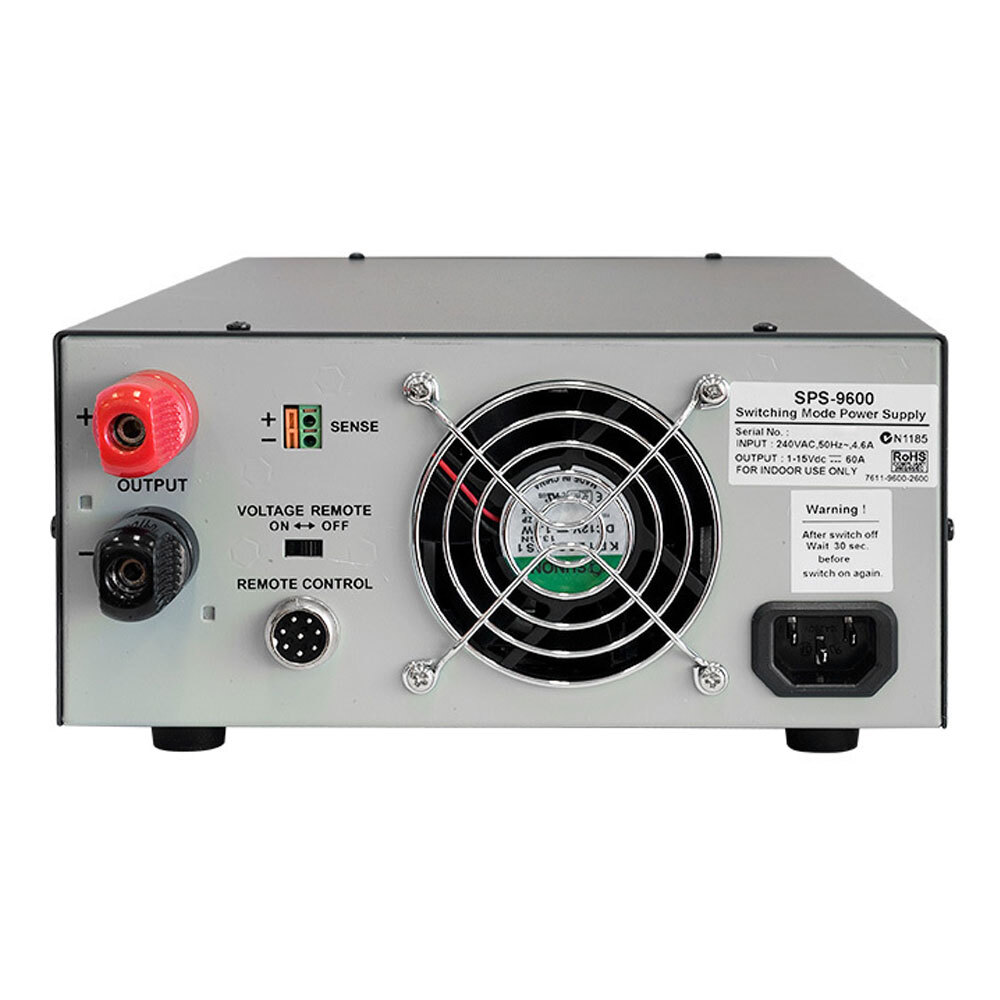

Main Output /Remote Sensing/ Remote Control/ terminals at the back
Front terminals 5A limiting
Adjustable output voltages 1 to 15V DC
Remote Sensing for remote point of regulation
Remote control terminals for output voltage
Lightweight and small size
Overload / Over-temperature /Short Circuit Protections
Constant Current mode with LED indicator prevents overloading
Variable speed thermally controlled fan
High RFI stability
Colour: Dark Grey
AU/NZ Plug
Variable Output Voltage: 1 - 15V DC
Total Rated Output Current (Main Output + Front Output): 60A
Rated Output Current (Main Output): 60A
Rated Output Current (Front Output): 5A
Load Regulation (Main Output): 0.1% +5mV
Line Regulation (Main Output): 0.05% +3mV
Ripple & Noise (Peak-Peak): 40mV p-p
Input voltage: 230V AC
Efficiency: > 85%
Meter Type: LED Meter
Volt meter range: 3 digit display
Amp meter range: 3 digit display
Meter accuracy: ±1% +1 count
Protection devices: Overload ( Constant current limiting ), Short circuit, Over temperature, OVP
Cooling system: Variable speed thermally control fan
Special feature: Remote sensing , Remote control
Approvals: CE - EMC:EN55022 , CE - LVD:EN60950
Dimensions Approx.: 22 x 36 x 11 cm (WxDxH)
Weight: 5.8 kg
Power factor correction >0.97 at optimal load
This item comes with a 12-month warranty.
