DOSS PW0912B10 9 Way 12V DC 10A Power Supply with PFC Surge Protection for CCTV

DOSS PW0912B10 9 Way 12V DC 10A Power Supply with PFC Surge Protection for CCTV

Be the first to review this product

Price	$105.90
	Collect 315 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

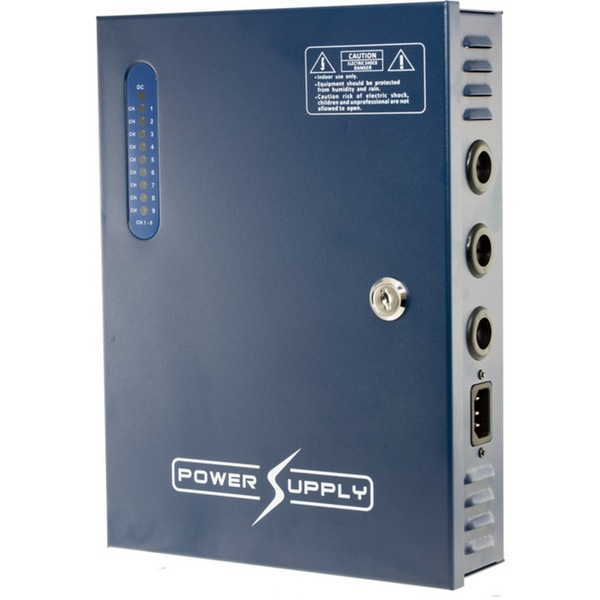

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.

This product doesn't come with a K9 IEC lead.
Features

Universal AC input range: 96 - 264VAC, 47~63Hz

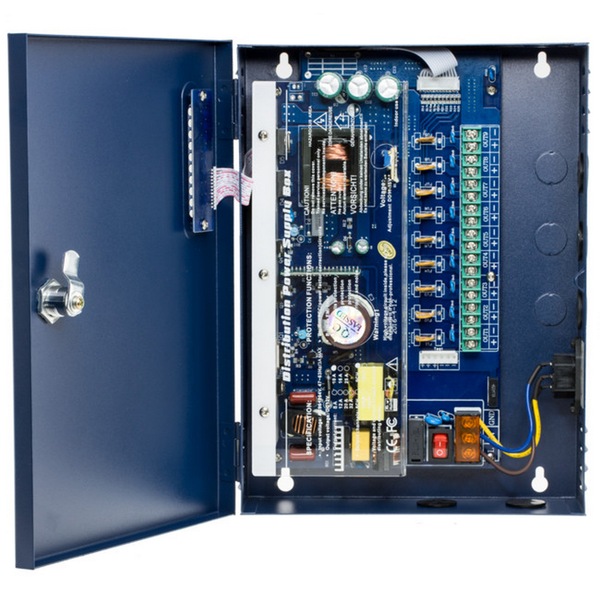

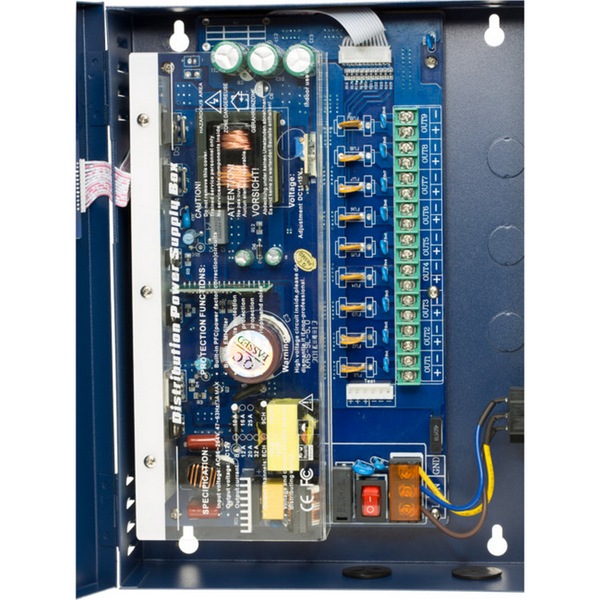

Each channel is protected seperately. There is one tube fuse (Glass fuse) for the main board and PTC (Polymeric temperature control) fuse for every individual channel.
Short circuit, over current and overload protection
Models with power larger than 60W are configured with PFC function.
Meet the European energy efficiency standard
5kA surge protection
High quality cooling fin to reduce power consumption
External LED indicators for each channel output

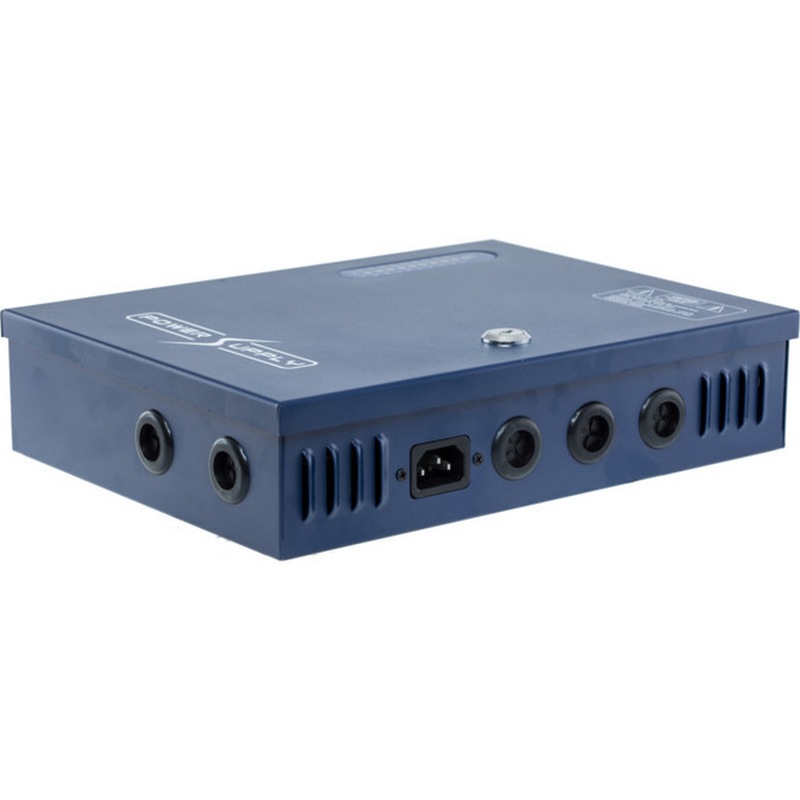

Extra AC jack on the side of box (AC power lead is not included)
Buit-in EMI wave filter with 100% full load burn-in test
Using 105°C long life electrolytic capacitors
Wall type blue baking finished shell

Specificaitons

Input: 93 - 264V AC
Output: DC 12V 10A
Operating temperature: 30 ~ 70°C

Doss Wall Mounting Box Power supply range

Model	Ways	Output Voltage	Output Amp.	With UPS
PW0412B05	4	12V DC	5A	No
PW0812B10	8	12V DC	10A	No
PW1612B16	16	12V DC	16A	No
PWU0412W05	4	12V DC	5A	Yes
PWU0812W10	8	12V DC	10A	Yes
PWU1612W16	16	12V DC	16A	Yes

Specifications:

12 Months

GTIN: 9328202018076
