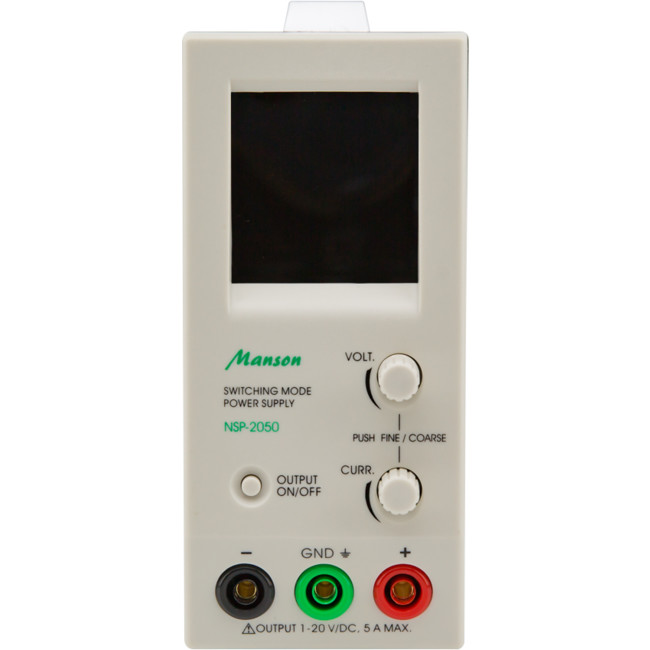

This series of 100W Switching Mode Power Supplies with Current Limiting Control is designed with the objectives of high accuracy, compactness and easy portability.
4 digit display LCD of voltage and current for high precision. The slim tower housing makes it ideal for tight work bench. It is light and conviently portable and a collapsible handle. The large and illuminated LCD display provides clear and sharp radings even under dim light. The output power on-off switch allows safe and handy operations. The Tracking OVP (output over voltage protection) ensures a better and tighter protection to voltage sensitive loads. It has good line and load regulations, high efficiency and low ripple and nose that are tyical of advanced switching mode power supply.
It meets the CE safety standards EN-61010 for laboratory grade power supply and respective EMC standards.
Voltage | Input Voltage | 200-240V AC, 50/60Hz~ |
---|---|---|
Full Load Input Current at 230V AC | 0.83A | |
Output Voltage Adjustable Range | 1-20V DC | |
Output Current Adjustable Range | 0-5A | |
Voltage Regulation | Load from 10% to 100% Variation | 50mV |
Line from 180 to 264VAC Variation | 20mV | |
Ripple and Noise (r.m.s) | 5mV | |
Ripple and Noise (peak to peak) | 30mV | |
Current Regulation | Load from 10% to 100% Variation | 20mA |
Line from 180 to 264VAC Variation | 20mA | |
Ripple and Noise (peak to peak) | 20mA | |
Other | Switching Operation Frequency | 80KHz to 120KHz |
Power Factor | 0.68 | |
Efficiency at Maximum Power | 84% | |
Display | 4 Digit | |
Volt. Meter Accuracy |
| |
Curr. Meter Accuracy |
| |
LCD Indication |
| |
Protections |
| |
Approvals |
| |
Cooling System | Natural Convection | |
Packaging | Dimensions (WxHxD) | 70x150x250mm 2.8x6x9 inch |
Weight | Approx 2kgs 4.4lbs |
Includes IEC mains cable, test leads (safety plugs to alligator clips) and instruction manual
Some novice users may find this feature confusing, assuming that when the device is powered then there is always output, or that this button turns the unit on or off.This video seeks to explain this feature.
