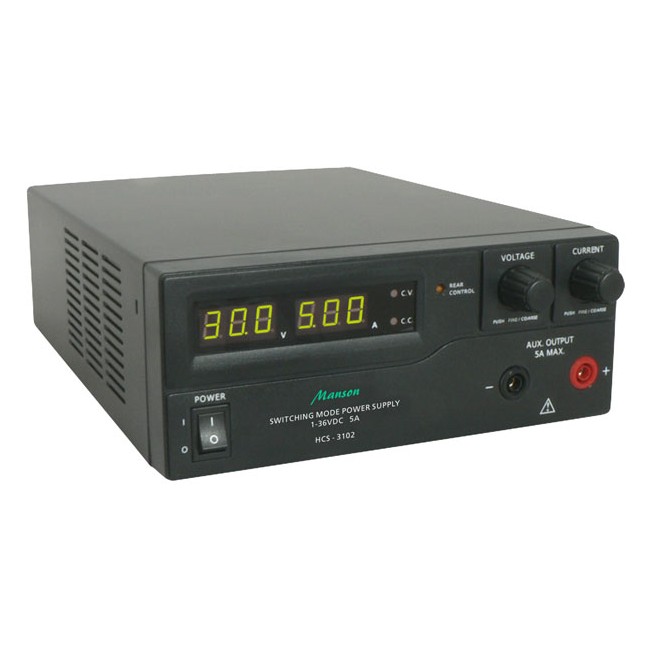

MANSON HCS3102G 1-36Vdc 5A Remote Programmable Switchmode Power Supply Remote Programmable by

MANSON HCS3102G 1-36Vdc 5A Remote Programmable Switchmode Power Supply Remote Programmable by

Hurry! 13 items left!

Price	$356
	Collect 356 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Overview

1-36VDC 5A REMOTE PROGRAMMABLE

SWITCHMODE POWER SUPPLY

After the success of our previous HCS series, high power supplies, this new low power series has been developed with end-users' feedback in mind.

A USB control port has been added to allow cyclical operations with programmable voltage, current, period and time cycles.

Ideal for laboratory, university, workshop, production, quality control and sophisticated DIY applications.

Features

Remote programmable by computer via USB
20 programmable sets of voltage, current and cycle periods for repetitive operations up to 999 cycles
3 user defined voltage and current panel presets for frequent use
Wired remote control of Voltage, Current and Output on/off without computer
Rotary encoder knob with fine and coarse adjustment
Smart cooling fan speed control
Self diagnostic check on LED display
Isolated ground, Active PFC and high power efficiency
Universal AC Input
Overload, Tracking Over-voltage Protections
Constant current limit setting with open circuit output

Specifications

Model	HCS3102
Output	Variable Output Voltage	1V to 36V DC
Variable Output Current	0 - 5A
Voltage Regulation	Load (10 - 100% Rated Current)	50mV
Line (90V to 264V AC Variation)	20mV
Current Regulation	Load (10 - 90% Rated Voltage)	100mA
Line (90V to 264V AC Variation)	50mA
Ripple & Noise	Ripple & Noise (RMS) Voltage	5mV
Ripple & Noise (peak-peak) Voltage	50mV
Switching Frequency	100 - 120Khz~
Tracking Over Voltage Protections	O/P 1-5V: Set voltage +2V O/P 5-20V: Set voltage +3V O/P 20-36V: Set voltage +4V
Meter Type & Accuracy	Voltage Meter	3 Digit LED Display ±0.2% +3counts
Current Meter	3 Digit LED Display ±0.2% +3counts
Other	Input Voltage	90V to 264V AC 50/60Hz~
Full Load Input Current (230V AC/100V AC)	1.2/2.5A
Efficiency (230V AC)	84%
Power Factor Control	Power factor correction >0.95 at optimal load
Cooling Method	Thermostatic Control Fan from Zero to full speed
Protections	Overload Short Circuit by Constant Current Output Tracking Over Voltage Over Temperature
Special Features	3 User defined V & I preset Remote control V, I Output ON/OFF
Preset Cycle Programming	Max. 20 presets of V & I Max. preset time 100 minutes (99min + 60sec) Max. preset cycle 999
Approvals	CE EMC: EN 55011, 55022 LVD: EN 60950, 61010
Packaging	Dimensions (W×H×D)	200mm × 80mm × 208mm (7.8″ × 3.2″ × 8.2″)
Weight	2.4kg (5.2lbs)

Videos

Checking/changing Output Presets

*Please note: The power supply in this video may be a different model

Weight: 2.903
