DOSS PWU0412W05 4 Way 12V DC 5A Power Supply With UPS Pfc Surge Protection Universal Ac Input
3x

DOSS PWU0412W05 4 Way 12V DC 5A Power Supply With UPS Pfc Surge Protection Universal Ac Input

Limited Stock!
Price
$76
Collect 228 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (37) has been reached.

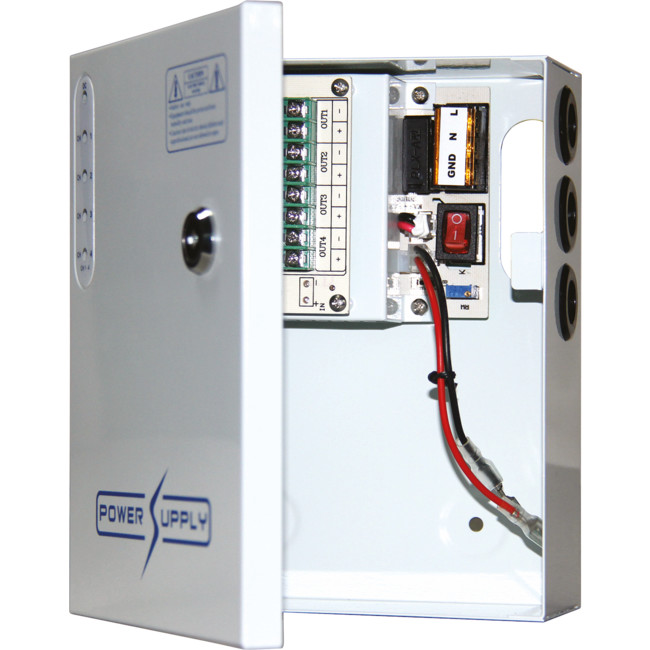

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.

This model also comes with UPS function which can work together with the to back up the power for the systemwhen the power is cut off.

This product doesn't come with a K9 IEC lead.
Features
  • Backup battery charger: keep system running when power cut off. Battery size: 7A/ h
  • Universal AC input range: 96-264VAC, 47~63Hz
  • Each channel is protected seperately. There is one tube fuse (Glass fuse) for the main board and PTC (Polymeric temperature control) fuse for every individual channel.
  • Protection: short circuit, over current, overload and wrong battery connection.
  • PFC function: models with power bigger than 60W are configured with PFC function, fit European efficiency standard.
  • Surge protection:5KA
  • Cooling Fin: Better cooling function, low power comsumption.
  • External LED indicator for each channel output.
  • Extra AC jack: on box side, easy installation.
  • K9 AC power lead not included
  • Built-in EMI wave filter, 100% full load burn-in test.
  • All using 105 °C long life electrolytic capacitors.
  • All using world famous brand new components.
  • Operating temperature:-30°C~70°C (40°C 100% full load burn-in test, 70°C 70% full load burn-in test)
Specifications

Output

DC Voltage

12V

Rated Voltage

12V-14.8VDC

Current

5A

Power

60W

Ripple and Noise

≤100mV

Voltage ADJ. Range

12V±10%

Voltage Accuracy

±10%

Set-up Time

2S@120VAC1.0S@230VAC

Hold up Time

10mS@120VAC,20mS@230VAC

Input

Voltage Range

96V~264VAC

Frequency Range

47~63Hz

Efficiency (Type)

80%~95%

Protection

Over Load

105%~150% (rated load)

Over Voltage

115%~150% (rated output voltage)

Shorted Circuit

Fuse Tube

Environment

Operating Temp. & Hum.

-10°C~45°C; 20%~90%RH (non-condensing)

Storage Temp. & Hum.

-20°C~+85°C20%~95%

Others

Dimension (L*W*H)

202*163*70mm

Packing

370*250*85mm

Cooling method

Free Air Convection

Net weight

1210g

Doss Wall Mounting Box Power supply range
Model Ways Output Voltage Output Amp. With UPS
4
12V DC
5A
No
8
12V DC
10A
No
16
12V DC
16A
No
4
12V DC
5A
Yes
8
12V DC
10A
Yes
16
12V DC
16A
Yes

Weight: 1.35
