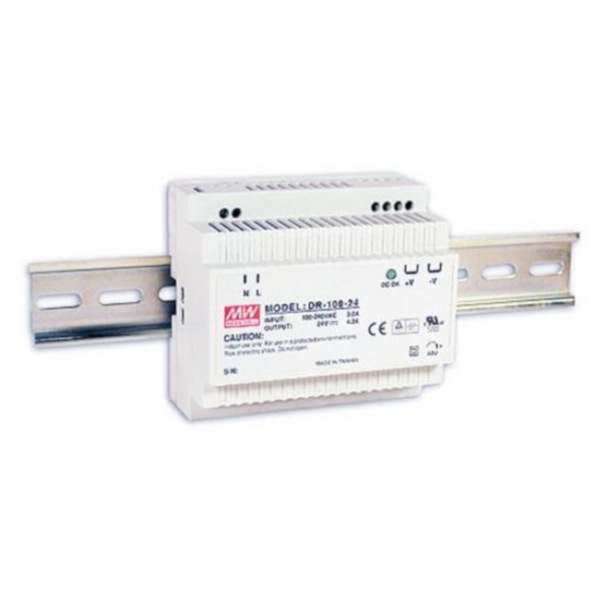

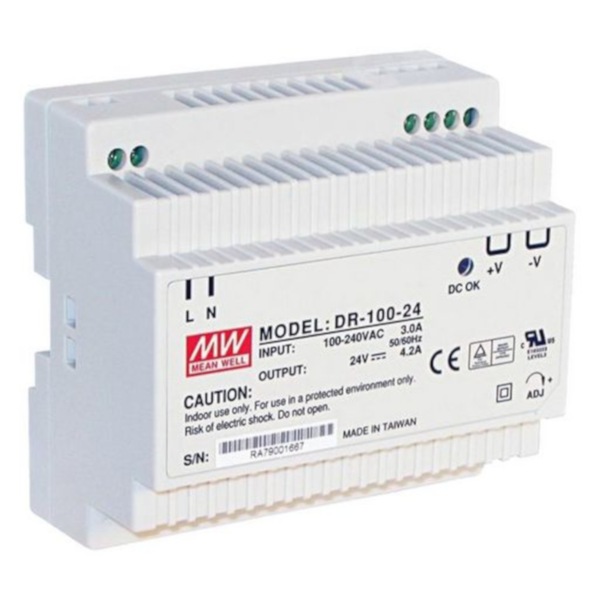

The DR100 series DIN rail mount switching power supplies are designed with a fully isolated plastic case to prevent user contact and the risk of shock.
Other standard features include its no load power consumption to save energy, short circuit, over load, over voltage and over temperature protections.
12VDC 7.5A / 24VDC 4.2A Power output
Integrated protection : overvoltage / overload / short circuit
Integrate to protect IT & security in home, office and retail environments
Designed for installation on DIN rail TS-35/7.5 or 15
Prevents overheating with free air convection
Isolation class II
LED indicator for power on
No load power consumption<1W
100% full load burn-in test
Specifications
Code | DR100-24 |

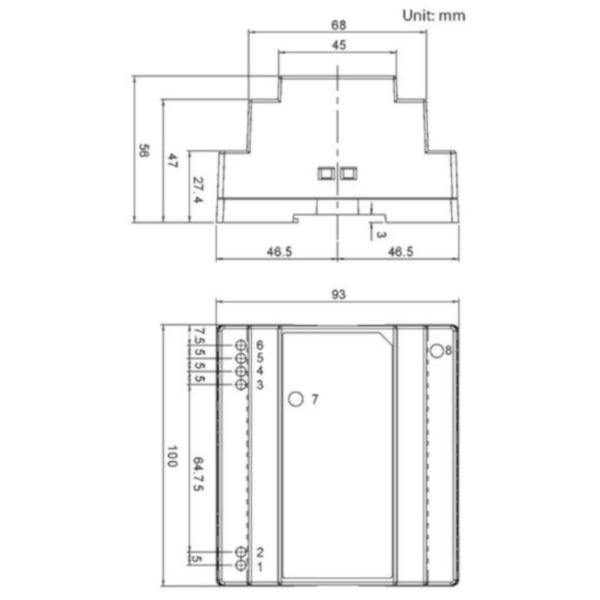

Size | 100x93x56mm |
Vin | 230Vac |
Vout | 24Vdc |
Iout | 4.2A |
12 Months
Warranty Policy
Please refer to the individual product listing for specific warranty terms and period. Customers need to return the products back to us for a repair or replacement.
Returns Policy
30-Day Free Returns / Change of mind. Returns postage are payable by the customers.
Estimated Delivery Time Frame: 5-7 business days
