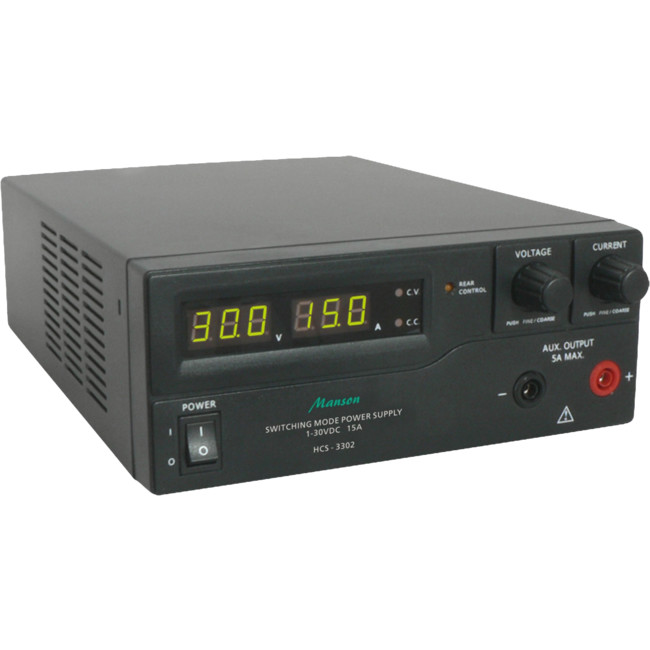

MANSON HCS3302-USB 1-32V 0-15A Power Supply Switching 3 Digi LED W/USB Rotary Encoder Control Knob

MANSON HCS3302-USB 1-32V 0-15A Power Supply Switching 3 Digi LED W/USB Rotary Encoder Control Knob

Price	$406
	Collect 406 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Overview

1-32V 0-15A POWER SUPPLY

SWITCHING 3 DIGIT LED W/USB

These are cost effective remote programming power supplies with lab graded performance. They are ideal for laboratory, university, workshop, production, quality control and advanced DIY. Computer interface via USB for cyclical operation, plus wired analogue remote control make these power supplies open up many demanding applications. Fine and Coarse tuning with definitive rotary encoder volume knob and open circuit CC settings are user friendly.

This range of high graded SMPS is designed for a wide range of applications for telecommunications, laboratory and industry. The power efficient circuit designs allow units tohave small form factor with low profile and small footprint casings. The intelligent fan speed control program checks the fan at power on and adapts the right speed to ensure a quiet and safe operation of the power supply at different ambient temperatures and power output levels. The dual action (coarse & fine set) control knobs make tuning the voltage and current level ever so smooth, precise and fast, due to the rotary encoder and microprocessor control. Setting the CC current limiting can be done in open circuit at output poles. The isolated ground construction allows parallel and series connection of power supplies with ease and safety. The three user-defined presets of voltage and current limiting levels facilitate quick access to frequently used VI settings. Analogue remote control functionality offer a wide range of operation possibilities for the industrial and more sophisticated users. A USB port for access to computer to run cyclical operation with programmable voltage, current, period time and cycles.

Features

Rotary Encoder Control Knob with coarse & fine tuning
PC interface USB for program runs of up to 20 sets V & I, time set and 999 cycles.

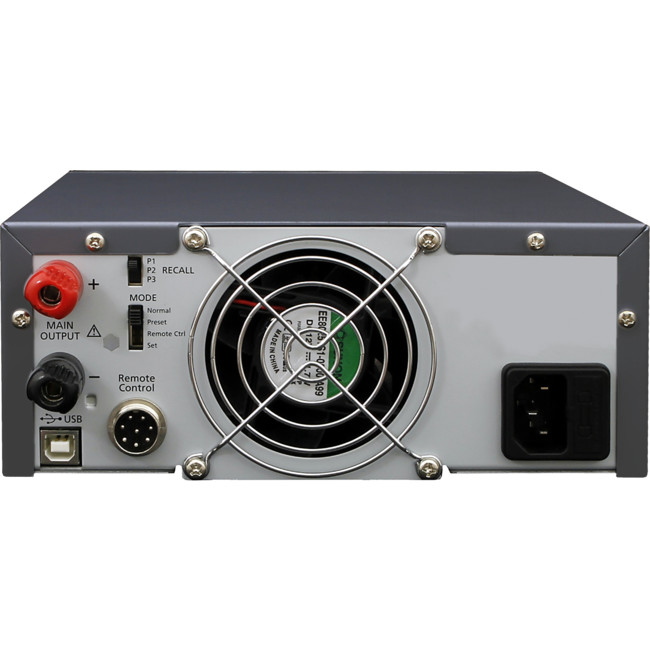

Wired analogue remote controls of ON/OFF, V and I
High RFI immunity & excellent EMI
Intelligent fan control from zero to full speed
3 user presets on unit
Open circuit Constant current limit
Isolated ground and active PFC & high power efficiency
Over Load, Over Temperature & Tracking Over Voltage Protections
Remote Programmable via USB to computer
Application software, command sets and Labview driver.
Output Voltage: 1-32V
Output Current: 0-15A

Specifications

Models	HC-3300-USB
Output	Variable Output Voltage	1-32V DC
Variable Output Current	0-15A
Voltage Regulation	Load (10-100% Load)	≤50mV
Line (170-264V AC Variation)	≤20mV
Current Regulation	Load (10-90% Rated Voltage)	≤100mA
Line (170-264V AC Variation)	≤50mA
Ripple & Noise	Ripple & Noise (r.m.s) Voltage	≤5mV
Ripple & Noise (peak-peak) Voltage	≤50mV
Switching Frequency	75-95KHz~
Tracking Over Voltage Protections	O/P 1-5V: Set Voltage +2V O/P 5-20V: Set Voltage +3V O/P 20-32V: Set Voltage +4V
Meter Type & Accuracy	Voltage Meter	3 Digit LED Display ±(0.2% +3 counts)
Current Meter	3 Digit LED Display ±(0.2% +3 counts)
Other	Input Voltage	200-240V AC 50-60Hz
Full Load Input Current	2.4A
Efficiency	≥86.5%
Power Factor Control	Power factor correction >0.95 at optimal load
Cooling Method	Thermostatic Control Fan from Zero to full speed
Protections	Overload Short Circuit by Constant Current Output Tracking Over Voltage Over Temperature
Special Features	3 User defined V & I preset Analogue Remote control V, I Output ON/OFF
Preset Cycle Programming	Max. 20 presets of V & I Max. preset cycle 999
Approvals	CE EMC: EN 55011, 55022 LVD: EN 60950, 61010
Packaging	Dimensions (W×H×D)	200mm × 90mm × 215mm
Weight	2.6kg

Videos

Using the HCS Series Power Supplies with Raspberry Pi

Loading the driver

Controlling via Raspberry Pi

Downloads

User Manual

pdf; 1.31MB
