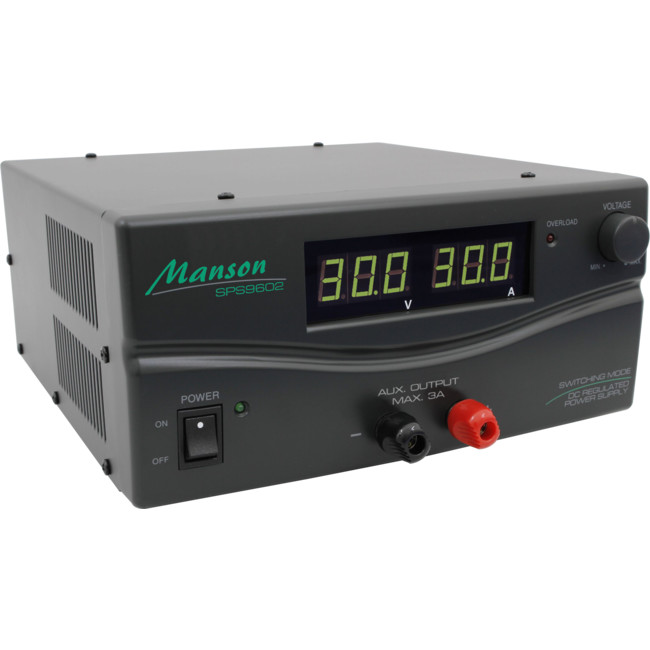

This high current switching mode DC regulated output power supply is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply.
The remote sensing terminals are used to compensate for output line losses 80 that a precise regulation can be achieved for critical voltage application away from the power supply.
The output voltage level and ON/OFF can be externally controlled via the remote terminal.
It is ideal for applications that need good quality highDC current network with precise point of voltage regulation.
SPS-9602 has a small footprint for its 900W continuous maximum power.
It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc.
Variable Output Voltage | 1V to 30V DC |
Total Rated Output Current (Main Output + Front Output) | 30A |
Rated Output Current (Main Output) | 30A |
Rated Output Current (Front Output) | 3A |
Load Regulation (Main Output) | 0.1% +5mV |
Line Regulation (Main Output) | 0.05% +3mV |
Ripple & Noise (Peak-Peak) | 50mV p-p |
Input Voltage | 230V AC, 50Hz- |
Efficiency | >85% |
Meter Type | LED Meter |
Voltmeter Range | 3 digit display |
Ammeter Range | 3 digit display |
Meter's Accuracy | ±1% +1 count |
Protection Devices |
|
Cooling System | Variable speed thermally controlled fan |
Special Features |
|
Approvals |
|
Dimensions (W×H×D) | 220mm × 110mm × 360mm (8.7″ × 4.3″ × 14″) |
Weight | 5.8kgs (12.81bs) |
Remarks | Power factor correction >0.95 at optimal load |
