Elinz Digital Wireless 9" Splitscreen Monitor DVR CMOS Reversing Camera 2.4GHz 12V 24V

SKU: M92CH-1xRVDWT

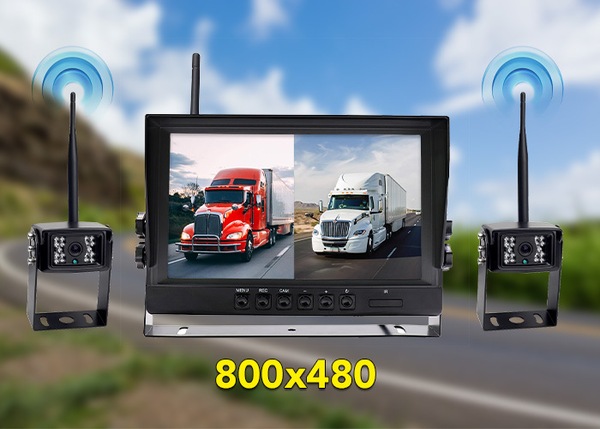

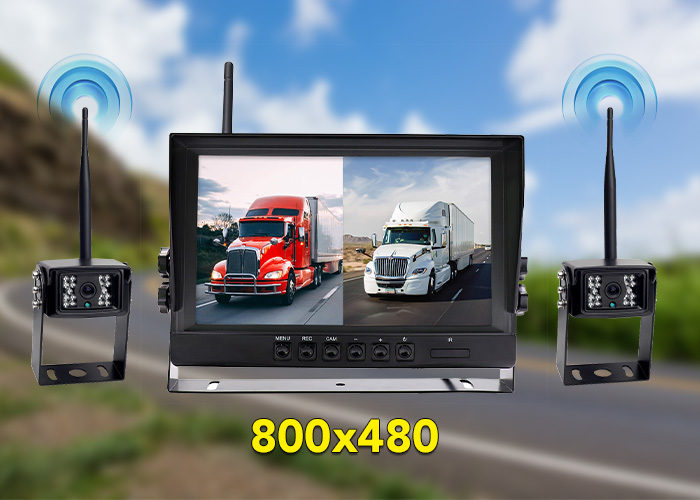

9" TFT-LCD Monitor

800 x 480 resolution
Audio recording for all 2 channels wireless cameras

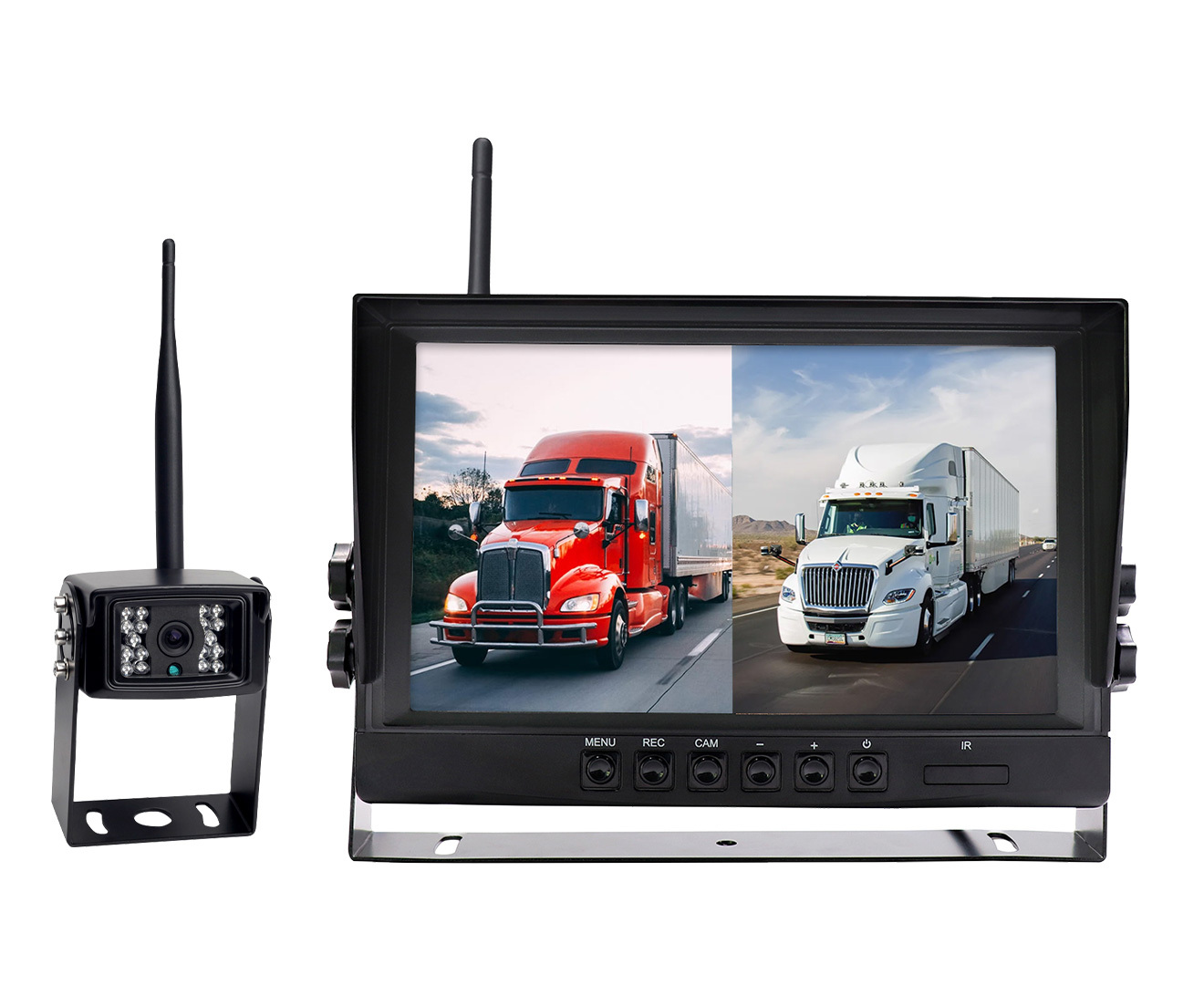

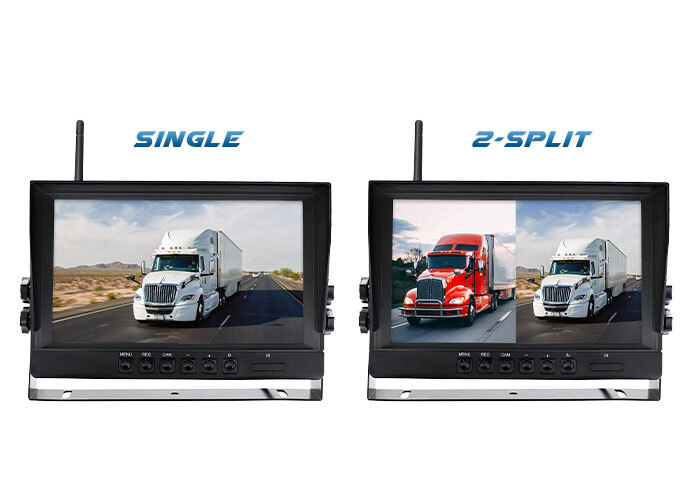

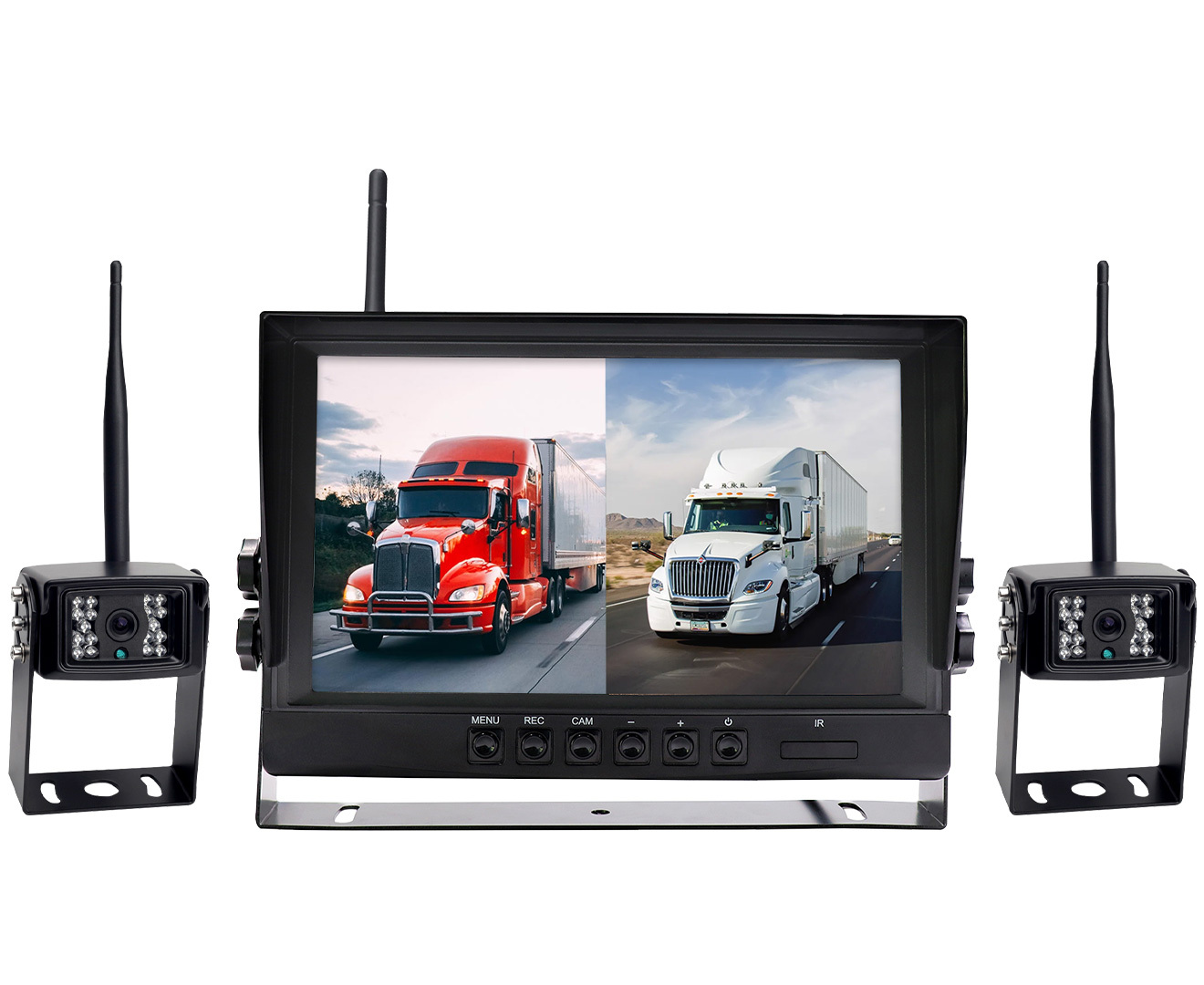

Split Screen Monitor

It can be single screen or double screen.

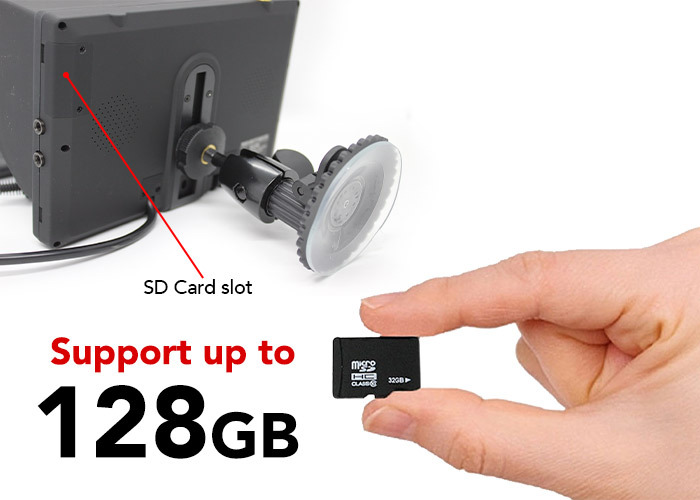

DVR Recording Function

Can support up to 128GB SD card (SD card not included), available to be purchased separately.

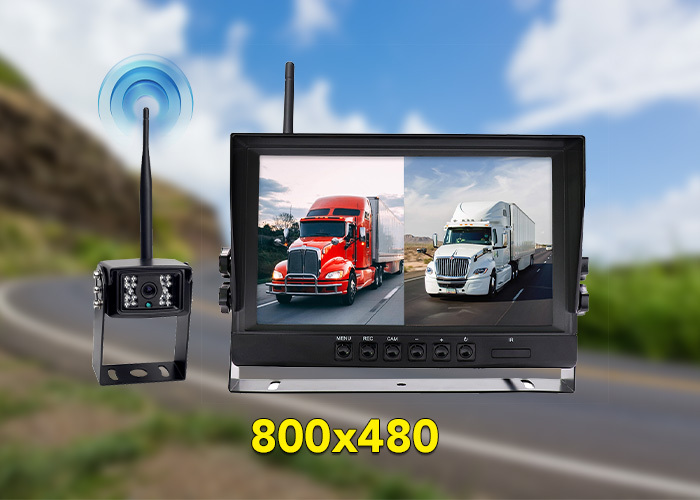

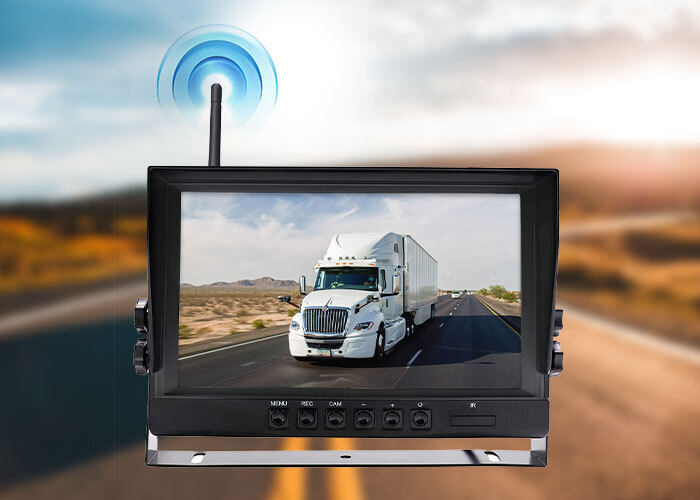

Wireless Rear View System

You do not need to run wires to connect the camera and monitor.

2.4GHz Digital Wireless Transmission Up to 200m

2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
Stable signal and HD image
Improved wireless module to provide longer transmission distance of 30m-200m
Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
Stable transmission up to 100km/h

Universal Fit

It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
Suitable with 12V/24V power supply

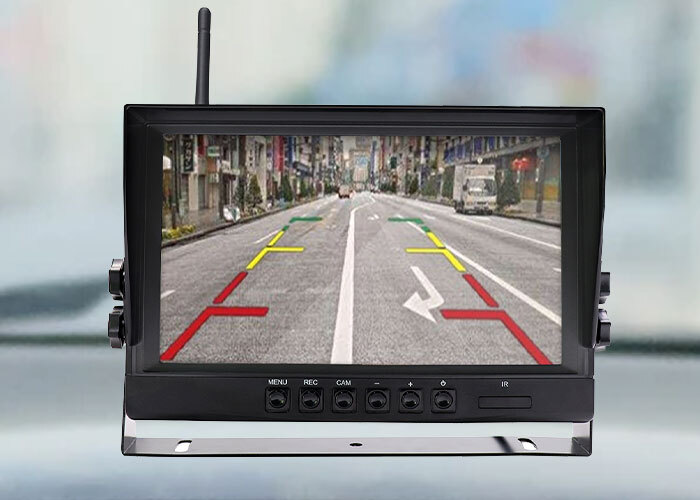

Parking guideline can be turned on / off

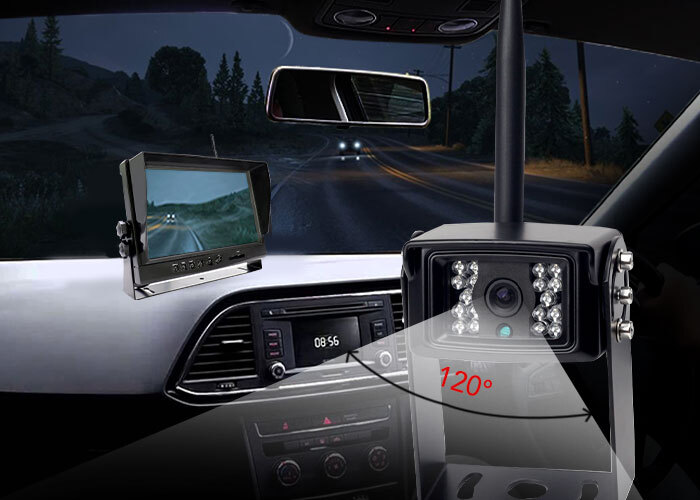

120° Wide Angle View

120° wide angle rear view camera with infrared night vision help us parking our vehicles safely

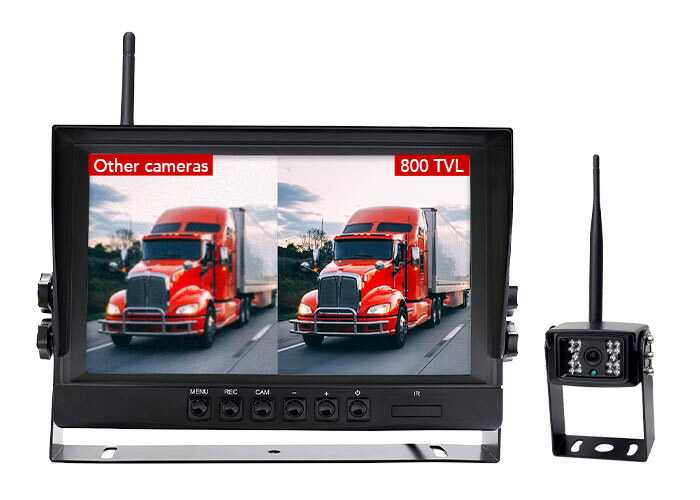

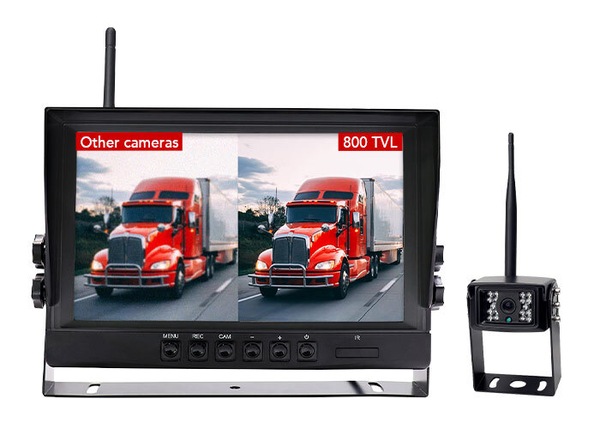

Industrial Grade Heavy Duty CMOS Camera 800TVL

High resolution 800 TVL
Bigger bracket to provide much better angle
Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
IP68 Waterproof Camera - very durable and suitable in all environments

Night Vision Camera

18 Built in IR LED
Automatic night vision distance at 10 metres

Built-in speakers

Works best with reverse camera with mic to hear clearly audio instructions from a person when reversing

Easy to install

The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car

Monitor Dimensions

Camera Dimensions

Monitor Views and Labels

Camera Views and Labels

Wiring Labels

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

Remote

* No Batteries Included

MORE INFORMATION

This Wireless monitor and camera kit is design for a long range signal monitor and cameras communications, it's about 30-200m. 200m when no barrier or even 170m at maximum range for high quality output for time to time audio and video recording.

This reversing camera kit has 2 wireless channels, so can connect up to 2 wireless cameras.

Uninterrupted connection in Multi-Angle of the cameras matched with 9" SplitScreen Monitor will give you asatisfactory output. It has a camera with 120 degree view angle and 2.4Ghz transmission.

PRODUCT HIGHLIGHTS

9" TFT-LCD Split Screen Monitor
- 800 x 480 resolution
- Audio recording for all 2 channels wireless cameras
Split Screen Monitor
- It can be single screen or double screen
DVR Recording Function
- Can support up to 128GB SD card (SD card not included, available to be purchased separately
Wireless Rear View System
- You do not need to run wires to connect the camera and monitor.
2.4GHz Digital Wireless Transmission Up to 200m
- 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
- Stable signal and HD image
- Improved wireless module to provide longer transmission distance of 30m-200m
- Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
- Stable transmission up to 100km/h
Universal Fit
- It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
- Suitable with 12V/24V power supply
Parking guideline can be turned on / off
120° Wide Angle View
- 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely
Industrial Grade Heavy Duty CMOS Camera 800TVL
- High resolution 800 TVL
- Bigger bracket to provide much better angle
- Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
- IP68 Waterproof Camera - very durable and suitable in all environments
Night Vision Camera
- 18 Built in IR LED
- Automatic night vision distance at 10 metres
Easy to install
- The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car
Optional cameras are available to be purchased from our store

ITEM DESCRIPTION

LCD size: 9"
Resolution: 800 x 3 (RGB) x 480
Contrast: 500 | 1
Brightness: 400cd/m²
Viewing Angle: U: 50 / D: 70, R/L: 70
Dot pitch: 0.0642(W) x 0.1790(H)
Aspect Ratio: 16 | 9
Channel: 2 channels
Operating Frequency: 2400 - 2483.5 MHz
Receiving Sensitivity: -89 dBm
Decompression Form: MPEG4
Transmit Output Power: 17 dBm
Modulation: 2.4G FSK/GFSK
Time Delay: 120ms
Transmitting Distance: 30-200M
Micro-SD /TF Card: Max. 128GB
System Format: PAL / NTSC
Power Supply: DC 10-32V
Power Consumption: Max. 6W
Loudspeaker: 1.5W/8Ω
Operating temperature: -20~+70ºC, RH90%
Storage temperature: -30~+80ºC,RH90%

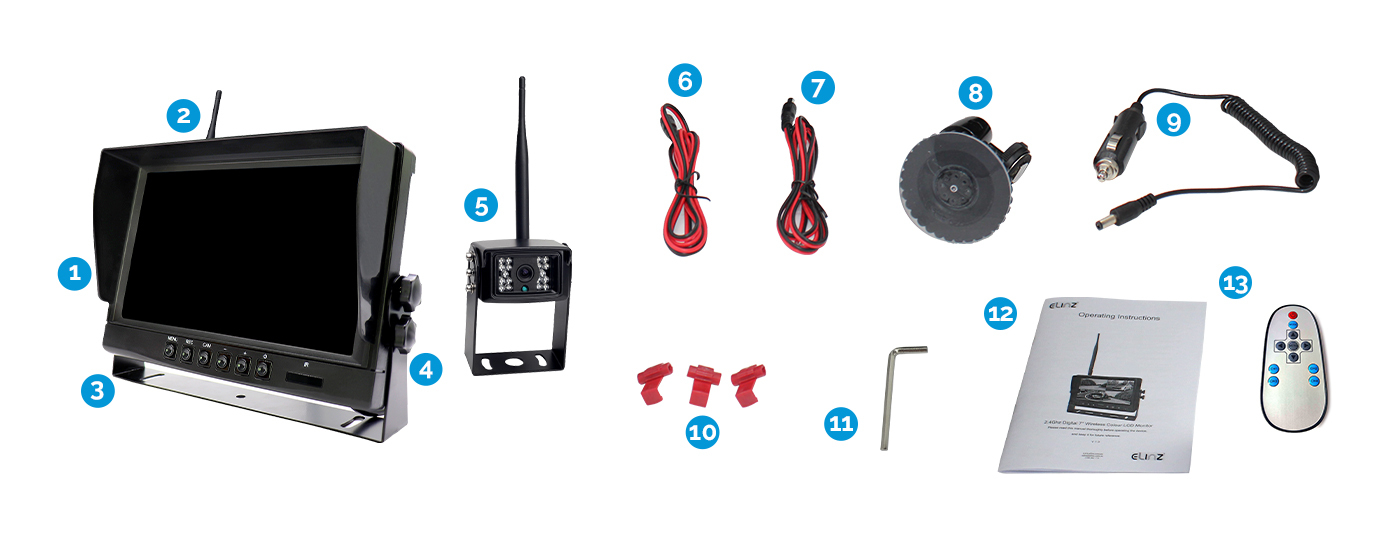

WHAT'S INCLUDED

1. 7” TFT LCD Monitor

2. 1x Monitor Antenna

3. Screws

4. 1x Monitor Stand

5. 1x Wireless Colour CMOS Camera

6. Camera Power Cord

7. Monitor Power Cord

8. 1x Monitor Suction Mount

9. 1x Car Charger

10. 3x Wire Tap Connectors

11. Allen Wrench

12. User Manual

13. 1x Remote (*Batteries Not Included)
