Description:

1 Operating voltage: DC 12V
2 Operating Current: Standby current (all relays closed) 15MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA, 4 relays open 123MA,5 relays open 150MA,6 relays open 177MA,
7 relays open 203MA,8 relays open 229MA.
3: send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control)
4 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' 5 Commands
5 You can modify the Bluetooth name and PIN(Access Password) use '' UST to TTL232'',
For details, see file '' Bluetooth parameter modification''
6 size 96*68*19mm
7 Weight : 117g

NOTE:Only for Android OS, does not support the Apple OS

Typical applications:
?
Home lighting system
Remote control switch
Remote locking
Garage door remote control
Smart Home / Home Automation
DC 12V LED lighting
Fluorescent lamp
AC DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control
Access Control System
Security Monitoring
?

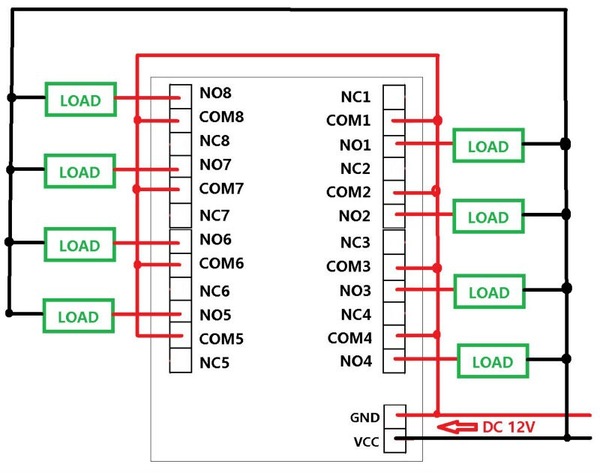

1 DC 12V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC 12V equipment
?
2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment

Package inlcuded:1 pcs DC 12V 8 Channel Android Bluetooth Relay Module
GTIN: 774048926195
