16 Channels MT8870 DTMF Audio Decoder Phone Voice Controller 01234567890ABCD#

16 Channels MT8870 DTMF Audio Decoder Phone Voice Controller 01234567890ABCD#

Be the first to review this product

Price	$36.76
	Collect 108 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 28/11/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code KMVGM

Quantity

Add to wishlist

Description:
?
DC Power Supply Voltage:4.5V-5.5V(Tup: 5V)
Operating Temperature : -40-+85 ��C
IO Drive : Sink Current (Low level drive) 20mA,source current(High level drive) 270uA
16 Channel selectable high and low level output.
16 Channel output: 0-9,*# ABCD

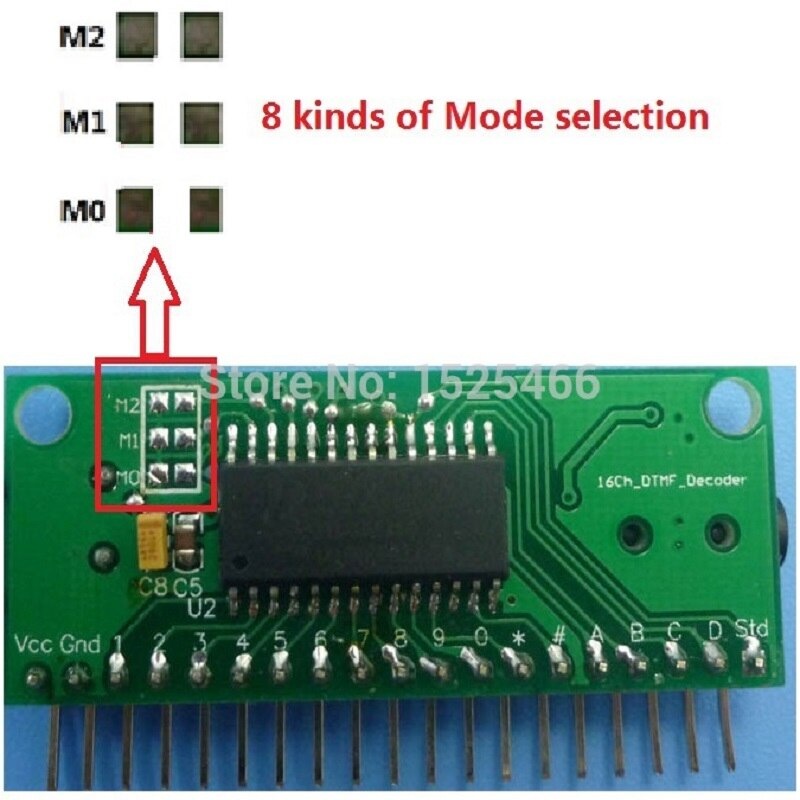

8 kinds of Mode selection
PCB Size : 50x20MM

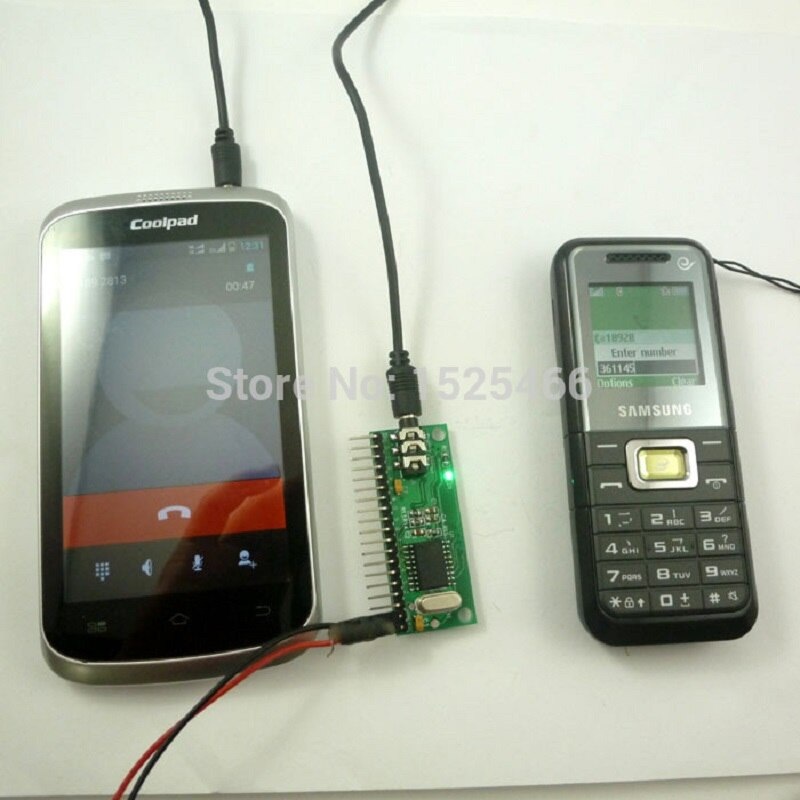

This decoding module is for mobile and fixed telephone voice dialing decoding function , has 16 channels, 8 kinds of selectable output function, and leads to STD signal to use as a microcontroller interrupt signal, very convenient to embed all kinds for mobile and fixed telephoneremote remote control, remote control decoding key value.
12 channels outputs decode mobile and fixed telephone keys (0-9, * #).Another 4 channels output(ABCD) can use "DTMF Dial" Software control.

Package:

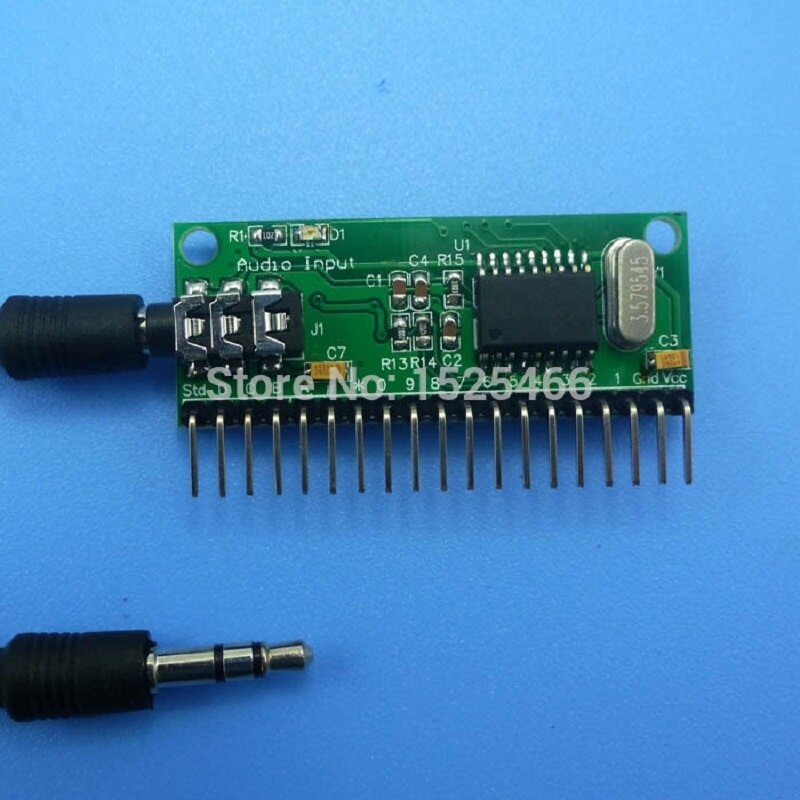

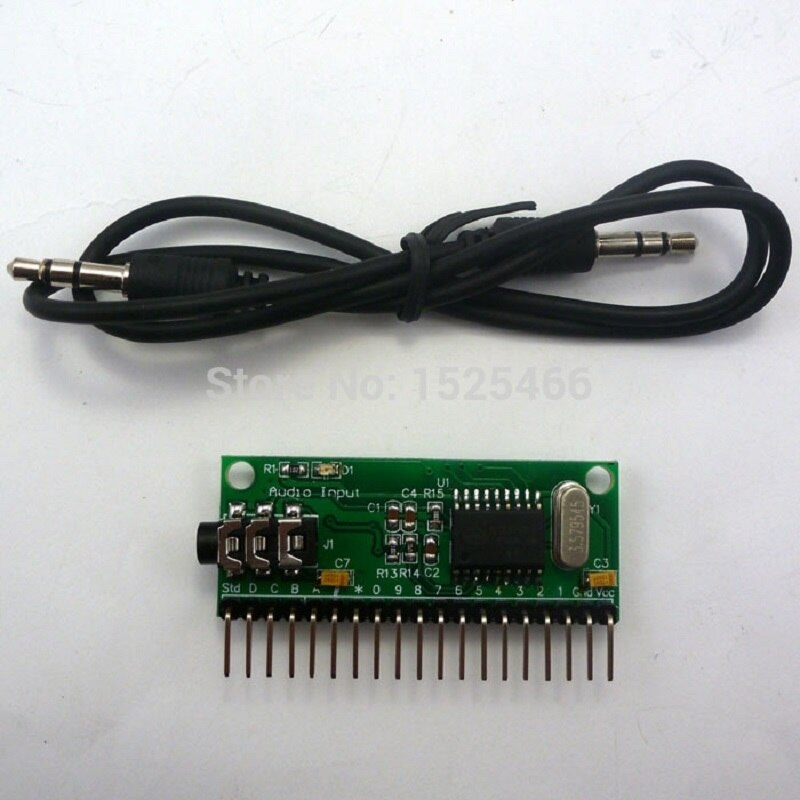

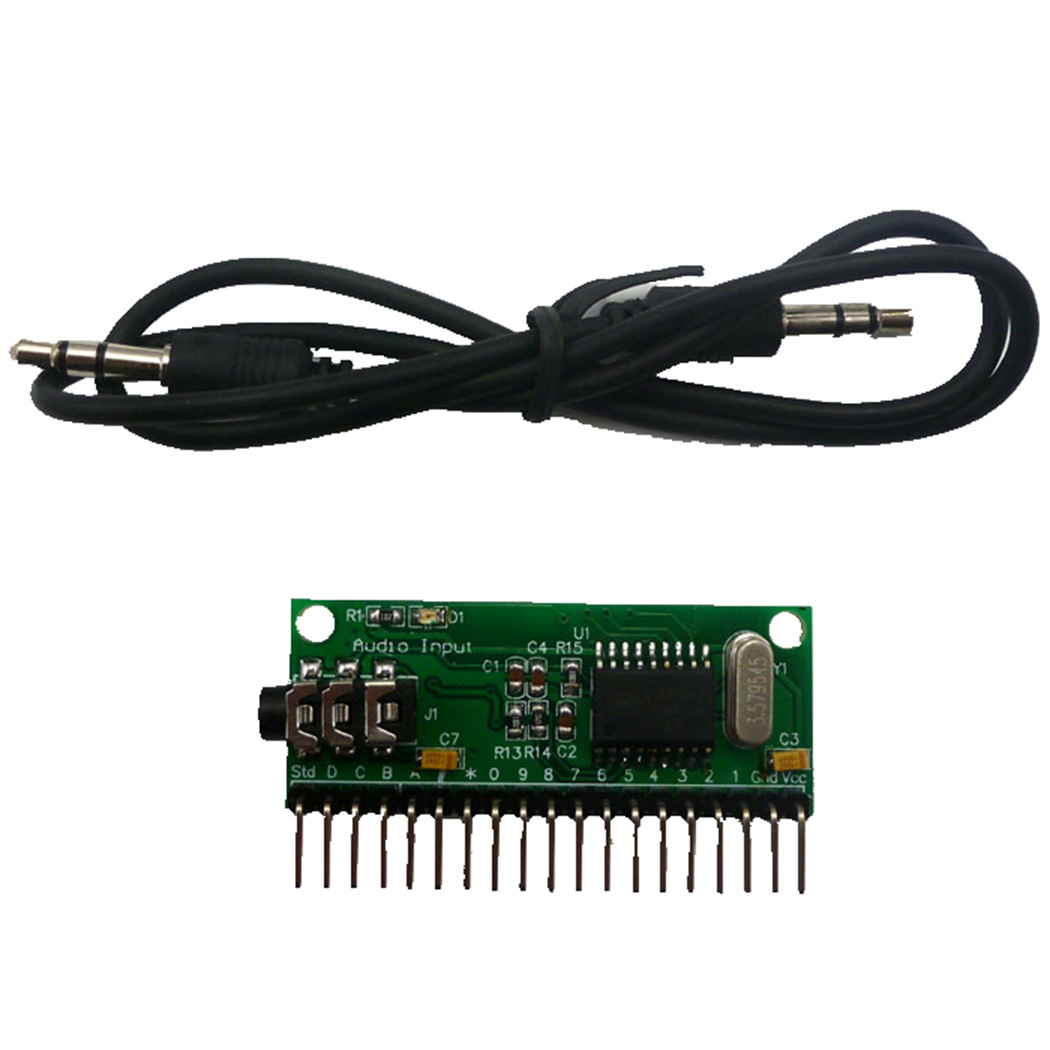

1 PCS 16 Channel DTMF decoder module;
1 PCS Male to Male audio wire (3.5mm jack );

GTIN: 774048924542
