Description:

1 Operating voltage: power supply 1, DC 6-25V; power supply 2,DC 5V
2 Operating Current: Standby 11MA, Relay Open 45MA (voltage DC 12V)
3 Bluetooth V2.1 + EDR, Class 2
4 2.4GHz-2.48GHz unlicensed ISM band
5 send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control),It can also be triggered by an external pulse signal.
6 ''Momentary'' ''Self-locking'' ''open'' ''close'' 4 Commands
7 External trigger input, opto-isolated switch, low pulse inputs.
8 size 79 * 47.5 * 20
9 Weight : 34g
10 Relay Maximum load:10A/250VAC ,10A/125VAC,10A /30VDC, 10A /28VDC ,10A /12VDC

applications:

Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
DC 12V LED lighting
Fluorescent lamp
12V DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control

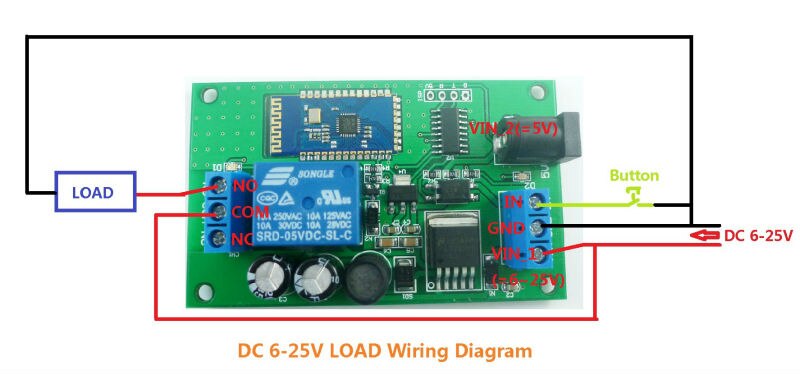

1 Power supply is DC 6-25V, ''LOAD'' also DC 6-25V circuit, wiring diagram below.
''LOAD'' may be LED lights, fans, motors and other DC 6-25V equipment

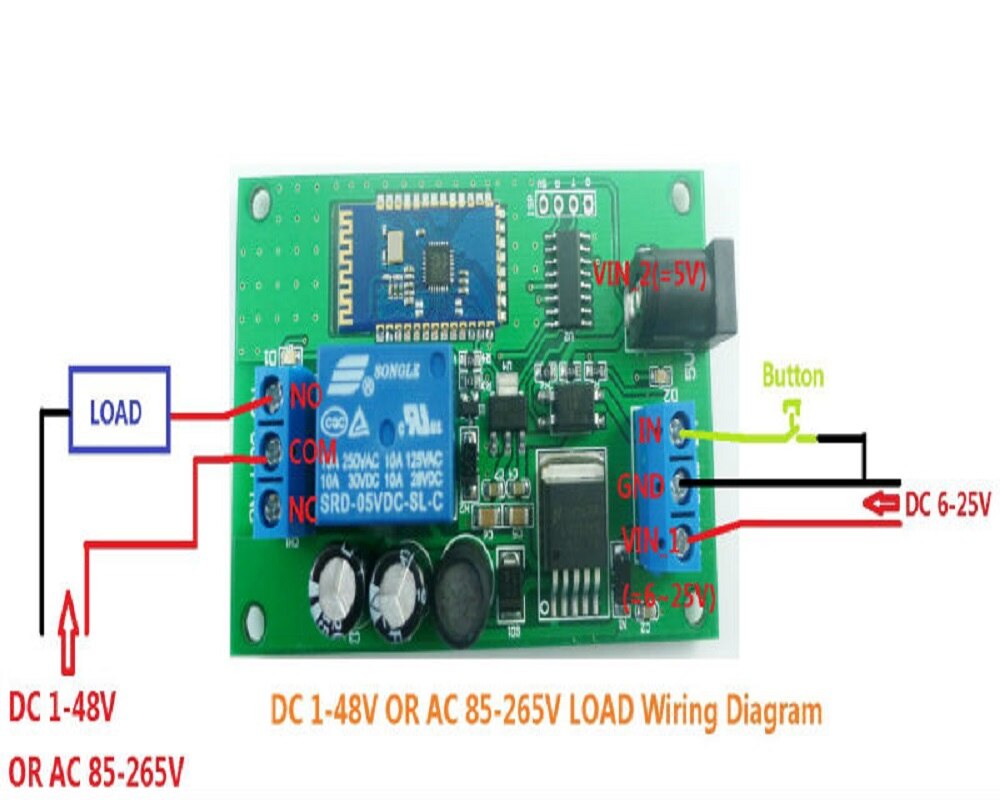

2 Power supply is DC 6-25V, ''LOAD'' is DC 1-48V or AC 85-265V circuit, wiring diagram below.
''LOAD'' may be LED lights, fans, motors and other DC 1-48V or AC 85-265V equipment

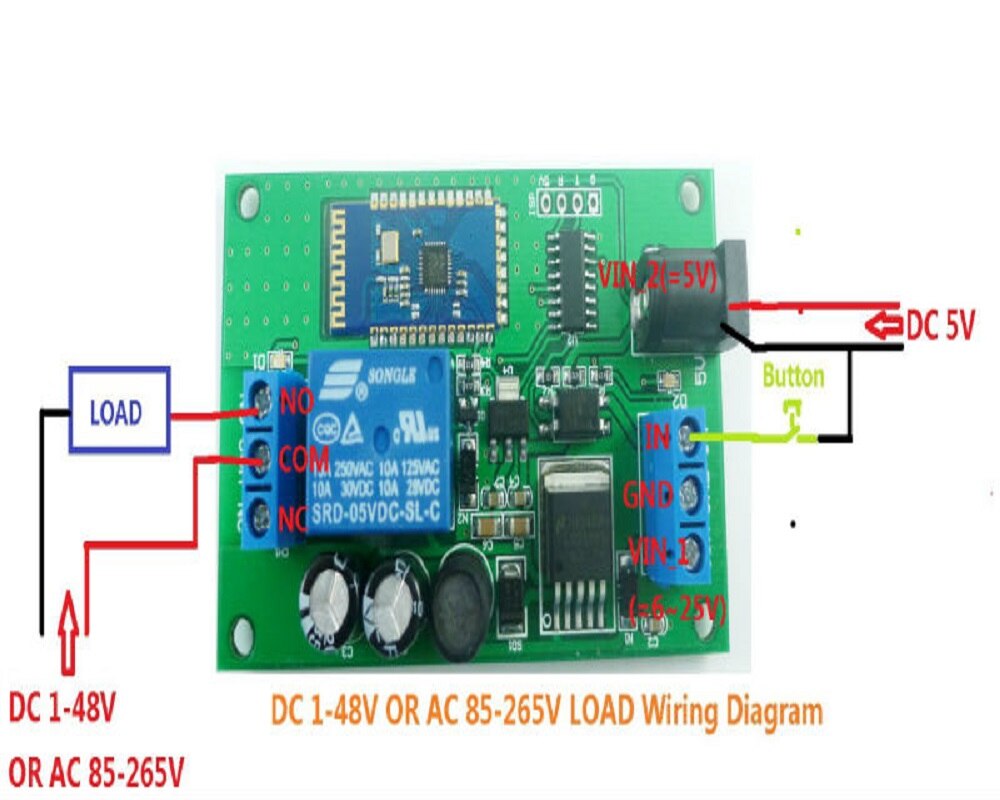

3 Power supply is DC5V, ''LOAD'' is DC 1-48V or AC 85-265V circuit, wiring diagram Below.
''LOAD'' may be LED lights, fans, motors and other DC 1-48V or AC 85-265V equipment
4 Power supply is DC 5V, ''LOAD'' is DC 5V circuit, wiring diagram below.
''LOAD'' may be LED lights, fans, mcu Development Boards and other DC 5V equipment

Package inlcuded:1 PCS DC 5V-25V 1 Ch AndroidBluetooth Relay Module
