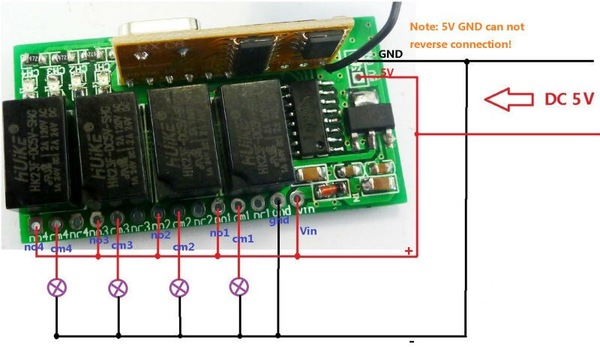

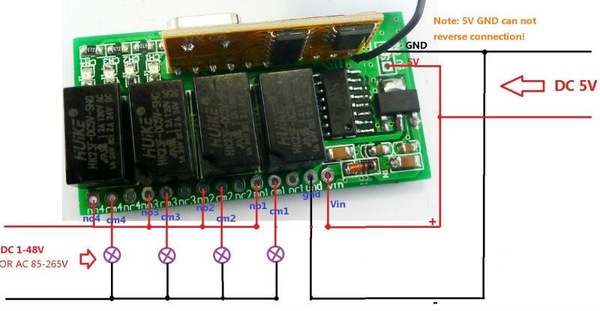

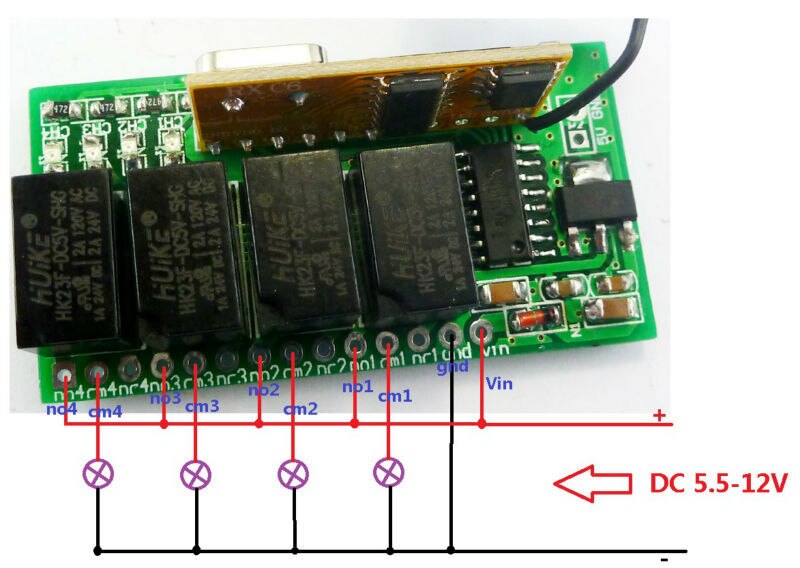

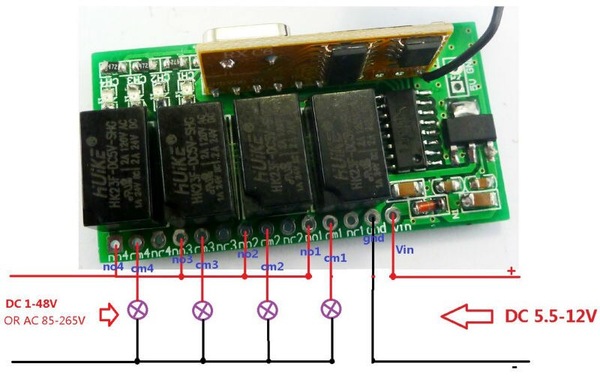

Features: ? 1 Operating voltage: Power 1: DC 12V, 9V (range 5.5-15V) ; Power 2: DC 5V 2 Operating current: Standby Current(12V 8MA, 5V 8MA); each relay operating current 40MA 3 Wireless frequency: 433M(315M version can be customized) 4 Receiver sensitivity: -108dBm 5 Decode: learning code, can be adapted EV1527 / PT2262 and compatible remote control, you can store up to 6 remote control 6 work mode: Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch) 7 Relay load voltage: DC 1-48V; AC 85-265V 8 Relay load current: <= 2A 9 Size: 49mmx25.5mmx14mm (Very small) 10 Weight: 16g(Very light) Typical applications: DC 5V 9V 12V Home lighting system Garage Door Elevators Motor reversing control Remote control switch Smart Home / Home Automation LED lighting Fluorescent lamp DC 12 DC Motor,RS360 ? Wiring Diagram 1: ?5.5-12V DC operating voltage DC 5.5-12V devices Wiring Diagram 2: 5.5-12V DC operating voltage ,DC 1-48V OR AC 85-265V devices Wiring Diagram 3: 3 5V DC operating voltage ,DC 5 V devices Wiring Diagram 4: 4 5V DC operating voltage ,DC 1-48V OR AC 85-265V devices Packing list:1 PCS MINI 433M DC 5V 9V 12V 4 Channel Wireless Controller ??1 PCS Plastic shell??1 PCS 2.54MM straight pin??1 PCS 2.54MM curved pin |
