Car Rear View Kit with 4.3" TFT LCD Monitor IR Night Vision Reversing Camera

Car Rear View Kit with 4.3" TFT LCD Monitor, HD IR Night Vision, Reversing Camera FLC

Features:

4.3" TFT LCD MONITOR: 4.3" Car Rear View Monitor helps in preventing accidents while driving in reverse by avoiding children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space.

Fit all CCTV camera, car Reversing camera, car DVD player.

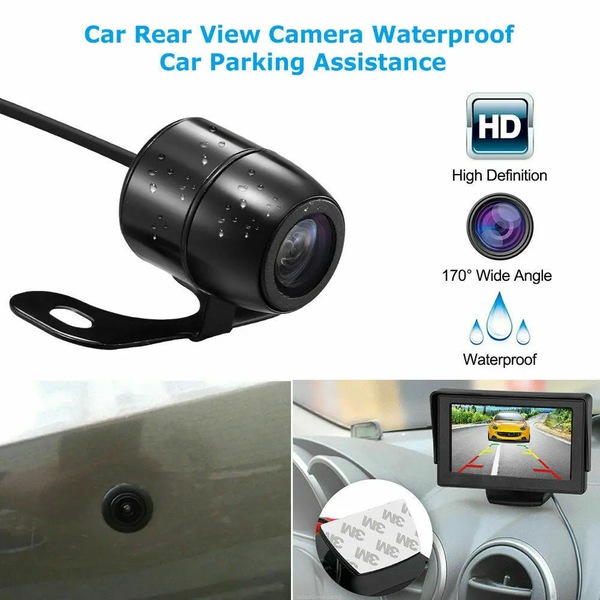

Waterproof day/night Reversing camera

Easy installation for DIY usage

Real-time rear view while back up

IR Reverse camera with wide view angle 170o

With night vision

Specifications:
Condition: 100% brand new and high quality

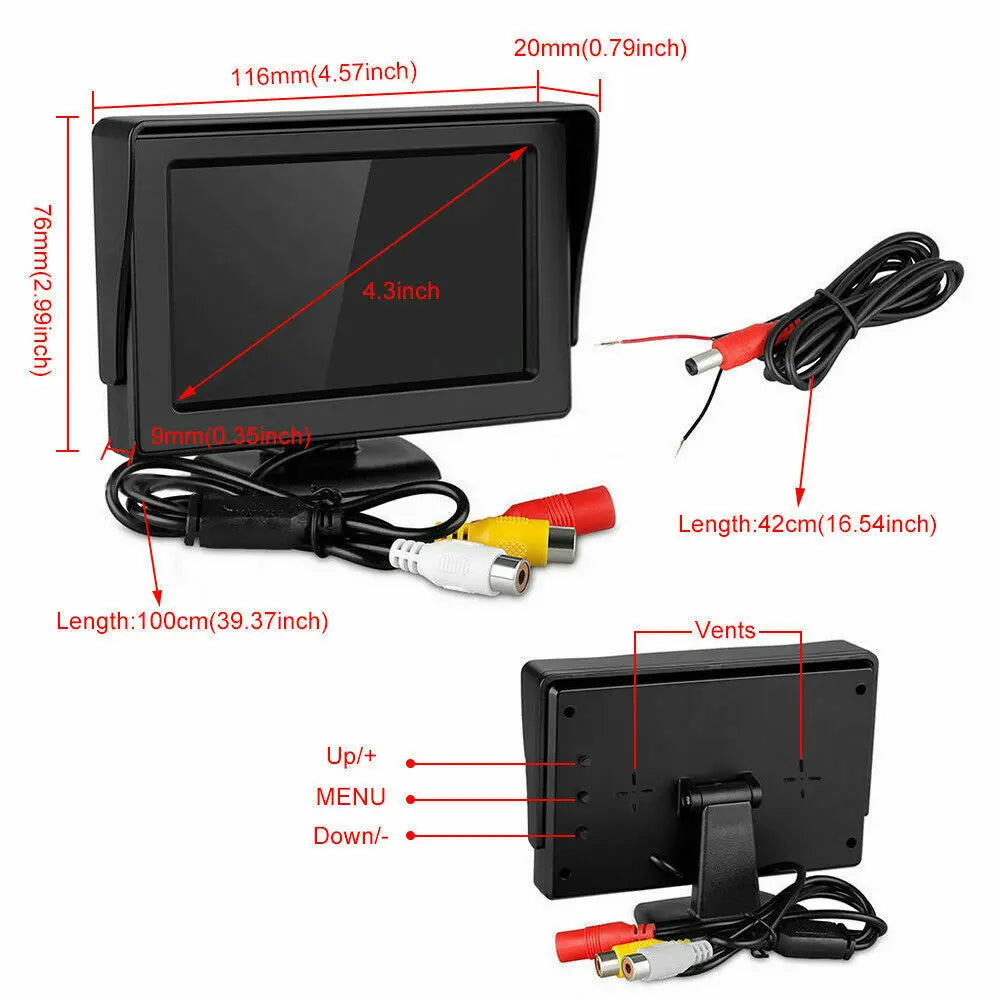

Screen Size:4.3 inch(16:9)

Resolution:320(H) x RGB x 240(V)

Model: PAL/NTSC (Automatic throw-over)

Power Supply:DC 12V

Visible Area:96mm x 54mm

Power Consumption:2W

2-channel video input:V1/V2 auto switching(V1 display first)

Display blace screen on no signal.

Image device: 1/4-inch colour

TV system PAL or NTSC

Resolution 420 TV lines

Electric Shutter PAL:625 Lines.25 Field /sec NTSC :720 Lines.25 Field/sec

Effective pixels PAL: 720X 576 NTSC: 720X 480

Minimum illumination: 0.3 Lux

Viewing angle: 170o

S/N ratio >48dB (AGC-OFF)

Video output RCA connector, 1.0vp-p, 75ohm

Current consumption 120mA

Power supply DC8V-12V

Operating temperature -30 to 65 degrees centigrade, RH95% Max.

Storage temperature -35 to 70 degrees centigrade, RH95% Max.

Other items automatic white balance, AGC and BLC

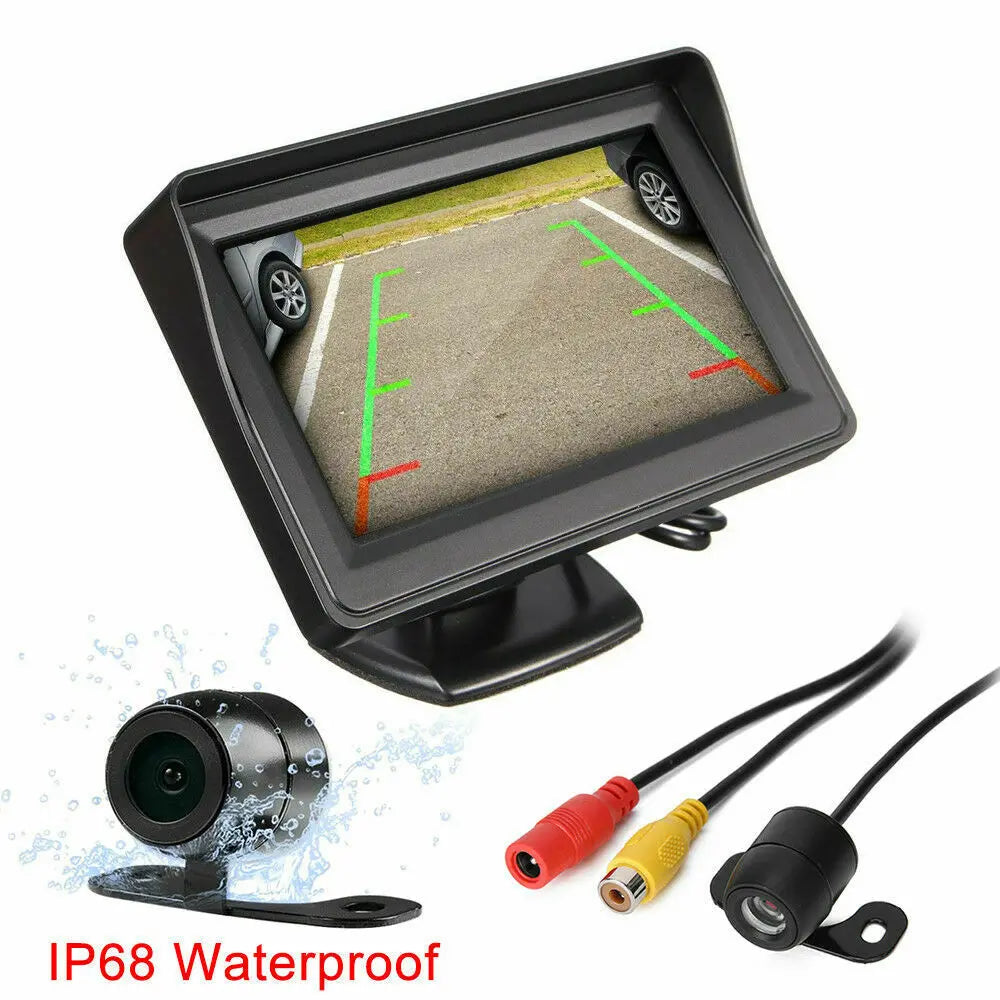

Water-proof Yes, to IP68 standard

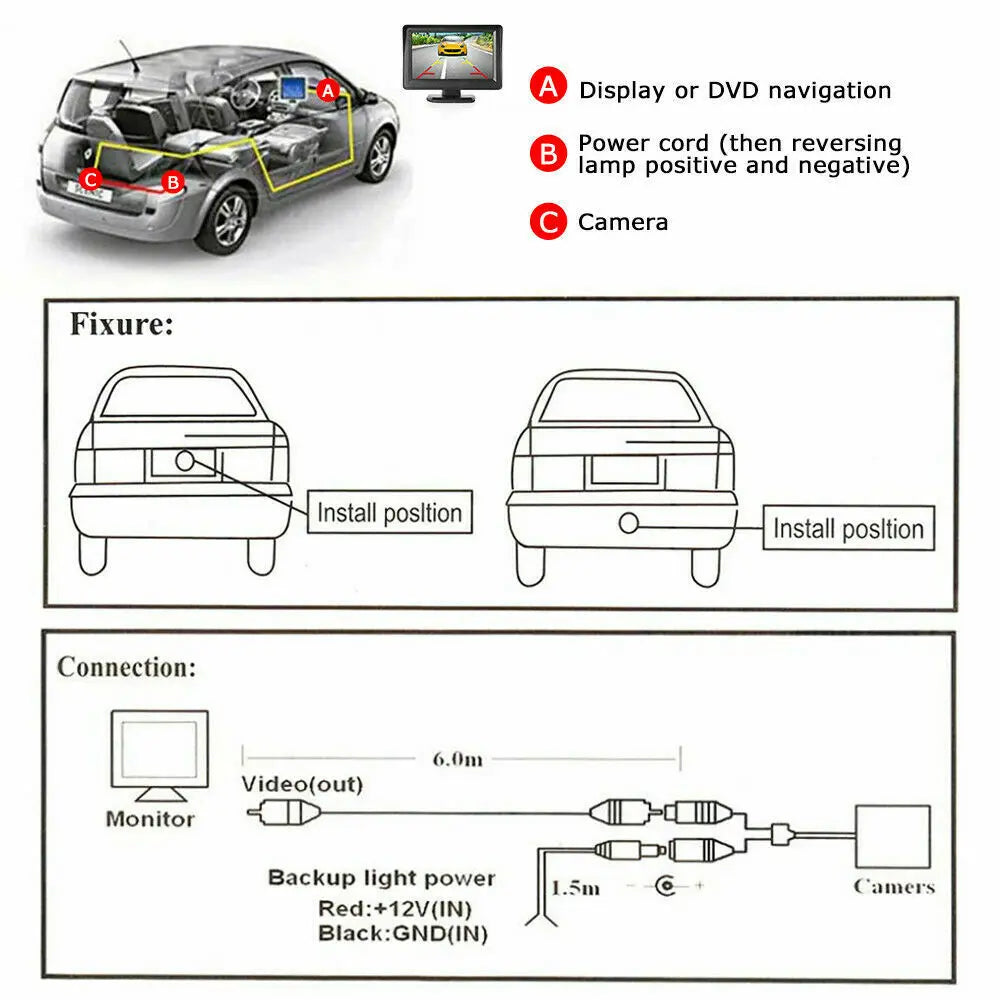

How to Install:

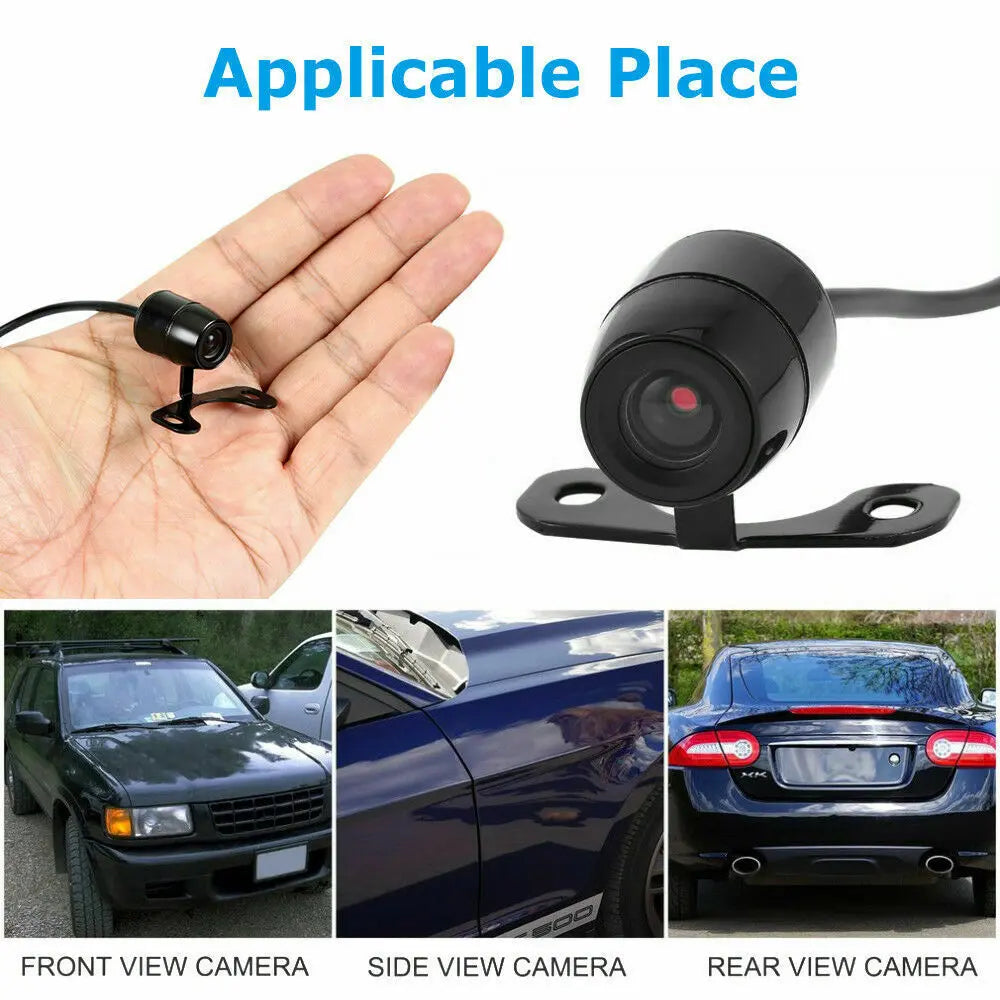

Mount the camera to your car's license plate area, back window, or any other suitable place

Adjust the lens of the camera to its best position.

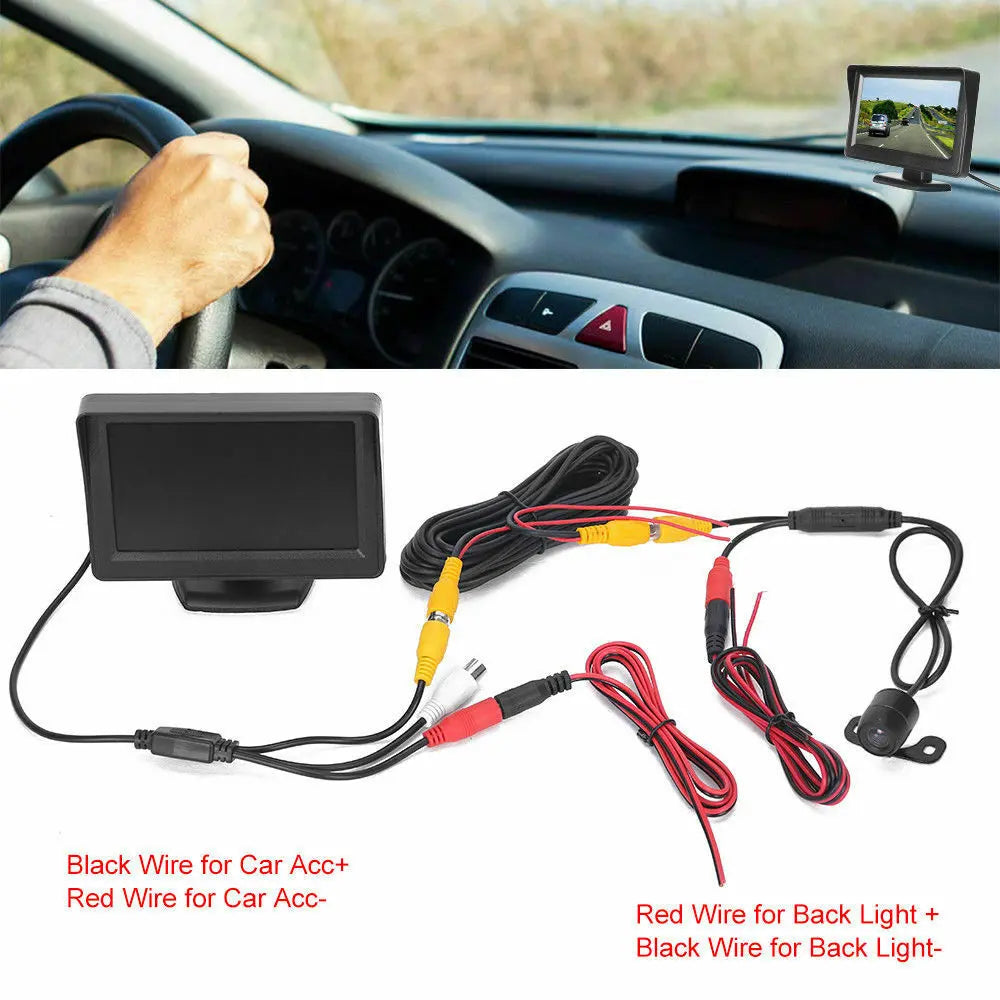

Connect power wire (red and black) to your vehicle DC 12V power system.

Connect the video output (yellow wire) of the camera to the display in your vehicle.

Note:
Please connect the rearview camera's power cable with reversing lamp,and connect camera's video cable with LCD's yellow cable(Video V1),then the LCD will show Camera's video when you are Reversing,and stop playing movie(auto switching)

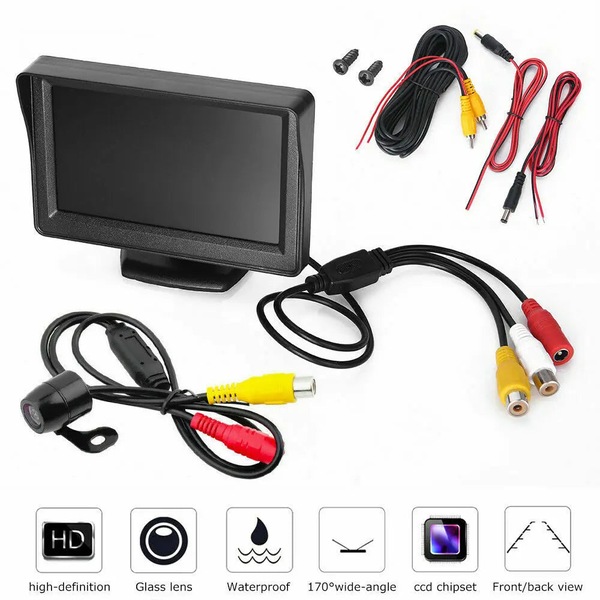

Package Includes:

1 x Car reversing camera

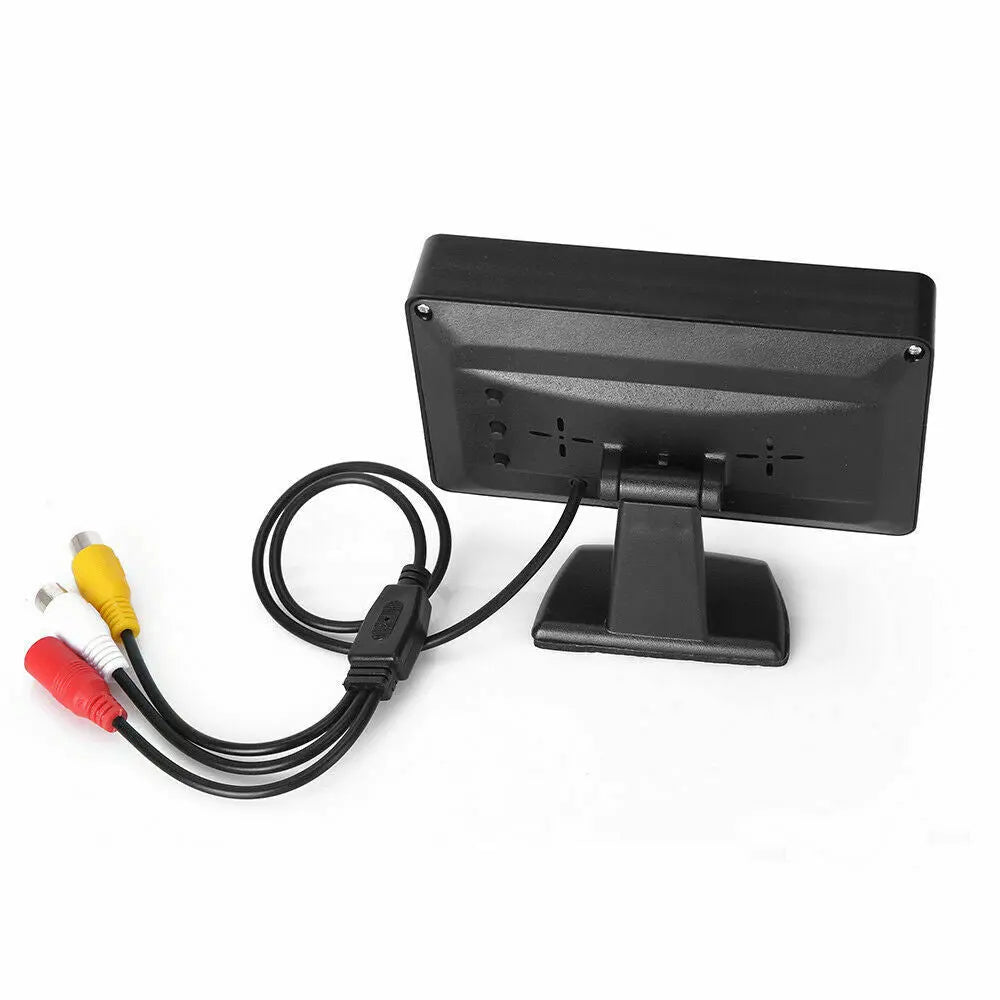

1 x 4.3'' Digital TFT LCD Monitor

1 x Power Cable for monitor

1 x 6M Video cable

1 x Power cable for camera

1 x User manual

Car Rear View Kit 4.3" TFT LCD Monitor +HD IR Night Vision Reversing Camera FLC
