Cabac 1Hz to 12kHz Probe Headset Jack Data Sensitivity Control Cable Tracer

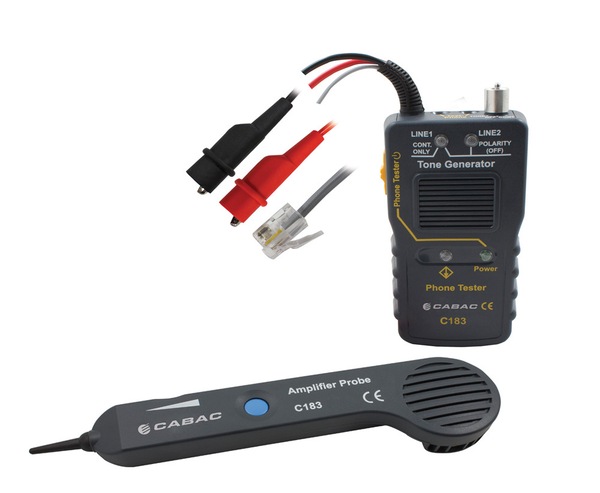

The Data Cable Tracer consists of a receiver probe and tester/generator module and can trace cables, test continuity and phone lines and more.

The Data Cable Tracer is supplied in a gift box with operating manual, soft carry bag, batteries and test leads.

Data Cable Tracer

• Probe picks up any tone generator with a pickup distance < 50cm
• Tone generator and transmitter/tester in kit
• Many test options for phone lines
• Continuity and polarity

Probe:

• Pick up any tone generator
• Battery life -100 hrs
• Headset jack in probe
• Sensitivity control
• Operating Frequency 1Hz to 12kHz
• Pickup distance < 50cm

Tester:

• Audible & visual indications
• Continuity and polarity
• Tone select - fast or slow
• Polarity of phone line
• Resistance of voltage free components
• Test capacitors
• Test transistors
• ON/OFF switch for TEST=PHONE functions
• Tone - square wave 1kHz - 15%
• Tone generator over voltage - 80 VDC
• Phone tester: 1.U Test < 4.75 V 2.I Test < 2 mA 3. Resistance - 0 - 2 M+«

NOTE: Not to be used on live circuits unless telephone/communications cable. Max. 110V.
