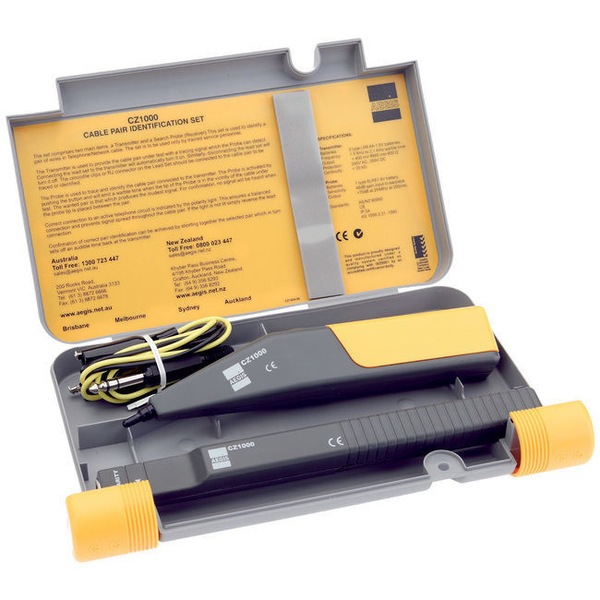

AEGIS CZ1000 F Set Cable Telephone Line Tone Tracer Generator Tester Finder

CABLE PAIR IDENTIFICATION SET

• The CZ1000 Cable Pair Identification set enjoys a reputation for being one of the worlds best.
• With an internal speaker or optional ear piece, the desired pair is quickly identified by the sound of the warble tone when the tip of the receiver is placed over it.
• The CZ1000 is designed to be used by professional tradesmen offering a continuity buzzer, 240V mains protection and a modular plug / clips leads, all delivered in a heavy duty case.
• The CZ1000 cable pair identifier offers a simple solutionfor data and communications technicians when conducting end to end cable pair identification
• The set comprises of two main items a transmitter and search probe. The transmitter is connected to the cable to be traced to provide the tracing signal which the probe can detect
• The probe is activated by push button switch, a warble tone is emitted when the tip of the probe is over the wantedpair.
• The tone maybe heard through the inbuilt speaker or through an opyional external earphone ( CZ1250 ).
• The new tone on short feature gives confirmation of the identified pair by triggering an audible buzzer at the transmitter when the pair is shorted together.

Features

• The famous AEGIS F-SET
• Industry standard for 20 years
• Carry Case as standard
• line polarity indication for use on live networks
• Inbuilt loudspeaker
• Australian designed and manufactured
• New Features:
• 240v Mains protection
• Continuity buzzer ( Tone on short )
• Modular plug / clips lead set

Specifications
TRANSMITTER

•  Frequency:1.5kHz to 2.1kHz warble tone
• Output:> 400 mV RMS into 600 ohm
• Protection:240v AC, 350v DC
• Continuity< 35 k ohm
• Batteries2 type LR6 AA 1.5v batteries

PROBE

• Sensitivity:46db gain input to ear piece
• Output:>70db at 2048 hz at 200mm
• Batteries:1 type 6LR619v battery

CONNECTION LEADS

• Overall length:750mm
• Connection:with miniature croc clips or modular plug

CARRY CASE

• The CZ1000 is supplied with a hard carry case, which holds transmitter, probe, leads and operator instructions

PHYSICAL

• Dimensions:240 x 150 x 36mm ( packed unit )
• Weight:500 grams

STANDARDS

• AS/NZ 60950
• CE
• IP 54
• AS1099.2.31-1990
