Sc8108 Multifunction Digital Lcd Wireless Pc Data Network Cat5 Rj45 Lan Phone Detector Meter Length Cable Tester

Description:

SC8108 Portable Multifunction Digital LCD Wireless PC Data Network CAT5 RJ45 LAN Phone Detector Meter Length Cable Tester

The main function characteristics:


The connectivity test can be carried out, single cable.

And can detect 5E, 6E coaxial cable and telephone line, wiring fault, open circuit,short circuit, including: cross connection, reverse connection and series wound

Localization and connection / connection error.

And measuring cable length, and location of the specific location of open circuit and short circuit.

And the length of the cable dynamic calibration function, make the length measuring accuracy is as high as 97%.

Features:


Easy to use, large screen display, the test results stick out a mile.

And easy to carry, long battery life (50 hours of standby time).

Automatic delay shutdown.

And there are no length measurement and matched pairs were inserted on distalrecognizer can.

And cable location, 8 distal passive testing socket (identification number ID1-ID8).

And the distal identification appliance audio prompt function.

And self checking function, can automatically compensate the variation of the battery power, the influence of environmental temperature change.

And MCU software watchdog design, reliable operation.


Length measurement of twin twisted cable:

Scope : 1350M (31,200 FT)

Calibration accuracy : 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M)

Shipment accuracy : 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable)

Display: M or FT

Length calibration: User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5m.

Working temperature: -10°C to 60°C

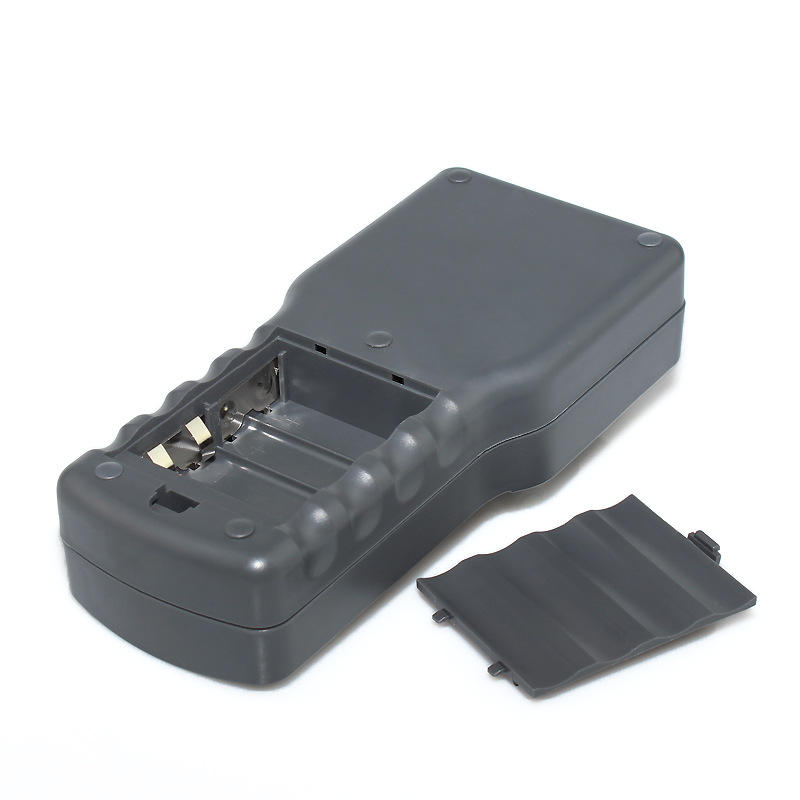

Powered by 4 AA batteires (NOT included)

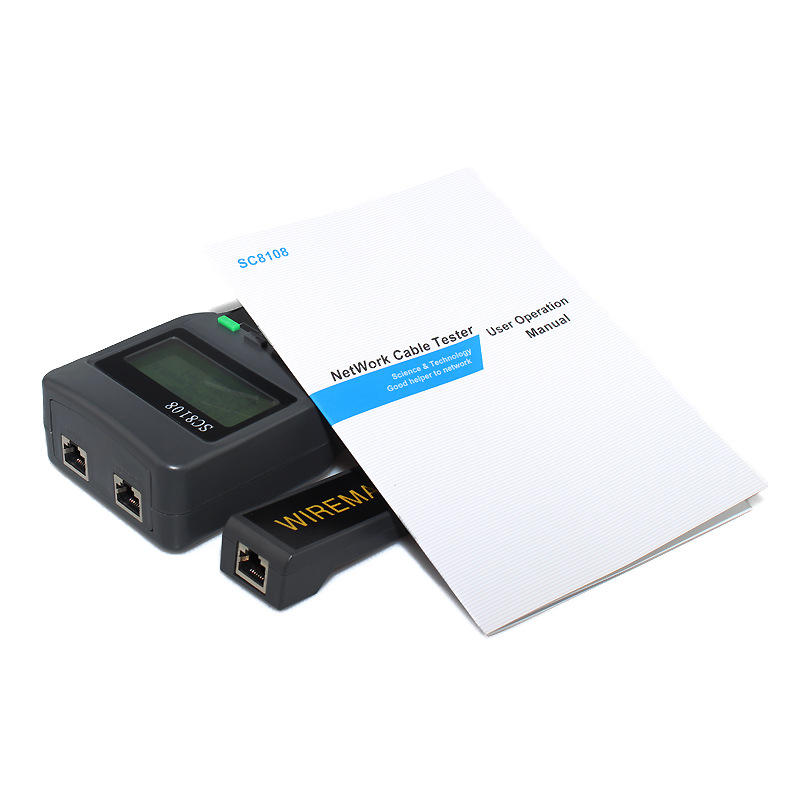

 Package Inluded:

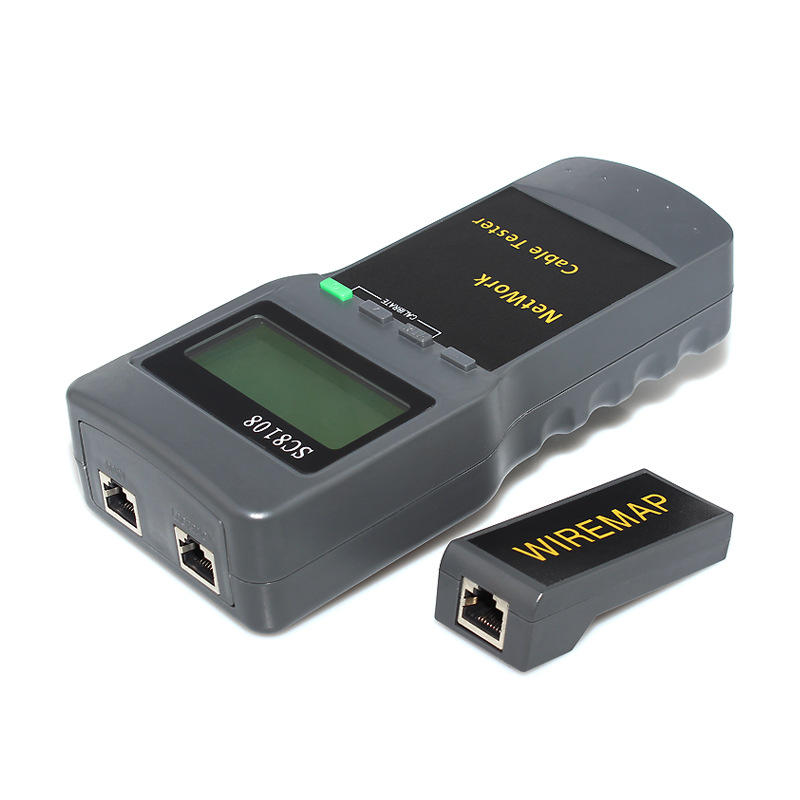

1 x Multi-Network Cable Tester

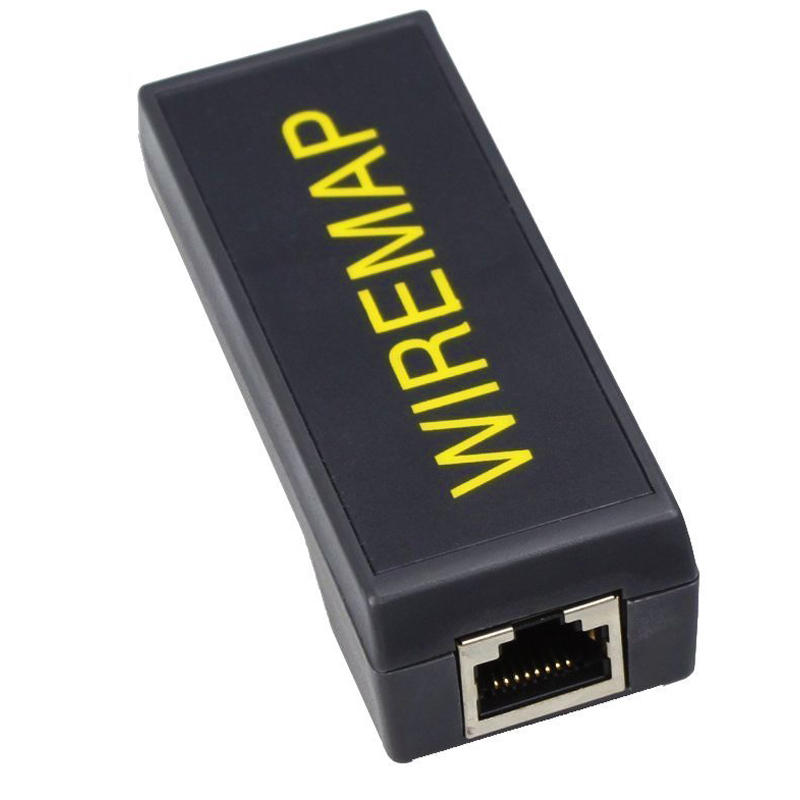

1 x Far-End Test Jack

1 x English Instruction Manual
