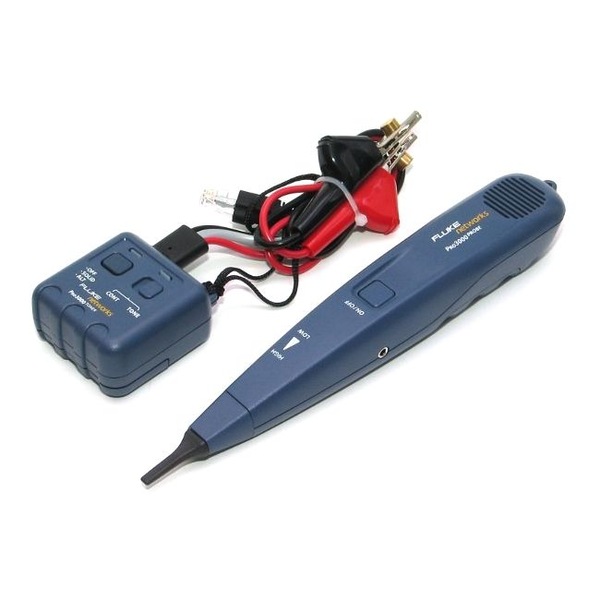

PRO3000 ANALOG TONE & PROBE KIT - FLUKE NETWORKS

The Pro3000 Analog Tone and Probe is your best choice for toning and tracing wire on non-active networks, and specifi’¡cally for identifying individual pairs with SmartTone® technology.

Angled bed-of-nails clips allow easy access to individual wires, and the RJ-11 connector is ideal for use on telephone jacks.The large loud speaker on the network probeallows you to hear through drywall, wood or other enclosuresto find wires quickly and easily.

You can send this loud tone up to 10 miles (16 kilometers) on most cables! Attach the nylon pouch to your belt, and you will beequipped for any wire identification job.

  • Tone and trace wire on non-active networks
  • SmartToneTM technology provides five distinct tones for exact pair identification
  • Sends loud tone up to 10 miles (16 kilometers) on mostcables
  • Loud speaker on Probe makes the tone easier to hear through drywall, wood, and other enclosures
  • Angled bed-of-nails clips allow easy access to individual pairs
  • RJ-11 connector is ideal for use on telephone jacks
  • Attach nylon pouch (included in kit) to your belt for easy transport

Specs

Specifications

Pro3000 Analog Toner Specifications

User interface

Slide switch selects Continuity orTone ModePush button switch selects SOLID, ALT or OFFTone mode LEDContinuity/Polarity LED

Solid Frequency

1000 Hz nominal

Alternating Frequency

1000/1500 Hz nominal

Over Voltage Protection

60 Vdc in Toner/Polarity Mode

Output Power in Tone Mode

8 dbm into 600 ohms

Output Voltage Level in Continuity Mode

8 Vdc with fresh battery

Battery

9V alkaline (Not included)

Temperature

Operating: -20°C to 60°C, Storage: -40°C to 70°C

Case dimensions

2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)



Pro3000 Analog Probe Specifications

User interface

ON/OFF pushbuttonVolume dialReplaceable tip3.5 mm earphone jack

Battery

9V alkaline (Not included)

Temperature

Operating: -20? C to 60? C, Storage: -40? C to 70? C

Case dimensions

9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3.3 cm)

_


Weight: 0.533
