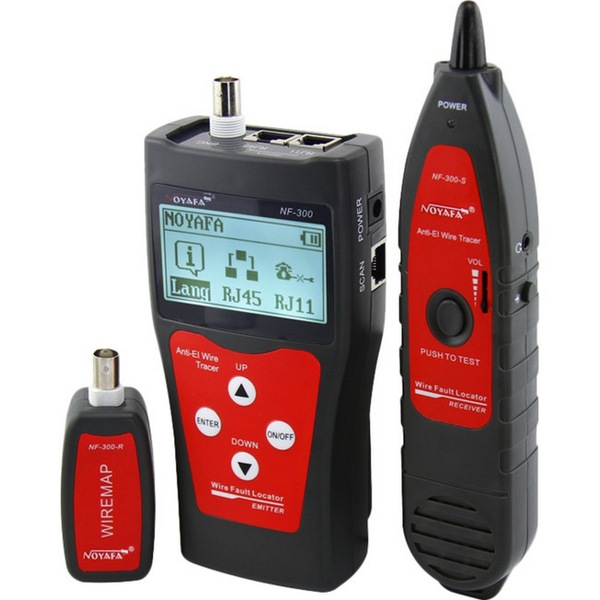

Doss NF-300 is a multifunction network coax cable tester. Itincludes remote wire map and tone tracer. It also features aporting flashing function for cable identifying on switch.
Features
Enables cables to be located even when totally concealed
Memory and storage function
LCD Screen shows test result clearly

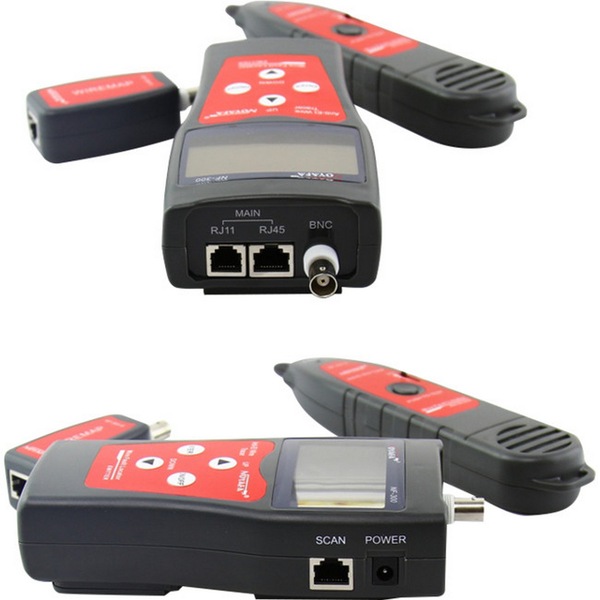

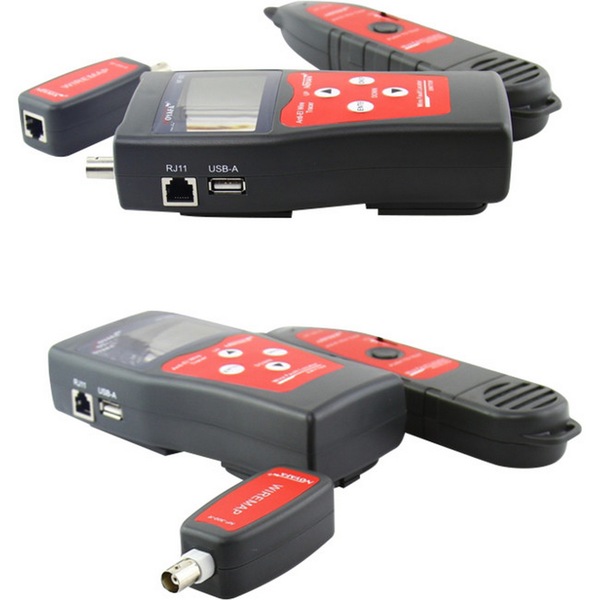

RJ45, RJ11, USB and BNC cable testing
Port flashing function
Cable length testing
Cable fault testing
Headphone jack on tone tracer
LCD screen
Voltage protection
Specifications
NF-300 Transmitter specifications |
|
LCD screen |
53x25mm |
Tone frequency |
225kHz |
Trace cable coonected to switch |
Anti-jamming |
Tone mode |
2 Tones, adjustable |
Compatible with connectors |
RJ11,RJ45,BNC,USB |
Cable map indication |
Pin #1- #8 |
Shielded indication |
# G |
Voltage protection |
AC 60V/DC 42V |
Low battery display |
LCD (6.5V) |
Battery type |
DC9.0V(NEDA 1604/6F22 DC9V) x 1pc |
Dimensions (LxWxD) |
185x80x32mm |
NF-300 Receiver specifications |
|
Frequency |
225kHz |
The Max. working current |
Less than 70mA |
Battery type |
DC9.0V(NEDA 1604/6F22 DC9V) x 1pc |
Dimensions (LxWxD) |
218x46x29mm |
NF-300 Remote unit specifications |
|
Compatible with connectors |
RJ45,BNC |
Dimensions (LxWxD) |
107x30x24mm |

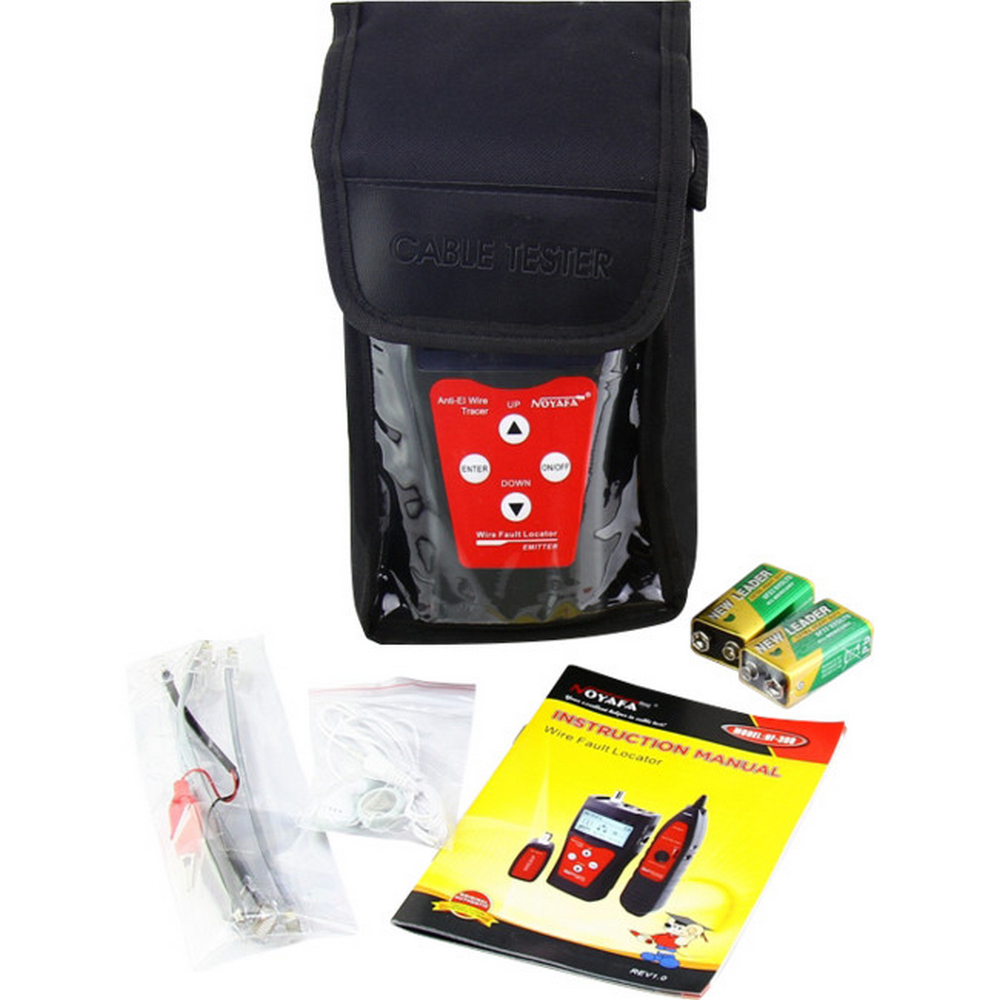

Accessories Included:
earphone x 1 set |
telephone line adapter x 1 set |
network cable adapter x 1 set |
Cable clips x 1 set |
12 Months
