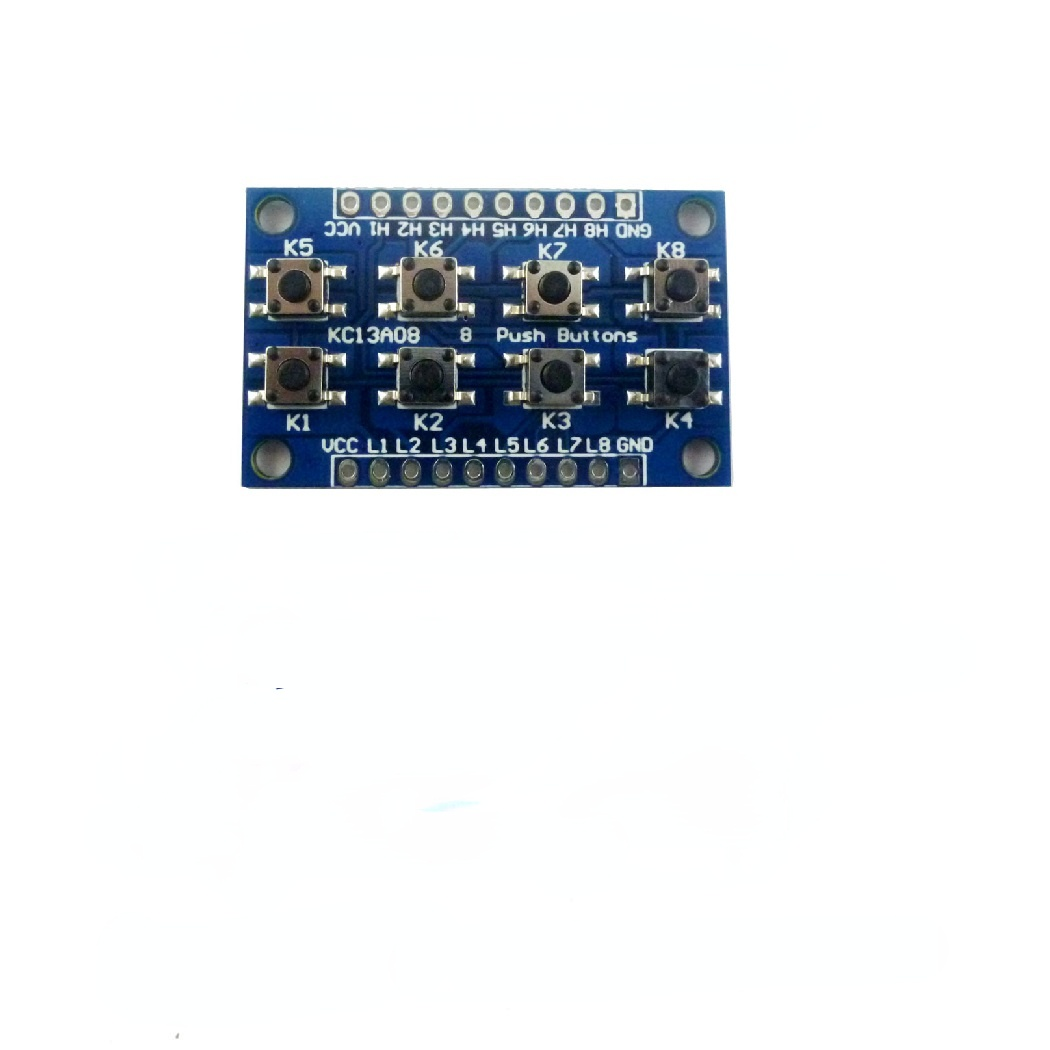

3pcs 8-Keyboard Trigger Button Board Push Keypad Module High Level No Pin

3pcs 8-Keyboard Trigger Button Board Push Keypad Module High Level No Pin

Price	$26.75
	Collect 26 Everyday Rewards points Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

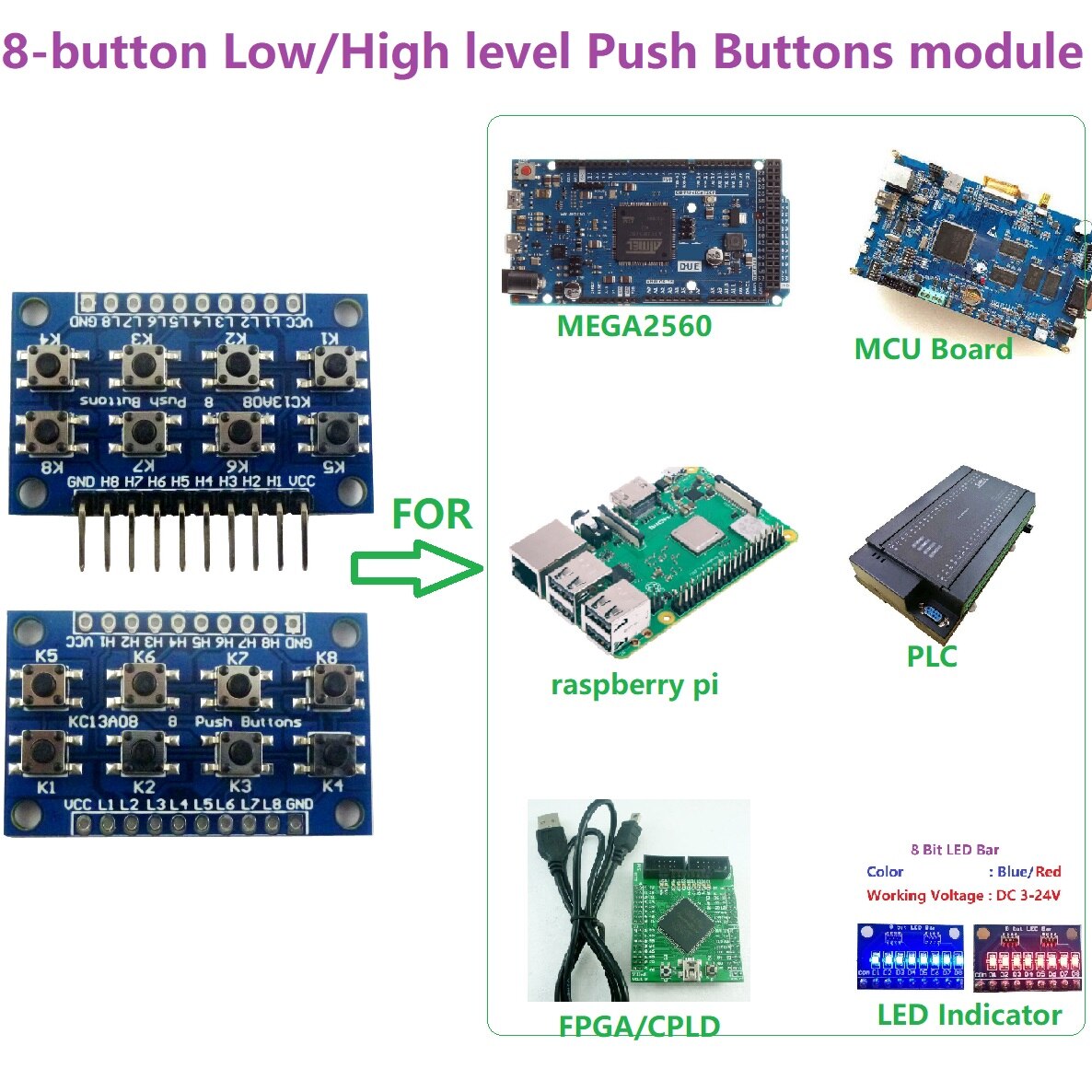

Can be use for Arduiuo uno mega2560 due,Ideal for linking up to your? Arduiuo UNO Mini Nano Mega2560 Breadboard raspberry pi banana pi LED Indicator light etc,or others MCU PLD CPU ( AVR STM32 ARM PIC C51 NRF24LE1 CC2530 MSP430 STM8 FPGA CPLD etc.)

8-button High level Push Buttons module(When pressed output Low/High level).
2.54MM pitch

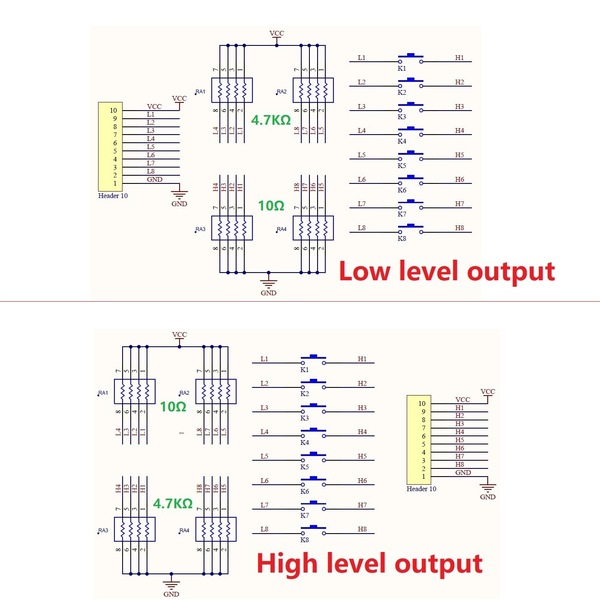

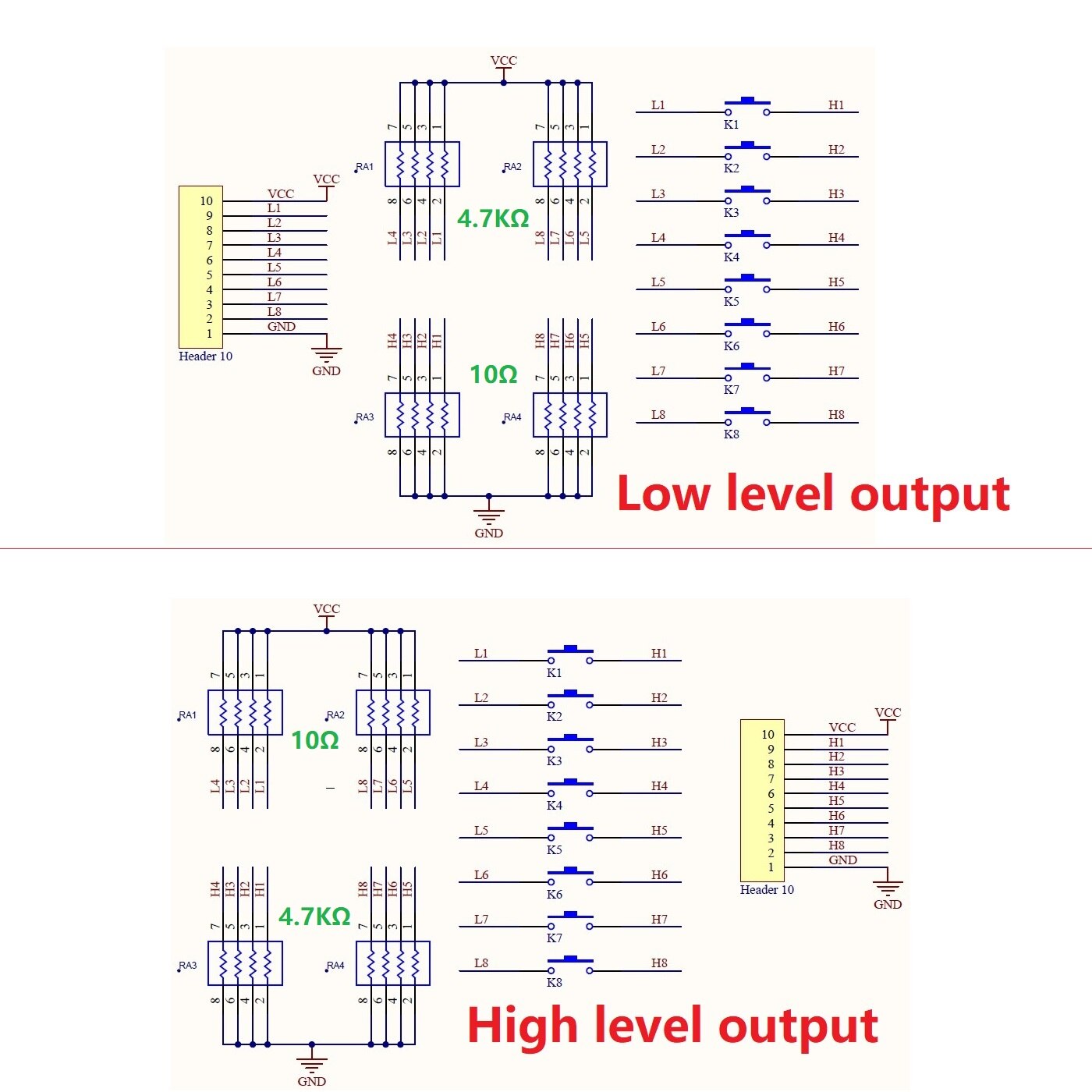

Low level output Module Use these pins : GND L1 L2 L3 L4 L5 L6 L7 L8 VCC

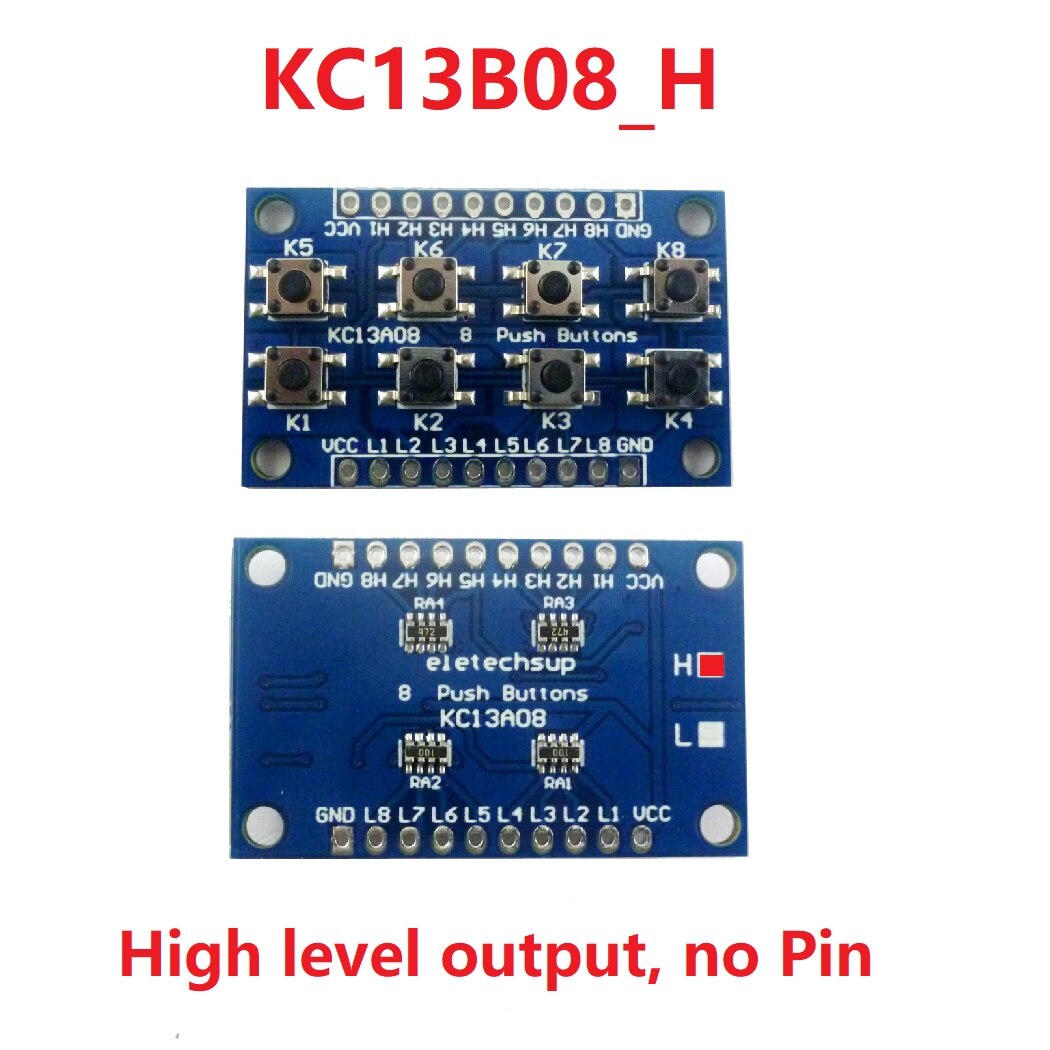

High level output Module Use these pins : GND H1 H2 H3 H4 H5 H6 H7 H8 VCC
Working voltage: DC 3-12V(3.3V 5V)
Does not include pin size : 40 x 25 x 5.5mm
Weight : 4.2g(no Pin)

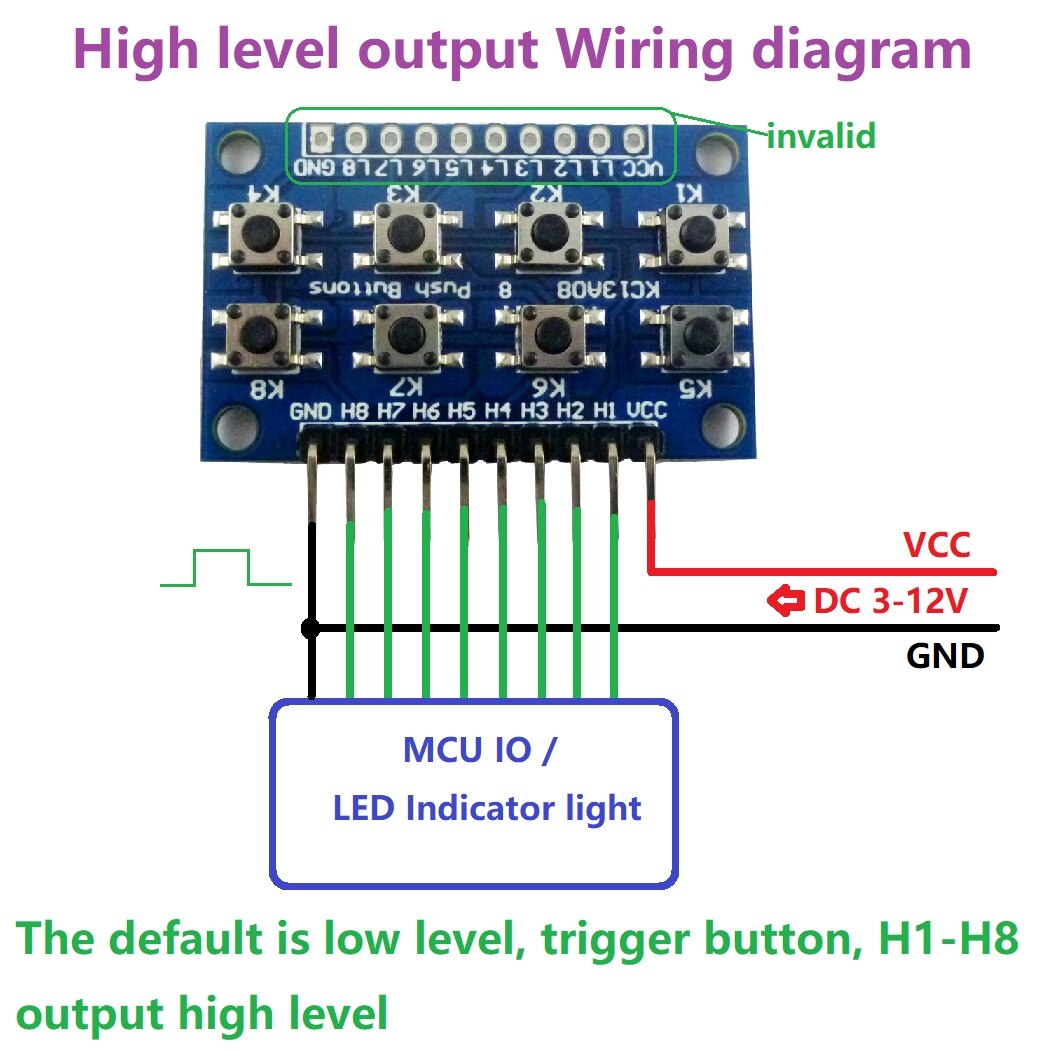

High level output Module :The default is low level(0V), trigger button, H1-H8 output high level(3-12V)
Low level output Module :The default is high level(3-12V), trigger button, L1-L8 output low level(0V)

Packing list : 3 PCS 8-button High level Push Buttons module(Please select the version you need)
