Specifications:

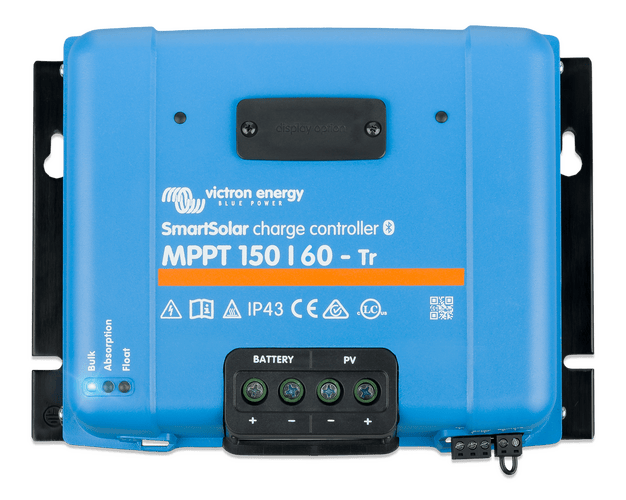

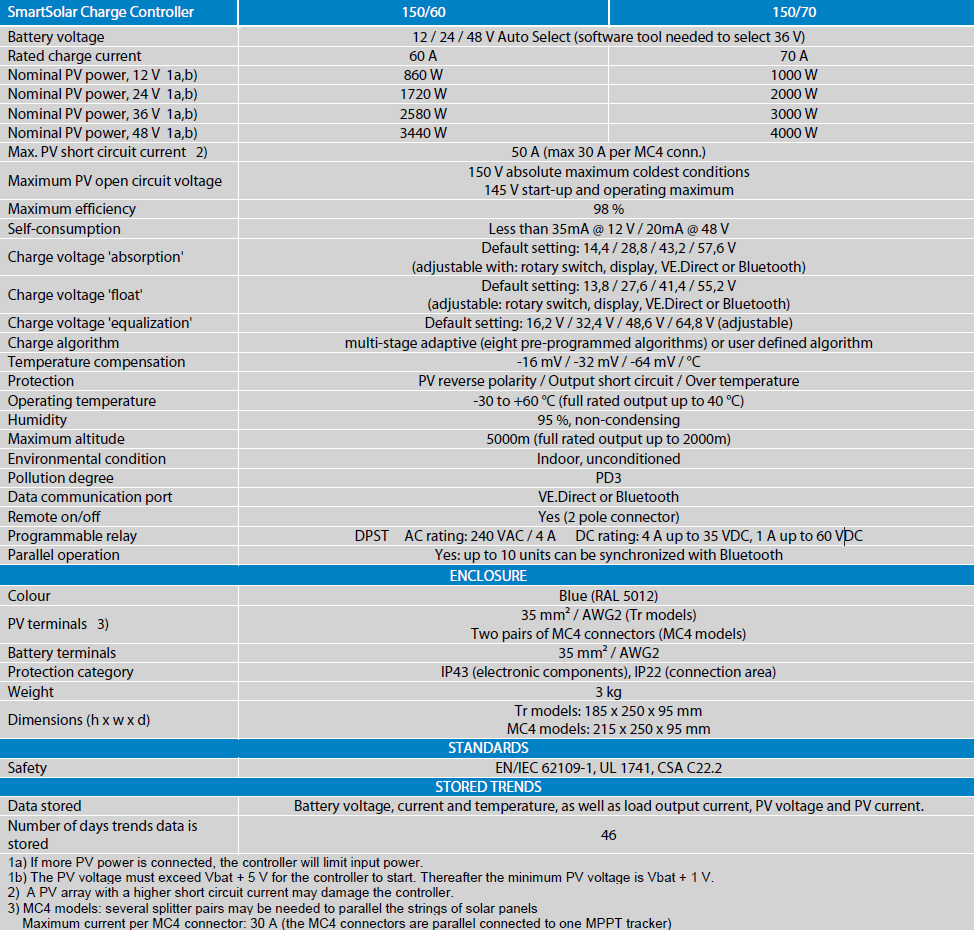

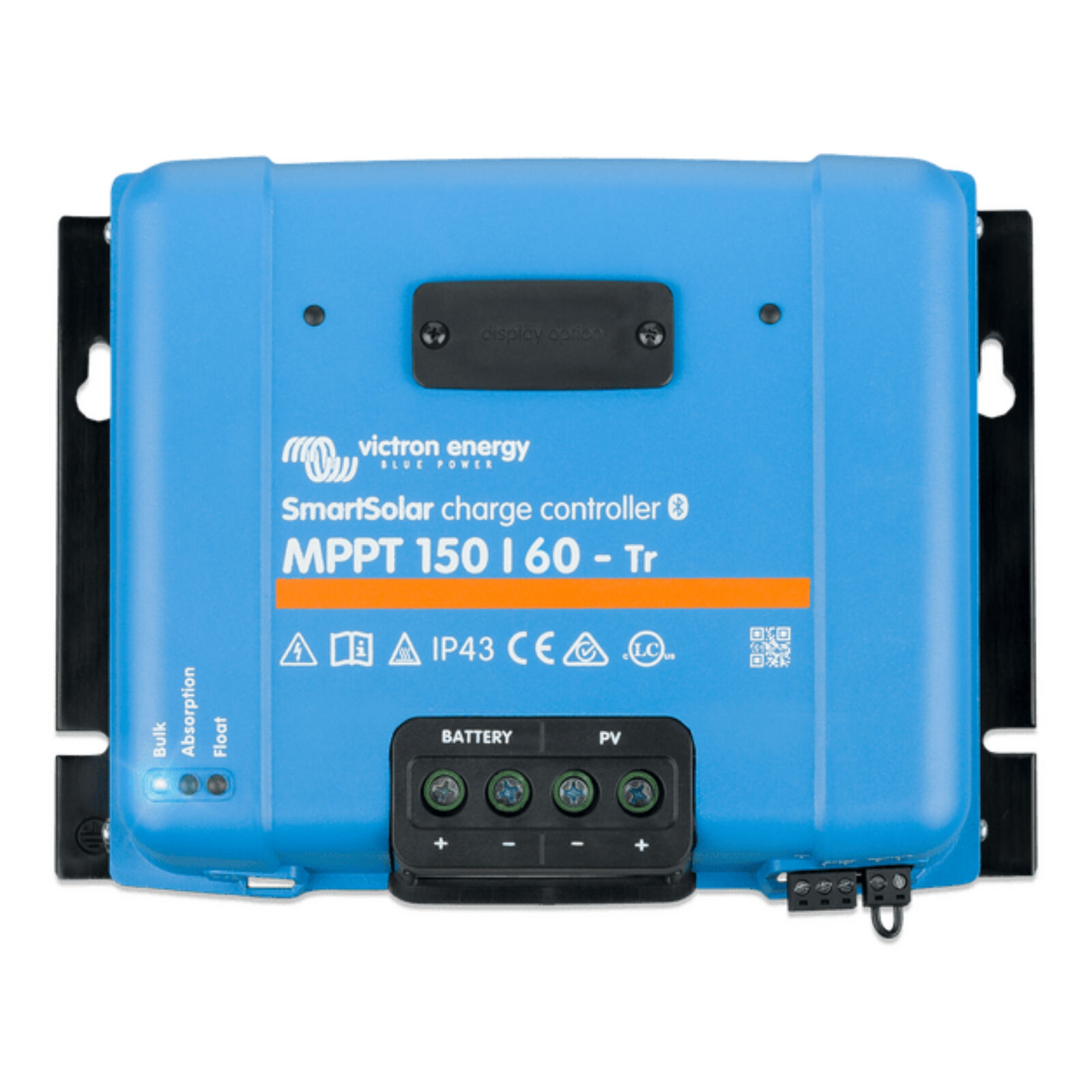

Specifications

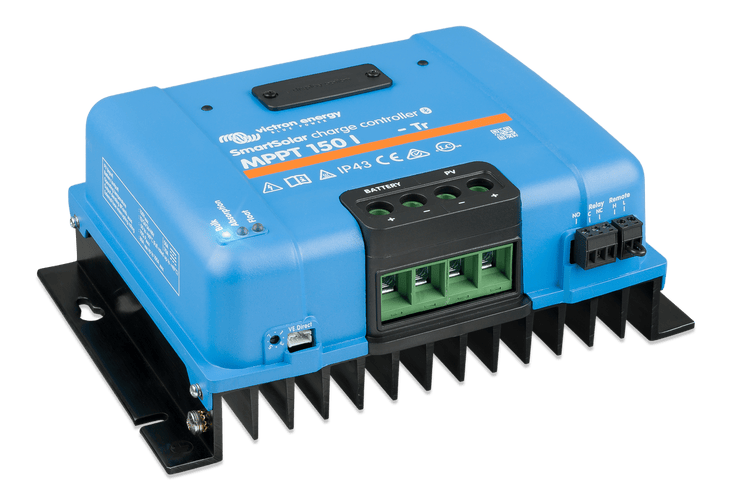

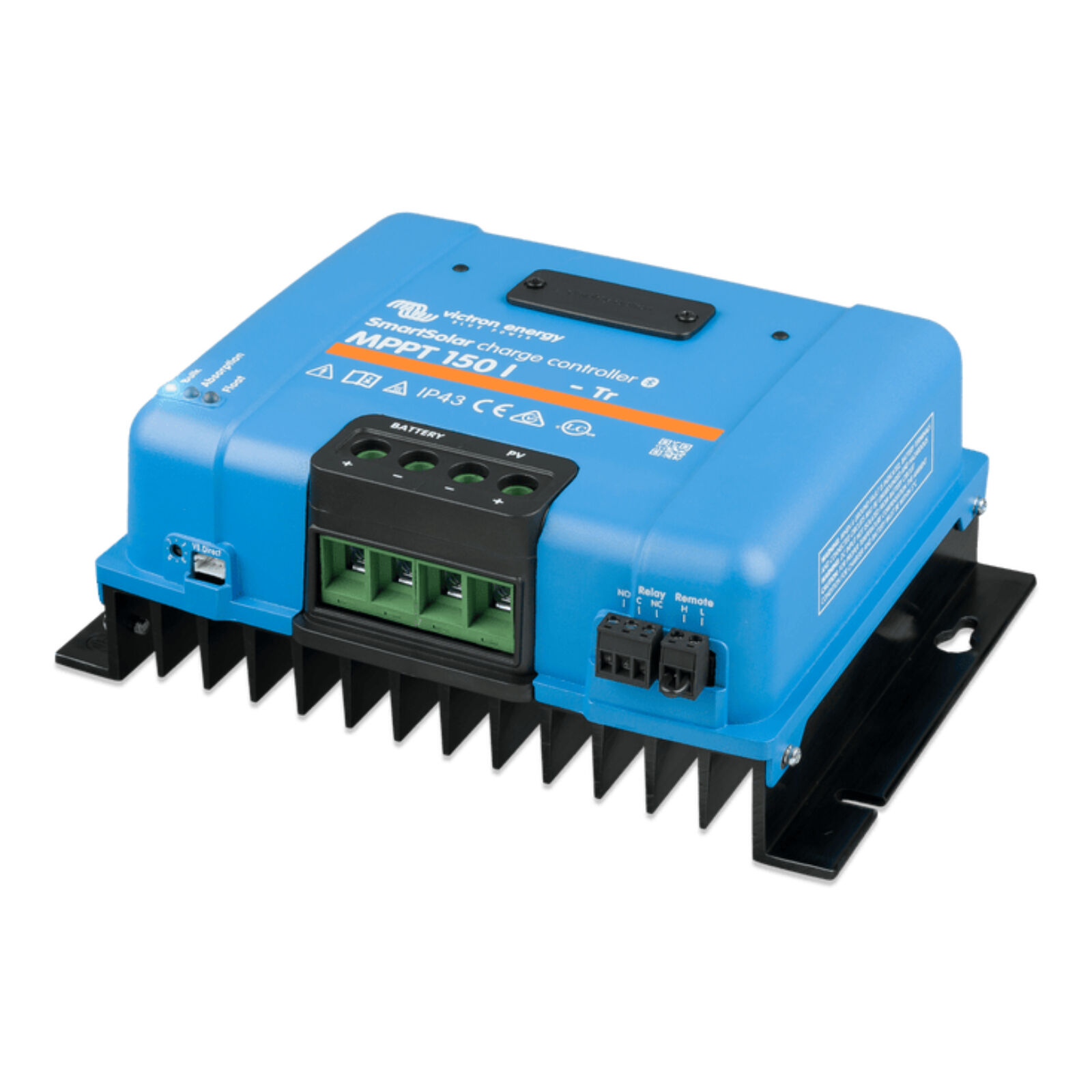

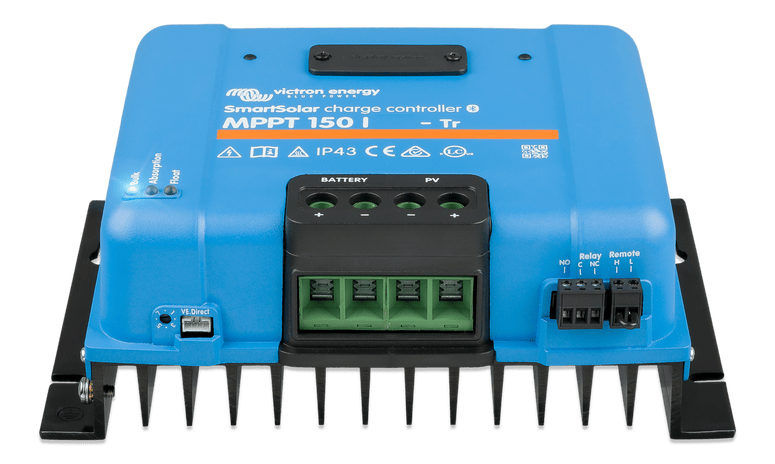

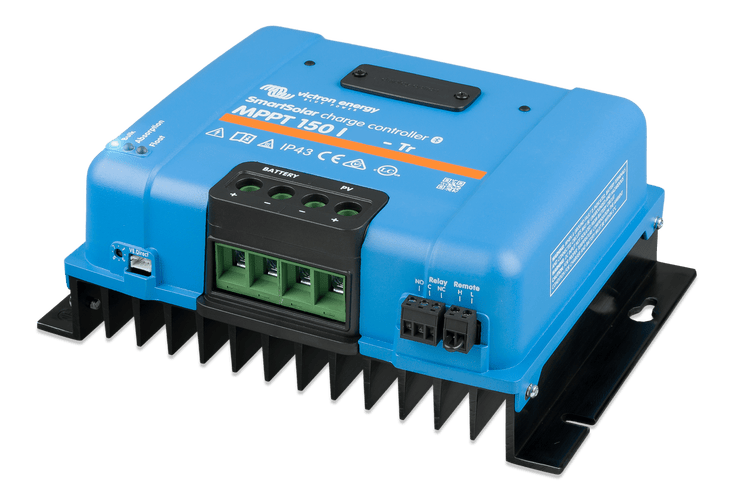

| SmartSolar Charge Controller |
150/60 |
| Battery voltage |
12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
| Rated charge current |
60 A |
| Nominal PV power, 12 V 1a,b) |
860 W |
| Nominal PV power, 24 V 1a,b) |
1720 W |
| Nominal PV power, 36 V 1a,b) |
2580 W |
| Nominal PV power, 48 V 1a,b) |
3440 W |
| Max. PV short circuit current 2) |
50 A (max 30 A per MC4 conn.) |
| Maximum PV open circuit voltage |
150 V absolute maximum coldest conditions
145 V start-up and operating maximum |
| Maximum efficiency |
98 % |
| Self-consumption |
Less than 35mA @ 12 V / 20mA @ 48 V |
| Charge voltage 'absorption' |
Default setting: 14.4 / 28.8 / 43.2 / 57.6 V
(adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'float' |
Default setting: 13.8 / 27.6 / 41.4 / 55.2 V
(adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'equalization' |
Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable) |
| Charge algorithm |
Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm |
| Temperature compensation |
-16 mV / -32 mV / -64 mV / °C |
| Protection |
PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature |
-30 to +60 °C (full rated output up to 40 °C) |
| Humidity |
95 %, non-condensing |
| Maximum altitude |
5000m (full rated output up to 2000m) |
| Environmental condition |
Indoor, unconditioned |
| Pollution degree |
PD3 |

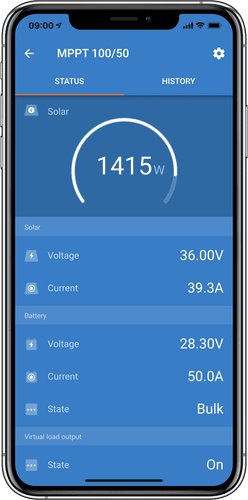

| Data communication port |
VE.Direct or Bluetooth |

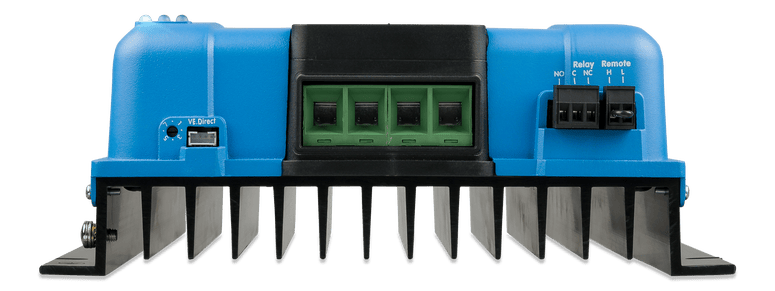

| Remote on/off |
Yes (2 pole connector) |
| Programmable relay |
DPST
AC rating: 240 VAC / 4 A
DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel operation |
Yes: up to 10 units can be synchronized with Bluetooth |
| ENCLOSURE |
|
| Colour |
Blue (RAL 5012) |
| PV terminals 3) |
35 mm² / AWG2 (Tr models)
Two pairs of MC4 connectors (MC4 models) |
| Battery terminals |
35 mm² / AWG2 |
| Protection category |
IP43 (electronic components), IP22 (connection area) |
| Weight |
3 kg |

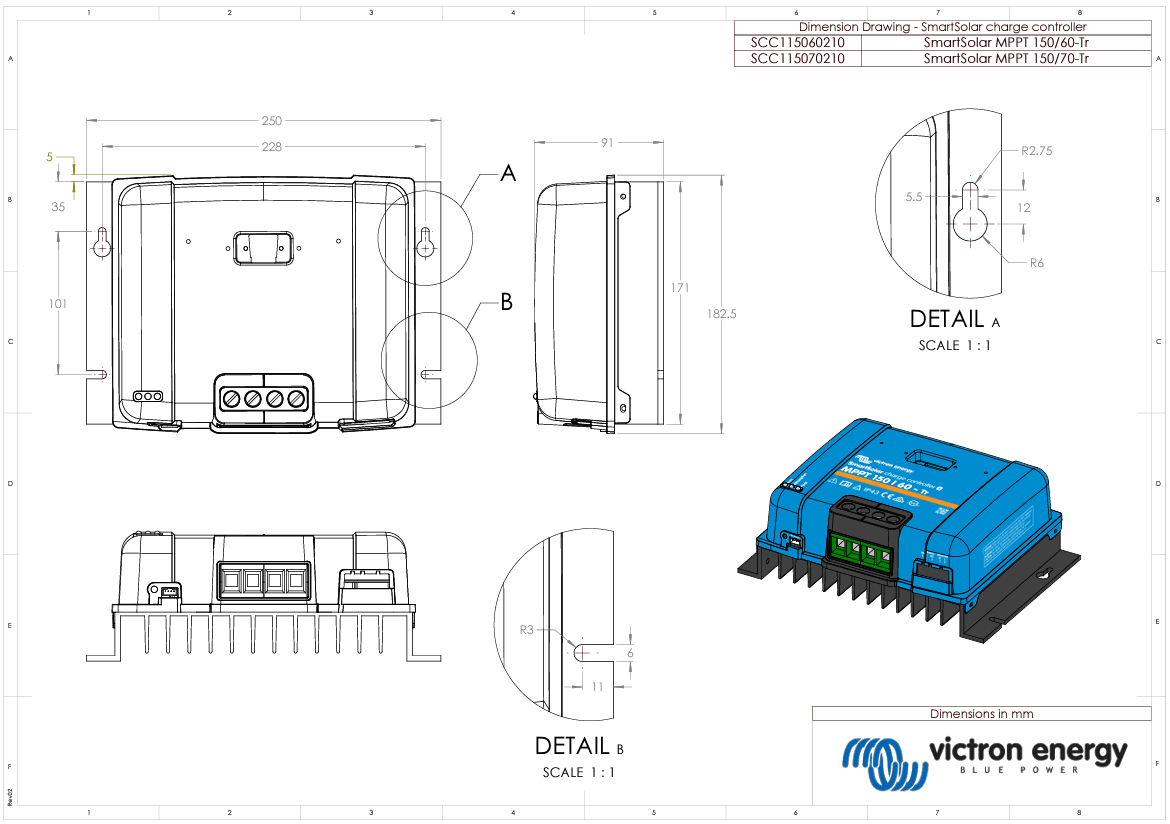

| Dimensions (h x w x d) |
Tr models: 185 x 250 x 95 mm
MC4 models: 215 x 250 x 95 mm |
| STANDARDS |
|
| Safety |
EN/IEC 62109-1, UL 1741, CSA C22.2 |
| STORED TRENDS |
|
| Data stored |
Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored |
46 |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.
3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels
Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker)
