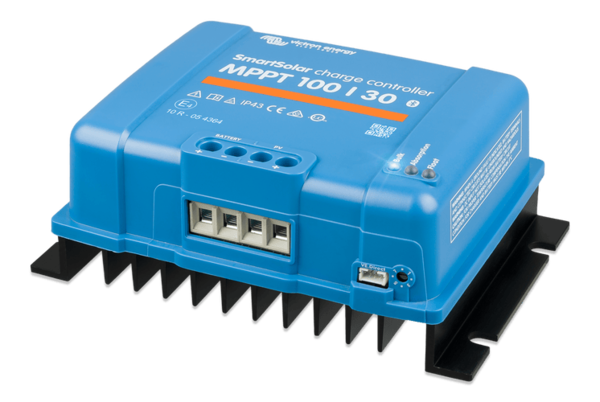

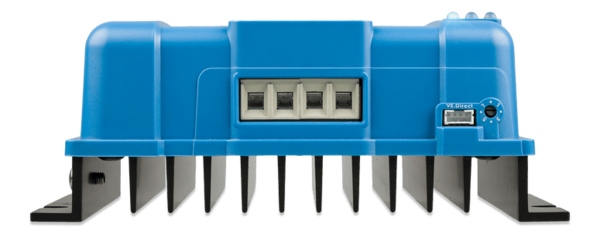

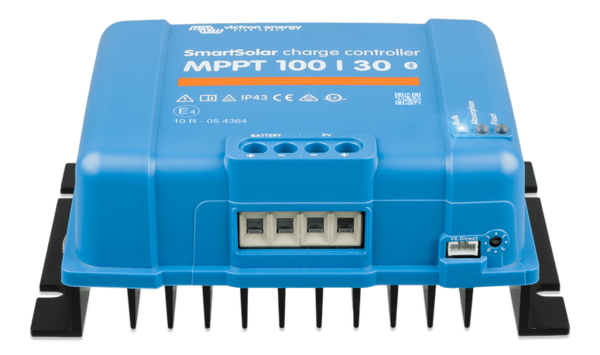

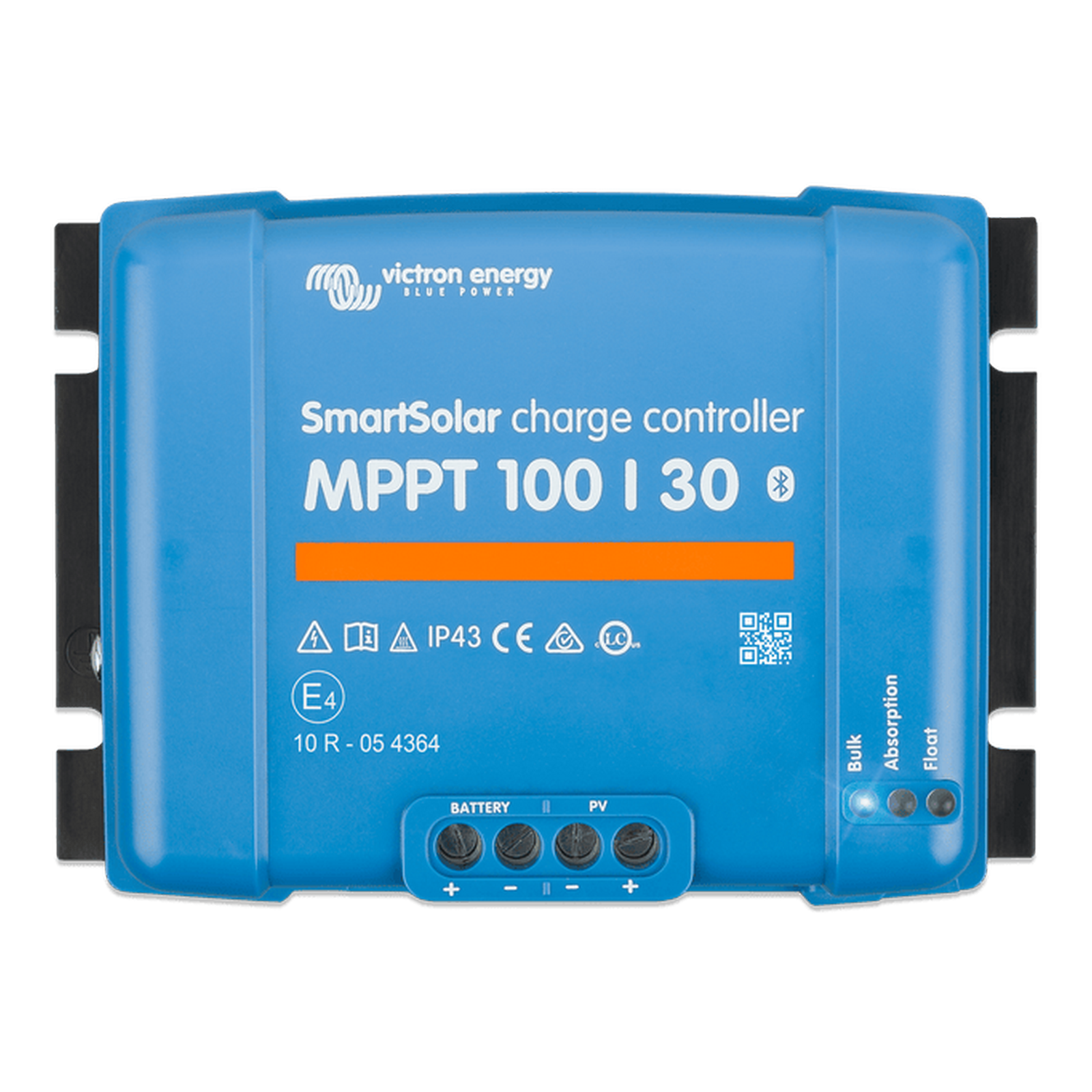

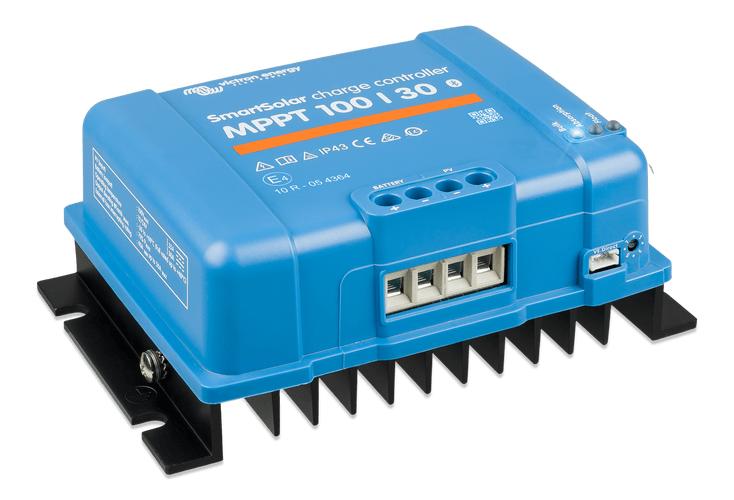

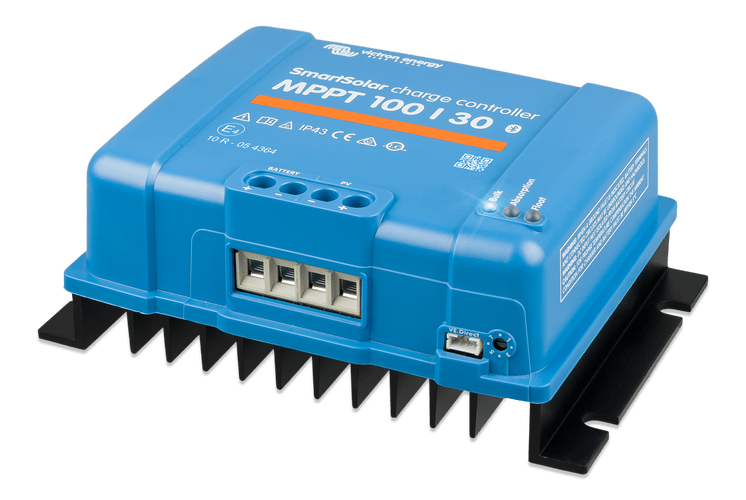

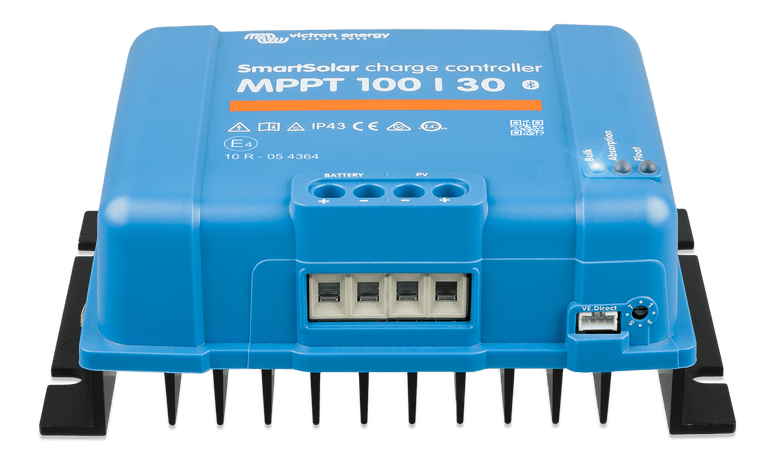

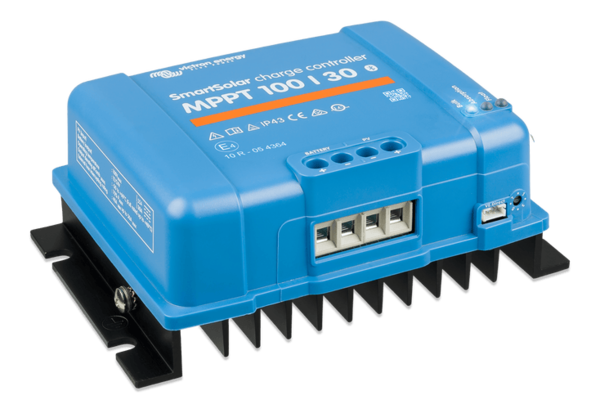

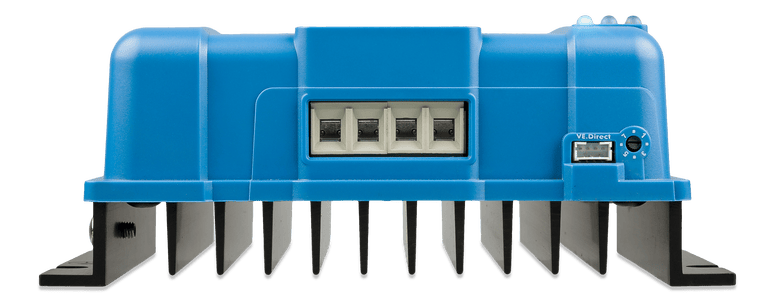

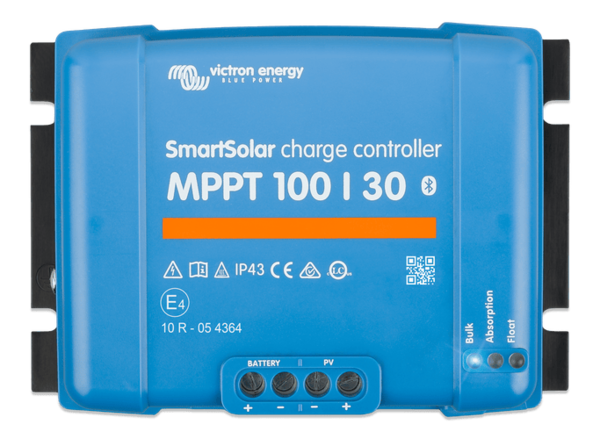

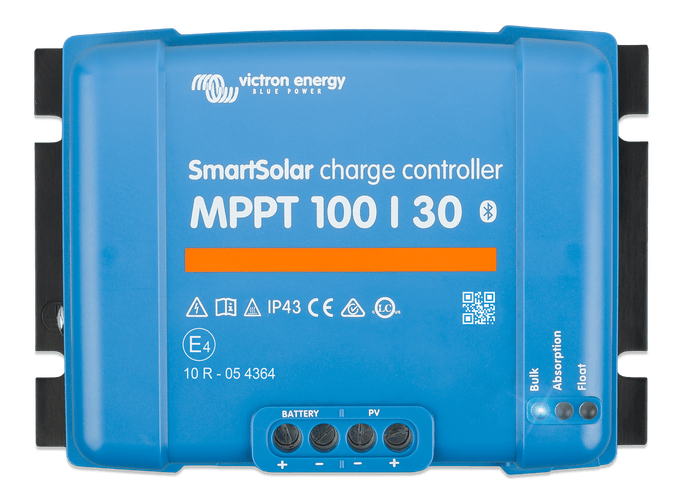

Elevate your solar energy management with the Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller. This state-of-the-art device from Victron Energy, a leading name in solar energy systems, delivers unmatched performance and efficiency, making it an essential component for any solar power setup.

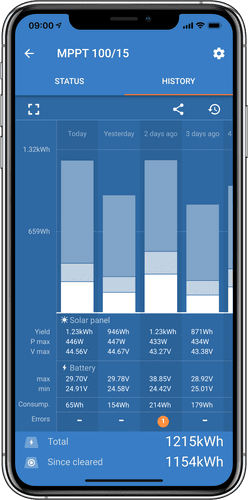

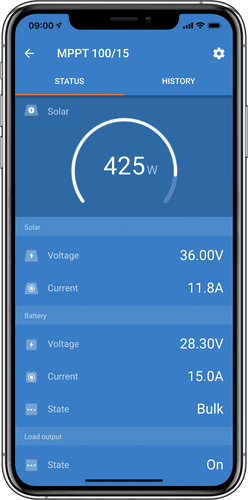

Experience the convenience of managing your SmartSolar Charge Controllers wirelessly. The integrated Bluetooth Smart technology streamlines device setup, monitoring, updates, and synchronization, significantly enhancing your solar energy management capabilities.
Benefit from a reliable wired data connection to Cerbo GX and other GX products, and PCs with the VE.Direct feature. This facilitates efficient data sharing and device integration, boosting your system's overall performance.
Leverage Victron Energy's ultra-fast Maximum Power Point Tracking (MPPT) technology to improve your energy harvest by up to 30% over PWM charge controllers and by 10% over slower MPPT controllers. This technology is particularly beneficial in variable lighting conditions, ensuring optimal energy capture even on cloudy days.
Overcome partial shading challenges with our advanced BlueSolar algorithm, which secures the maximum possible energy harvest by targeting the optimum MPP. This approach avoids the inefficiencies of conventional MPPTs that might settle for less optimal MPPs.
With a remarkable efficiency rate exceeding 98% and sustained full output current up to 40°C (104°F), our fanless Solar Charge Controller stands out for its exceptional conversion efficiency. This simplifies your system design without compromising on performance.
Customize your solar charging experience with a fully programmable charge algorithm and eight pre-programmed algorithms, easily selected via a rotary switch. This flexibility ensures a tailored charging process that caters to your specific needs and preferences.
Our Solar Charge Controller is equipped with comprehensive protective measures, including over-temperature protection, power derating at high temperatures, and protection against PV short circuits, reverse polarity, and reverse current, safeguarding your system against potential damage.
The built-in internal temperature sensor precisely adjusts absorption and float charge voltages based on temperature changes, promoting efficient and accurate charging across different conditions.
Expand your monitoring and control capabilities with optional devices like Smart Battery Sense or a BMV-712 Smart Battery Monitor. These accessories provide vital battery voltage and temperature information to your SmartSolar Charge Controllers, enhancing your system's efficiency and reliability.
This sophisticated 3-stage charging process, consisting of Bulk, Absorption, and Float stages, ensures efficient and thorough battery charging. The adaptive nature of the Absorption stage, based on the battery's discharge level, alongside a flexible charge algorithm and the possibility of equalization charging, maximizes battery health and longevity.
Optimize your solar energy system with the Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller for a high-efficiency, user-friendly, and robust solar charging solution.

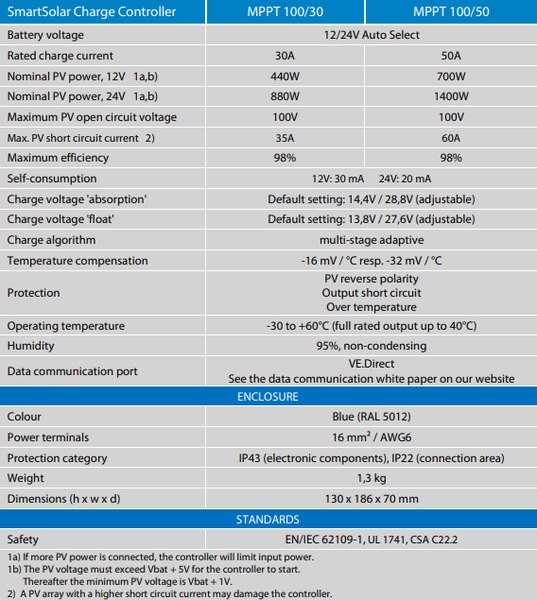

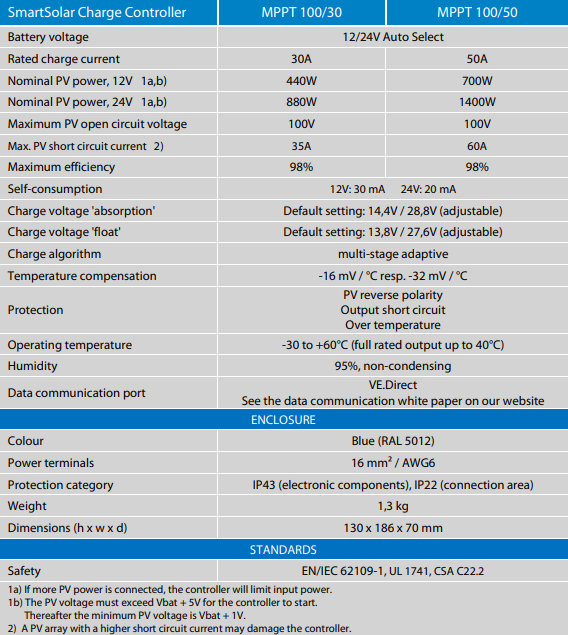

SmartSolar Charge Controller | MPPT 100/30 |
---|---|
Battery voltage | 12/24V Auto Select |
Rated charge current | 30A |
Nominal PV power, 12V | 440W |
Nominal PV power, 24V | 880W |
Maximum PV open circuit voltage | 100V |
Max. PV short circuit current | 35A |
Maximum efficiency | 98% |
Self-consumption | 12V: 30 mA 24V: 20 mA |
Charge voltage 'absorption' | Default setting: 14.4V / 28.8V (adjustable) |
Charge voltage 'float' | Default setting: 13.8V / 27.6V (adjustable) |
Charge algorithm | multi-stage adaptive |
Temperature compensation | -16 mV/°C resp. -32 mV/°C |
Protection | PV reverse polarity Output short circuit Over temperature |
Operating temperature | -30 to +60°C (full rated output up to 40°C) |
Humidity | 95%, non-condensing |
Data communication port | VE.Direct |
Enclosure | |
Colour | Blue (RAL 5012) |
Power terminals | 16 mm² / AWG6 |
Protection category | IP43 (electronic components), IP22 (connection area) |
Weight | 1.3 kg |

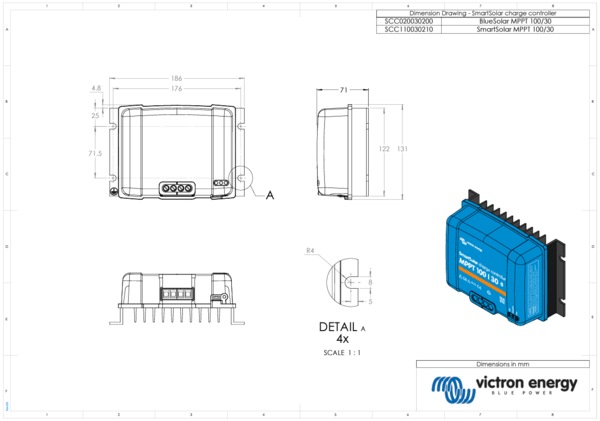

Dimensions (h x w x d) | 130 x 186 x 70 mm |
Standards | |
Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.
