Specifications:

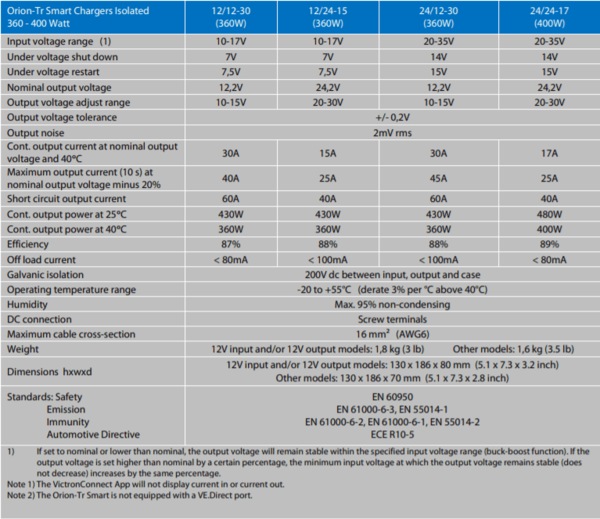

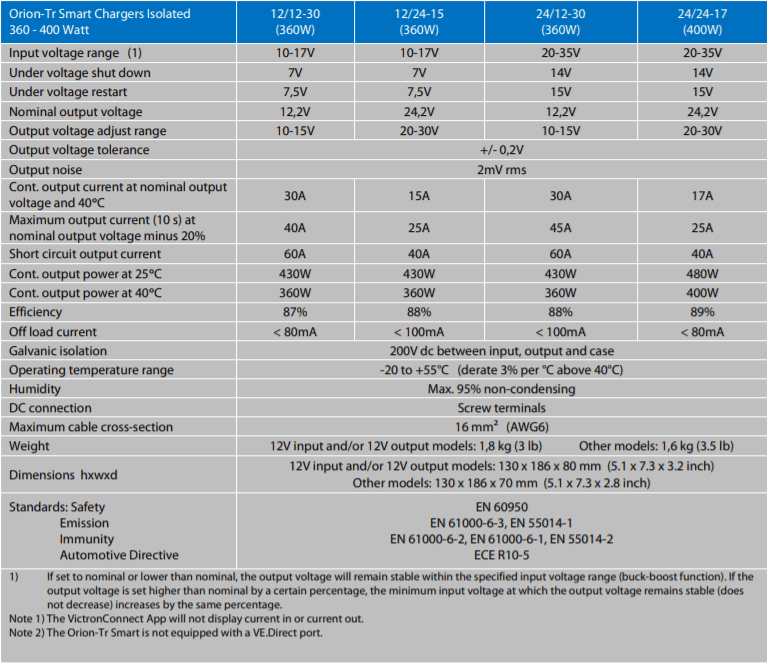

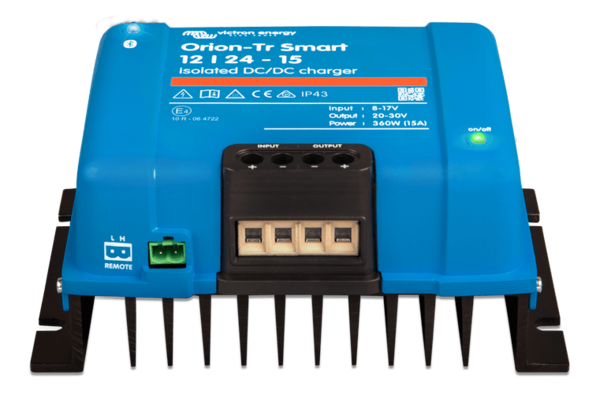

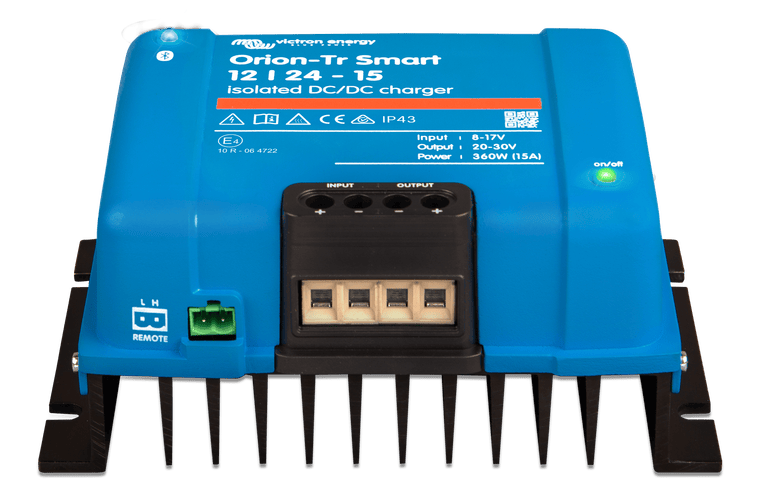

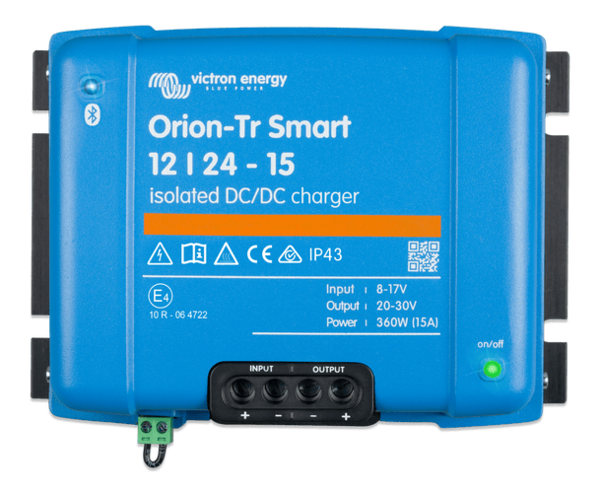

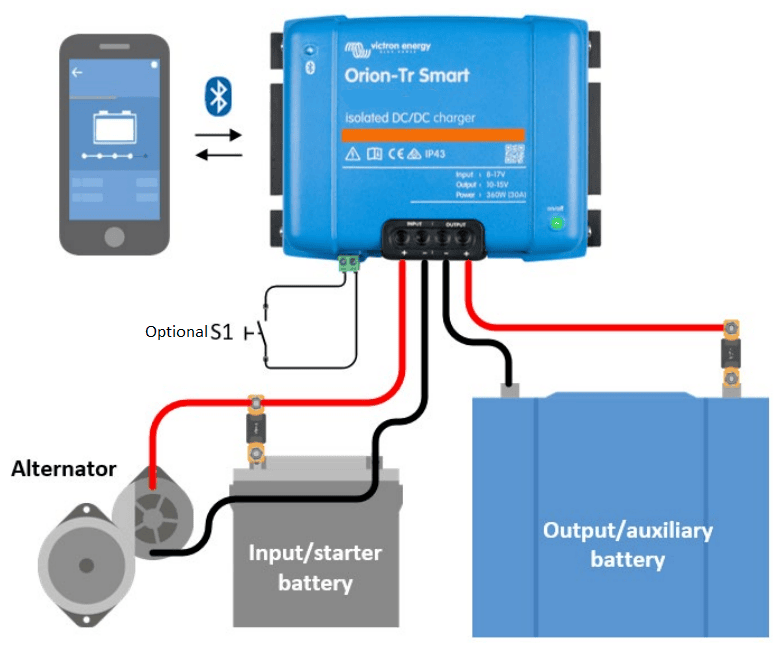

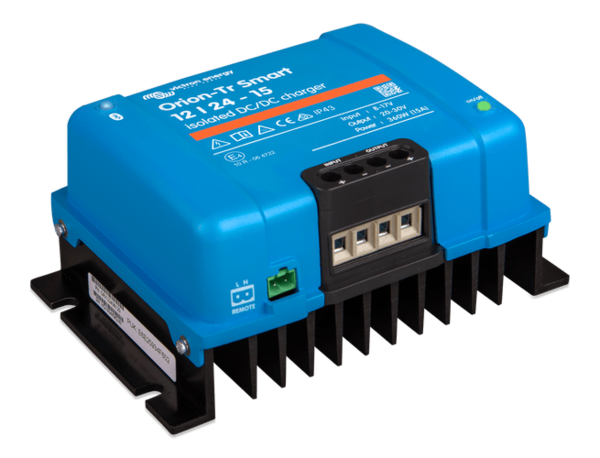

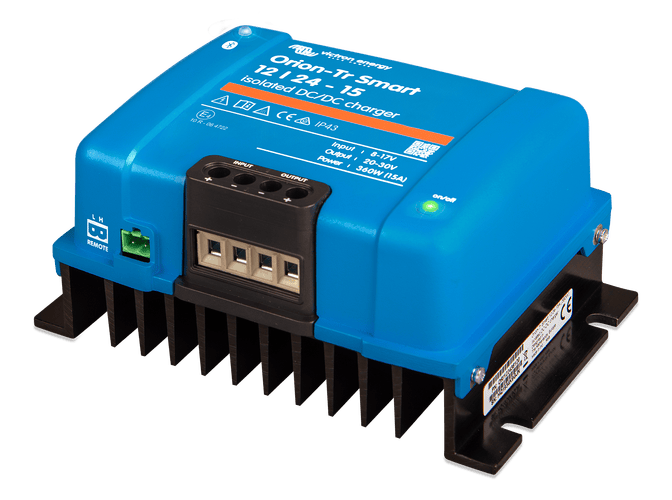

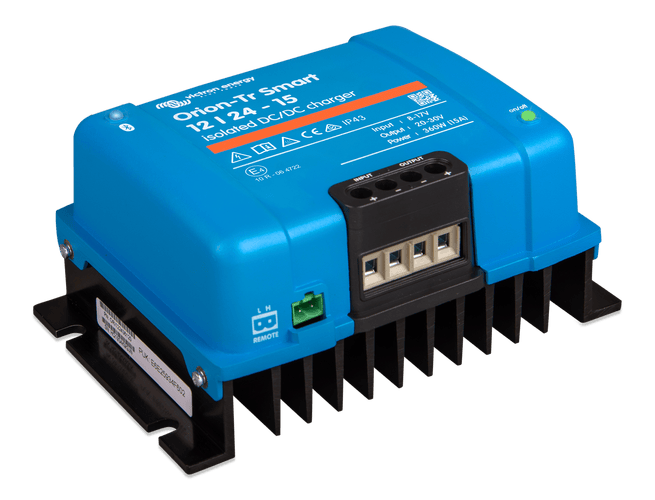

Specifications
| Model |
12/24-15 (360W) Orion-Tr Smart DC-DC Charger Isolated |
| Input voltage range (1) |
10-17V |
| Under voltage shut down |
7V |
| Under voltage restart |
7.5V |
| Nominal output voltage |
24.2V |
| Output voltage adjust range |
20-30V |
| Output voltage tolerance |
+/- 0.2V |
| Output noise |
2mV rms |
| Cont. output current at nominal output voltage and 40°C |
15A |
| Maximum output current (10 s) at nominal output voltage minus 20% |
25A |
| Short circuit output current |
40A |
| Cont. output power at 25°C |
430W |
| Cont. output power at 40°C |
360W |
| Efficiency |
88% |
| Off load current |
<100mA |
| Galvanic isolation |
200V dc between input, output and case |
| Operating temperature range |
-20 to +55°C (derate 3% per °C above 40°C) |
| Humidity |
Max. 95% non-condensing |
| DC connection |
Screw terminals |
| Maximum cable cross-section |
16 mm² (AWG6) |
| Weight |
1.8 kg (3 lb) |

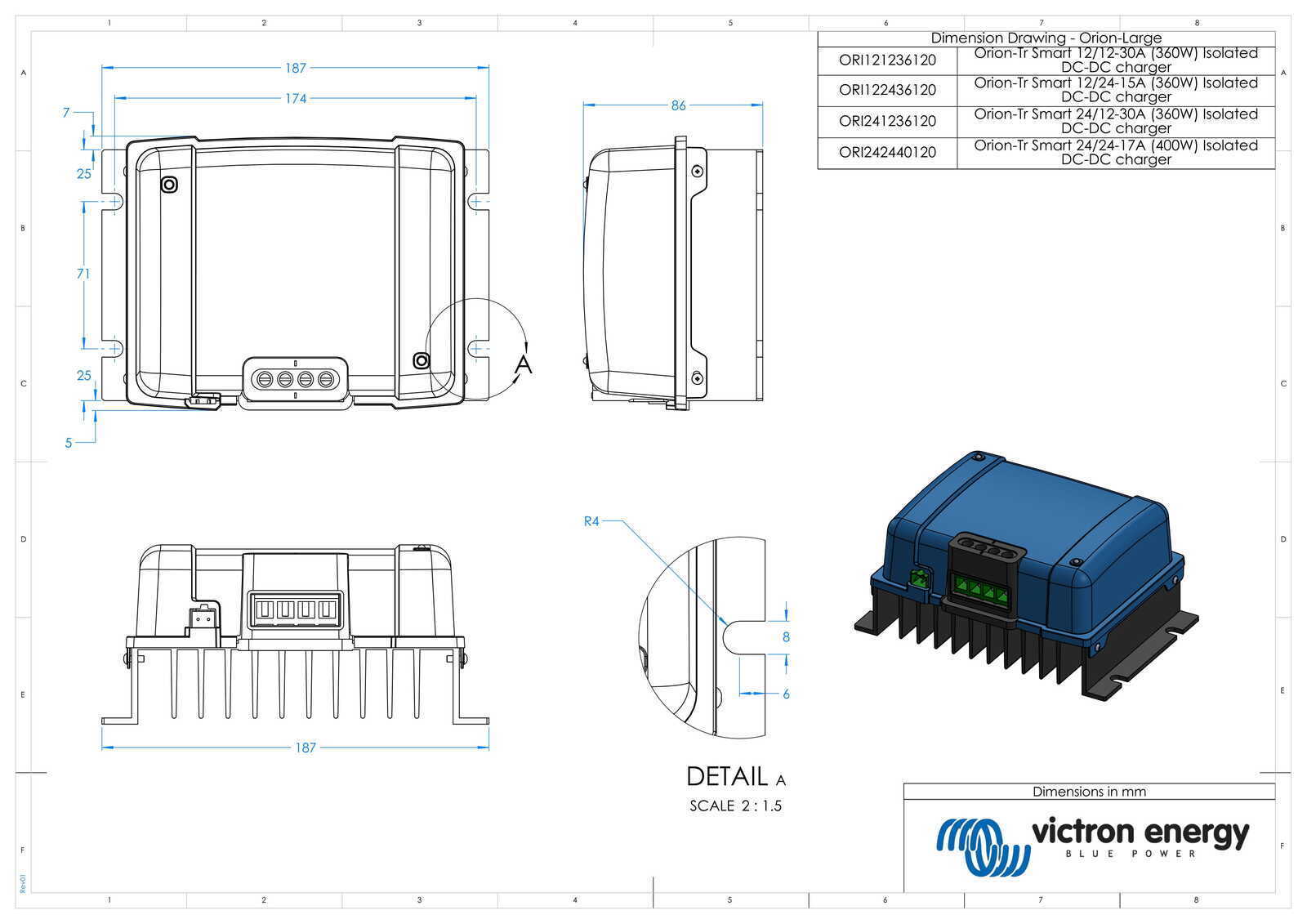

| Dimensions hxwxd |
130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) |
| Standards: Safety, Emission, Immunity, Automotive Directive |
EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5 |
- If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than the nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.
Note 1) The VictronConnect App will not display current in or current out.
Note 2) The Orion-Tr Smart Charger is not equipped with a VE.Direct port.
