{tab Features}
Security for every hour and every day. 24/7 Continuous Recording Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
Every angle all on one screen. 16-Channel Real-Time Live View Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
Reviewing footage is faster than ever. Quick Lookup&Playback Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly reviewfootage.
Keep an eye on things even when you are on the move. Remote Monitoring Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
More compression. More savings. Same quality. Smart Video Coding by H.265+ Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No need to check long compatibility lists. ONVIF Ensures Compatibility Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

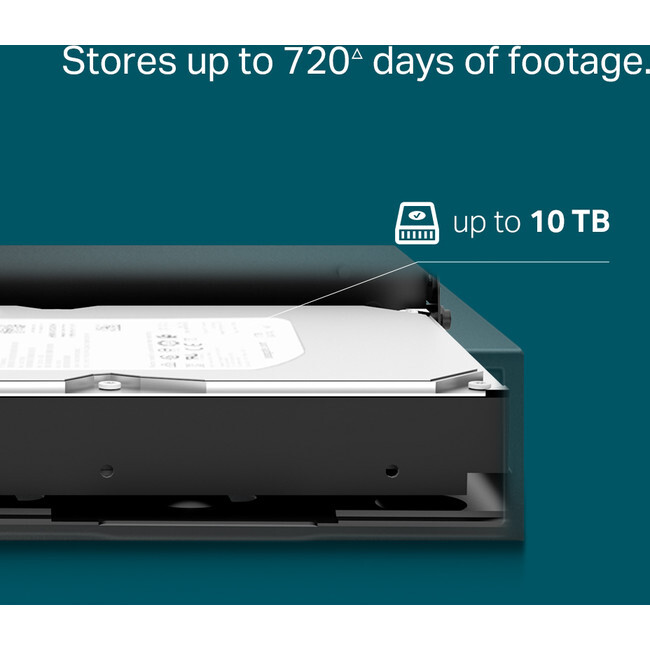

Up to 720 days of footage stored locally. 1 HDD (up to 10 TB) Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.
Greet your visitors before they enter. Two-Way Audio With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
More bandwidth for more cameras. 80 Mbps Video Access Bandwidth High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 16× 4MP cameras.
{tab Specifications}
NETWORK | |
---|---|
Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
Incoming Bandwith | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
GENERAL | |
---|---|
Operating Temperature | -10–55 °C |
Dimensions( H X W X D ) | 246.2 × 148.2 × 45 mm |
Weight | 578.5 g |
External Power Supply | 12V DC/1.5 A |
Power Consumption | 4.25 W (without disk) 13.10 W (with disk) |
VIDEO/IMAGE | |
---|---|
Video Input | 16-Channel IP Video Input, up to 8 MP Resolution |
Video Output | Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz |
DECODING | |
---|---|
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Live View/Playback Resolution | 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | 1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP |
HARD DISK | |
---|---|
SATA | 1 SATA Interface |
Capacity | Up to 10 TB |
INTERFACES | |
---|---|
Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 2× USB 2.0 |
