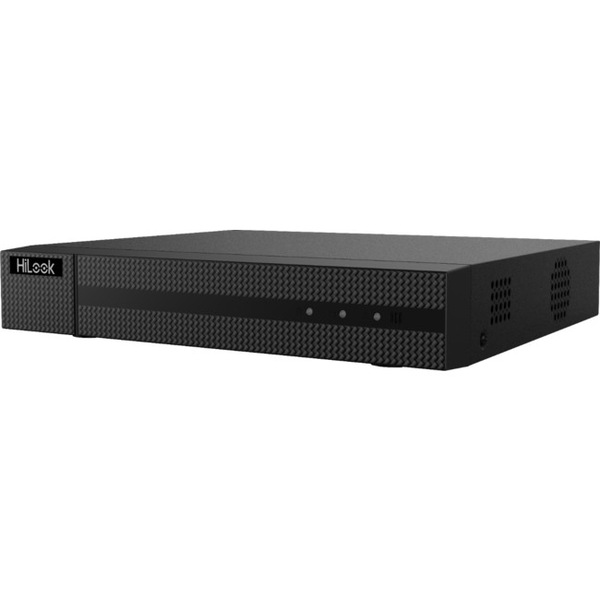

HILOOK 208U-M1 8Ch Hybrid 5 In 1 Network DVR 8Mp 1U H.265

HILOOK 208U-M1 8Ch Hybrid 5 In 1 Network DVR 8Mp 1U H.265

Hurry! 1 items left!

Price	$342
	Collect 1026 Everyday Rewards points Score 3x points on every order Ends 11:59pm 16/02/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Features

HiLook 8CH HD DVR, HD-TVI/AHD/CVI/CVBS/IP 5 in 1, 4-ch IP video input( up to6MP), 5MP@12fps,4MP@15fps,3MP@18fps,1080p@25fps, 1x SATA

Deep learning based human and vehicle targets classification of Motion Detection 2.0
8 analog channels and 1 HDD 1U DVR
Efficient H.265 Pro+ compression technology
Up to 8 MP@8 fps and 5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 16 network cameras can be connected.

Specifications

Motion Detection 2.0
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
	Quick search by object or event type is supported;
Recording
Video Compression	H.265 Pro /H.265 Pro/H.265/H.264 /H.264
Encoding Resolution	8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream:
	8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps
	1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
	Sub-stream:
	WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 10 Mbps
Dual-Stream	Support
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Video And Audio
IP Video Input	4-ch (up to 12-ch)
	Enhanced IP mode on:
	8-ch (up to 16-ch), each up to 4 Mbps
	Up to 8 MP resolution
	Support H.265 /H.265/H.264 /H.264 IP cameras
Analog Video Input	8-ch
	BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
HDTVI Input	8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input	5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input	4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input	PAL/NTSC
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	1-ch, RCA (2.0 Vp-p, 1 K)
	8-ch via coaxial cable
Audio Output	1-ch, RCA (Linear, 1 K)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 K) (using the audio input)
Synchronous Playback	8-ch
Network
Total Bandwitch	128 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface	1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection	64
Auxiliary Interface
SATA	1 SATA interface
Capacity	Up to 10 TB capacity for each disk
USB Interface	Real panel: 2 × USB 2.0
Alarm In/Out	N/A
General
Power Supply	12 VDC, 2A
Consumption	≤10 W (without HDD)
Working Temperature	-10 °C to 55 °C ( 14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	265 x 225 × 48 mm (10.4 × 8.9 × 1.9inch)
	≤ 1 kg (2.2 lb.)

Weight: 1.46
