TP-Link VIGI NVR1004H VIGI 4 Channel Network Video Recorder, 4-Channel Live View

TP-Link VIGI NVR1004H VIGI 4 Channel Network Video Recorder, 4-Channel Live View

Be the first to review this product

Hurry! 15 items left!

Price	$93.08
	Collect 93 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

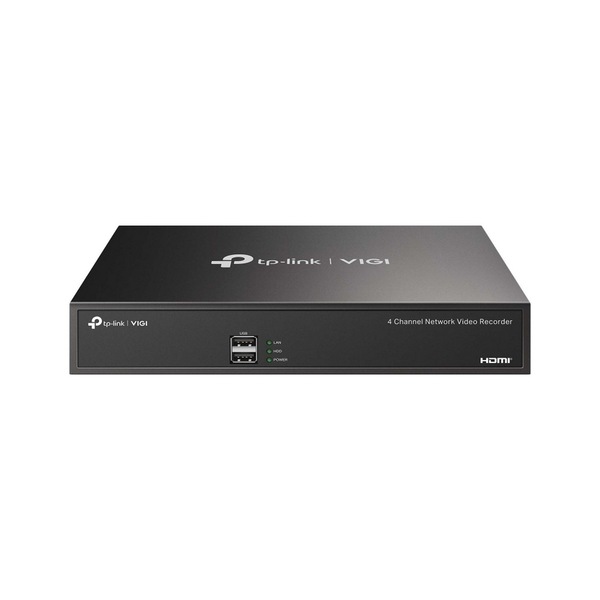

TP-Link VIGI NVR1004H, VIGI 4 Channel Network Video Recorder

Features:

4-Channel Live View and 4K HDMI Video Output
2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
4-Channel SynchronousPlayback†
80 Mbps Incoming Bandwidth and60 Mbps Outgoing Bandwidth
1 SATA Interface (up to 10 TB) *
H.265+ Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring

Specifications:

Video and Audio

IP Video Input :4-Channel
Incoming Bandwidth :80 Mbps
Outgoing Bandwidth :60 Mbps
HDMI Output Resolution :1 Channel, Resolution: 3840 x2160/30Hz, 1920 x 1080/60Hz, 1680x 1050/60Hz, 1440 x 900/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
VGA Output Resolution :1 Channel, Resolution: 1920 x 1080/60Hz, 1680x 1050/60Hz, 1440 x 900/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output Mode :HDMI/VGA Simultaneous Output
Multi-View Display :1/4

DECODING

Audio Compression :G.711A/G.711U/G.726
Video Compression :H.265+/H.265/ H.264+/H.264
Record Resolution :8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback :4-Channel
Capability :2-ch @ 8MP, 4-ch @ 4MP

Record Management

Record Mode :Manual Recording
Scheduling Recording
Motion Detection Recording
Playback Mode :Instant Playback
Regular Playback
Tag Playback
Event Playback
Backup Mode :Regular Backup
Video Clip Backup
Playback Function :Play
Pause
Stop
Fast Forward
Fast Backward
Play By Frame
Full Screen
Video Clip
Export Clip
Digital Zoom
Lock Recording
Audio On/Off

NETWORK

Protocol :UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access :Android, iOS
Web Browser :Chrome (57+), Firefox (52+), Edge (91+)
Interoperability :ONVIF, CGI

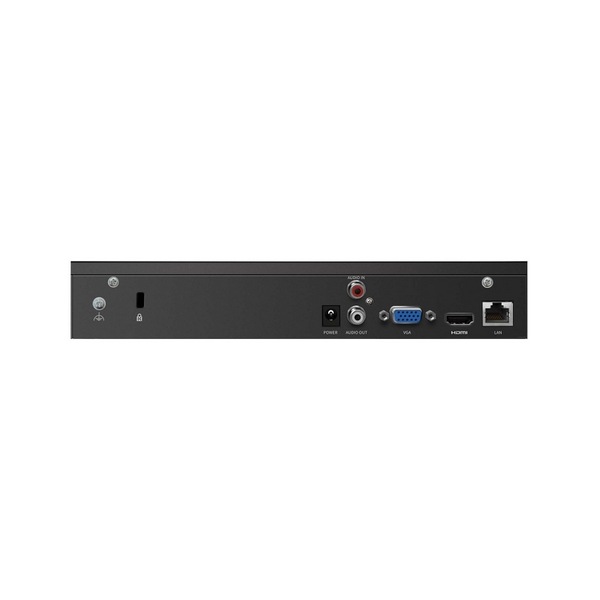

External Interface

Network Interface :1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface :2x USB 2.0
Audio Interface :1, Audio In; 1, Audio Out
Alarm In/Out :N/A
Serial Interface :N/A
Power :1x DC Jack
Reset Button :1
Speaker :N/A
eSATA :N/A
HDMI :1
VGA :1

HARD DISK

SATA :1 SATA Interface
Capacity :Up to 10 TB Capacity for Each HDD*

Alarm

General Alarm :Motion Detection
Video Tampering
Line-Crossing Detection
Intrusion Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned/Removal Detection
Vehicle Detection
Human Detection
Smart Frame
Anomaly Alarm :Video Loss
Offline and IP Conflict
Disk Exception
Login Exception
Alarm Linkage :Recording
White Light Alarm
Buzzer
Log
Audible Alarm

GENERAL

Storage Temperature :-40-70 °C
Storage Humidity :10%~90% RH Non-Condensing
Package Contents :VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Rubber Feet
Quick Installation Guide
Working Temperature :NVR: -10-55 °C
Power Adapter: 0-40 °C
Working Humidity :10%~90% RH Non-Condensing
Dimensions( W X D X H ) :246.2 x 148.2 x 45 mm
External Power Supply :DC 12V/1.5A
Net Weight :0.59 kg
Gross Weight :0.95 kg
Power Consumption :4.25 W (Without Disk)
Certifications :CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

SKU: NVR-TPL-1004H
