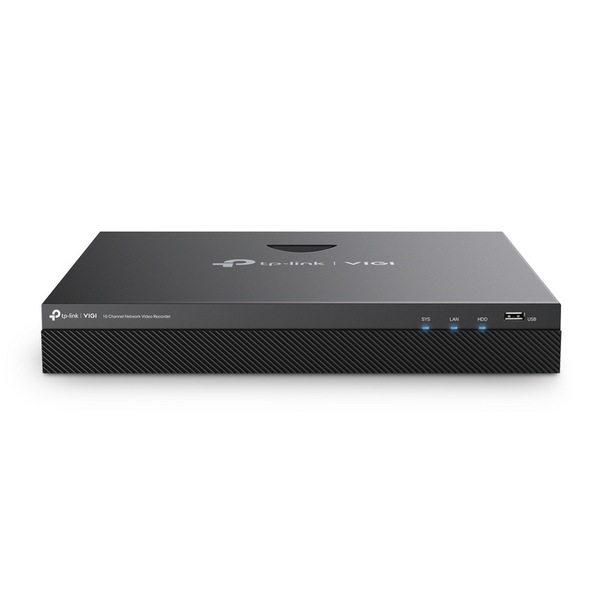

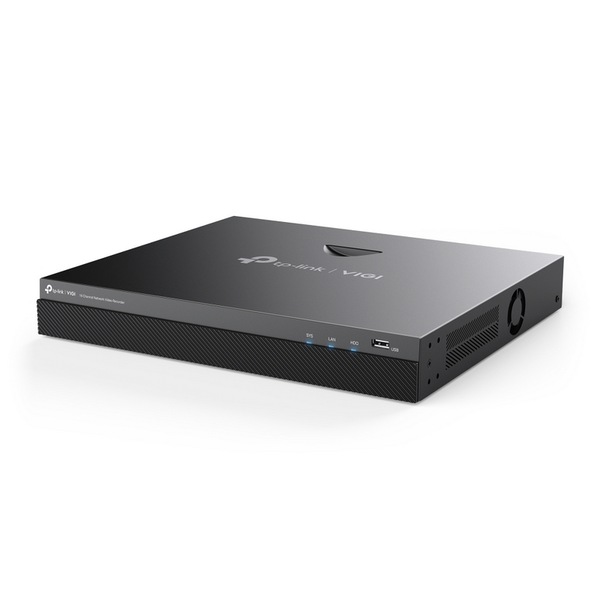

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder, 4K Out, 16MP Decode

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder, 4K Out, 16MP Decode

Be the first to review this product

Hurry! 1 items left!

Price	$205.63
	Collect 205 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

TP-Link VIGI NVR2016H, VIGI 16 Channel Network Video Recorder

Features:

4K HDMI Video Output &16MP Decoding Capacity:Sharp image definition up to 8MP, and 8-ch@2MP†decoding capacity allows you to enjoy more-channels live view and playback at the same time.
16-Channel Simultaneous Playback*:Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+:Compressesthe video size without sacrificing video quality, easing the networkload and savingdisk space.
ONVIF Ensures Compatibility?:Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Plug & Play:Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
24/7 Continuous Recording:Stores up to 20 TB of footage (1048 storage days†)from connected cameras to secure your data for quick, convenient access.
Two-Way Audio:With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Monitoring:The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

Specifications:

Video and Audio

IP Video Input :16-Channel
Incoming Bandwidth :80 Mbps
Outgoing Bandwidth :60 Mbps
HDMI Output Resolution :1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution :1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode :HDMI/VGA Simultaneous Output
Multi-View Display :1/4/6/8/9/16

DECODING

Audio Compression :G.711A/G.711U/G.726
Video Compression :H.265+/H.265/ H.264+/H.264
Record Resolution :8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback :16-Channel
Capability :25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
30fps:
4-ch @ 3MP, 2-ch @ 5MP

Record Management

Record Mode :Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode :Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode :Regular Backup, Video Clip Backup
Playback Function :Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

NETWORK

Protocol :UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access :Android, iOS
Web Browser :Chrome (57+), Firefox (52+), Edge (91+)
Interoperability :ONVIF, CGI

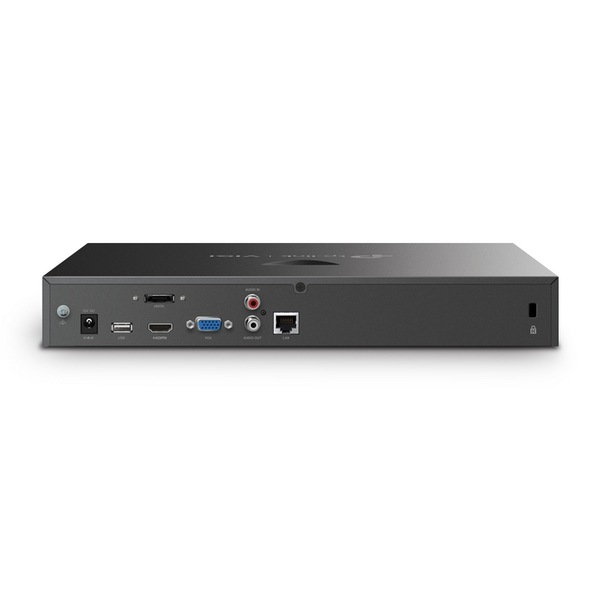

External Interface

Network Interface :1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface :1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface :1, Audio In; 1, Audio Out
Alarm In/Out :N/A
Serial Interface :N/A
Power :1x DC Jack
Reset Button :1
Speaker :N/A
eSATA :1
HDMI :1
VGA :1

HARD DISK

SATA :2 SATA Interfaces
Capacity :Up to 10 TB Capacity for Each HDD

Alarm

General Alarm :Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
Anomaly Alarm :Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage :Recording, White Light Alarm, Buzzer, Log, Audible Alarm

GENERAL

Storage Temperature :-40-70 °C
Storage Humidity :10%~90% RH Non-Condensing
Package Contents :VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
Working Temperature :NVR: -10-55 °C
Power Adapter: 0-40 °C
Working Humidity :10%~90% RH Non-Condensing
Dimensions( W X D X H ) :330 x 285 x 45 mm
Net Weight :1.9 Kg
Gross Weight :3.2 Kg
Power Supply :12V DC/3.3A
Power Consumption :4.78 W (Without Disk)
24.16 W (With Disk)
Certifications :CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

SKU: NVR-TPL-2016H
