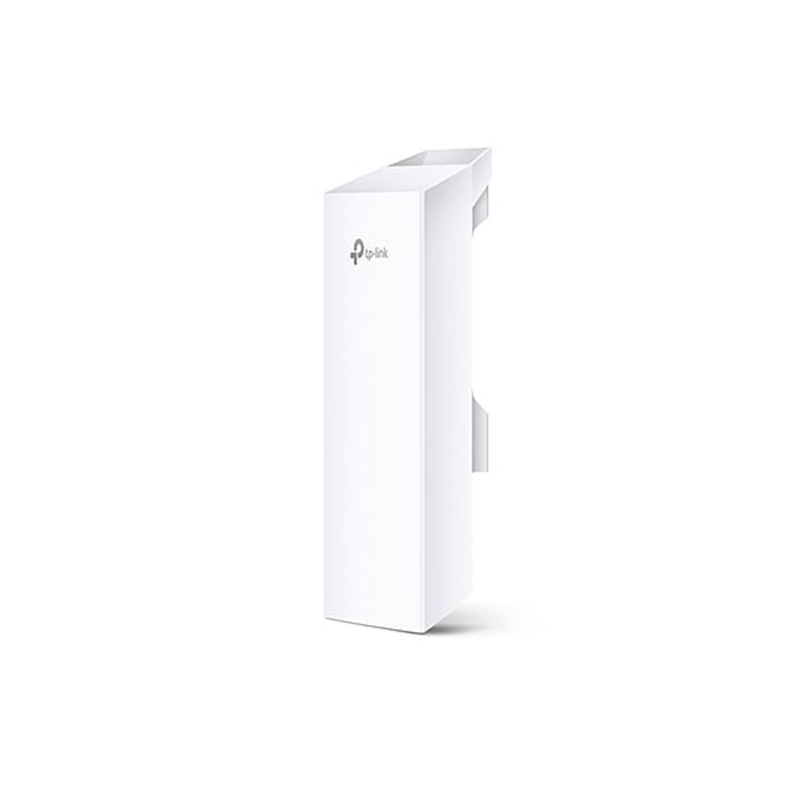

TP-Link CPE510 5GHz 13dBi 300Mbps Outdoor CPE

TP-Link CPE510 5GHz 13dBi 300Mbps Outdoor CPE



TP-Link CPE510 5GHz 13dBi 300Mbps Outdoor CPE

5.0Ghz, 300Mbps, 13dBi, Up to 15km Wireless Transmission


What this product does

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware Design

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed  enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating  temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference. High Power & High SensitivityIn advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.Professional Outdoor Design

CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.

Weatherproof DesignWith its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C). Double Protection against ESD AttacksBesides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

15km+ Wireless Data TransmissionSpecially designed for outdoor uses, ideal for long distance wireless data transmission over 15km+, tested in the field.Pharos Control – Centralized Management System

CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS

User-friendly web-based management system allows professionals to apply more specific configurations

 Features:

  • Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimization for more than 15km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Outdoor stabilized enclosure with IPX5 waterproof certification
  • Dual Ethernet ports and grounding terminal integrated
  • 6000V Lightning Protection, 15KV ESD Protection
  • Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
  • Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
  • Selectable bandwidth of 5/10/20/40MHz
  • Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
  • Easy antenna alignment with wireless signal quality indicators via Web interface
  Specifications:HARDWARE FEATURESProcessorMemoryInterfaceDimensions ( W x D x H )Antenna TypeProtectionPower ConsumptionPower SupplyEnclosure
Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
64MB DDR2 RAM, 8MB Flash
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
224 x 79 x 60 mm
Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
15KV ESD Protection
6000V Lightning Protection
13 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURESWireless StandardsProprietary ProtocolWireless SpeedsFrequencyReception SensitivityTransmission Power
IEEE 802.11a/n (with Pharos MAXtream disabled)
TDMA Mode (with Pharos MAXtream enabled)
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
• 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
• 802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURESWireless ConfigurationsManagementSystem ToolsSystem-level Optimizations
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
OTHERSCertificationPackage ContentsSystem RequirementsEnvironmentWarranty
CE, FCC, RoHS, IPX5
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Operating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
2 years limited warranty. Advanced replacement service is available.
POE ADAPTER FEATURESButtonCertificationsDimensions(W x D x H)EfficiencyInputInput CurrentInput VoltageInterfacesOutputOutput VoltagePower Status LEDs
Remote Reset Button
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
110*57*33.5mm
>80%
100-240VAC, 50/60Hz
0.8A Max @ 100VAC
100VA~240VAC @ 50Hz~60Hz
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
24VDC(+4,5pins; -7,8pins)
0~0.8A: Green
0.8A~1.0A: Red


Product Specifics
SpecificationValue
MPNCPE510
Product ConditionBrand New/Unused
SKU219429
GTIN: 06935364070922
